>>Your Current Position: PC chassis





PC chassis Model: A02

A02 MINI-ITX Chassis Series Case

Key Specifications/Special Features: Model No.: A02

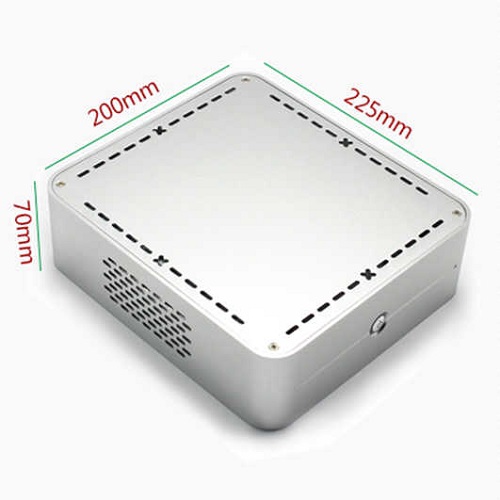

Case dimensions(mm): 225x200x56/80
A02-H56 (height 56mm, standard model)
A02-H70 (height 70mm)
A02-H80 (height 80mm, support DVD bay)
Color: gray, black, white or other
Main board size(mm): 170x170
All aluminum material with EMI approval

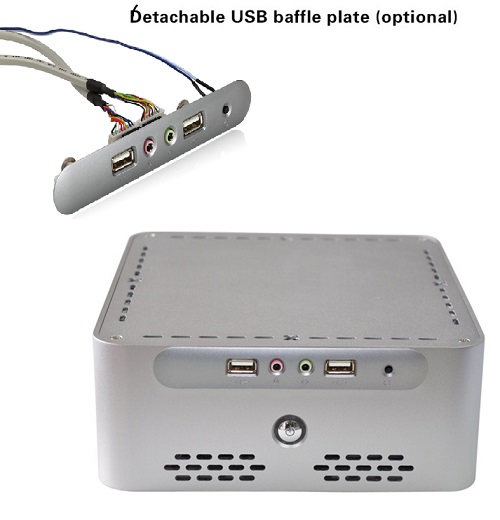

Front port: 2*USB,1*POWER_SW,1*MIC,1*SPK
Application: HTPC
A02 spec

Material
 Alumium Alloy
Thickness
 3.5mm
Surface Treatment
 Sandblasting Oxidation

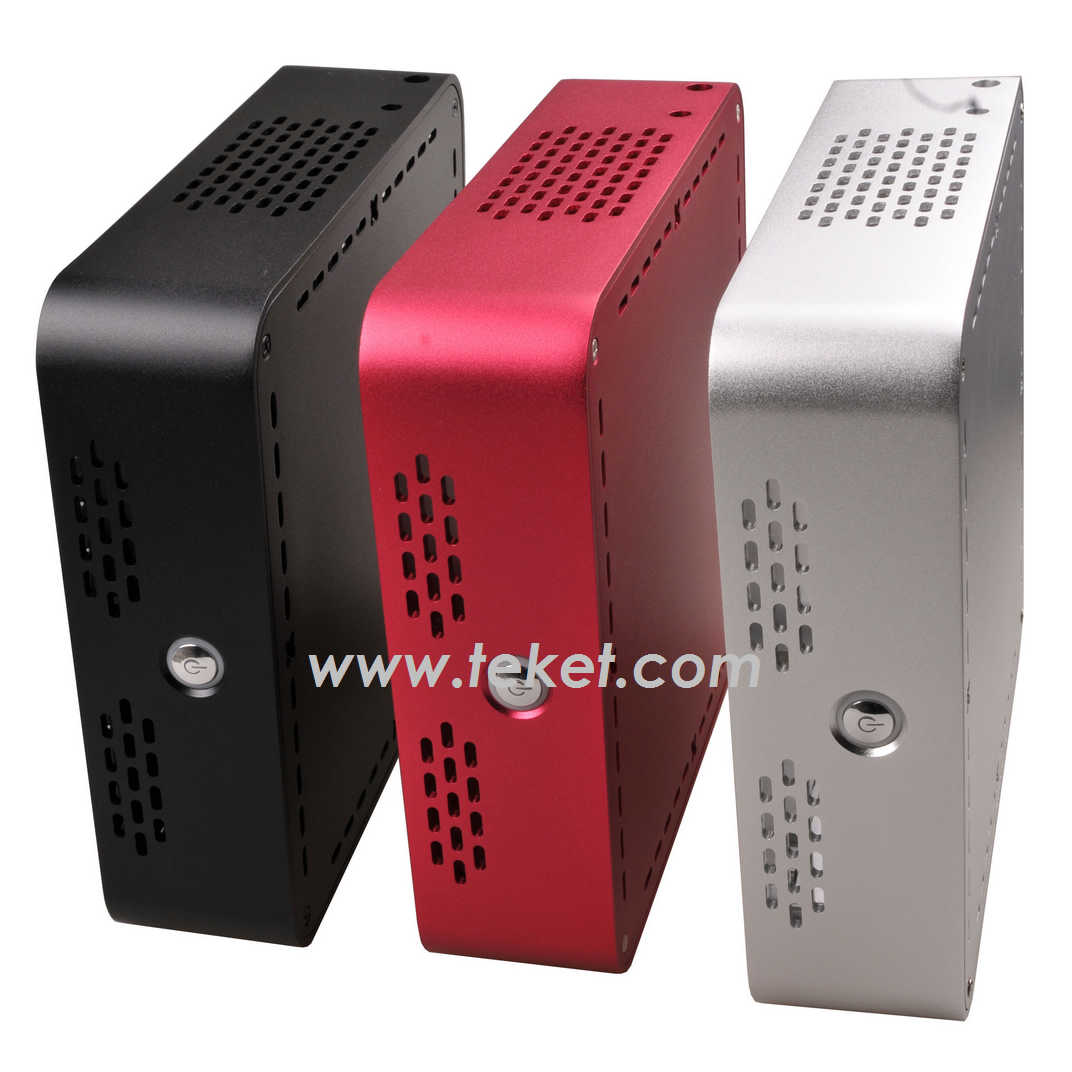

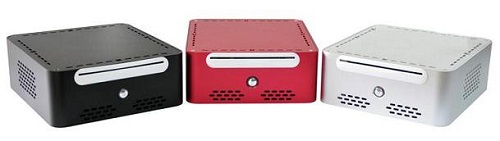

Color
 Red, Black, Silver
Size(mm)
W200*D225*H56/H70/H80
Package
 Each in paper box, Five boxes per carton
Net Weight
 1.15kgs(H56),1.25kgs(H70),1.45kgs(H80)
Gross Weight
 1.85kgs(H56),1.95kgs(H70),2.15kgs(H80)
Radiator Height (H56)

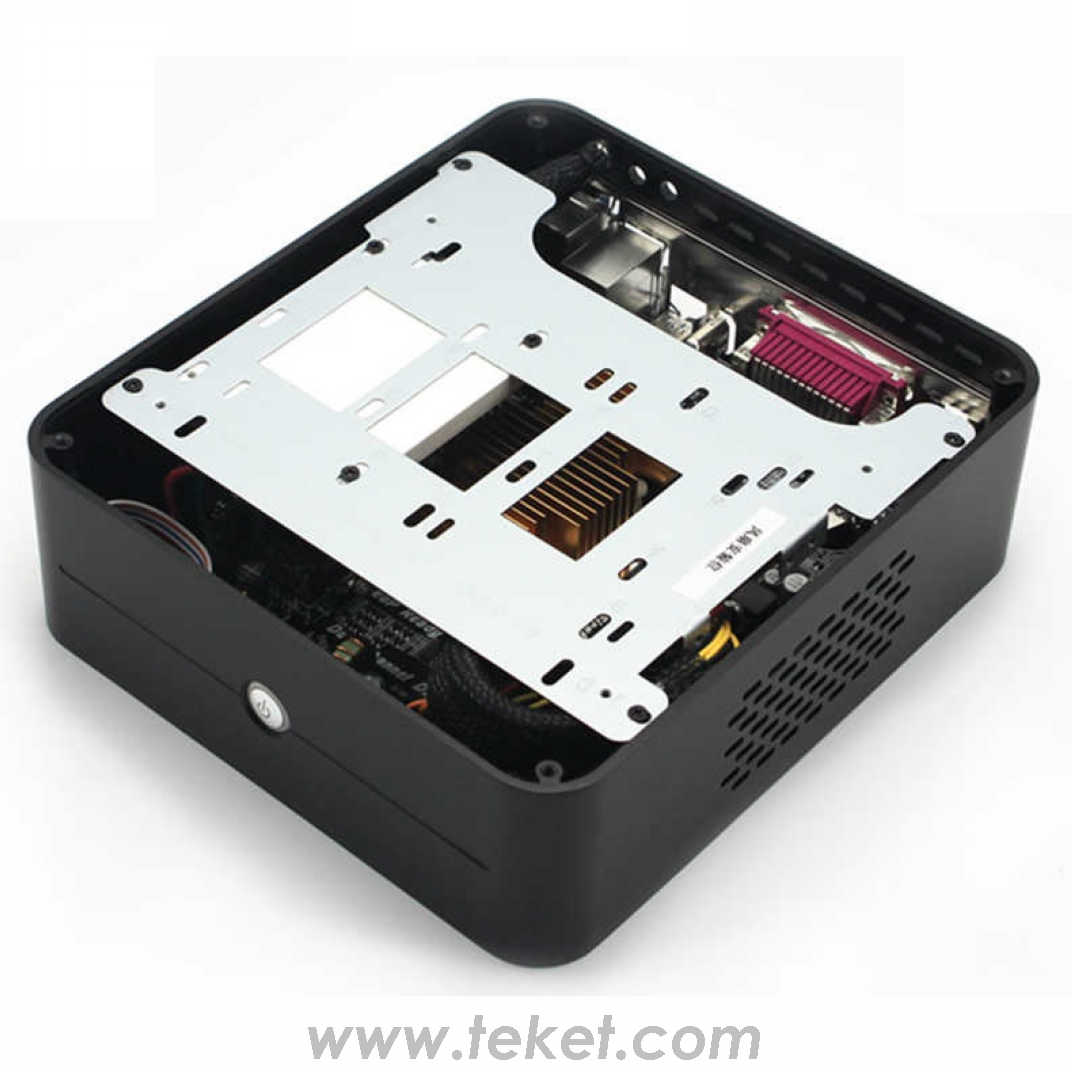

 1 M/B Radiator Height Under 20mm, Install 1*3.5" HDD or 2*2.5" HDD
2 M/B Radiator Height Under 32mm, Install 2*2.5" HDD
Radiator Height (H70)
 1 M/B Radiator Height Under 34mm , Install 1*3.5"HDD or 2*2.5 "HDD
2 M/B Radiator Height Under 46mm ， Install 2*2.5" HDD
Radiator Height (H80)

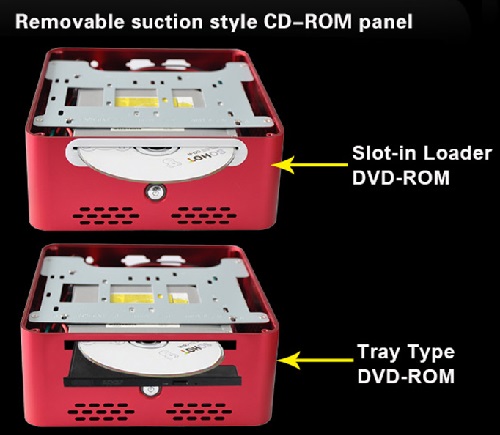

 1 M/B Radiator Height Under 24mm ,Install 1 Slim ODD, 1*3.5" HDD or 1*2.5" HDD
2 M/B Radiator Height Under 29mm ,Install 1 Slim ODD, 1* thin 3.5" HDD or 1*2.5" HDD
3 Without CD-ROM, Install 1*3.5" HDD or 2*2.5" HDD
DVD 0/1
Audio Output /Microphone Input
 0
USB 2.0/3.0
 2*USB 2.0 or 1*USB 2.0 and 1*USB 3.0(option)
2.5 Inches HDD
 1/2
3.5 Inches HDD
 0/1
Motherboard support
 170*170mm Mini ITX Motherboard
Power Supply

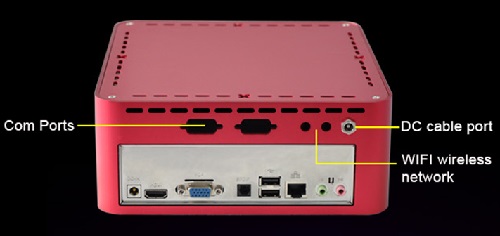

 DC-ATX or DC Power Module/DC onboard/12V 5A Power Adapter
I/O Shield
 1, 158*45mm
Packaging Each in paper box
 Size W255*D150*H270MM
Five boxes per carton
 NA
Fan(Optional)
 1, 5010/6010 Fan

Packaging Information
Packaging Detail: Each one in a paper box, 5 paper boxes per carton
Each in paper box (neutral)
 Five boxes per carton (neutral)
Size: W255*D150*H270
 Size: NA

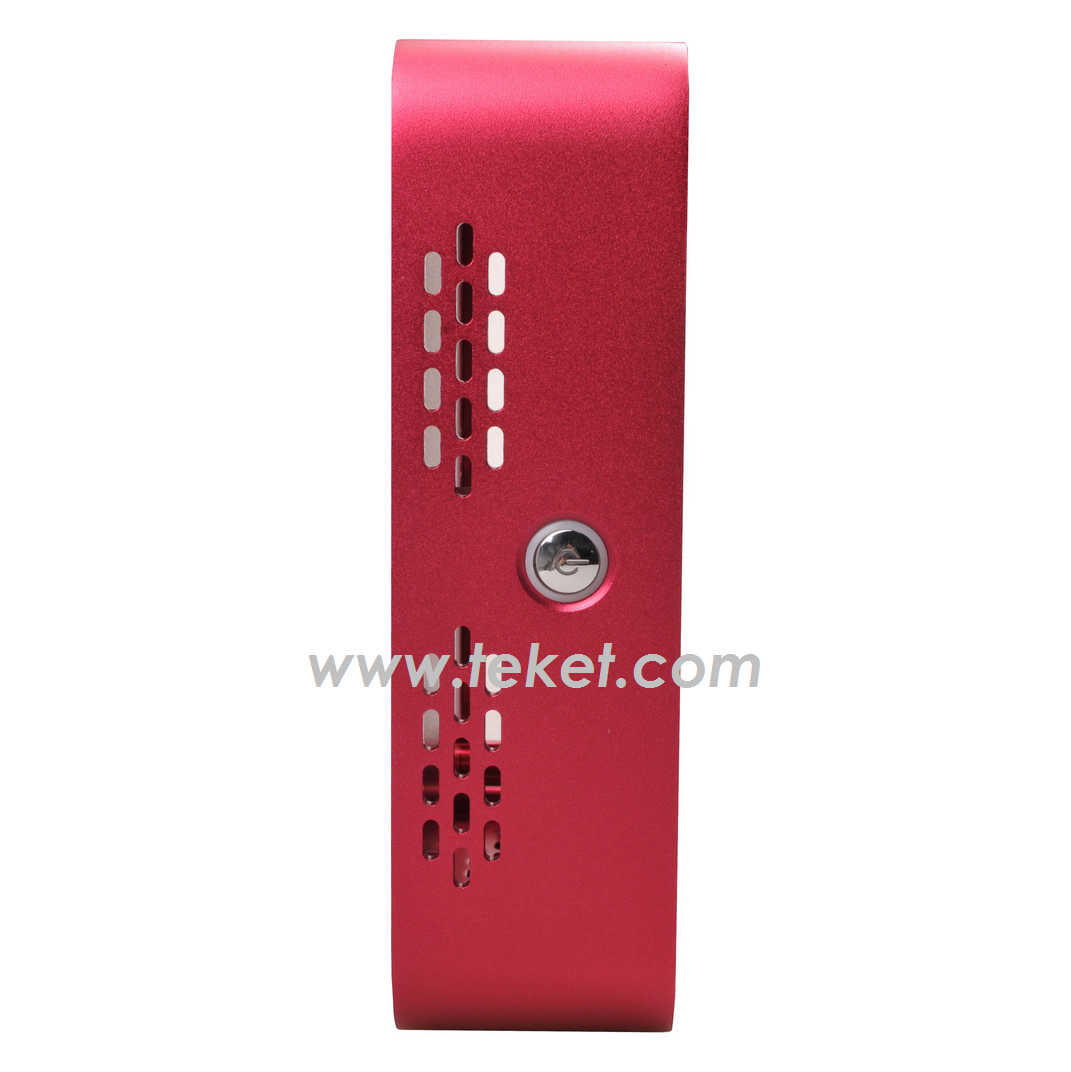

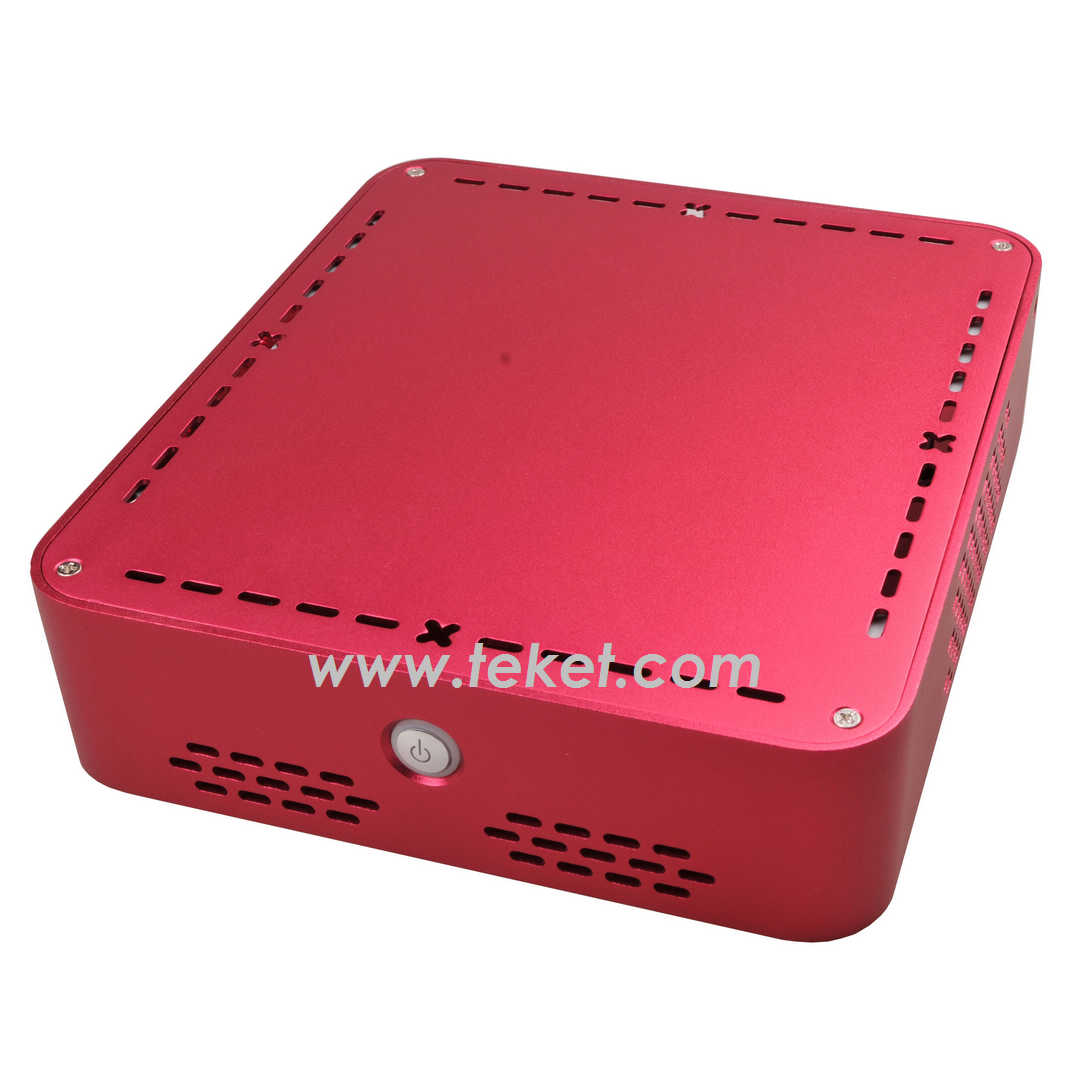

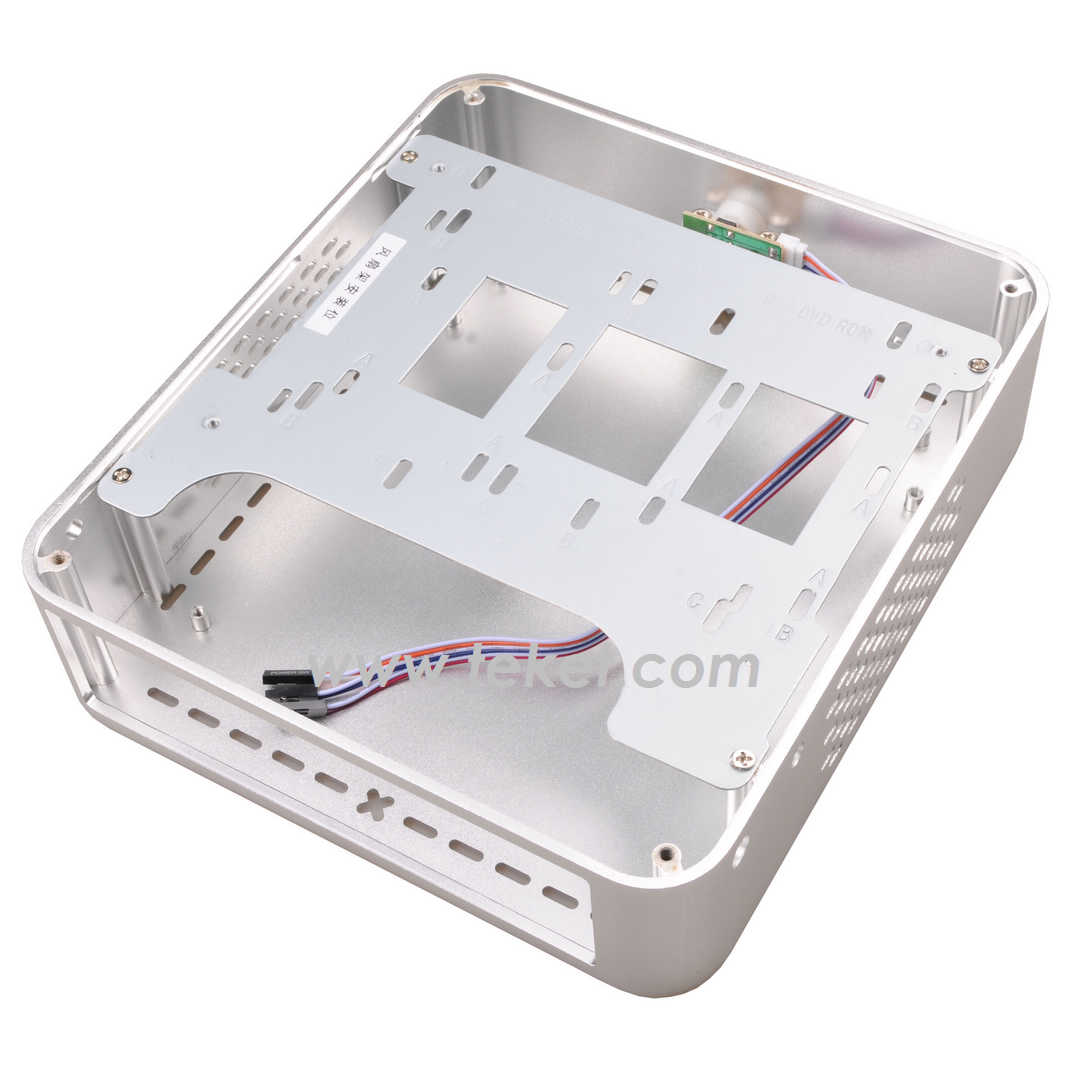

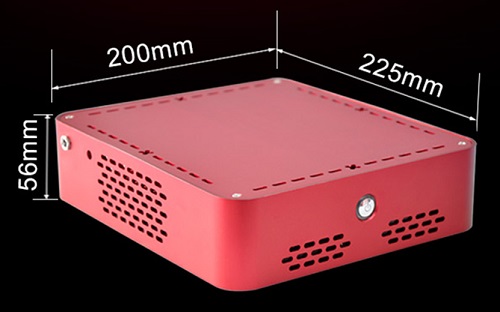

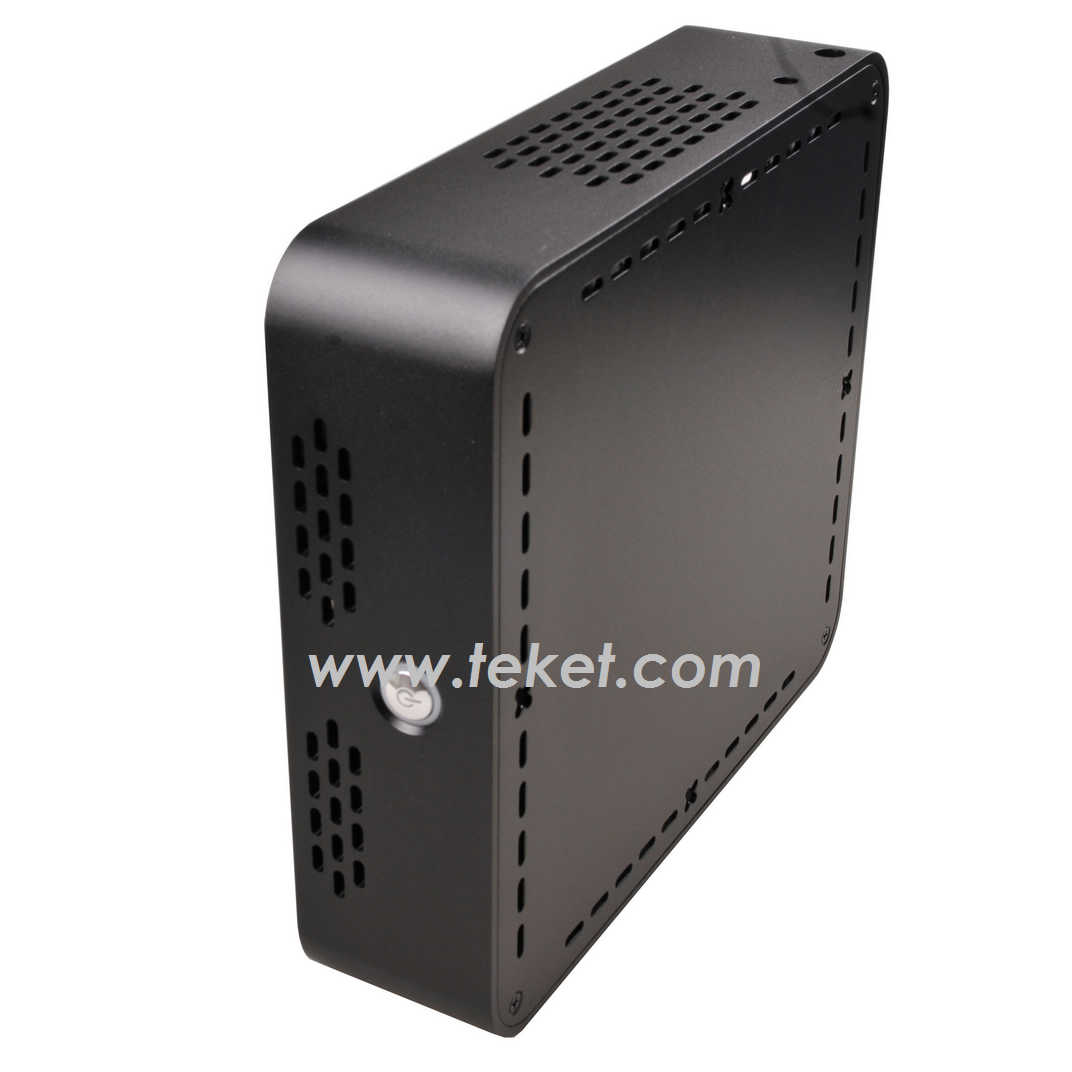

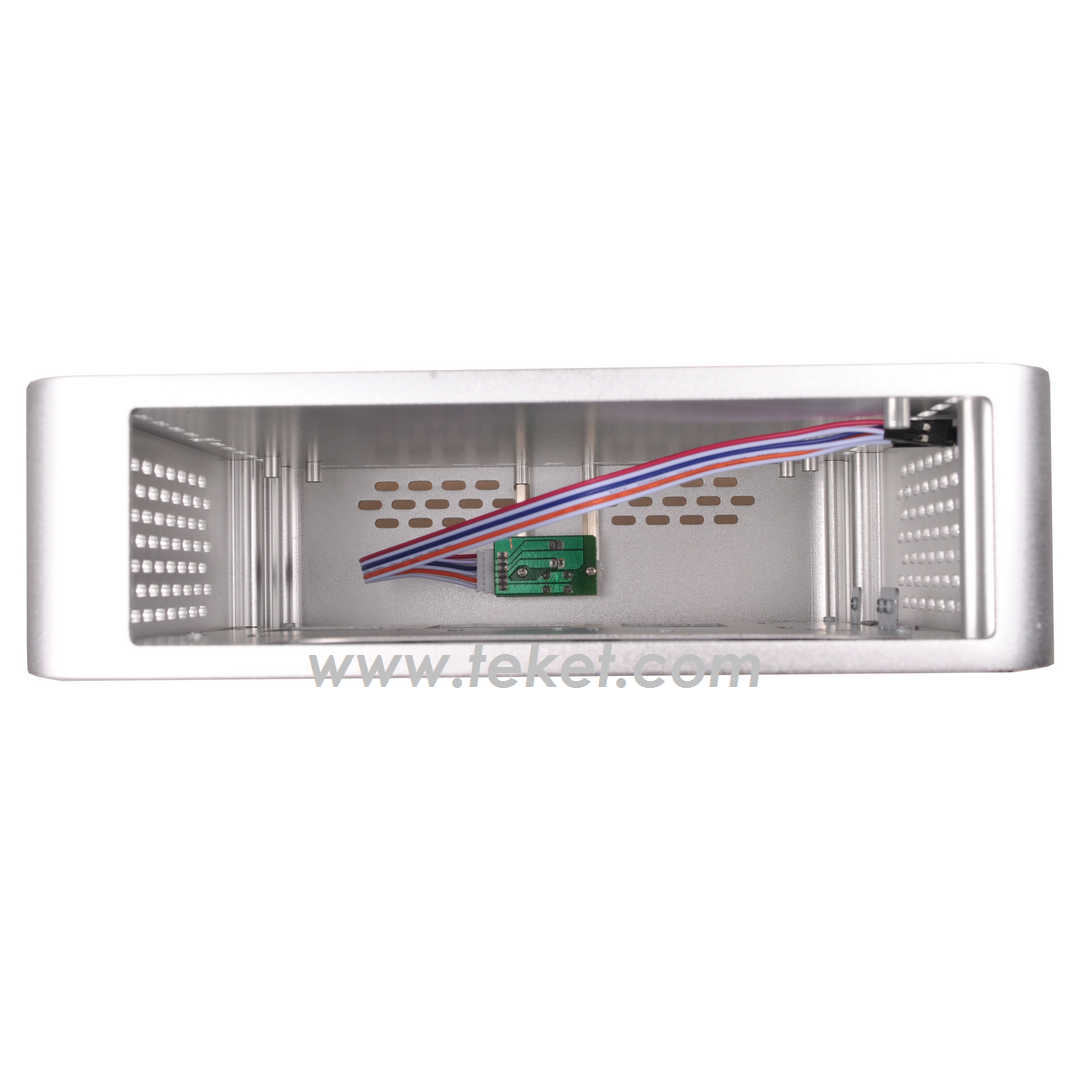

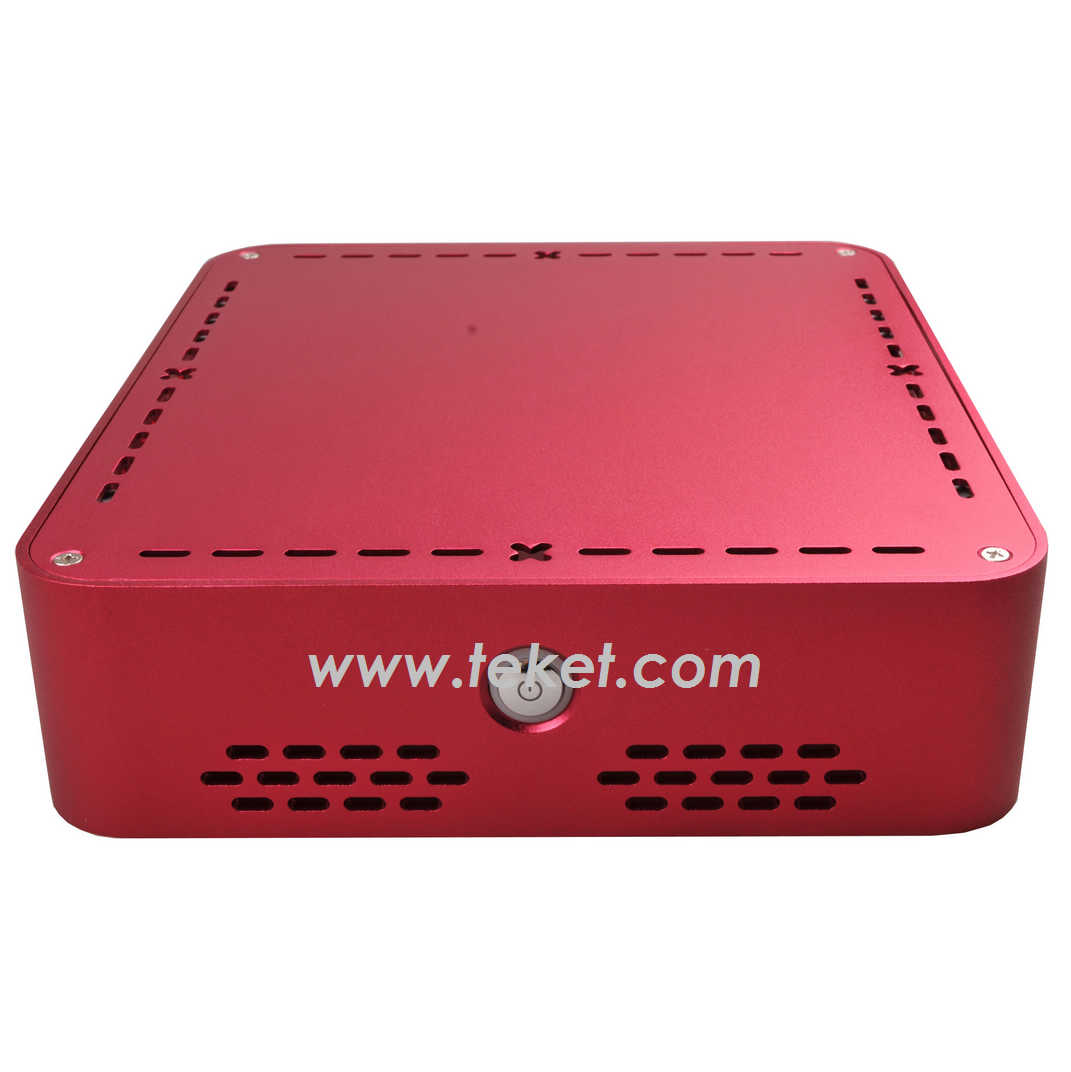

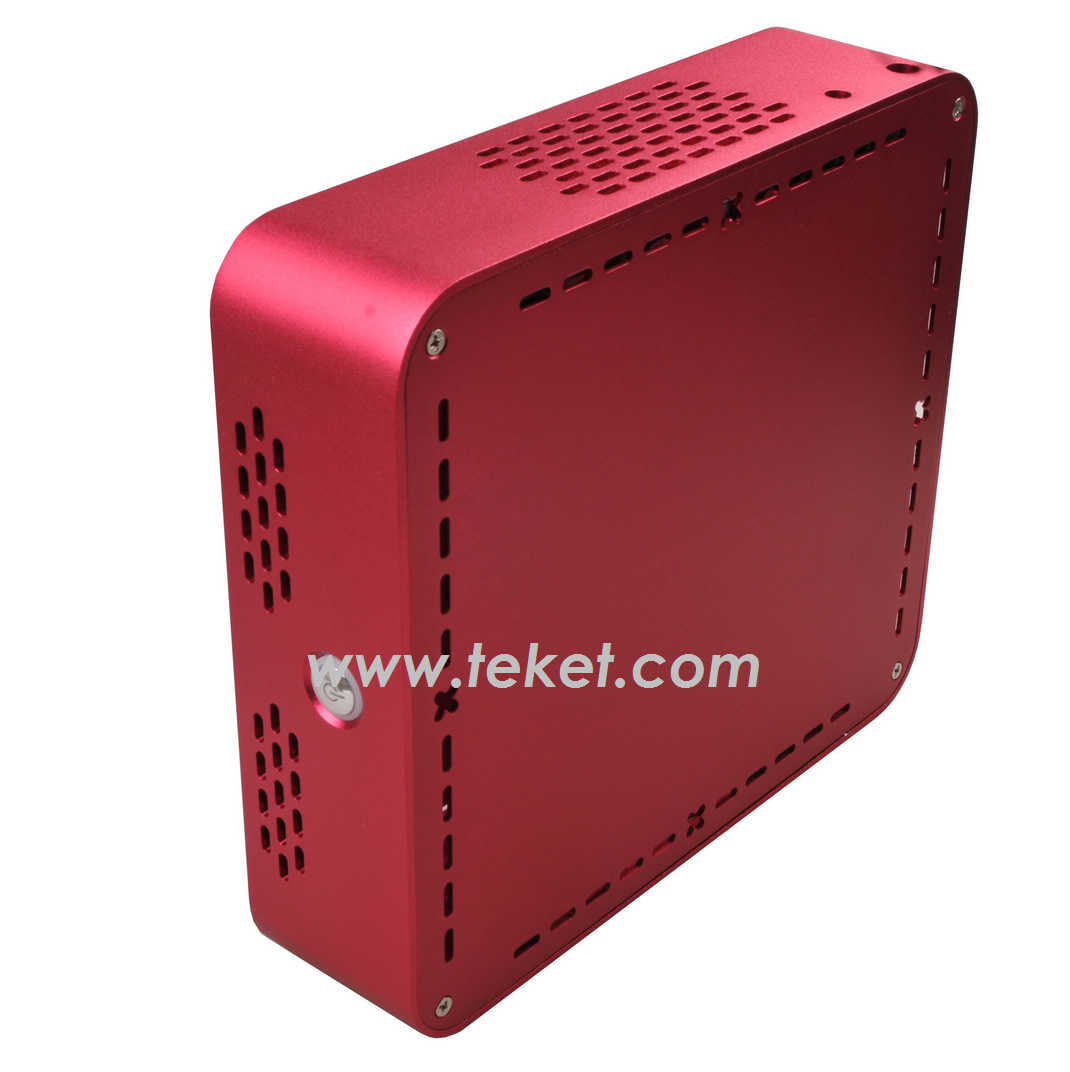

A02-H56 show

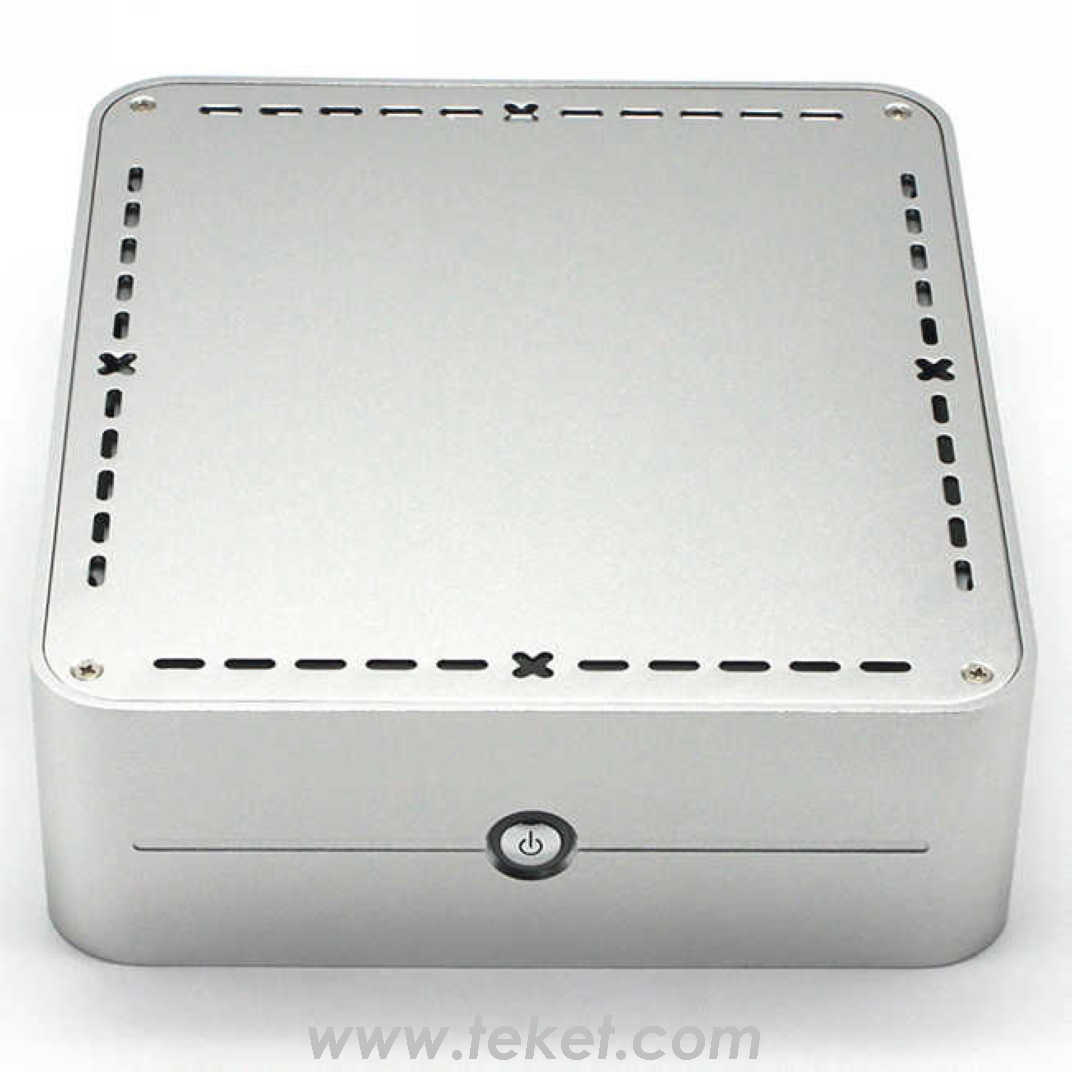

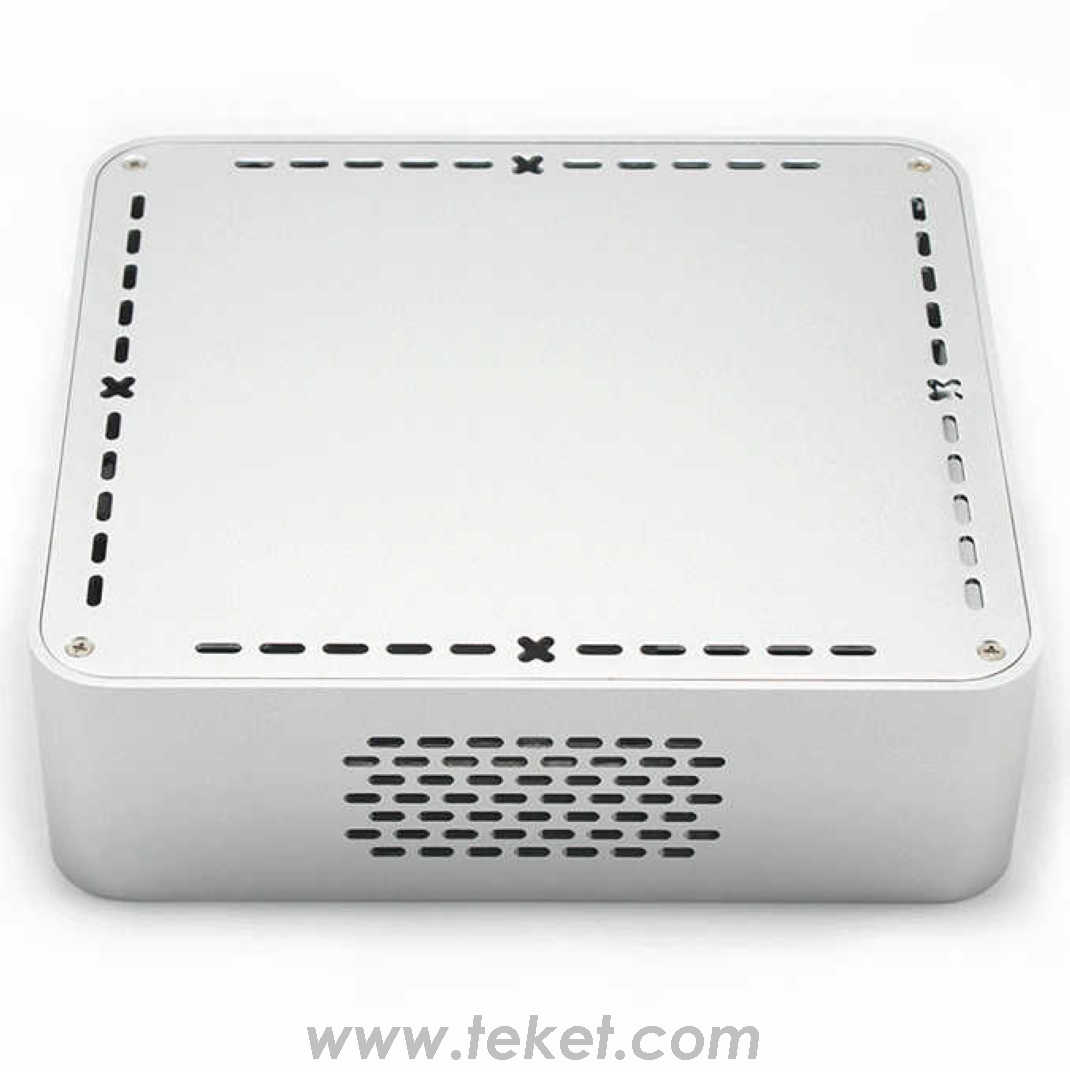

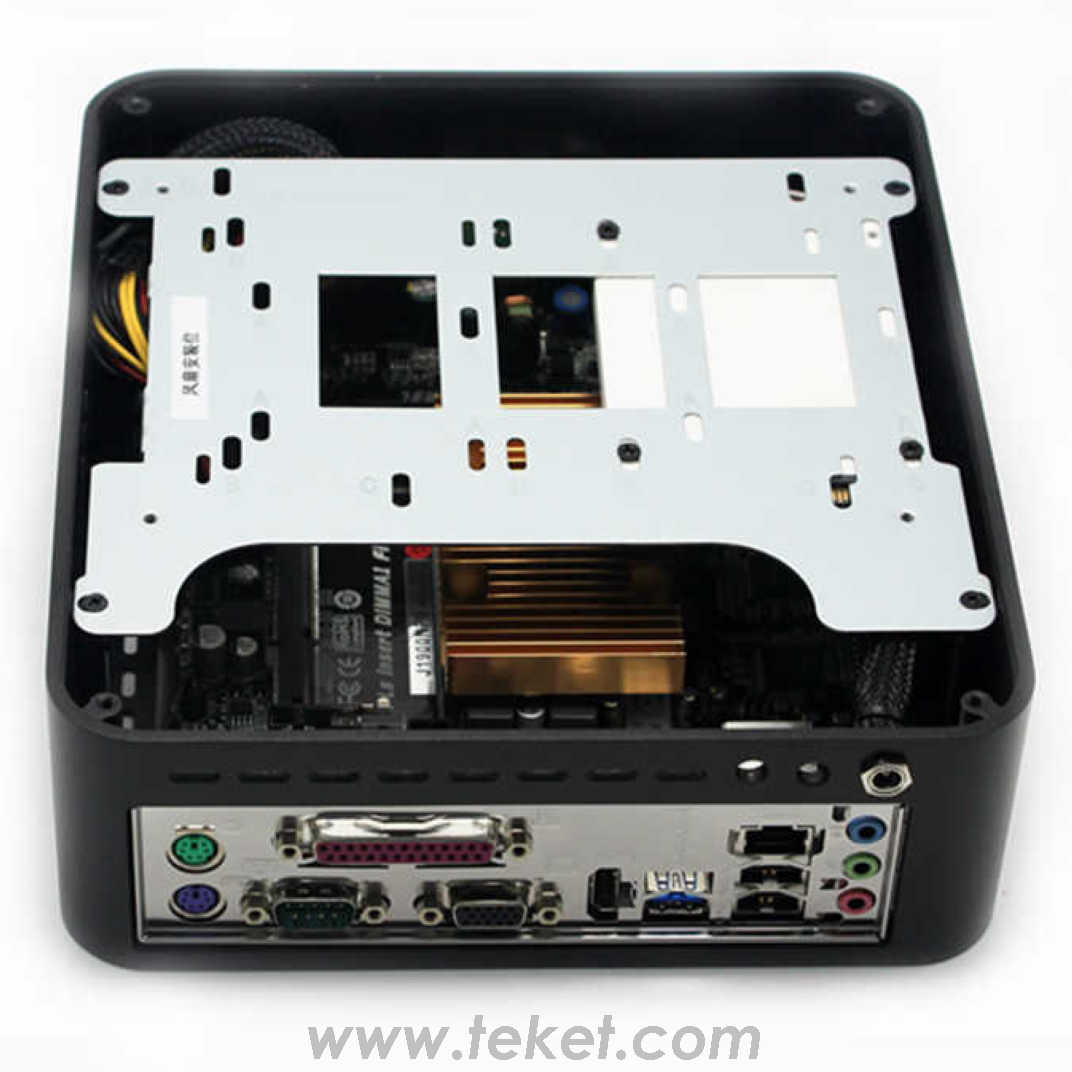

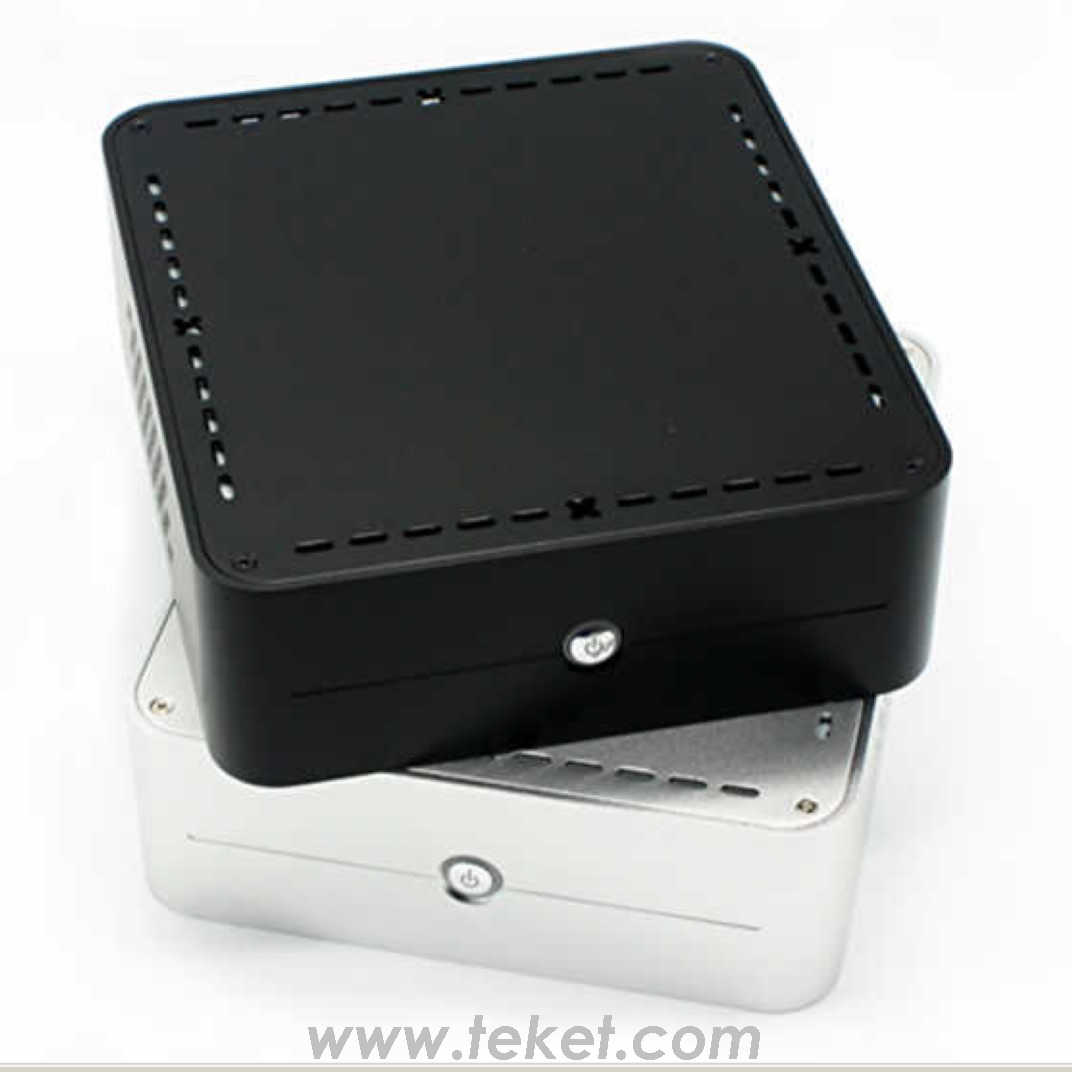

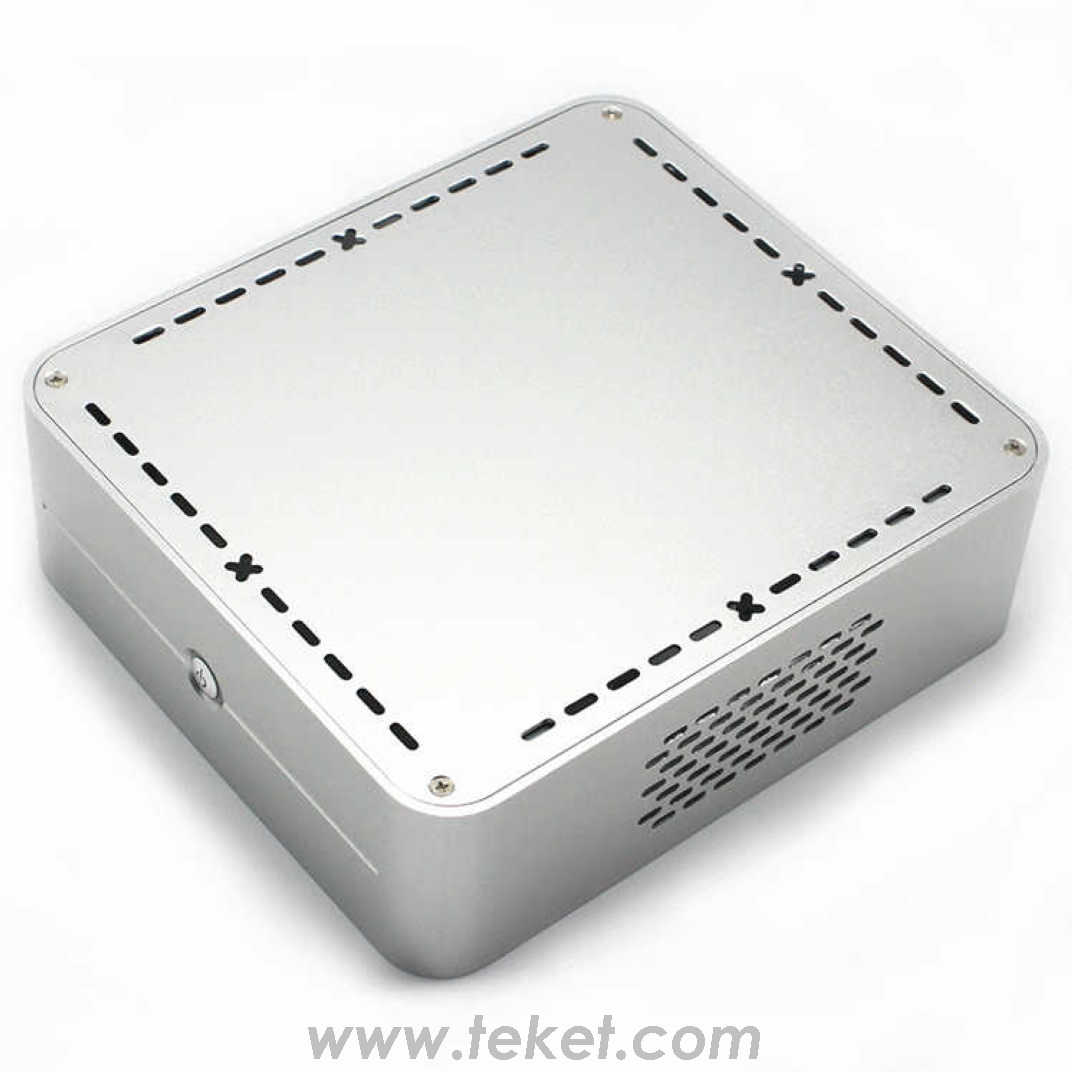

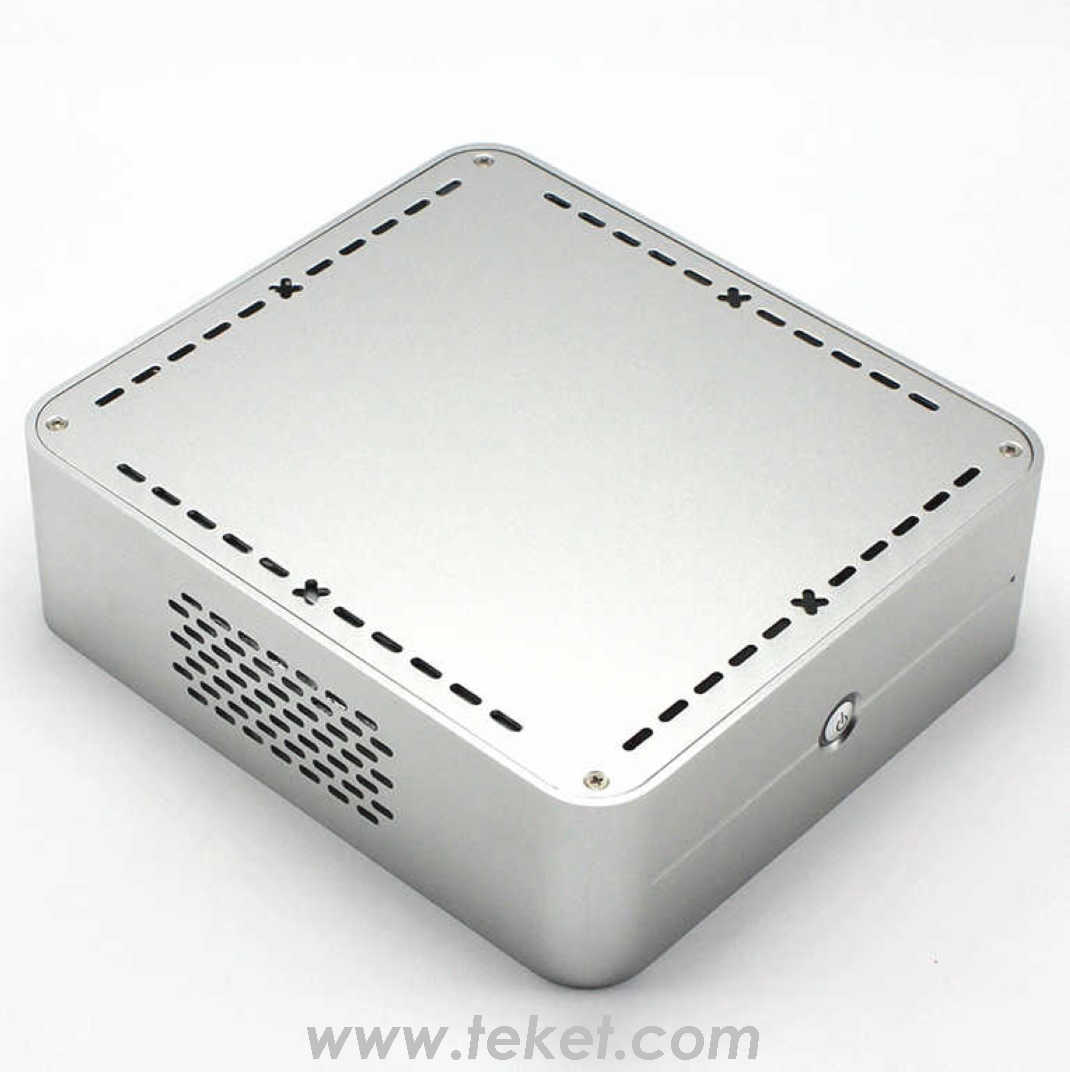

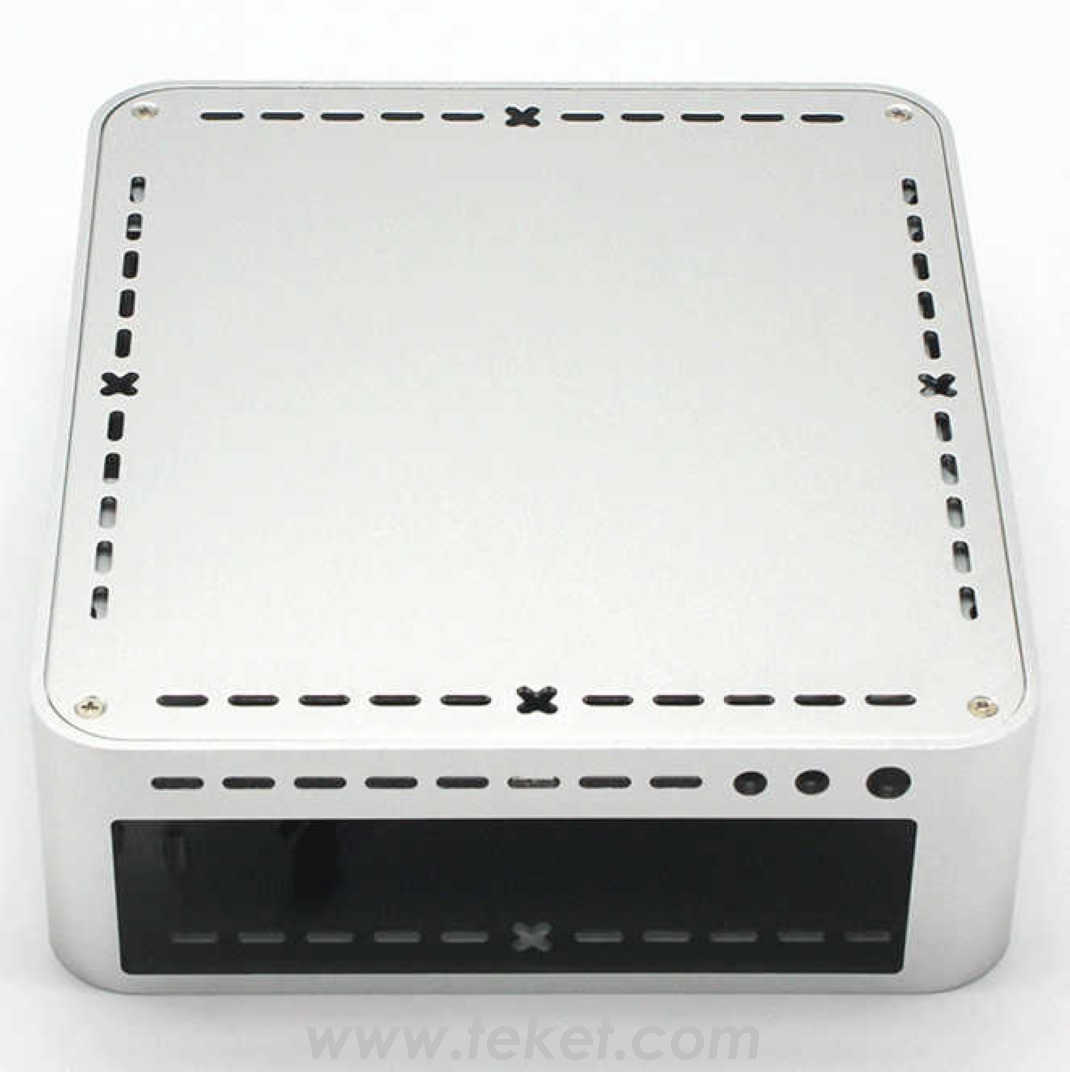

A02-H70 show

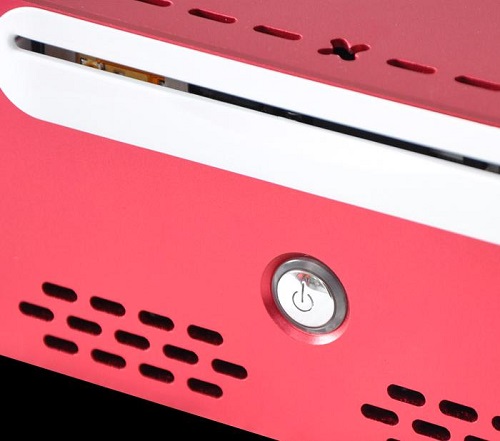

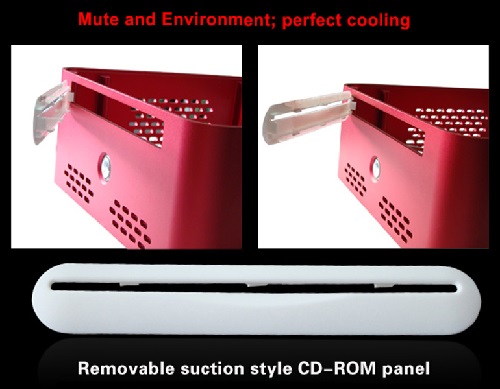

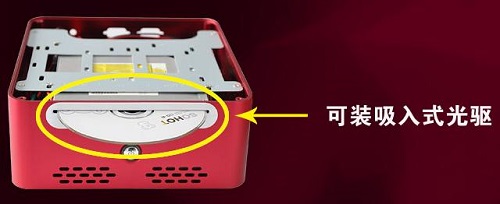

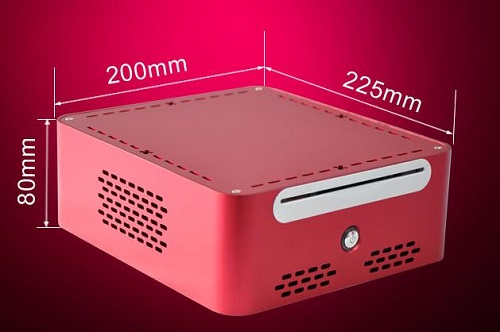

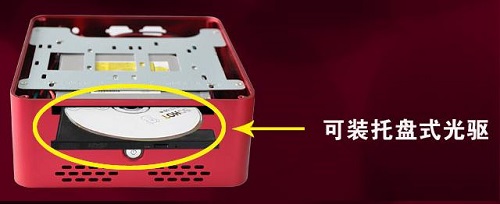

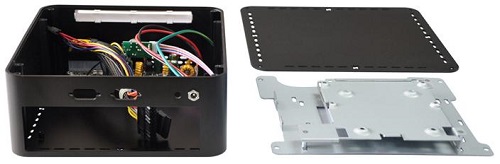

A02-H80 show
