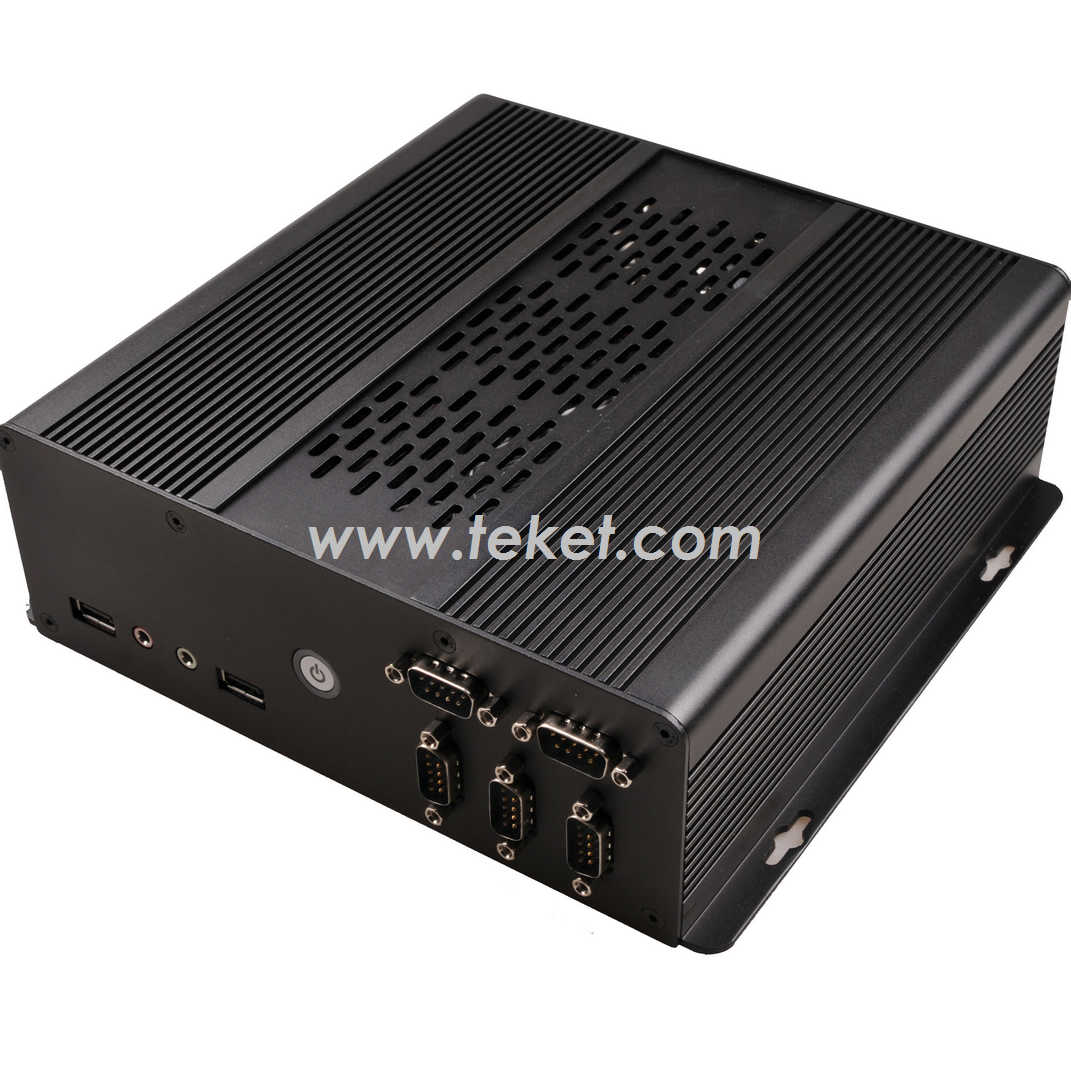

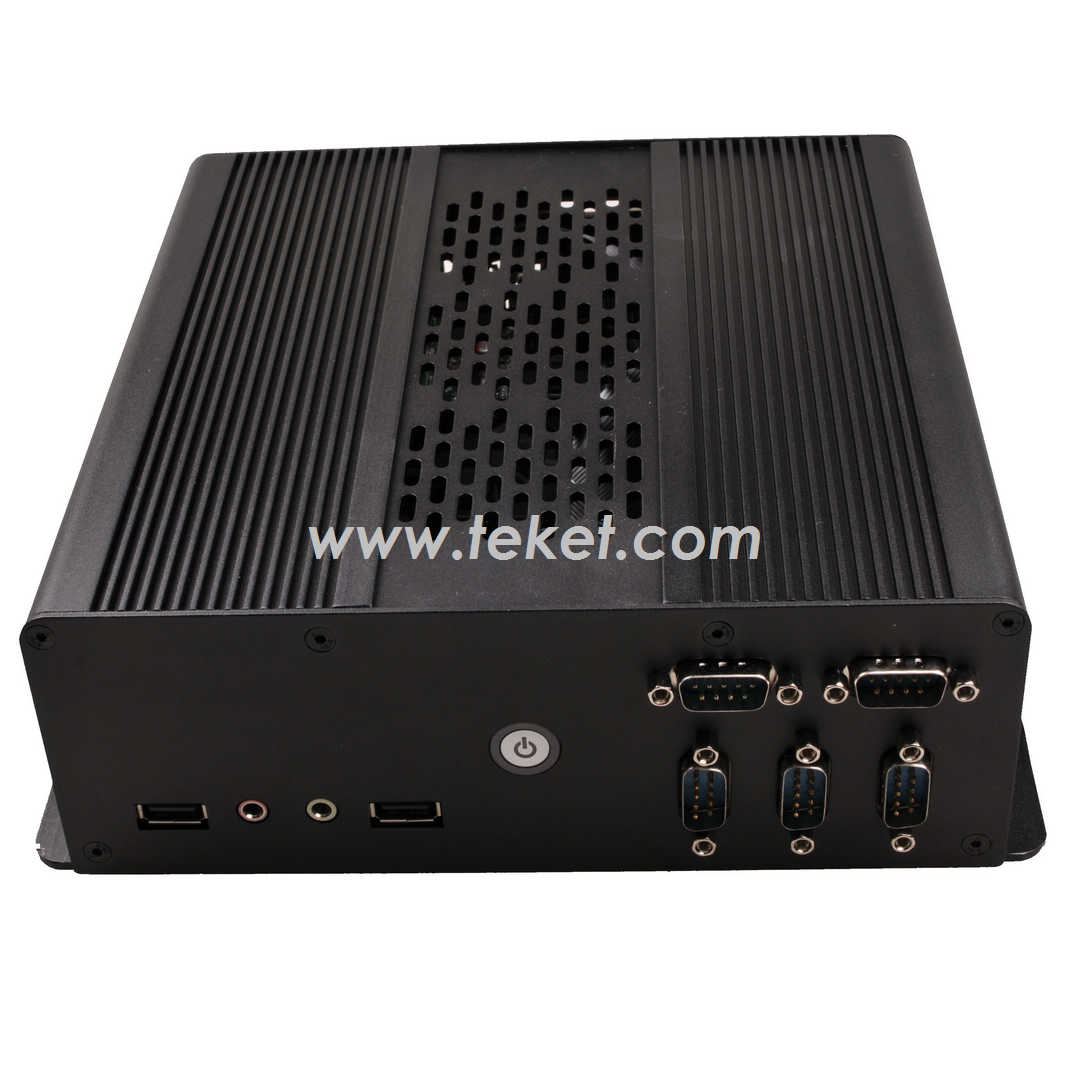

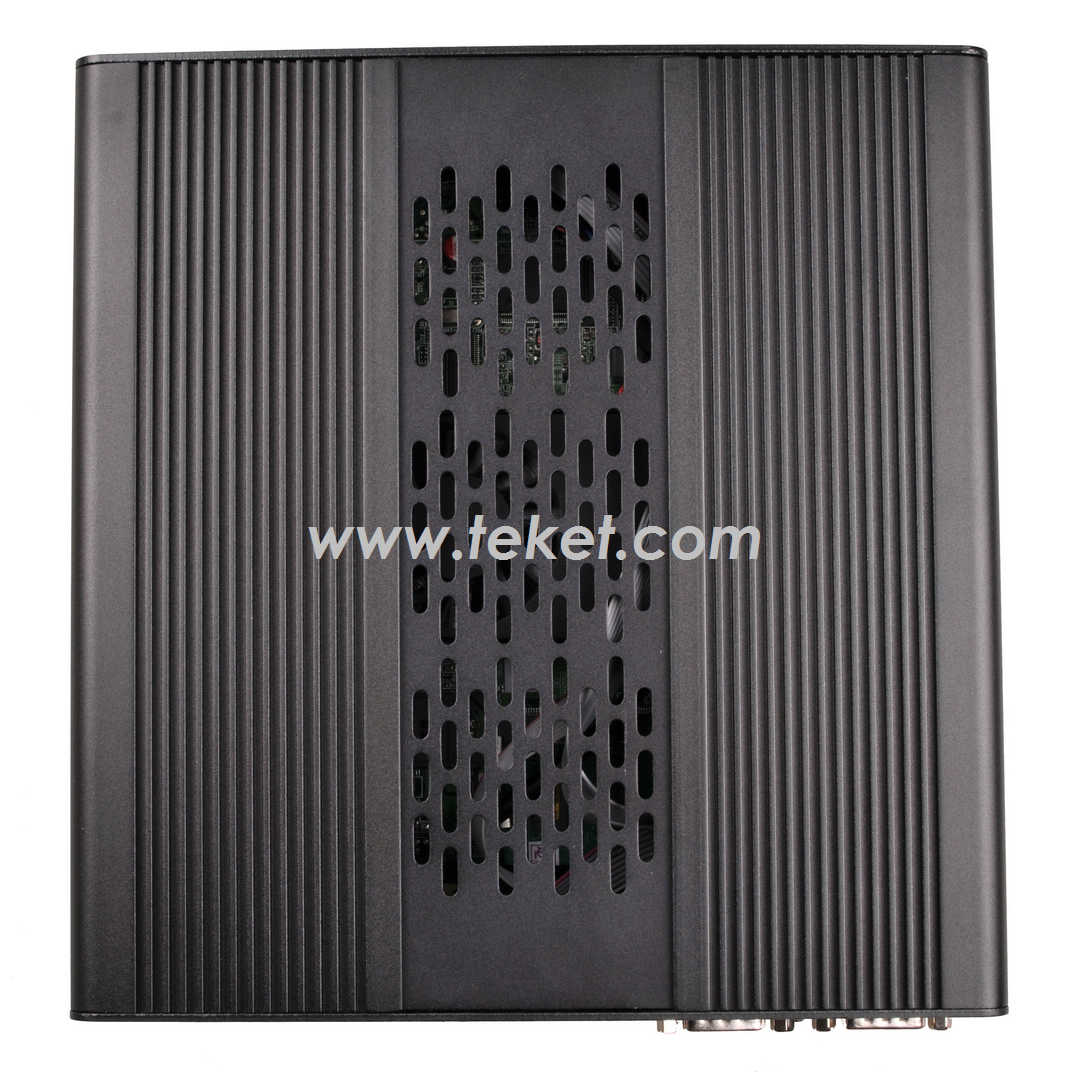

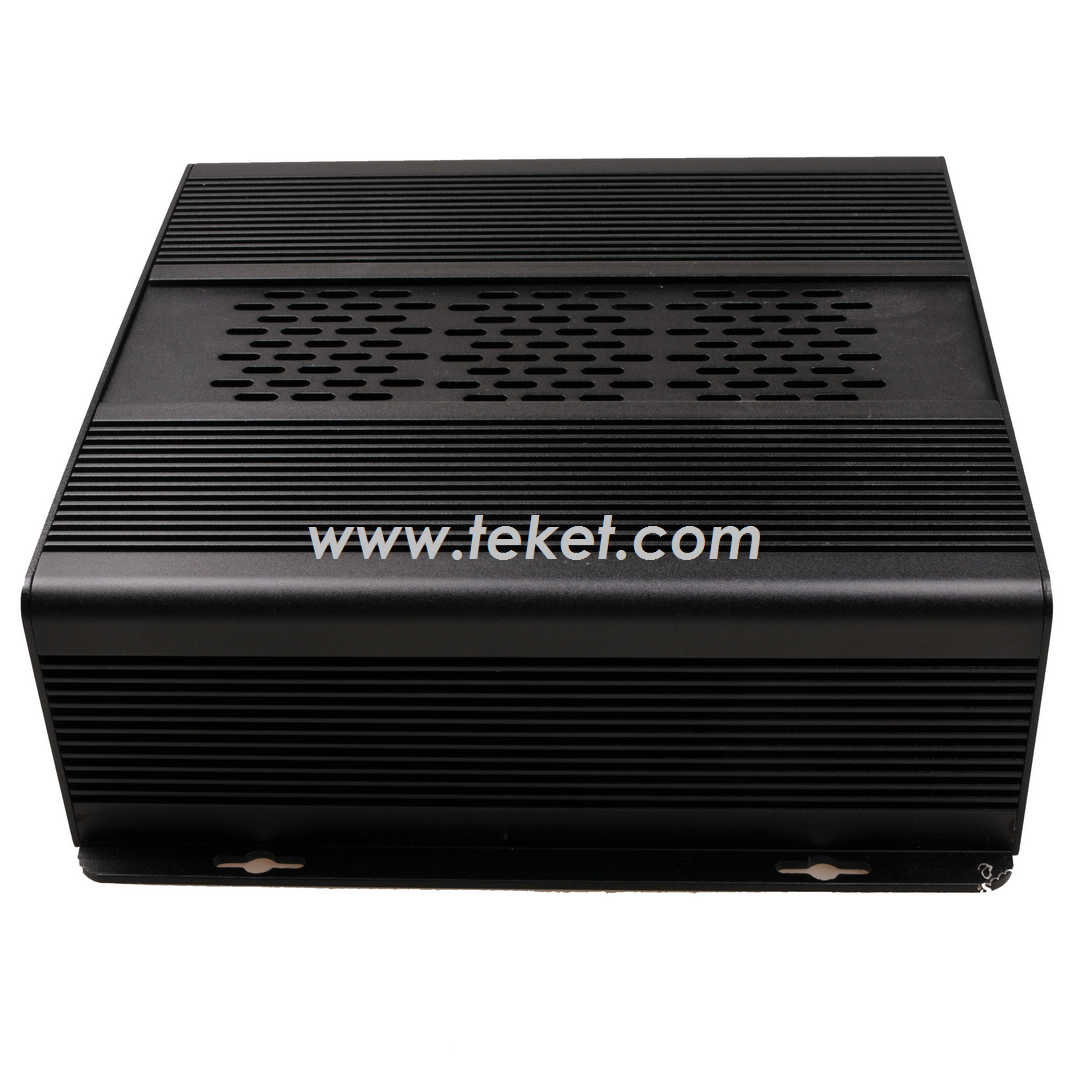

PC chassis Model: A05
A05 MINI-ITX Chassis Series Case
(S100/S120/S170/S180)
Key Specifications/Special Features: Model No.: A05
Case dimensions(mm):
A05-S100: 204x214x70 (standard model)
A05-S120: 256*217*70
A05-S170: 294*200*63
A05-S180: 254*234*80
Color: white
Main board size(mm): 170x170
All metal material with EMI approval
Front port: 1*POWER_SW,1*HDD

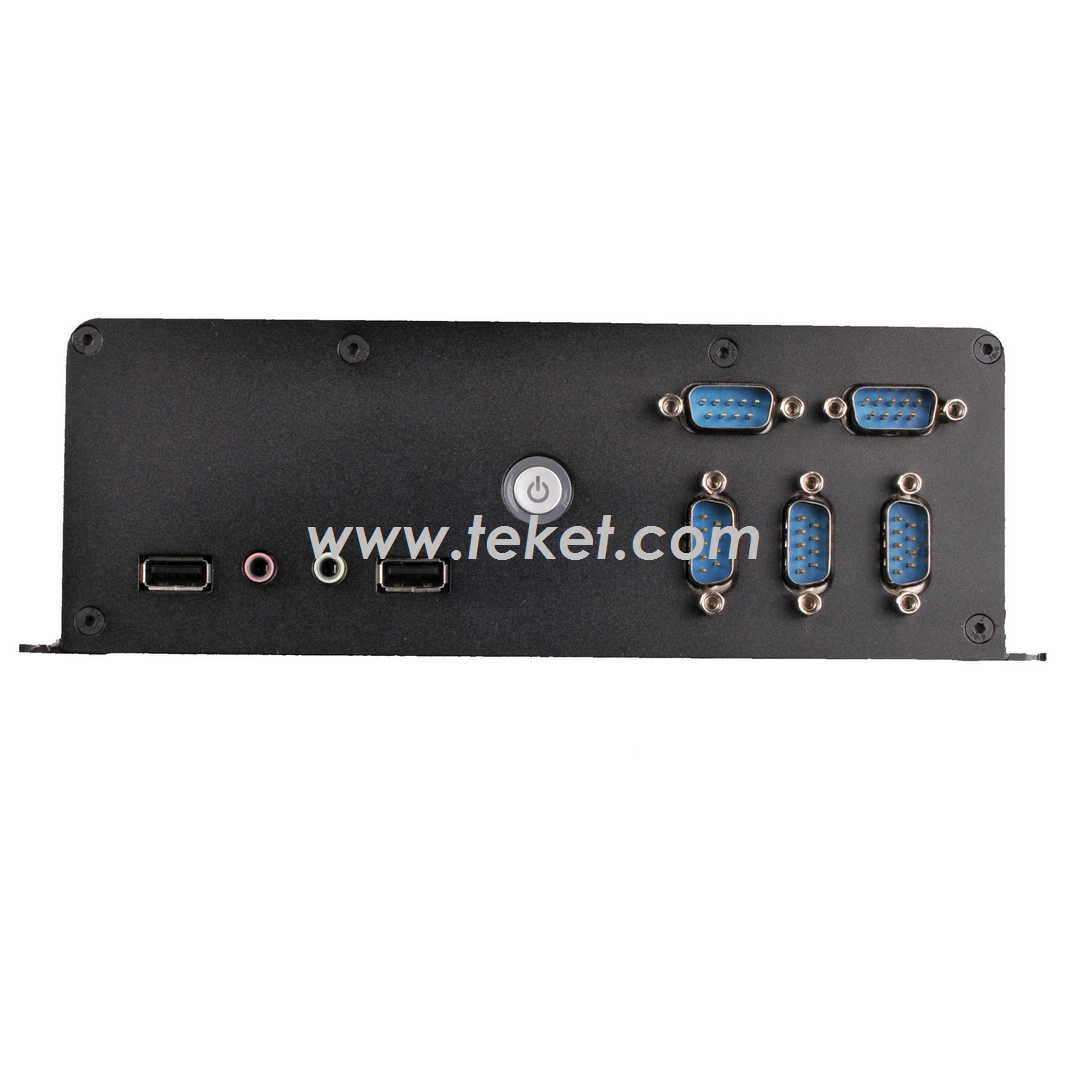

Application: IPC with multiple series ports up to 5 ports
Net weight: 1115g
A05 spec
| Material |
Alumium Alloy |
| Thickness |
3.0mm (min 2.5mm, max 4.0mm) |
| Surface Treatment |
Sandblasting Oxidation |
| Color |
Black,Red,Silver and Gray |
| Size(mm) |
W204*D214*H70(S100),W256*D217*H70(S120),W294*D200*H63(S170),W254*D234*H80(S180) |
| Package |
Each in paper box, Five boxes per carton |
| Net Weight |
1.1kgs(S100),1.3kgs(S130),1.7kgs(S170),1.3kgs(S180) |
| Gross Weight |
1 |
| Switch |
1 |
| DVD | 0 |
| Audio Output /Microphone Input |
1 |
| USB 2.0/3.0 |
2*USB 2.0 or 1*USB 2.0 and 1*USB 3.0 |
| 2.5 Inches HDD |
1 |
| 3.5 Inches HDD |
0 |
| Motherboard support |
170*170mm Mini ITX Motherboard |
| Power Supply |
DC Power Module/DC onboard/12V 5A Power Adapter |

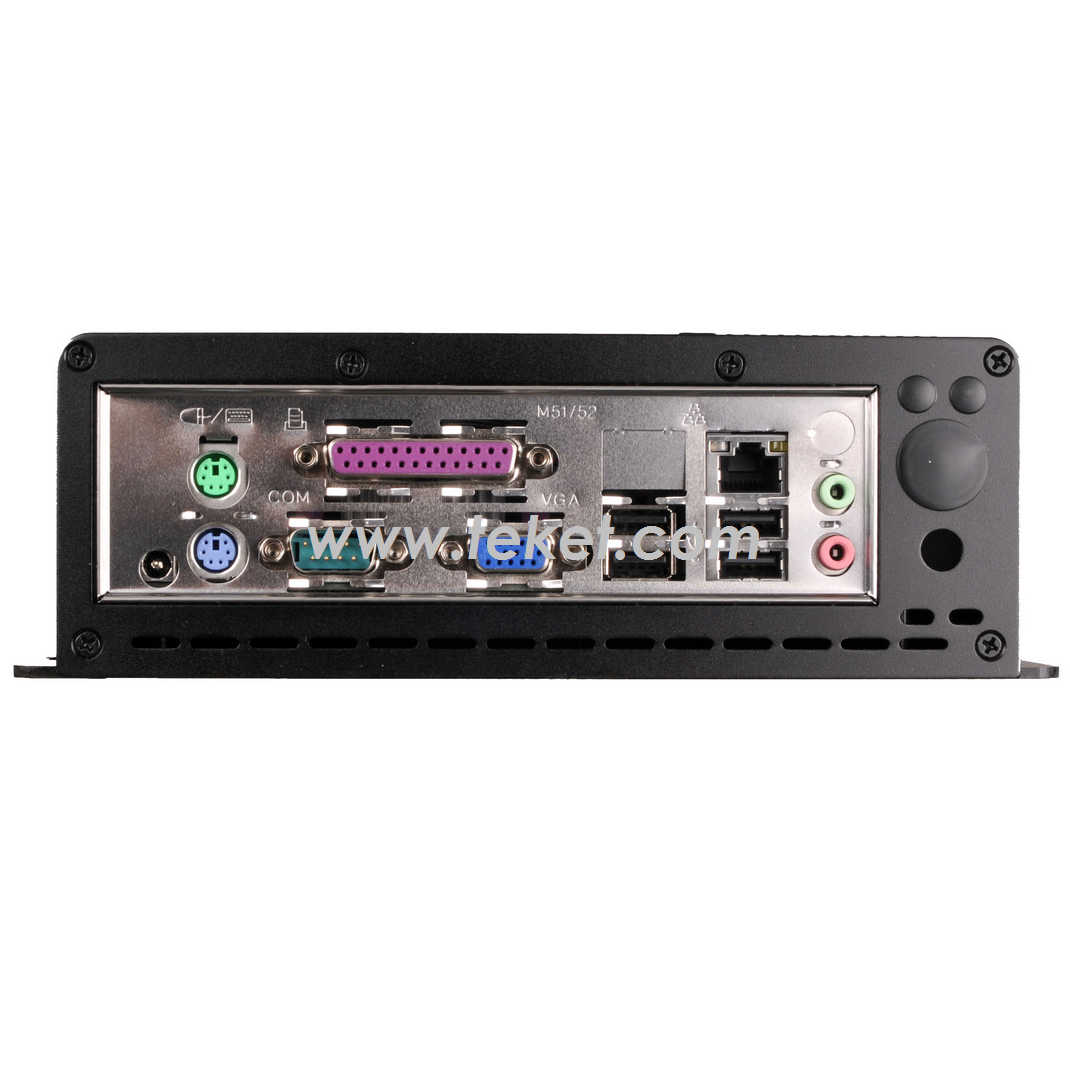

| I/O Shield |
1, 158*45mm |
| Packaging Each in paper box |
Size W320*D135*H280MM |
| Five boxes per carton |
Size L695*W335*H290MM |
| Fan(Optional) |
1, 5010 Fan |
Packaging Information
Packaging Detail: Each one in a paper box, 5 paper boxes per carton
| Each in paper box (neutral) |
Five boxes per carton (neutral) |
| Size: W320*D135*H280MM |
Size: L695*W335*H290MM,8.6kgs(S100),9.6kgs(S120),11.6kgs(S170),9.6kgs(S180) |
 |
 |

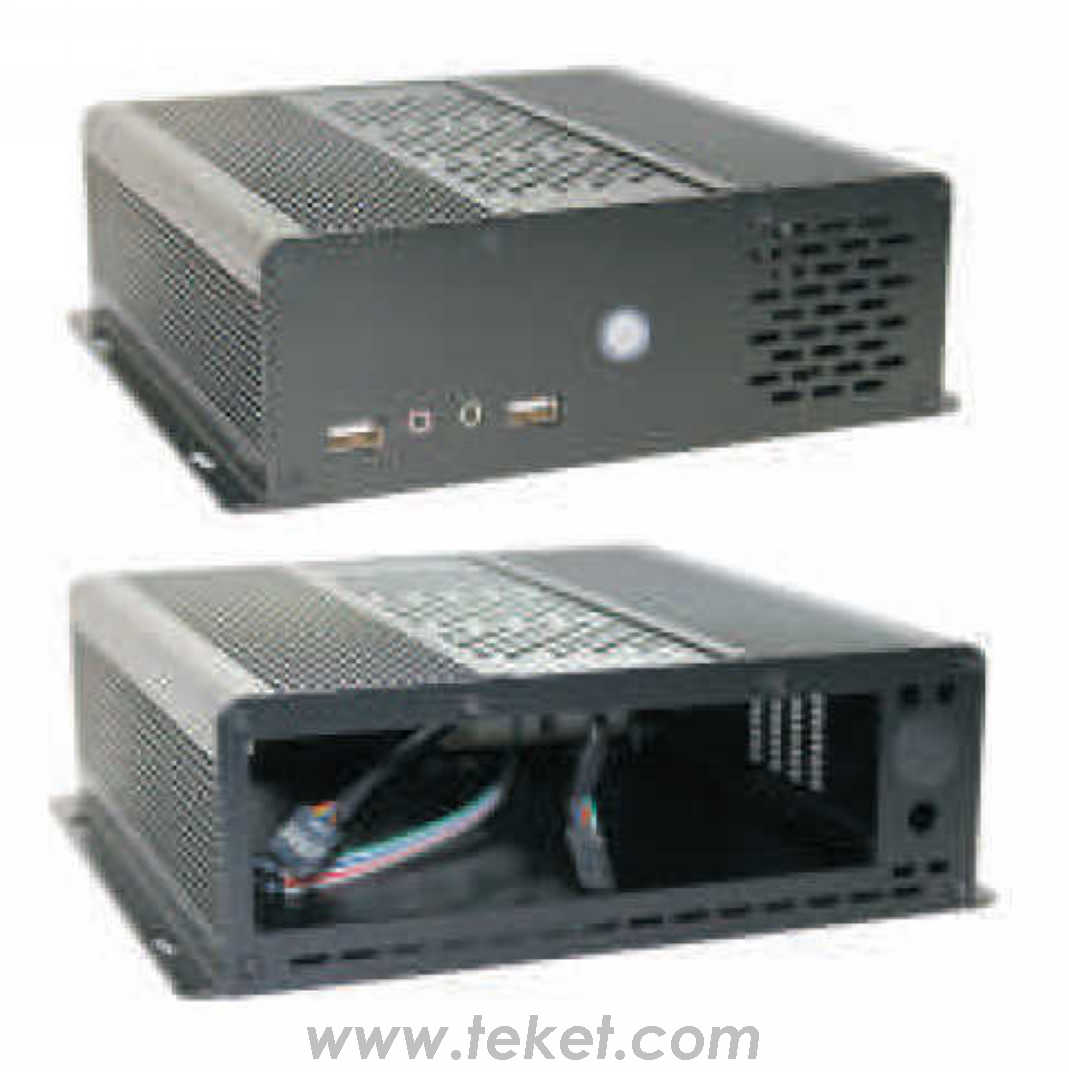

A05

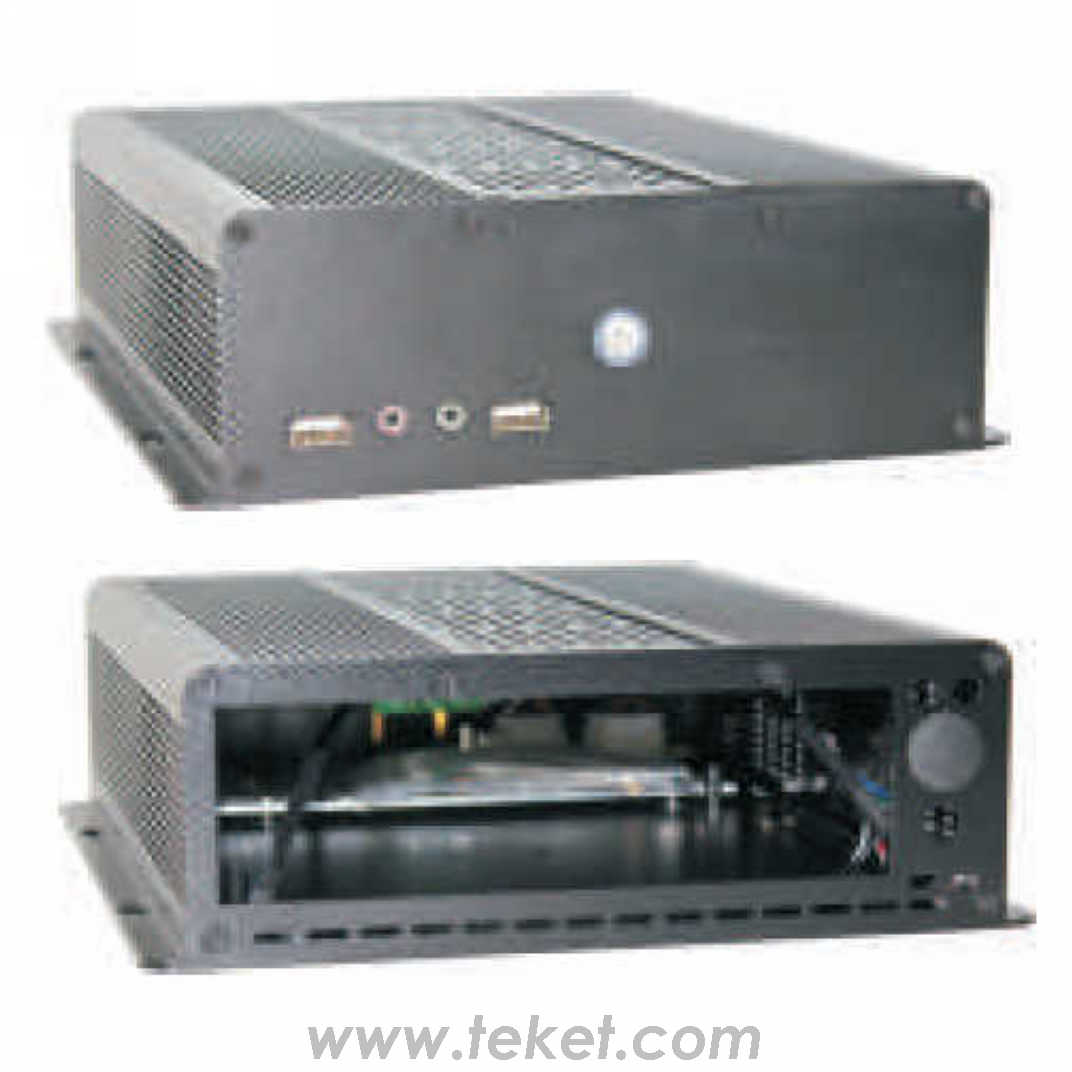

A05-S100,A05-S120

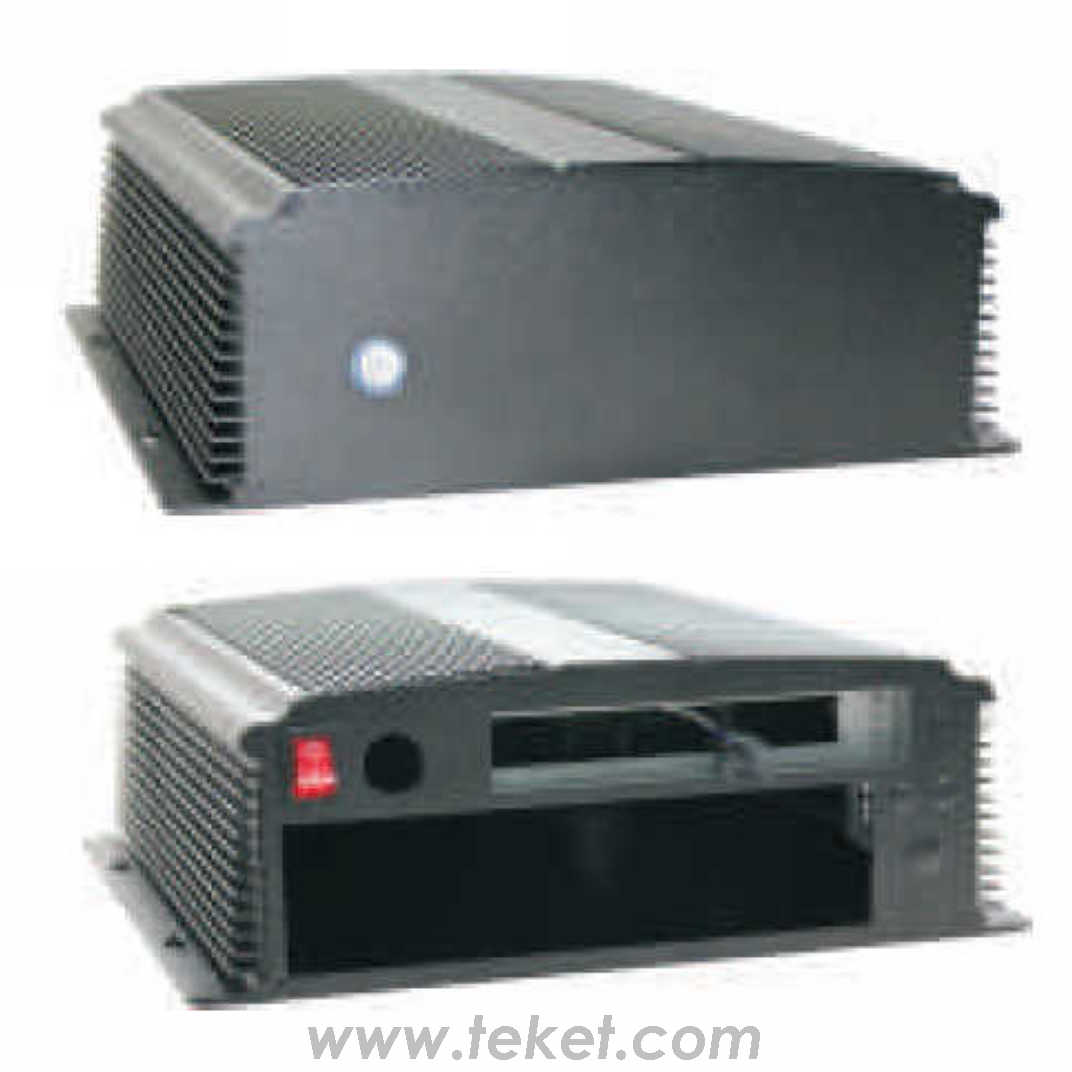

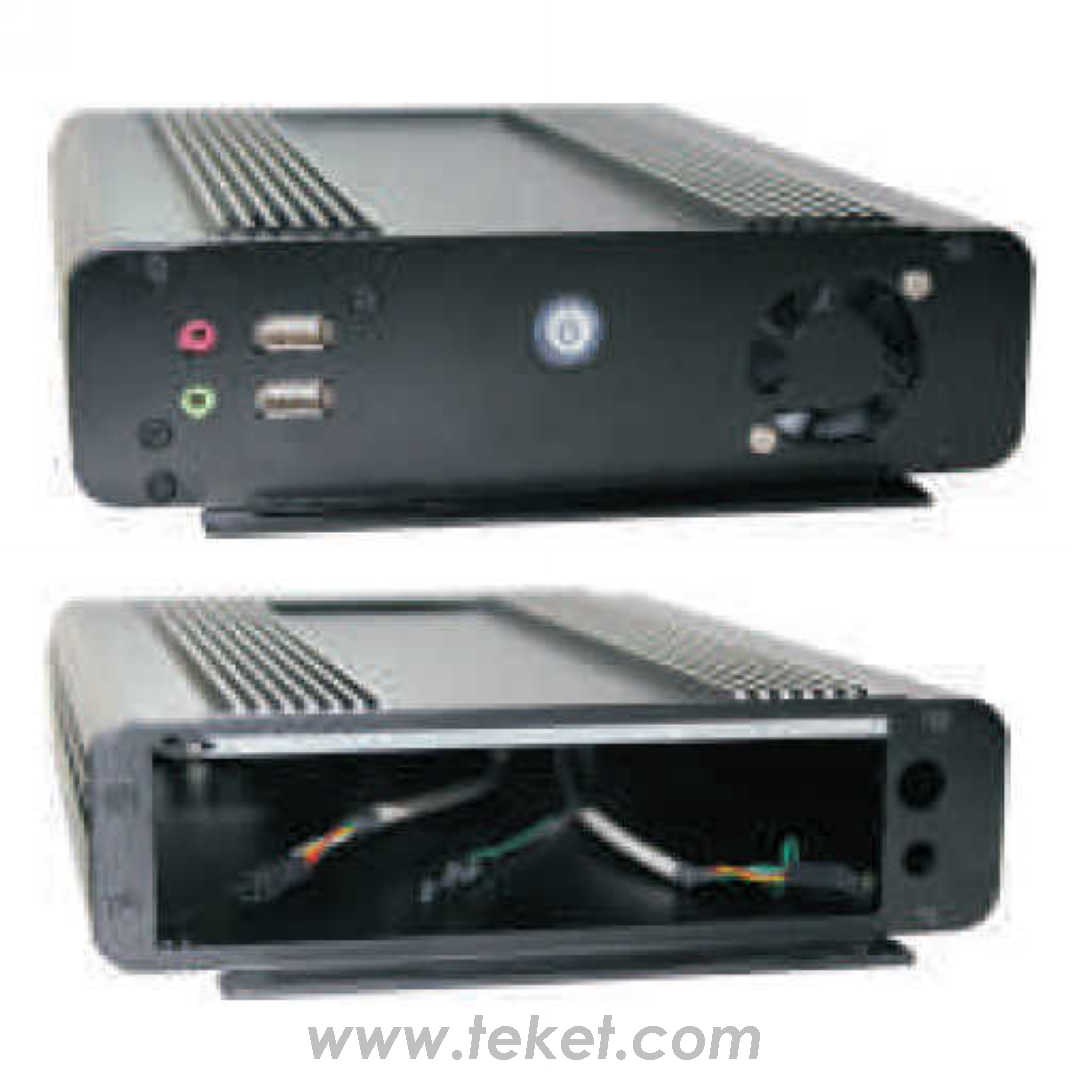

A05-S170,A05-S180
