PC chassis Model: A06
A06 MINI-ITX Chassis Series Case (S197)
Key Specifications/Special Features:
A06-H47 (47mm height): slim model,half height I/O shield
A06-H55 (55mm height): standard model, full height I/O shield
A06-H80 (80mm height): add slot-in DVD bay
Case dimensions(mm): 197x197x47/55/80
Color: white, black or other
Main board size(mm): 170x170
All metal material with EMI approval
Front port: 1*POWER_SW,1*POWR_LED,2*USB(option)
Application: HTPC,Think client
A06 spec
| Material |
Alumium Alloy |
| Thickness |
2.0mm (min 1.8mm, max 3.5mm) |
| Surface Treatment |
Sandblasting Oxidation |
| Color |
Black,Red,Silver and Gray |
| Size(mm) |
W197*D197*H55 (47/55/80) (L*W*H) |
| Package |
Each in paper box, Five boxes per carton |
| Net Weight |
0.9kgs(H47),1.0kgs(H55),1.2kgs(H80) |
| Gross Weight |
1.5kgs(H55) |
| Switch |
1 |
| DVD | 0/1 |
| Audio Output /Microphone Input |
0 |
| USB 2.0/3.0 |
2*USB 2.0 or 1*USB 2.0 and 1*USB 3.0 |
| 2.5 Inches HDD |
2 |
| 3.5 Inches HDD |
1 |
| Motherboard support |
170*170mm Mini ITX Motherboard |
| Power Supply |
DC Power Module/DC onboard/12V 5A Power Adapter |
| I/O Shield |
1, 158*45mm |
| Packaging Each in paper box |
Size W320*D135*H280MM |
| Five boxes per carton |
Size L695*W335*H290MM |
| Fan(Optional) |
1, 5010 Fan |
Packaging Information
Packaging Detail: Each one in a paper box, 5 paper boxes per carton
| Each in paper box (neutral) |
Five boxes per carton (neutral) |
| Size: W320*D135*H280MM |
Size: L695*W335*H290MM,8.1kgs(H55),9.1kgs(H80) |
 |
 |

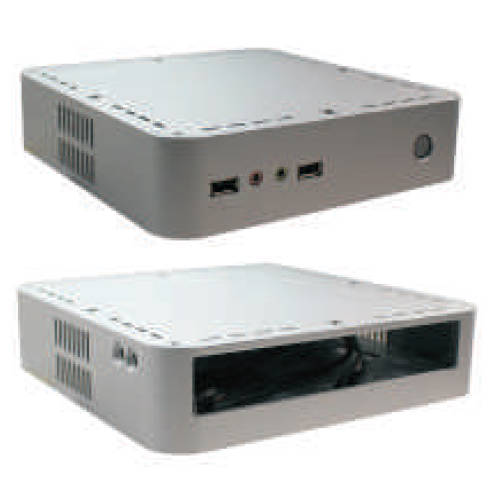

A06-H47

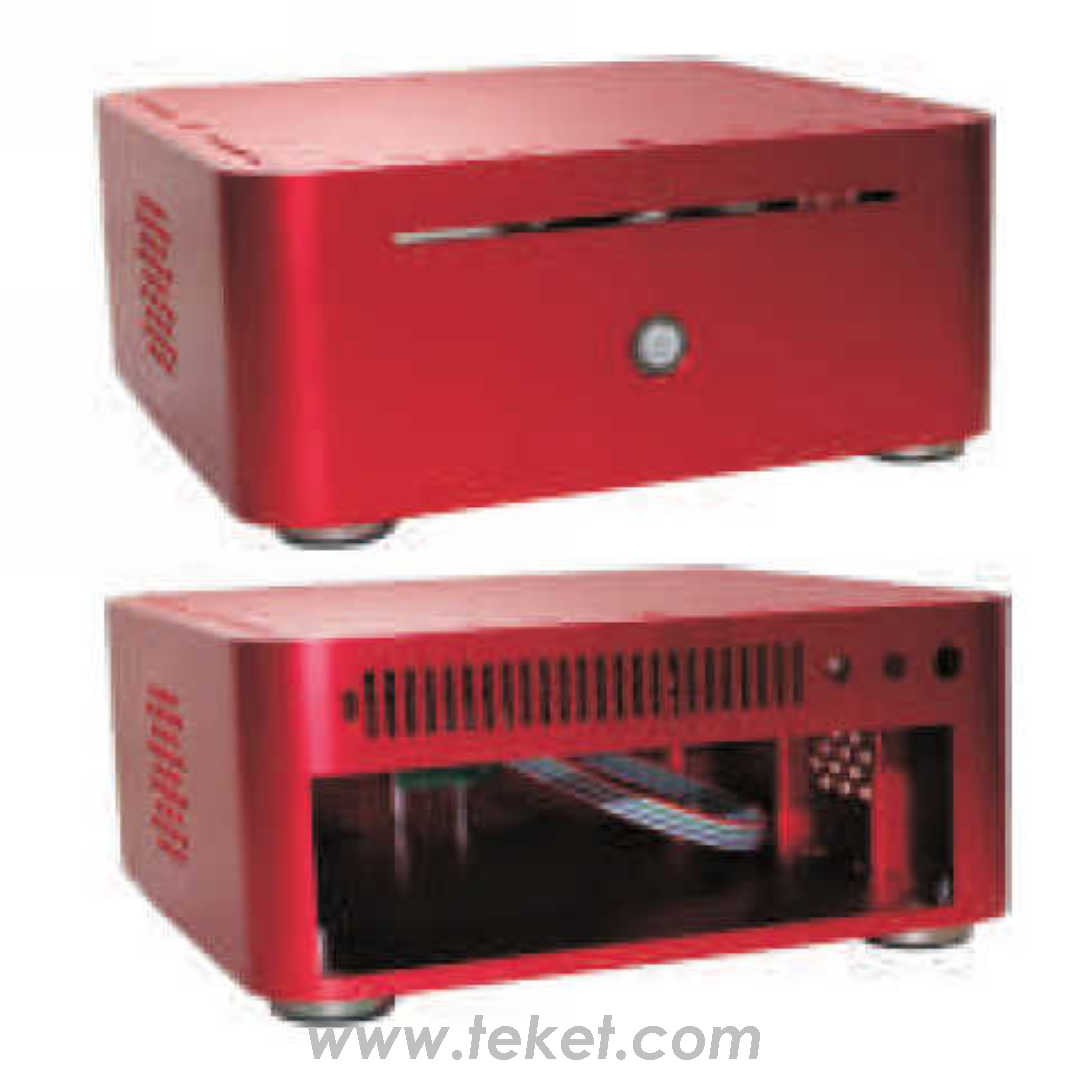

A06-H80
