>>Your Current Position: PC chassis

PC chassis Model: A07

A07 MINI-ITX Chassis Series Case (X series)

Key Specifications/Special Features:

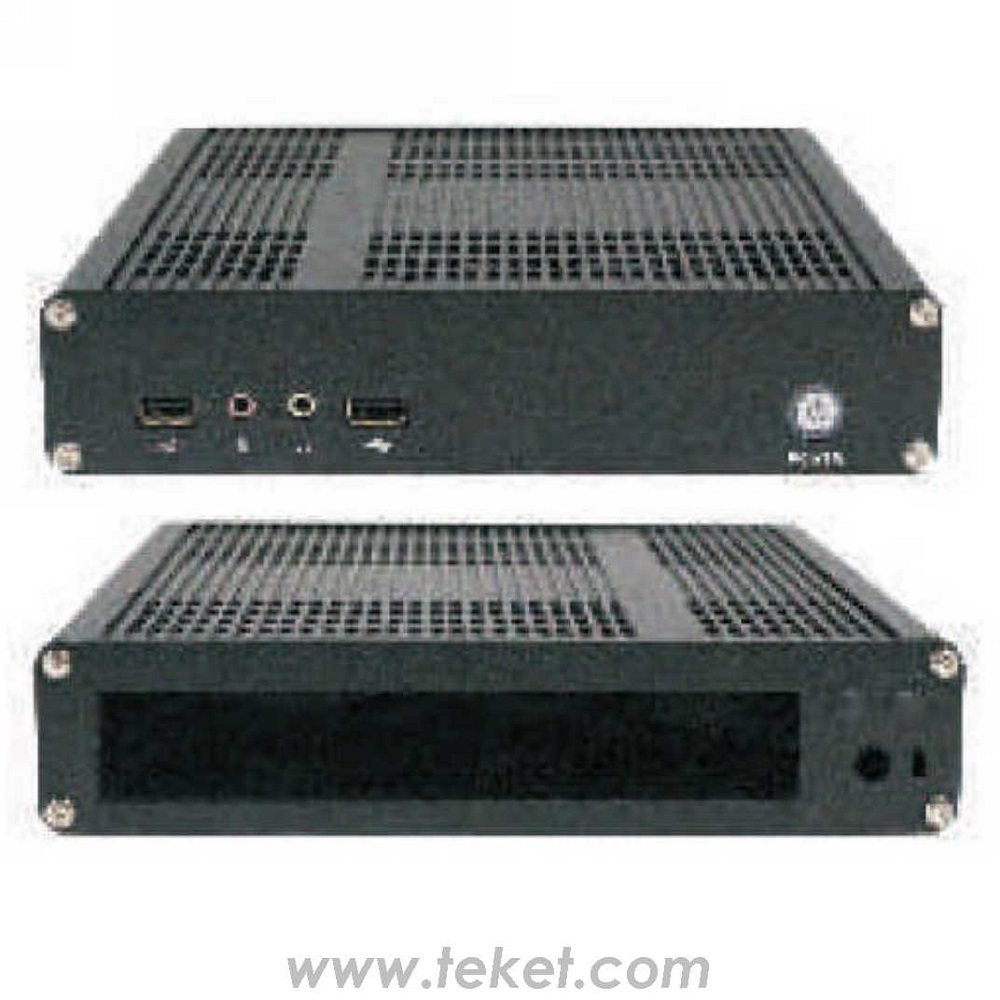

A07-H45 (45mm height): slim model,half height I/O shield
A07-H85 (85mm height): add pci/pcie slot,full height I/O shield
A07-D257 (85mm height): add pci/pcie slot,full height I/O shield

Case dimensions(mm): 204x211x45(X4),204x211x85(X7),257x211x85(X8)
Color: Black/Red/Silver other
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,1*POWR_LED,2*USB+Audio
Application: Industral PC

A07 spec

Material	Alumium Alloy
Thickness	2.0mm (min 1.8mm, max 3.5mm)
Surface Treatment	Sandblasting Oxidation
Color	Black,Red,Silver and Gray
Size(mm)	W204D2117H45/85,W204D257H85
Package	Each in paper box, Five boxes per carton
Net Weight	1.0kgs(H45),1.3kgs(H85),1.4kgs(D257)
Gross Weight	1
Switch	1
DVD	0/1
Audio Output /Microphone Input	1
USB 2.0/3.0	2USB 2.0 or 1USB 2.0 and 1*USB 3.0
2.5 Inches HDD	2
3.5 Inches HDD	1
Motherboard support	170*170mm Mini ITX Motherboard
Power Supply	DC Power Module/DC onboard/12V 5A Power Adapter
I/O Shield	1, 158*45mm
Packaging Each in paper box	Size W320D135H280MM
Five boxes per carton	Size L695W335H290MM
Fan(Optional)	4, 4010 Fan

Packaging Information
Packaging Detail: Each one in a paper box, 5 paper boxes per carton

Each in paper box (neutral)	Five boxes per carton (neutral)
Size: W320D135H280MM	Size: L695W335H290MM,8.1kgs(H45),9.6kgs(H85),10.1kgs(D257)

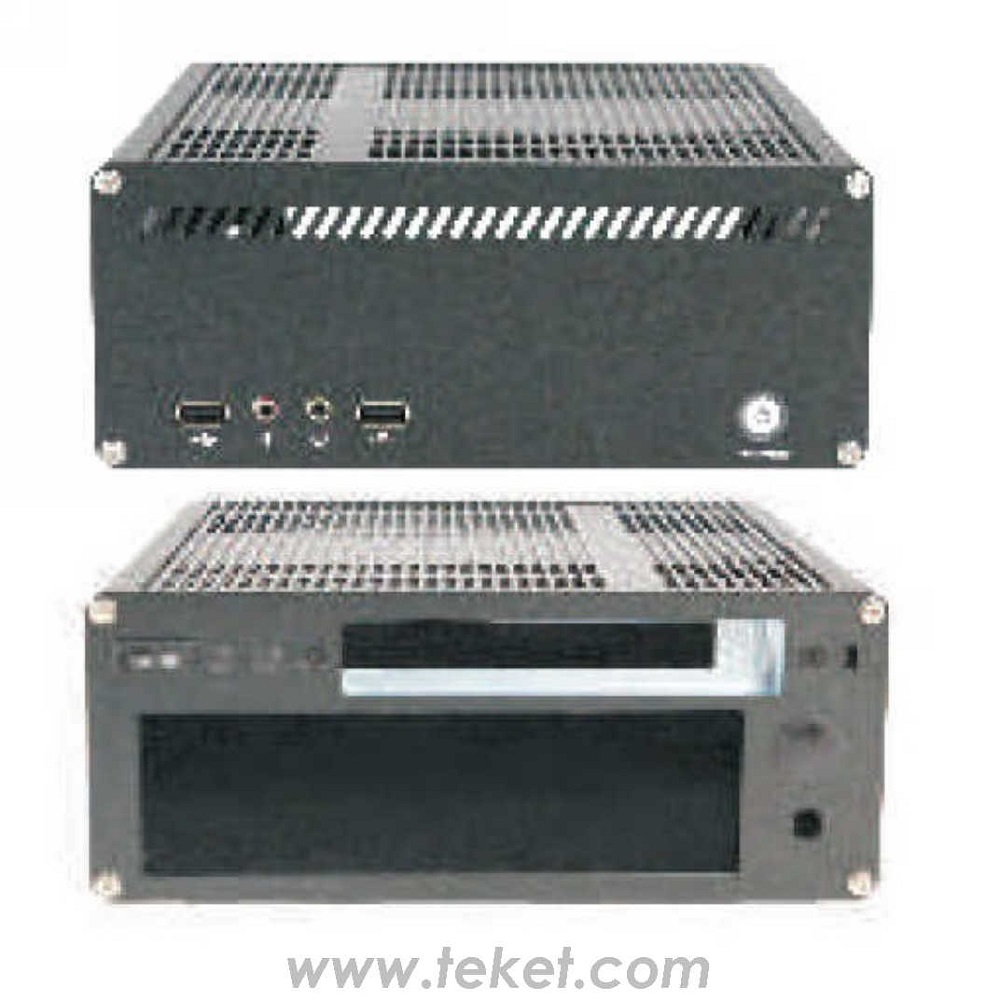

A07-H85

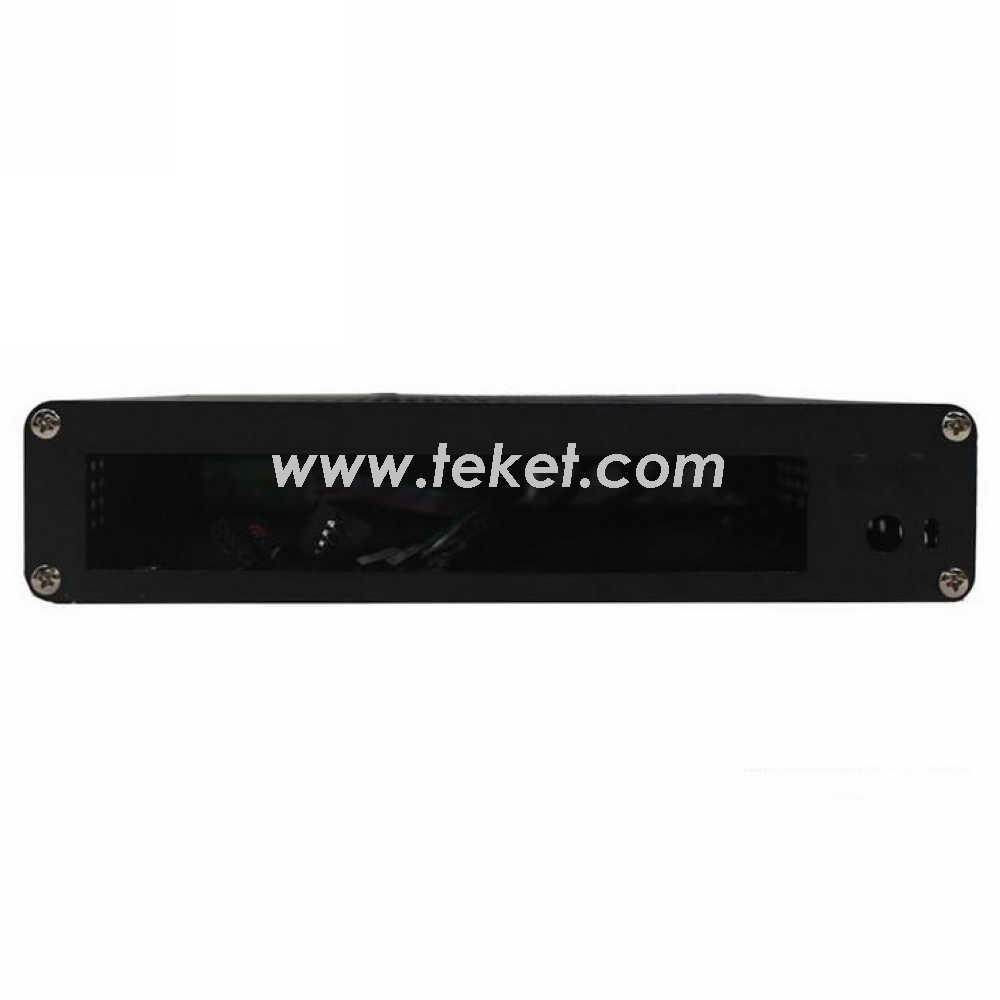

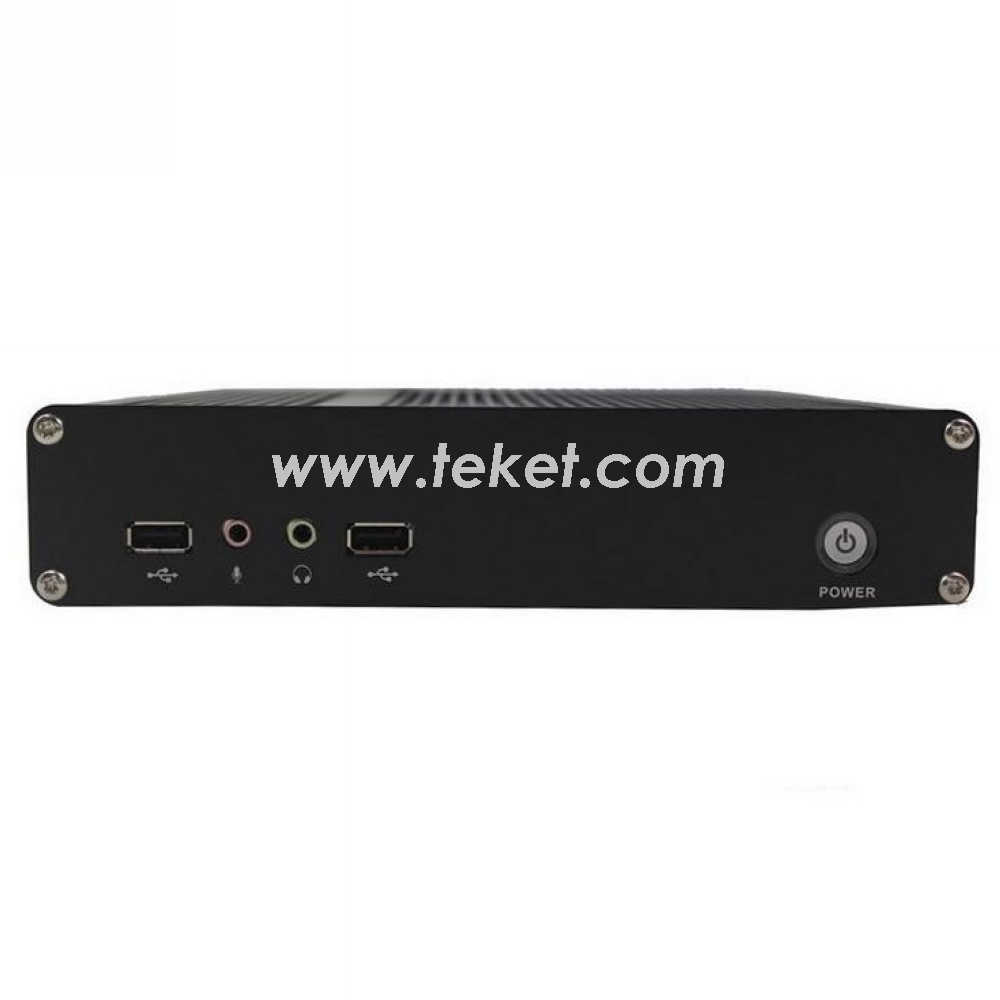

A07-H45

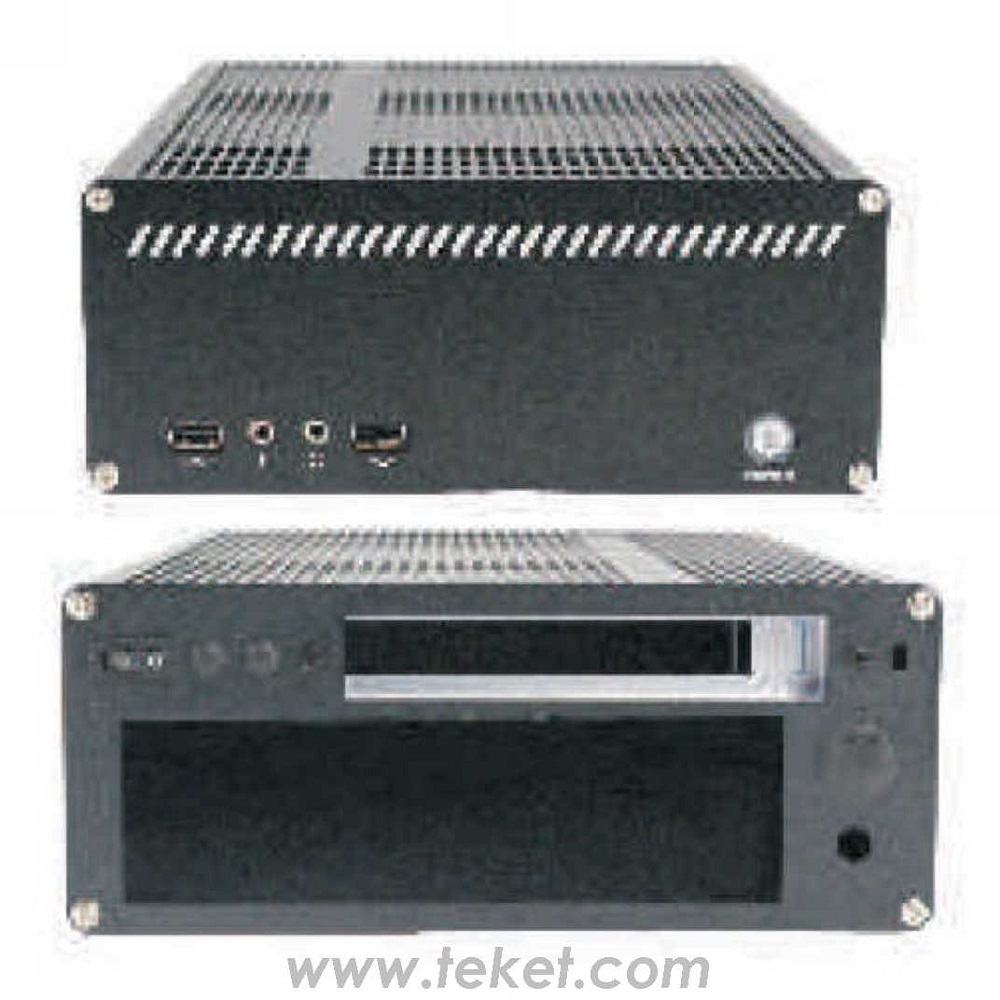

A07-D257
