PC chassis Model: A09

A09 MINI-ITX Chassis Series Case (HT70,HT80)

Key Specifications/Special Features:
A09-H70 (70mm height): 2*2.5"hdd or 1*3.5"hdd support
A09-H80 (80mm height): add slot-in DVD bay,1*2.5"or 1*3.5" hdd only


Case dimensions(mm): 240*204*70 or 240*204*80
Color: Black/Red/Silver other
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,1*POWR_LED,2*USB(option)
Application: HTPC,Think client

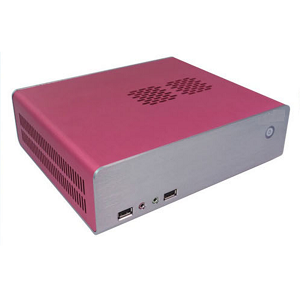

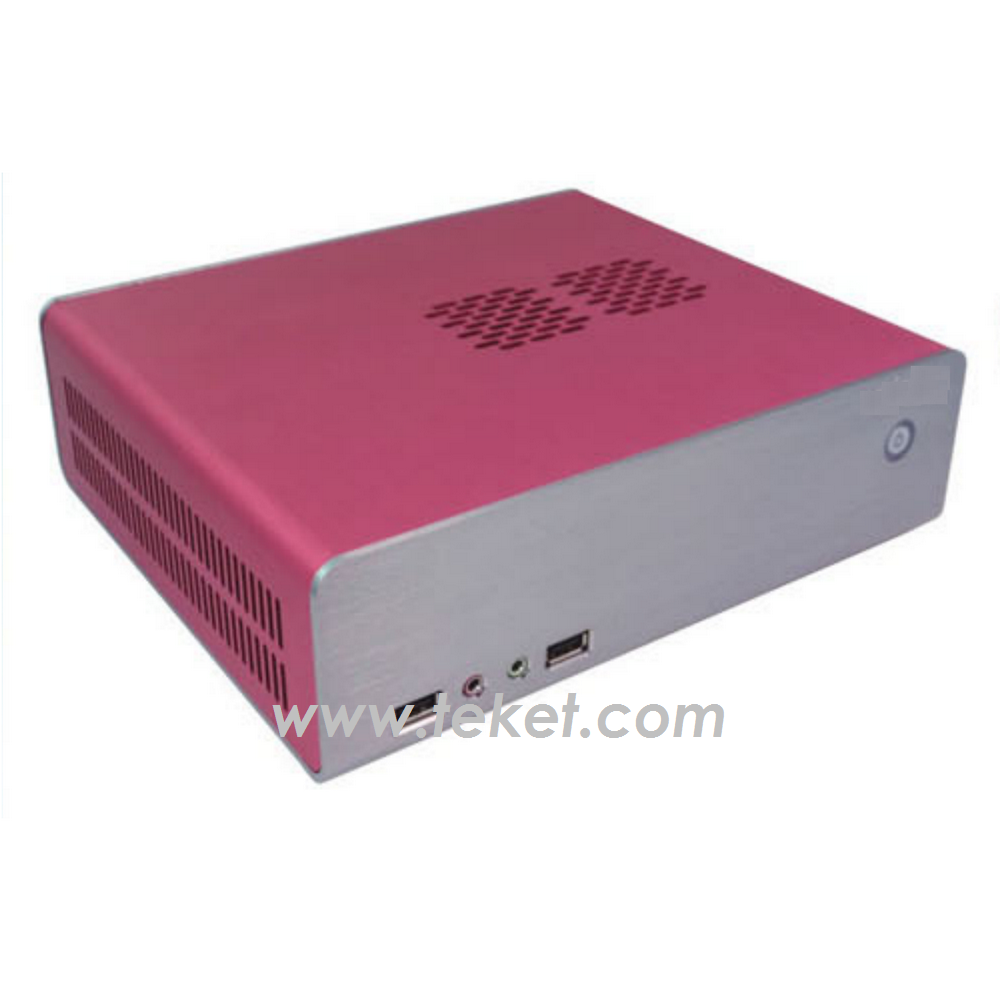

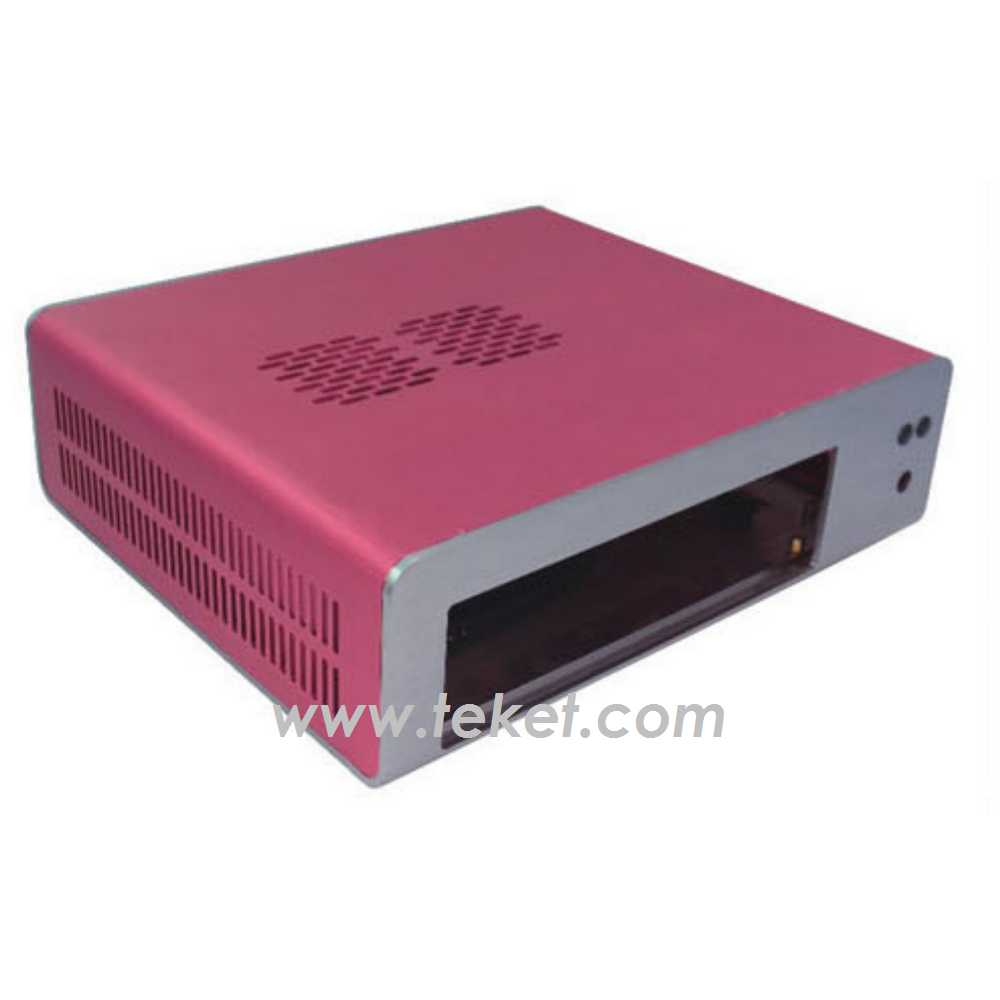

A09-H70
Material: pure aluminum (thickness 3.0mm)
Motherboard: 17*17cm mini-itx motherboard
HDD: 2*2.5" HDD/1*3.5" HDD
CD-ROM: N/A
Power Supply" DC on the motherboard
Expansion Slots: N/A
Suitable Fan: 5010 Fan
Front panel: 2*USB2.0/2*USB3.0,1*Audio+1*MIC,1*Power Button
Side panel: N/A
Dimension: 240*204*70mm(L*W*H)
Weight: 1KG/1.55KG(NW/GW)
Packing: Box/each pc in one box(34*31*16cm) Carton/5 boxes in one carton(71*35*31cm)
Color: Gray/Red(any color can be customized)
LOGO: neutral or laser mark your logo on the case

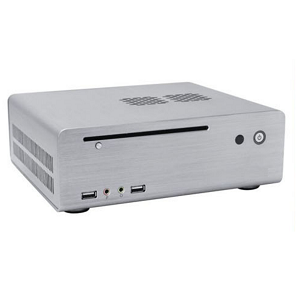

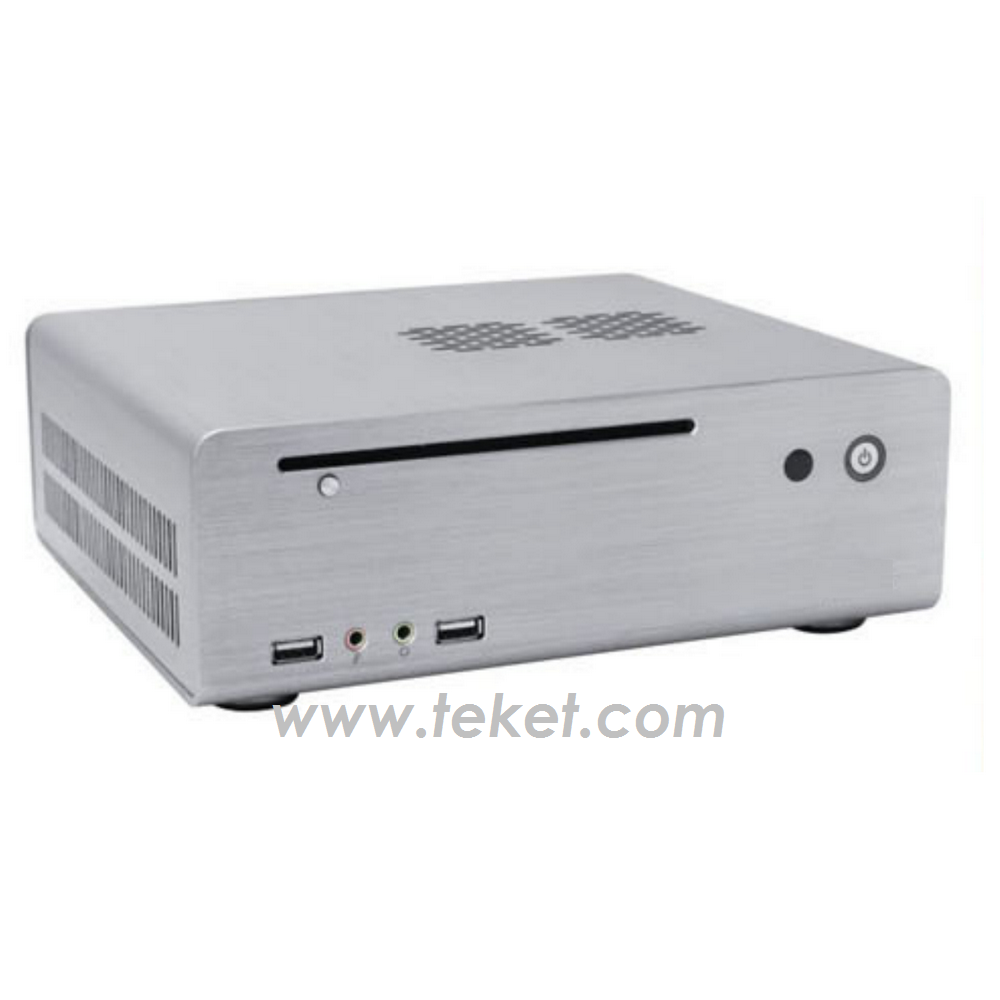

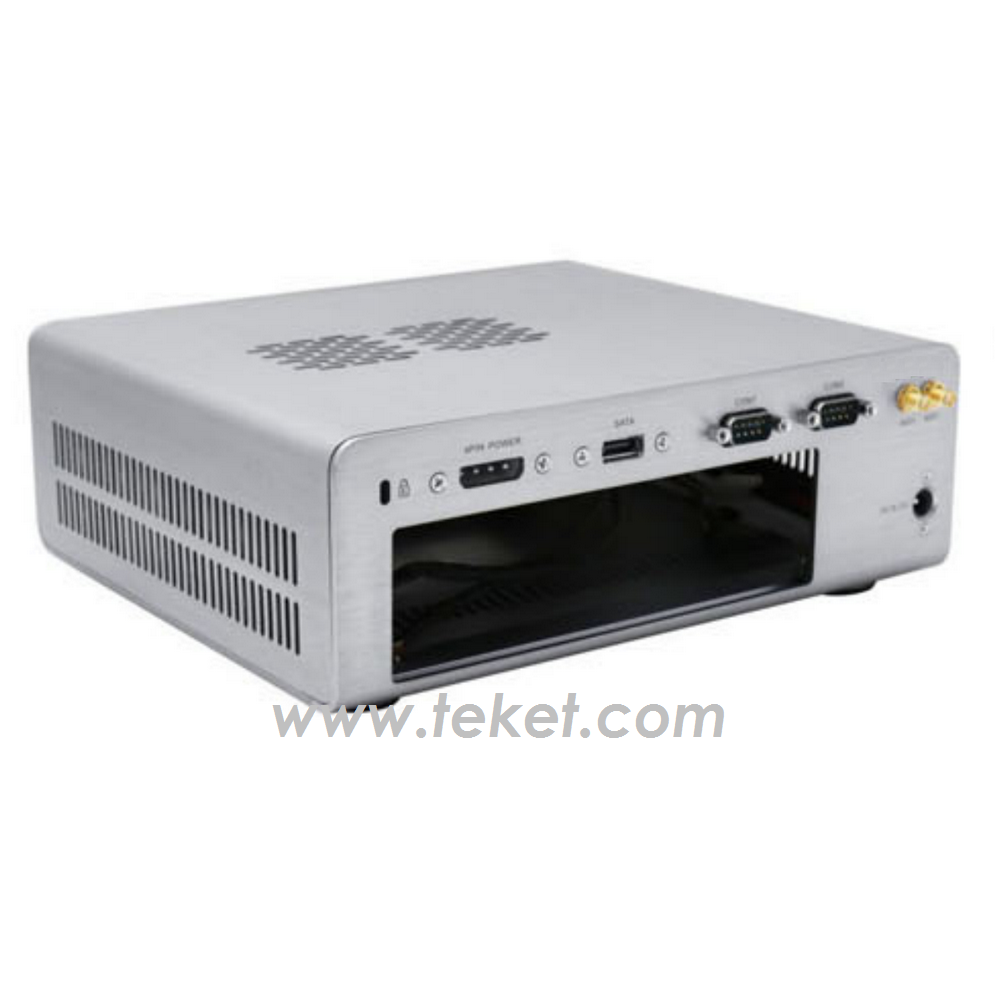

A09-H80
Material: pure aluminum (thickness 3.0mm)
Motherboard: 17*17cm mini-itx motherboard
HDD: 1*2.5" HDD/1*3.5" HDD
CD-ROM: 1*Slot-in DVD-RW
Power Supply" DC on the motherboard
Expansion Slots: N/A
Suitable Fan: 5010 Fan
Front panel: 2*USB2.0/2*USB3.0,1*Audio+1*MIC,1*Power Button
Side panel: N/A
Dimension: 240*204*80mm(L*W*H)
Weight: 1.15KG/1.7KG(NW/GW)
Packing: Box/each pc in one box(34*31*16cm) Carton/5 boxes in one carton(71*35*31cm)
Color: Gray/Red(any color can be customized)
LOGO: neutral or laser mark your logo on the case



A08 spec

Each in paper box (neutral)	Five boxes per carton (neutral)
Size: W340*D310*H160MM	Size: L710*W350*H310MM

A09-H70

A09-H80
