Your Current Position: PC Chassis



-->> MINI-ITX chassis E Serial <<--

E11



E11 MINI-ITX Chassis E Series Case

Key Specifications/Special Features: Model No.: E11
Case dimensions(mm): 230x190x60
Color: black and gray
Mainboard size(mm): 170x170

Front port: 2*USB,1*POWER_SW,1*MIC,1*SPK
SATA*1,4pin-POWER*1

Power: DC2ATX-120W-DC(2.5mm)

Application: Thin Client

Net weight: 1.8kg

NOTE:
Auxiliary power supply, need to purchase

1a),Power Adaptor Model:
PSA-12V5A(2.5mm)
1b),Power Adaptor Model:
PSA-12V8A(2.5mm)
1c),Power Adaptor Model:
PSA-12V10A(2.5mm)

More detail information...

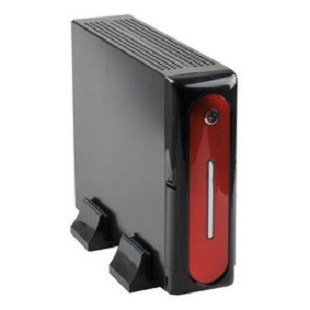

E12





E11 MINI-ITX Chassis E Series Case

Key Specifications/Special Features: Model No.: E12
Case dimensions(mm): 250x190x60
Color: red,black and gray
Mainboard size(mm): 170x170

Front port: 2*USB,1*POWER_SW,1*MIC,1*SPK
SATA*1,4pin-POWER*1

Power: DC2ATX-120W-DC(2.5mm)

Application: Thin Client

Net weight: 1.8kg

NOTE:
Auxiliary power supply, need to purchase

1a),Power Adaptor Model:
PSA-12V5A(2.5mm)
1b),Power Adaptor Model:
PSA-12V8A(2.5mm)
1c),Power Adaptor Model:
PSA-12V10A(2.5mm)

More detail information...

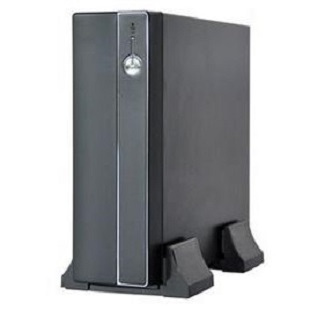

E32




E32 MINI-ITX Chassis E Series Case

Key Specifications/Special Features: Model No.: E32
Case dimensions(mm): 215x190x60
Color: black and gray
Mainboard size(mm): 170x170

Front port: 2*USB,1*POWER_SW,1*MIC,1*SPK

Power: DC2ATX-120W-DC(2.5mm)

Application: Thin Client

Net weight: 1.3kg

NOTE:
Auxiliary power supply, need to purchase

1a),Power Adaptor Model:
PSA-12V5A(2.5mm)
1b),Power Adaptor Model:
PSA-12V8A(2.5mm)
1c),Power Adaptor Model:
PSA-12V10A(2.5mm)

More detail information...
