Your Current Position: PC Chassis




-->> Micro-ATX and Mini-ITX Chassis with ATX Power Supply M Series <<--

Metal chassis front panel plastic parts for MINI-ITX power supply structure with

Type Picture Description

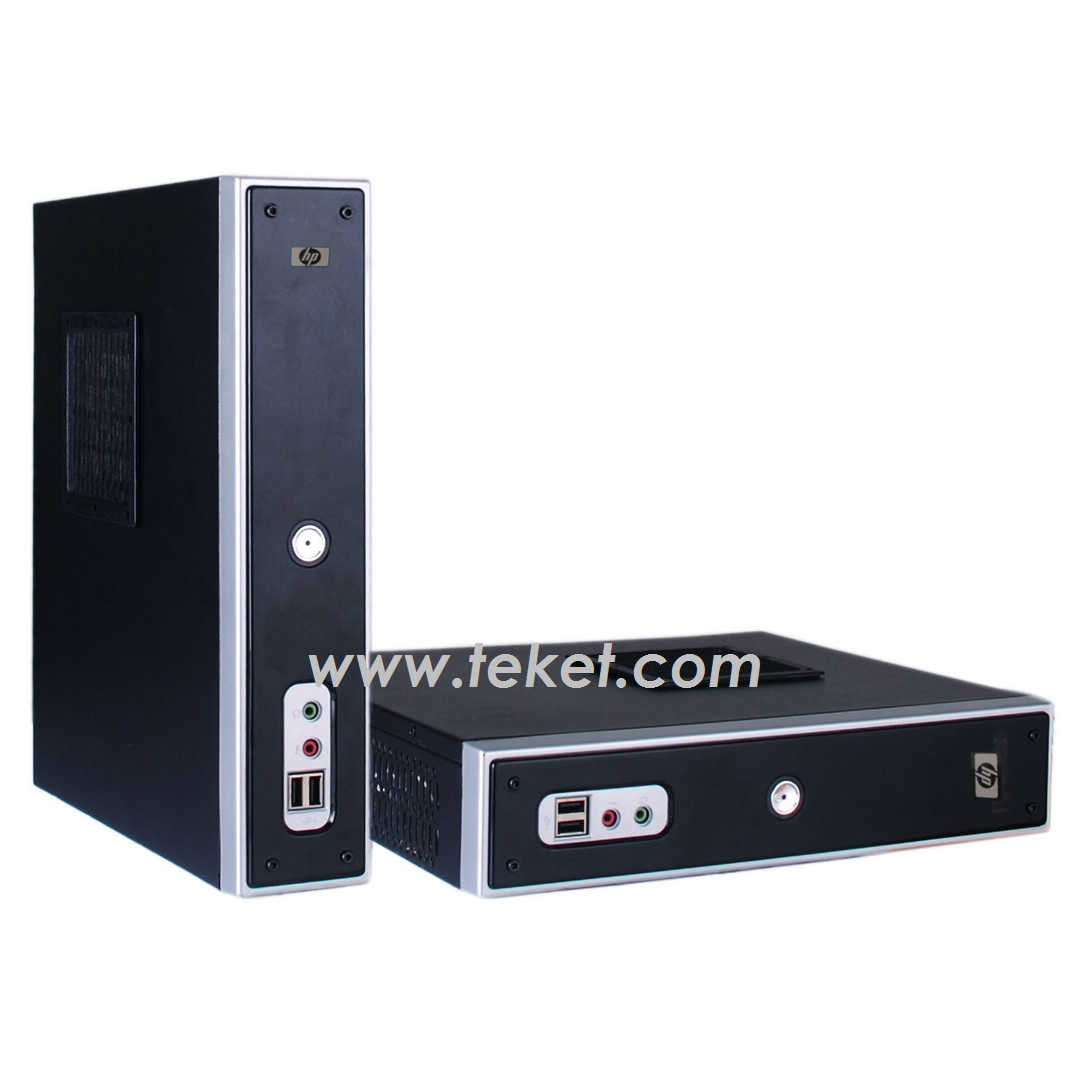

M01

M01
Case Type: Slim Case
Drive Bays:
External: 3.5" x 0, 5.25" x 0
Internal: 3.5" x 0, 5.25" x 0
Slot: 0 EA
Color: Buyer's option
Chassis Size: (H x W x L mm) 245 x 66 x 305
Carton Size:(H x W x L mm) 355 x 117 x 325
Net Weight: 2.0kg
Gross Weight: 2.5kg
Loading Q'ty: 2050 pcs/20"G; 4100 pcs/40"GP; 4800 pcs/40"HQ

More detail information...

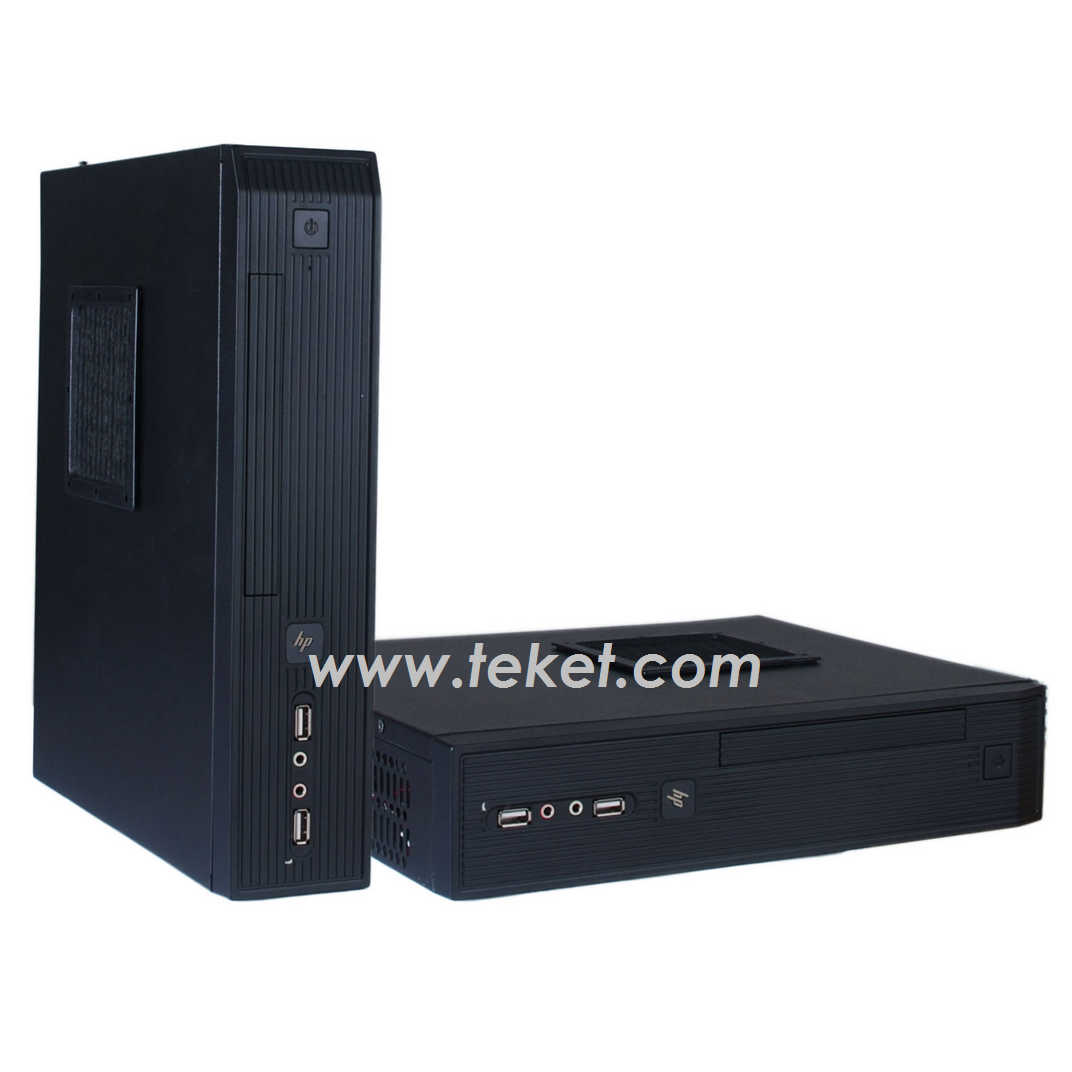

M03
M03
Case Type: Slim Case
Drive Bays:
External: 3.5" x 0, 5.25" x 0
Internal: 3.5" x 0, 5.25" x 0
Slot: 0 EA
Color: Buyer's option
Chassis Size: (L x W x H mm) 245 x 66 x 305
Carton Size:(L x W x H mm) 355 x 117 x 325
Net Weight: 2.0kg
Gross Weight: 2.5kg
Loading Q'ty: 2050 pcs/20"G; 4100 pcs/40"GP; 4800 pcs/40"H

More detail information...

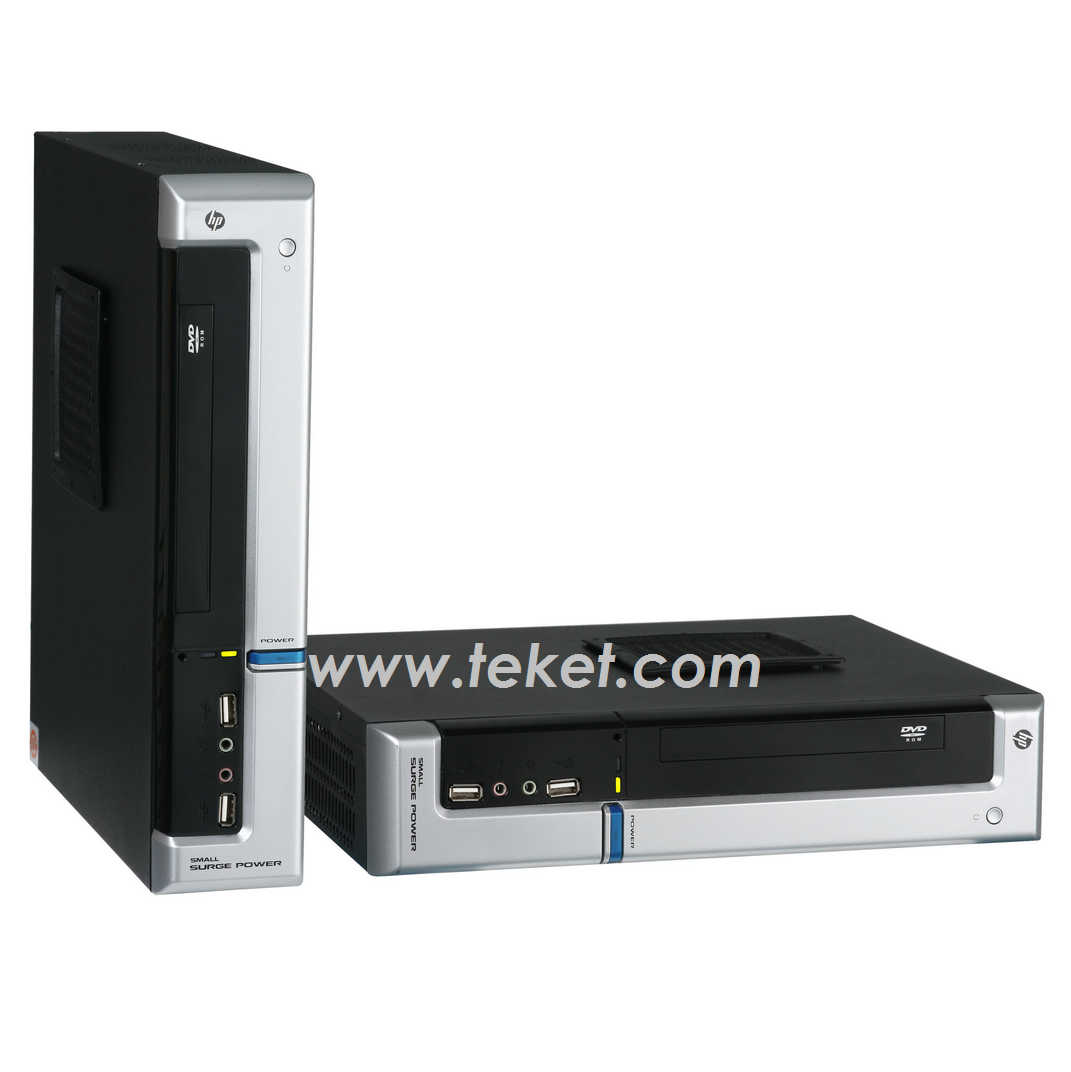

M04

M04:
Case type:slim case
Drive bays:
External:3.5*0,5.25''*0
Internal£º3.5*0,5.25''*0
Slot:0 EA
Color:buyer's option
Chassis size:(L x W x H mm)245*66*305
Carton size:(L x W x H mm)355*117*325
Net weight:2.0kg
Gross weight:2.5Kg
Loading Q'ty:2050pcs/20''GP;4100 pcs/40''GP 4800 pcs/40''HQ

More detail information...


M05
M05:
Case type:slim case
Drive bays:
External:3.5*0,5.25''*0
Internal£º3.5*0,5.25''*0
Slot:0 EA
Color:buyer's option
Chassis size:(L x W x H mm)245*66*305
Carton size:(L x W x H mm)355*117*325
Net weight:2.0kg
Grosght:2.5Kg
Loading Q'ty:2050pcs/20''GP; 4100 pcs/40''GP; 4800 pcs/40''HQ

More detail information...

M06
M06:
Case type:slim case
Drive bays:
External:3.5*0,5.25''*0
Internal£º3.5*0,5.25''*0
Slot:0 EA
Color:buyer's option
Chassis size:(L x W x H mm)245*66*305
Carton size:(L x W x H mm)355*117*325
Net weight:2.0kg
Grosght:2.5Kg
Loading Q'ty:2050pcs/20''GP; 4100 pcs/40''GP; 4800 pcs/40''HQ

More detail information...

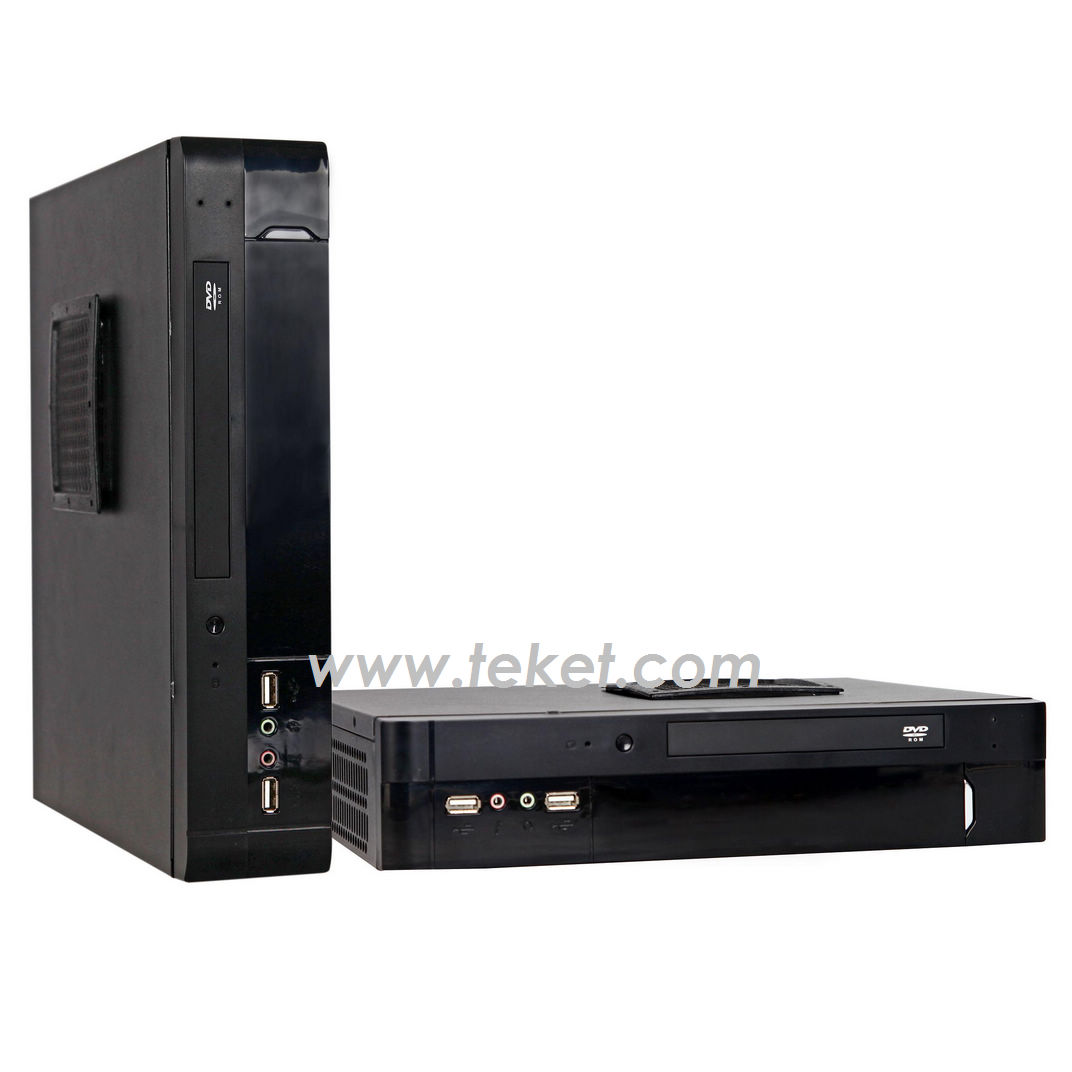

M07
M07:
Case type:slim case
Drive bays:
External:3.5*0,5.25''*0
Internal£º3.5*0,5.25''*0
Slot:0 EA
Color:buyer's option
Chassis size:(L x W x H mm)245*66*305
Carton size:(L x W x H mm)355*117*325
Net weight:2.0kg
Grosght:2.5Kg
Loading Q'ty:2050pcs/20''GP; 4100 pcs/40''GP; 4800 pcs/40''HQ

More detail information...

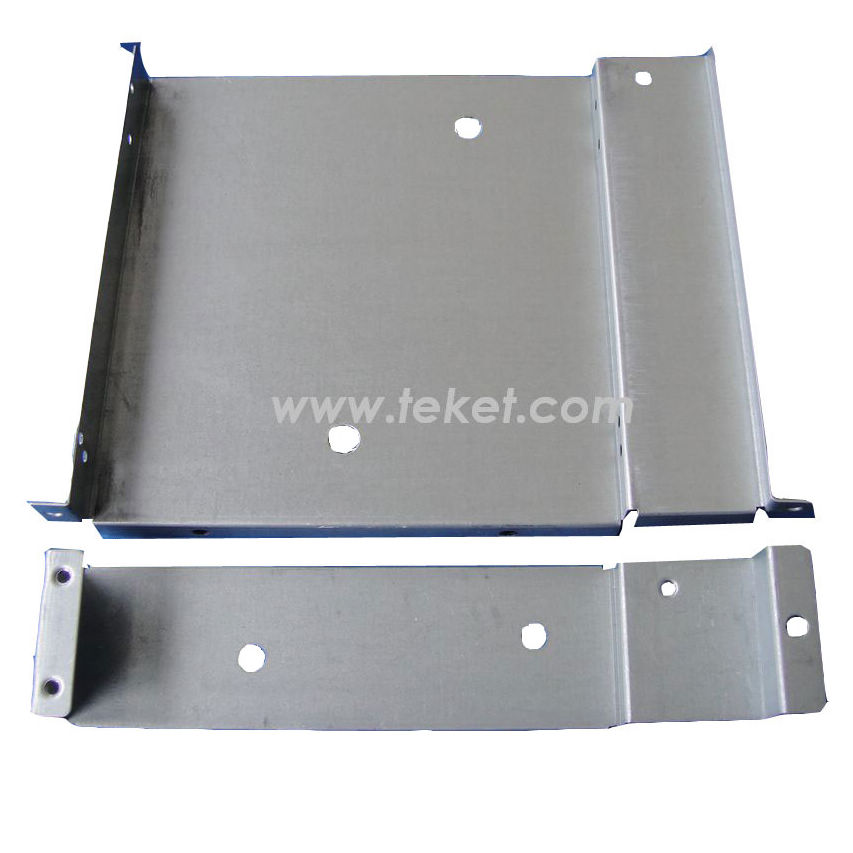

  DVD bracket for M series chassis

General Introduction
The main parameters
Model m01-m07
Applicable to the type of desktop
Li chassis style / Horizontal ATX
Position 1-bit hard drive chassis
Standard Power Standard 150W power supply
Other parameters
Description of the internal cooling central heat exhaust pipe
Other properties of black.
Specification measurements 30.5 ¡¢26.5 ¡¢6.5cm (width, depth, height)
Gross weight 3 kg
Product Features:
1. The new NC small chassis, the design of ultra-thin body, VOD, education, banking, such as the application of Diskless Workstation
2. The use of the thermal design brand, a unique central cooling exhaust pipe design, heat worries
3. The use of original brand standards for surface dusting machine technology, anti-corrosion, anti-wear
4. A unique structural design, with tripod can be placed vertical, or horizontal placement, easy heart Italy,
5. That can be installed ordinary 3.5-inch desktop hard drive (as the motherboard) or through the installation of hard disk notebook hard disk plane.
6. Plate thickness 0.8mm, good process, in line with the EU RoHS environmental requirements.
7. Can be installed on VIA EPIA Mini ITX, micro-ATX small plate to support the VIA, ECS, INTEL mini-ITX motherboards, motherboard 17 * 17, 17 * 19 motherboard, MICRO motherboard, the largest 24 ¡¢23cm that can be installed motherboard specifications
8. Front USB, audio port, removable tailgate, replacement.
9. Standard 150W peak power, power supply interface pins 20,24 can be used with four-pin CPU power plug.

60W ATX Power Supply Specification:
AC Input: 200-240VAC,3A,50-60HZ
Output:
+3.3V 6A
+5V 10A
+12V 6A
-12V 0.5A
+5VSB 1.5A
Total combined output of +5V & +3.3V is ¡ڶ0W

INPUT Characteristics:
Input Range: 180~264V
90~132V (optional)
Frequency: 50~60Hz
Input Current: 3A max @ 200~240Vac
Efficiency: ¡۶5%
Output Characteristics:
Max power: 150W
Holdup time: >17mS @Max. Load
Rise time: 2~20mS
Leakage Current: <1.5mA
Overvoltage protection: +3.3V, +5V, +12V
Short-Circuit Protection: Latch off
Power Good Singal: TTL compatible on delay 100mS
to 500mS, off delay 1mS

High efficiency
FLEX ATX 12V 1.0 version
Low noise
Over voltage protection
Short circuit protection
Reset table power shut down
Vacuum-impregnated transformer
Remote On/Off
Line input fuse protection
1x 50cm fan
One socket
20+4PIN/ 220mm+/-50mm
110/220V (optional)
P4-4pin /400mm+/-50mm


size and package information
NW: 1.755kg,305x262x65(mm)(w/o power)
Inner: 2.58kg,355x335x120(mm)
Outer: 13.80kg/ctn,5pcs/ctn,510x380x345(mm)
