Your Current Position: PC Chassis




-->> Chassis Power Supply SN-serial <<--

Plastic chassis for MINI-ITX motherboard

Type Picture Description

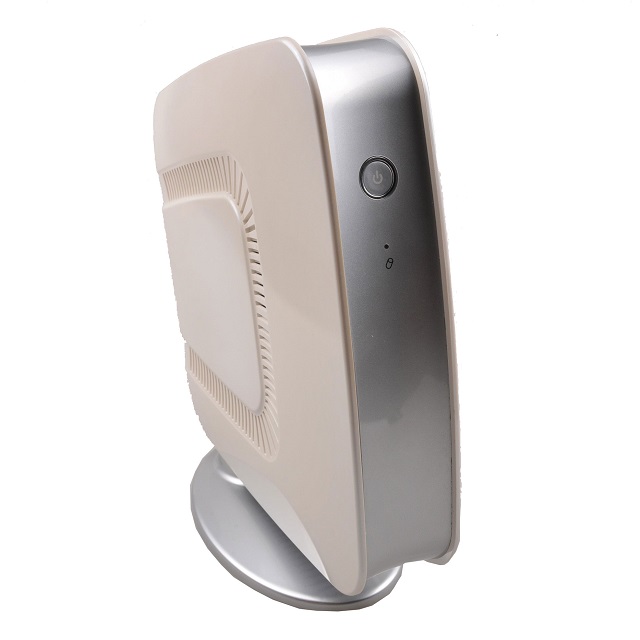

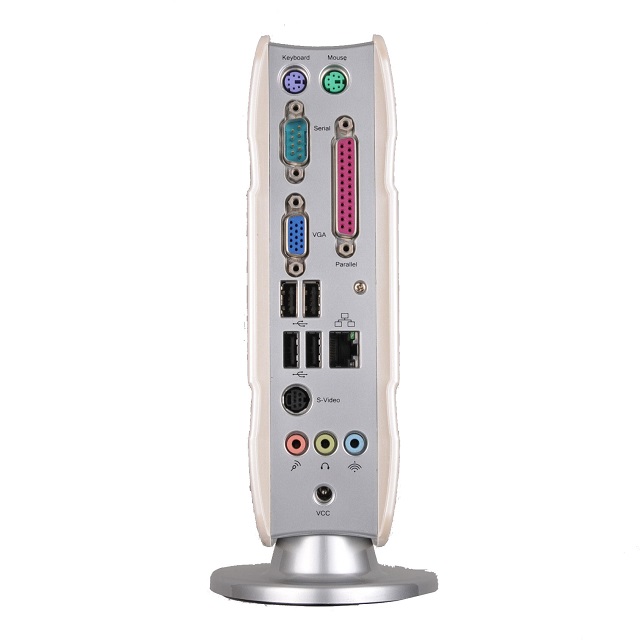

SN01


SN01
Case Type: Slim Case
Drive Bays: 3.5" x 0, 2.5" x 1
Color: Buyer's option (four color)

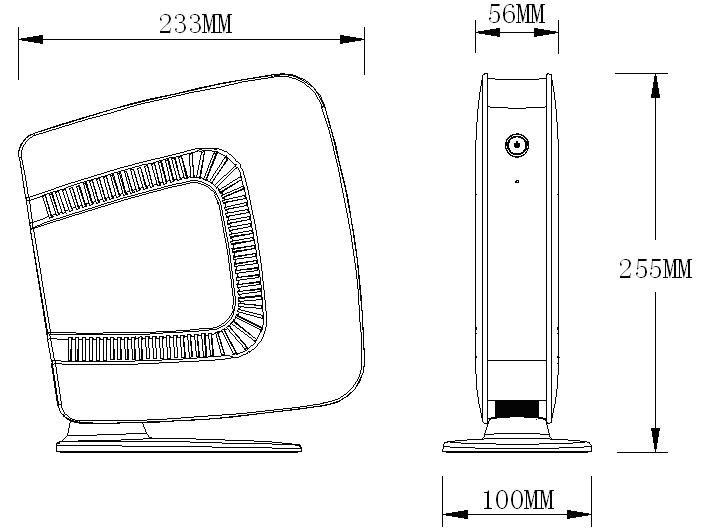

Chassis Size:
(H x W x L mm) 233 x 255 x 56/100
Carton Size:
(H x W x L mm) 250 x 260 x 115
Net Weight: 0.723kg
Gross Weight: +0.450kg

SN01(W/O POWER)
NW:
Inner: 1.2kg,250x260x115(mm)
Outer:

I/O
Front:
1*PowerSwitch
1*PowerLed

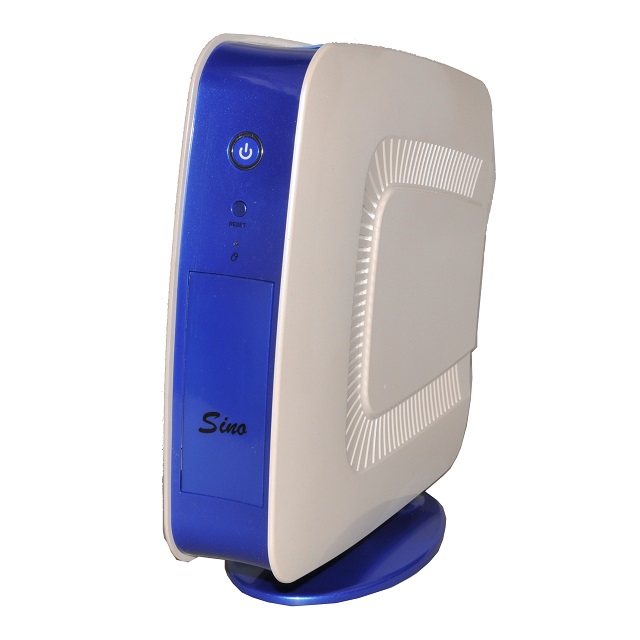

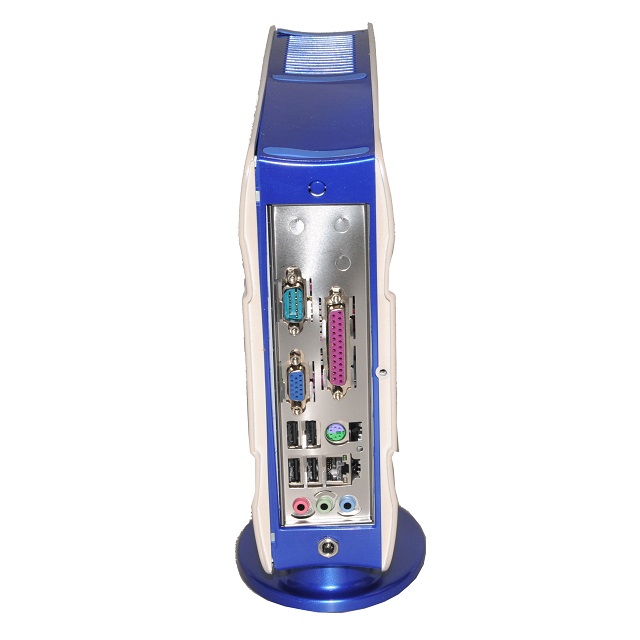

SN02



SN02
Case Type: Slim Case
Drive Bays: 3.5" x 0, 2.5" x 1
Color: Buyer's option (four color)

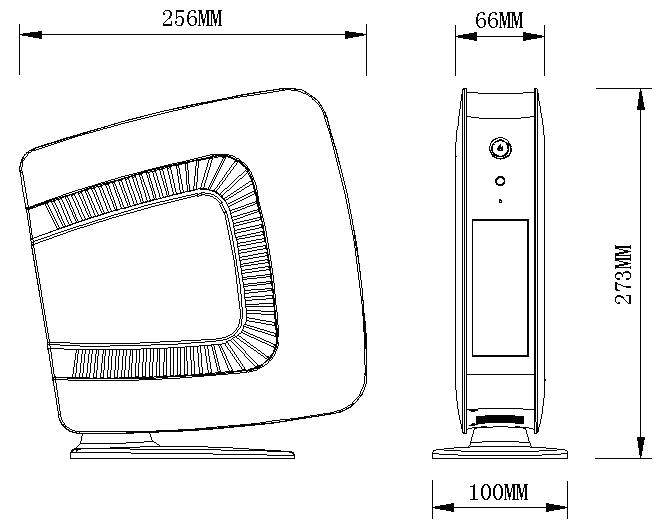

Chassis Size:
(H x W x L mm) 256 x 273 x 66/100
Carton Size:
(H x W x L mm) 395x 270 x 90
Net Weight: 0.880kg
Gross Weight: +0.500kg

SN01(W/O POWER)
NW:
Inner: 1.4kg,375x270x90(mm)
Outer:

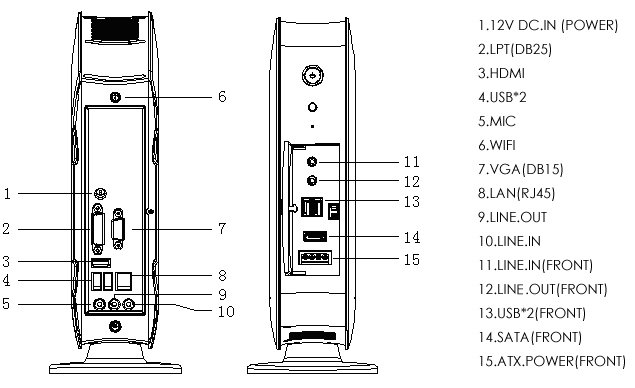

I/O
Front:
1*PowerSwitch
1*PowerLed
1*LINE.IN
1*LINE.OUT
2*USB
1*SATA
1*ATX_POWER

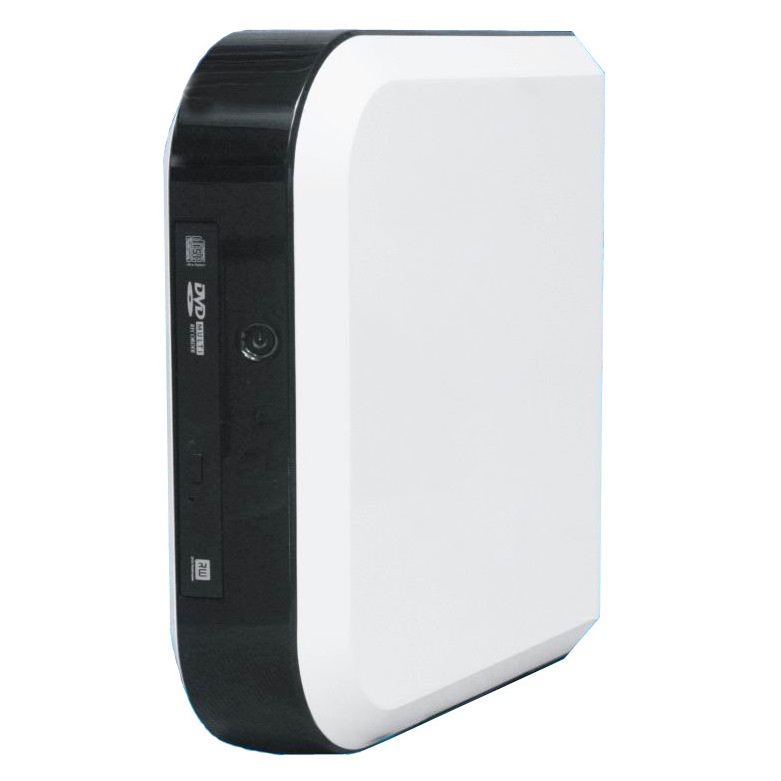

SN03


SN03
Case Type: Slim Case
Drive Bays: 3.5" x 0, 2.5" x 1
DVD Bays: DVD-R/W*1 (slim)
Color: Buyer's option (four color)
Chassis Size:
(H x W x L mm) 330x 255 x 60/100
Carton Size:
(H x W x L mm) 425x 280 x 85
Net Weight: 1.665kg
Gross Weight: +0.525kg

SN01(W/O POWER)
NW:
Inner: 2.3kg,425x280x85(mm)
Outer:


General Introduction
The main parameters
Model SN01-SN02
Design for Mini-ITX motherboard Only

Standard Power Standard 60W power supply (DC2ATX)

Product Features:
1. Chassis with plastic pieces, metal pieces of the middle support
2. Very light and smart, and to prevent radiation

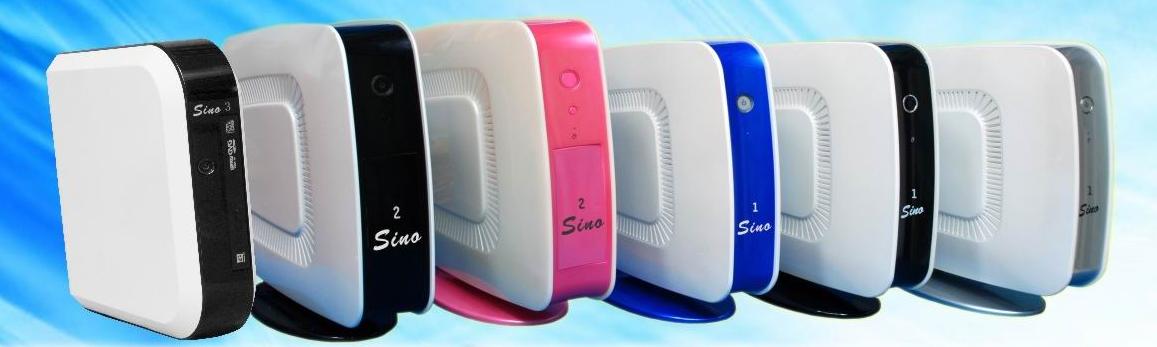

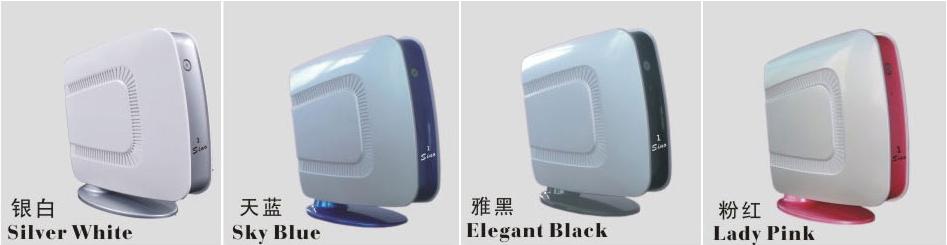

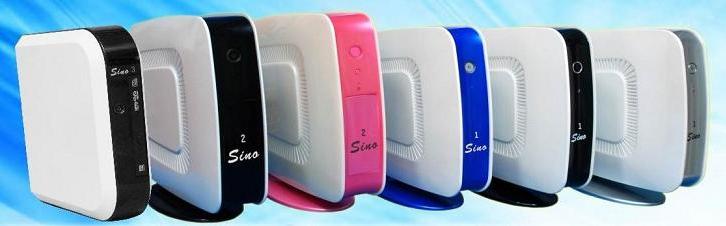

3. A variety of colors, include Silver white, Sky Blue, Elegant Black and Lady Pink etc.
