Plastic or metal case, compact size, suitable for SOC System

Model:STB_TY

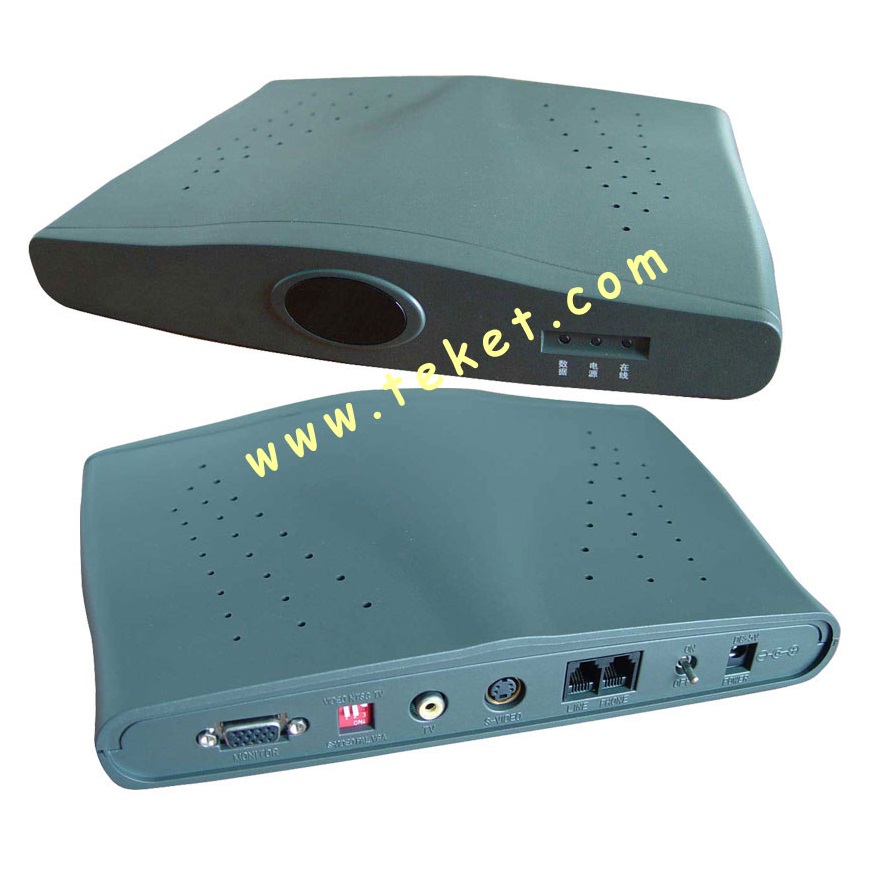

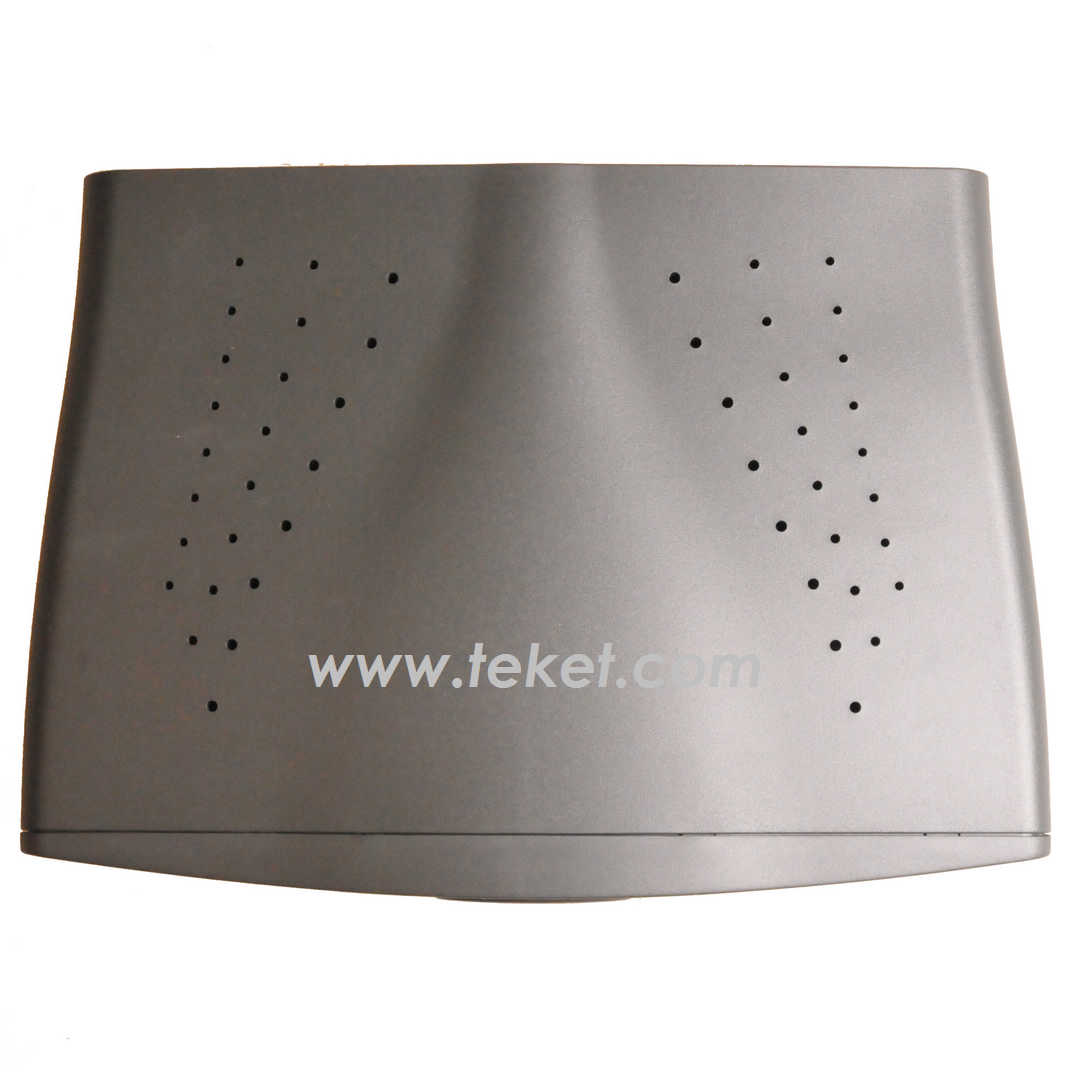

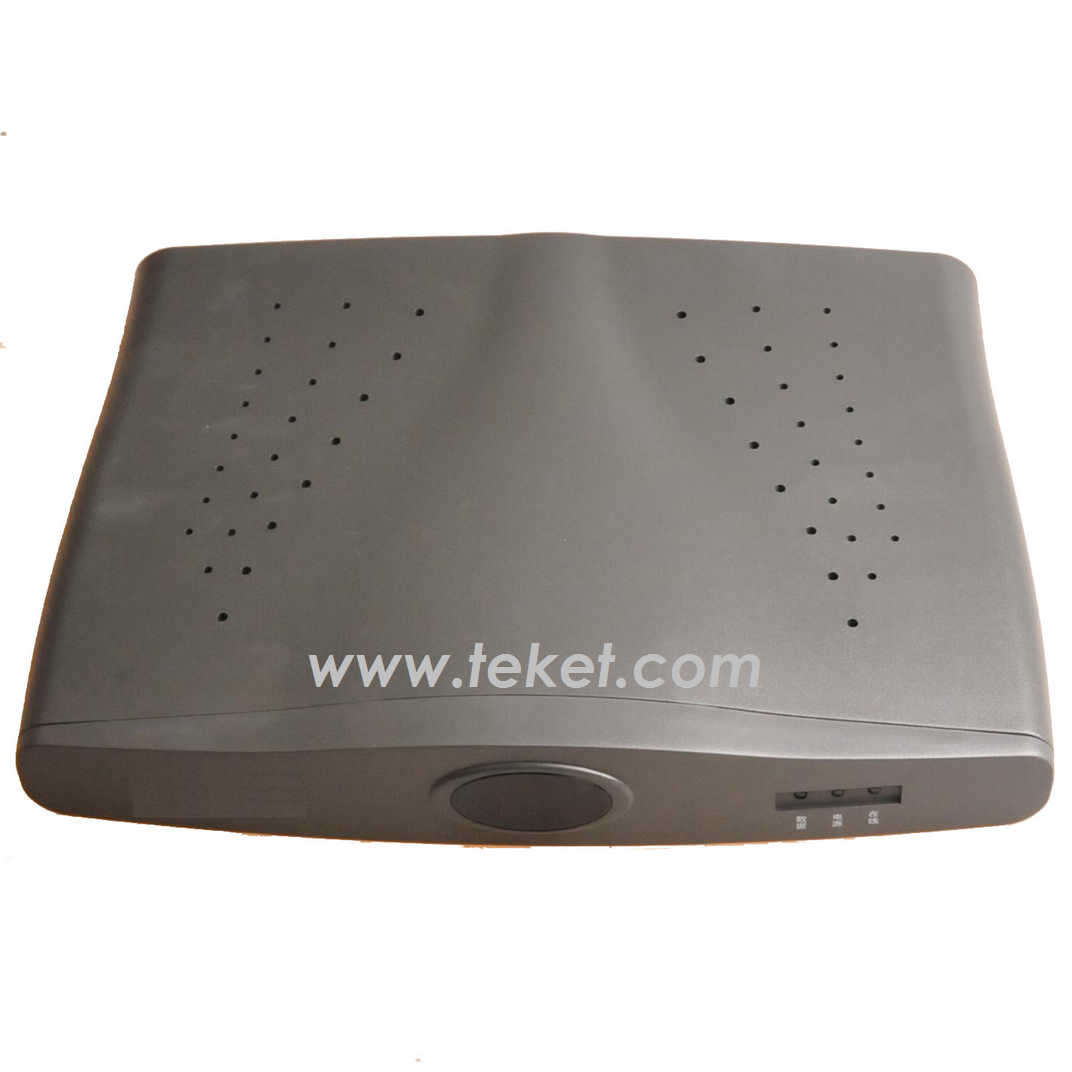

Set-top plastic shell positive suitable for the production of set-top box products, infra-red receiver for the middle part of the window right there are three lights, the left is the region LOOG

Set-top plastic shell positive

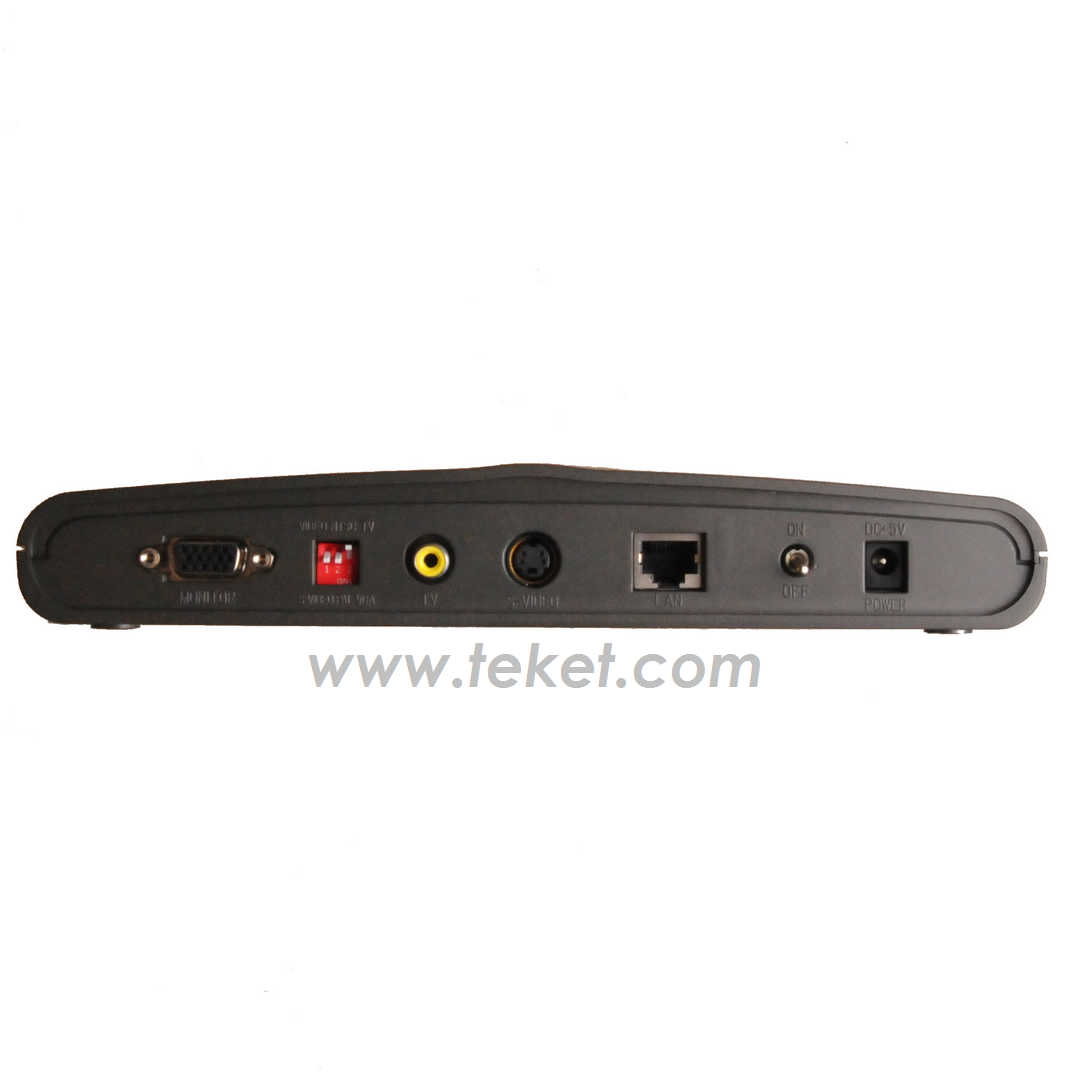

Suitable for the production of set-top box products, and DB15 pin VGA output (which can be exchanged for DB9), 4 bit DIP switch, video, Video output, video, S-Video output, two RJ11 phone Block (which can be exchanged for RJ45 Network Block), power switch , power input terminals, such as self

External dimensions: 255x180x40, unit: mm

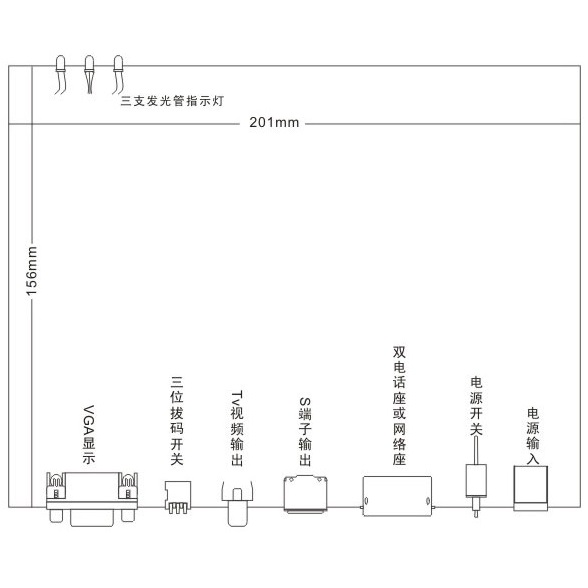

PCB Size: 201 * 157, unit: mm

This plastic case offers the maximum size corresponds to the PCB and the external connector of the exact location of placement.

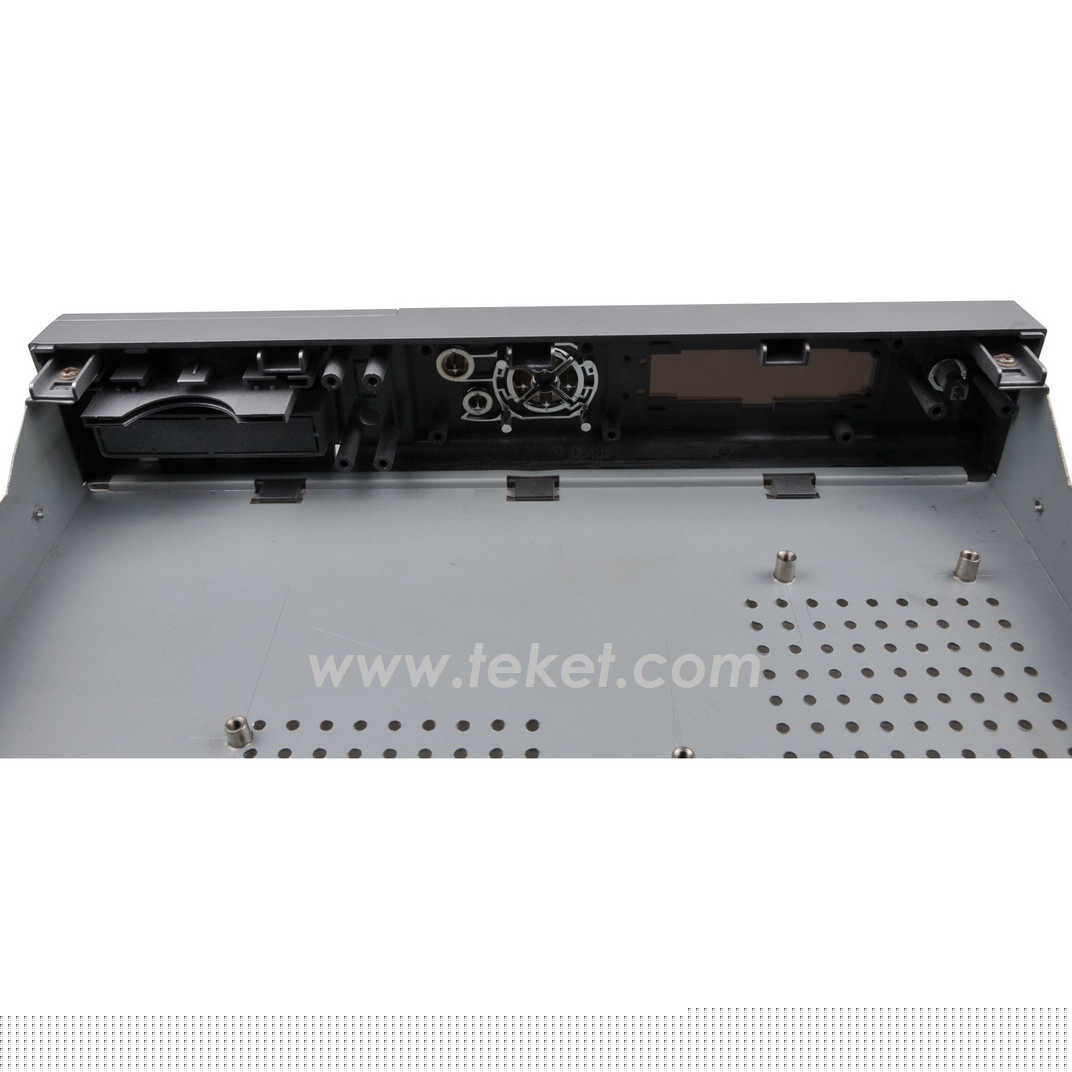

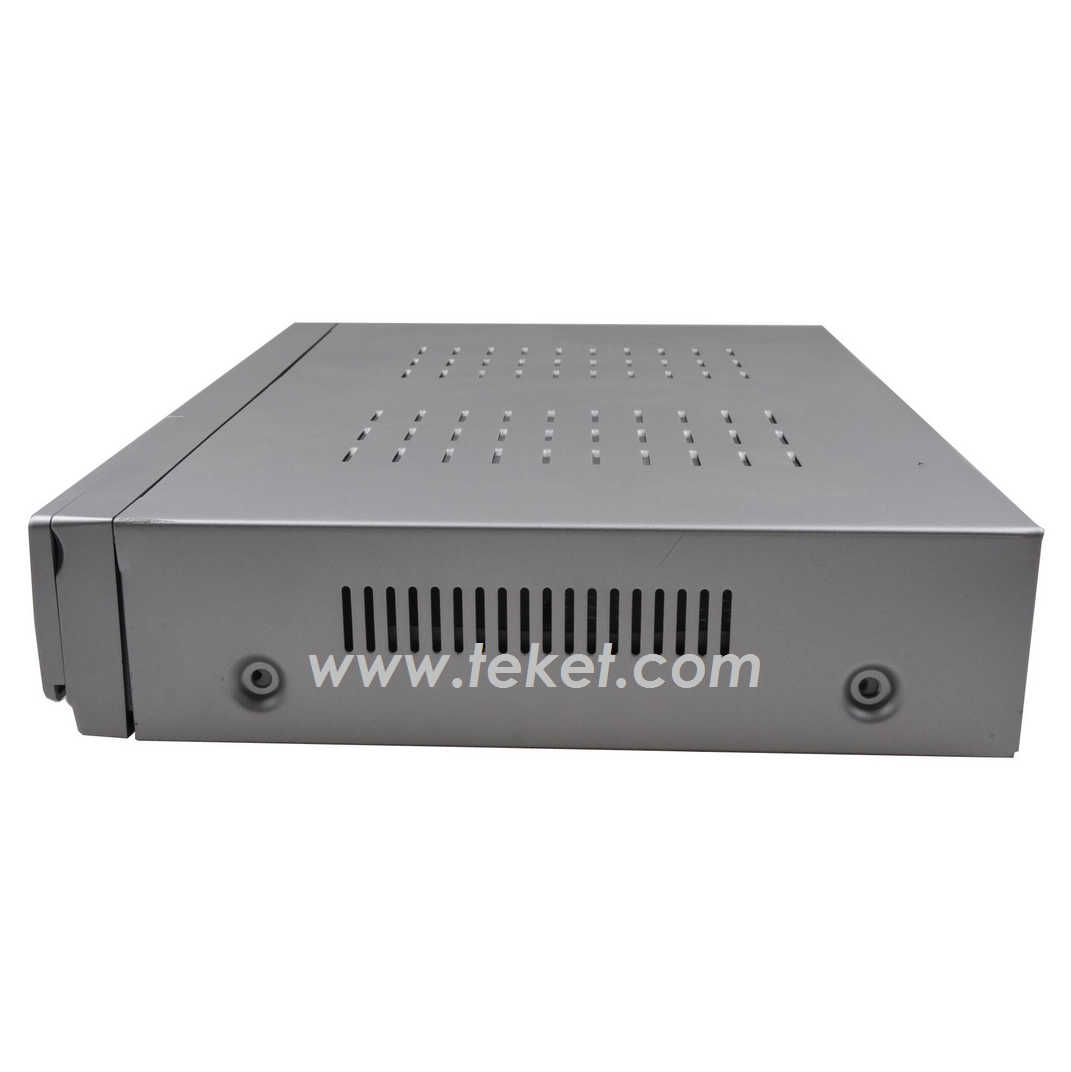

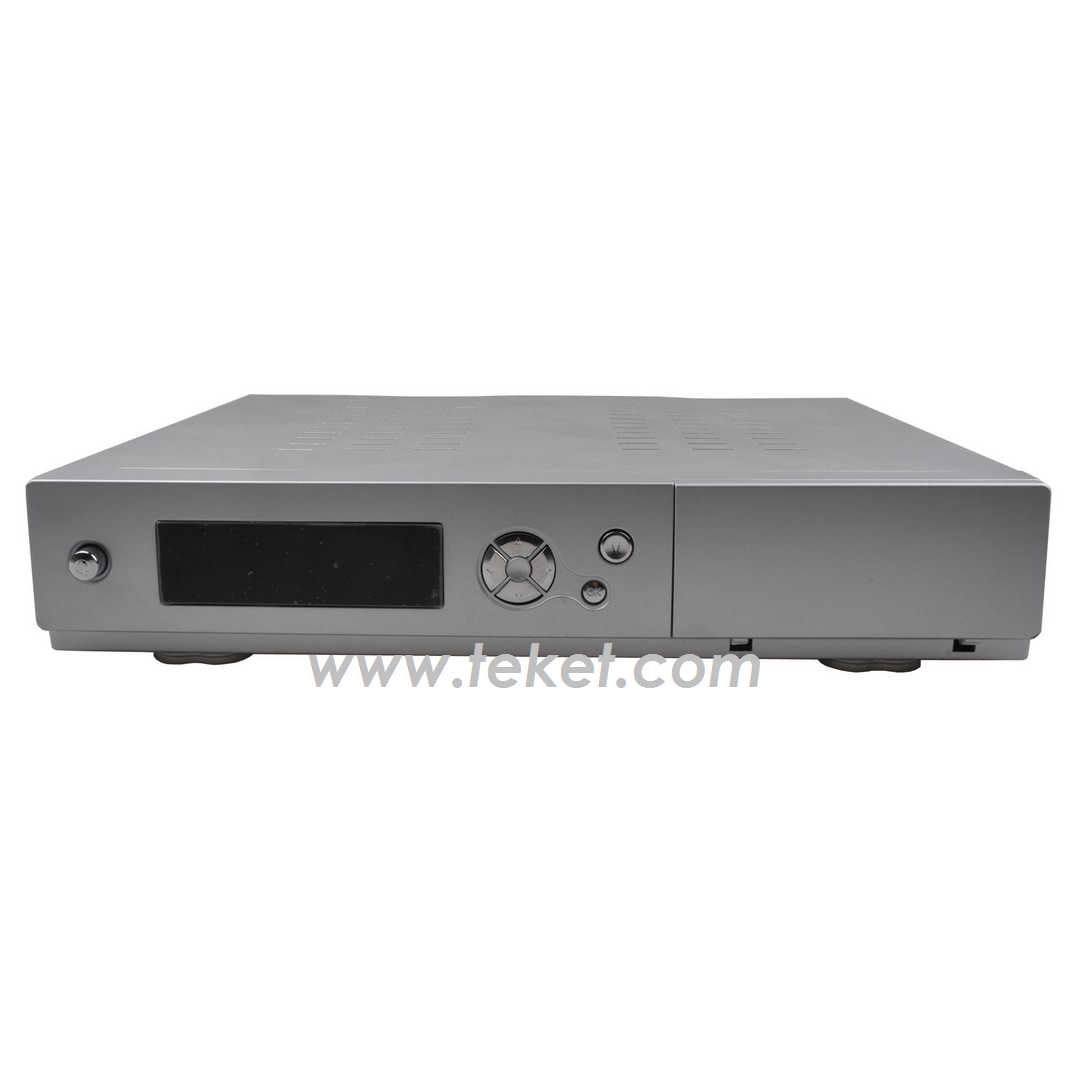

Model: STB_290A
Specifications: width290,deep 42,high 205 (mm)
Overall dimensions including the thickness of board in front of the box which includes the width of the thickness of Features: chrome-plated button, roof paint, hole cards with CA
Applies to: DVB-S, DVB-T, DVB-C, X86 set-top boxesCustom Descriptions (situations):
1, screen printing, after the front panel and backplane
2, bottom-hole location, after the back hole
3, open front panel module
