Your Current Position: PC Chassis\W Series




PC chassis Model: W08

W08 MINI-ITX Chassis Series Case
Key Specifications/Special Features: Model No.: W08
Case dimensions(mm): 218x210x65
Color: black/blue
Storage: 2.5" HDD bay, slim DVD bay support
Main board size (mm): full plastic with EMI approval
Front port: Mini-ITX form factor (170 x 170)
Power: 80w D2D type power
Front port: USB x 2

Material
Plastic Bezel ABS
Plastic Stand ABS
Chassis Material SECC (0.8 mm)
Specifications
Chassis Dimensions (mm) 65 (H) x 218 (W) x 210(D) ( W/O Bezel)
Main Board ITX Form Factor
Maximum Size for Main Board (mm) 170 (W) x 170 (D)
Drive Bays 2.5" HDD x 1
Slim Type CD/DVD x 1
Cooling System 40 mm Fan x 2
Vent Holes Top & Sides
Front Access Port USB x 2 (Ver. 2.0), Audio x 1, Microphone x 1
Antenna Hole Available
VESA Mount Available
Com Port 2
Front POWER LED 1
Front HDD LED 1
POWER SUPPLY DC-DC 87W
Expansion Slot N/A

Application:
Functional: thin client, htpc, mini pc etc.

size and package information
NW: mini-itx,dc-dc convertor,80w,205x195x56,12v5a adaptor
Inner: 1.2kg,220x215x65(mm)
Outer: 1.65kg,275x265x170(mm)

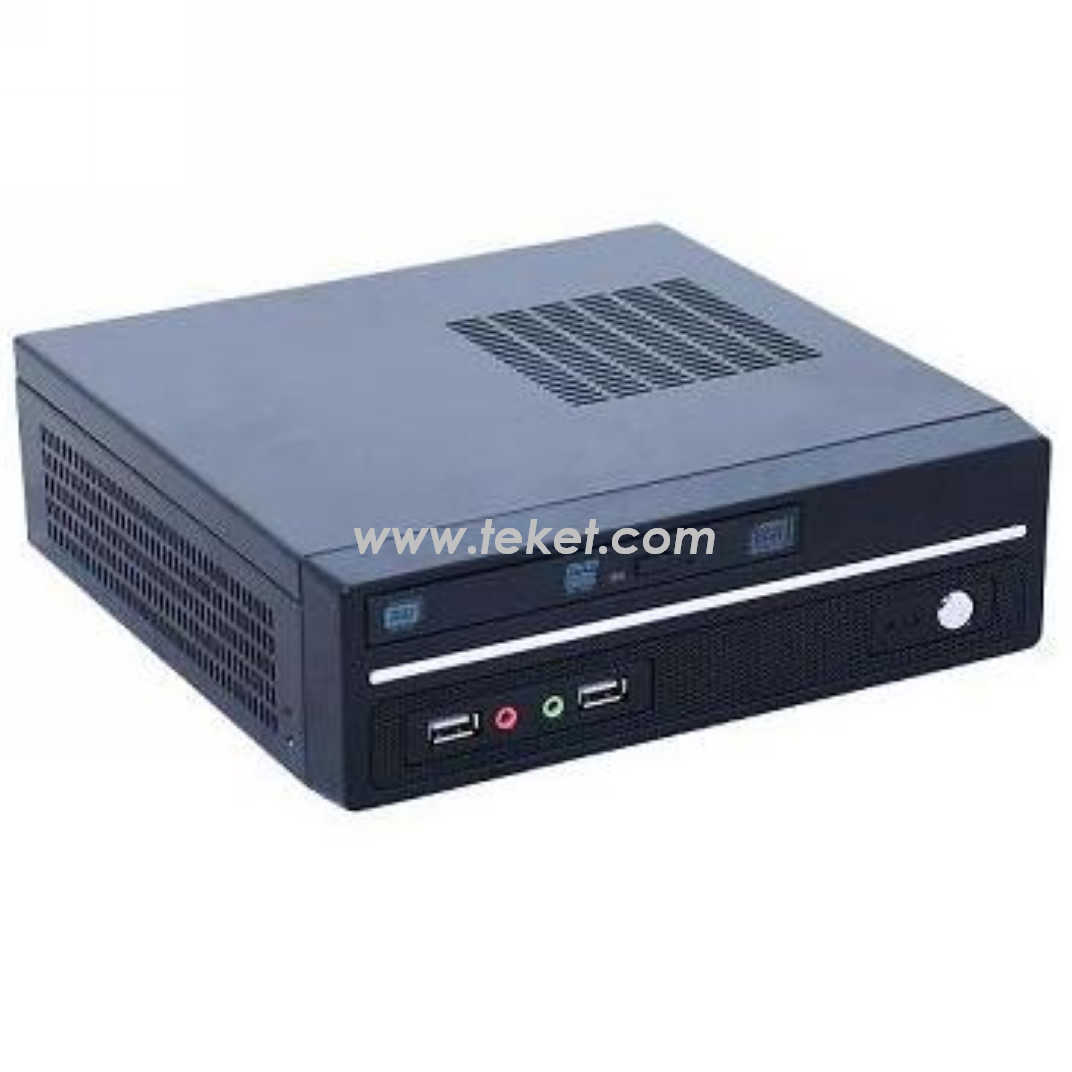

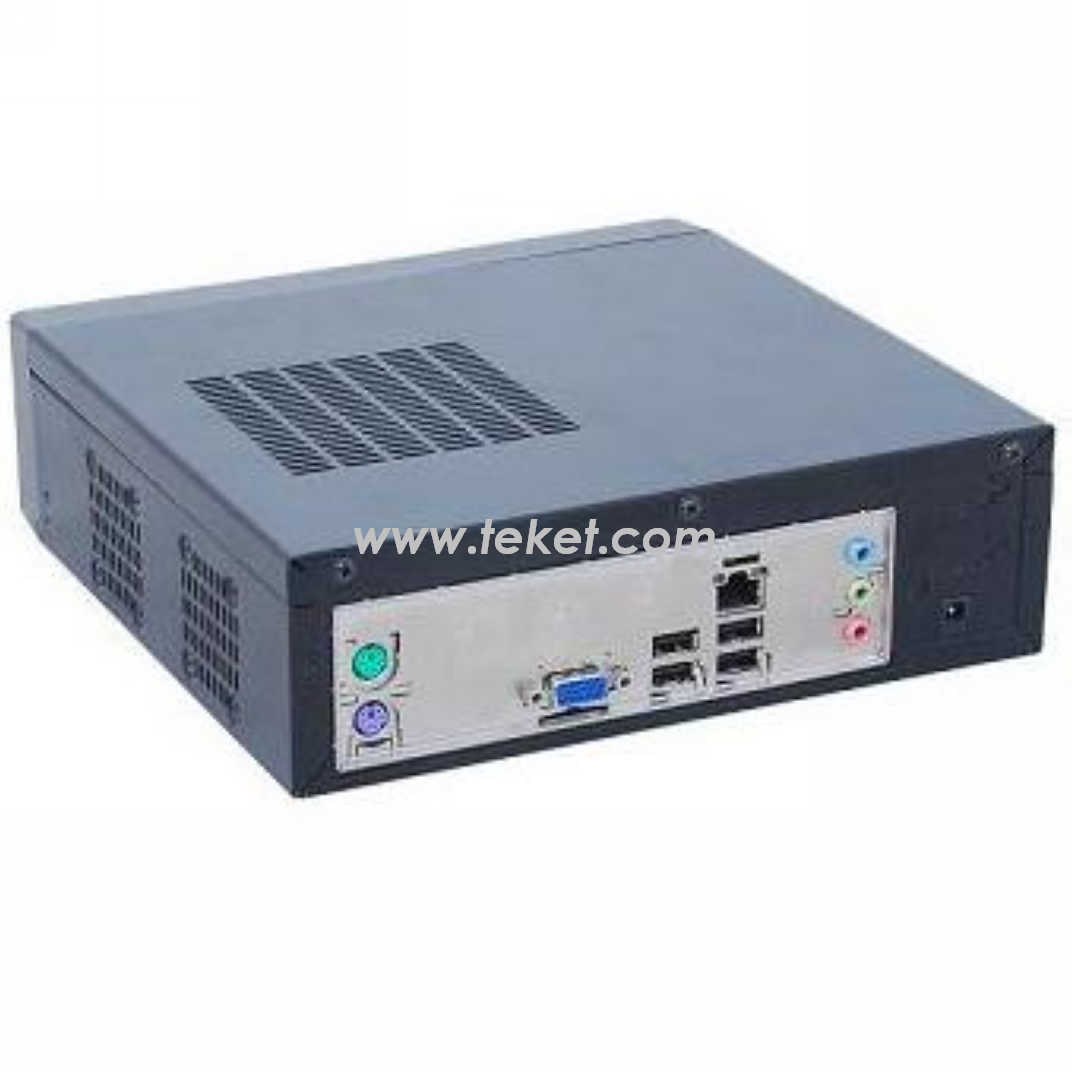

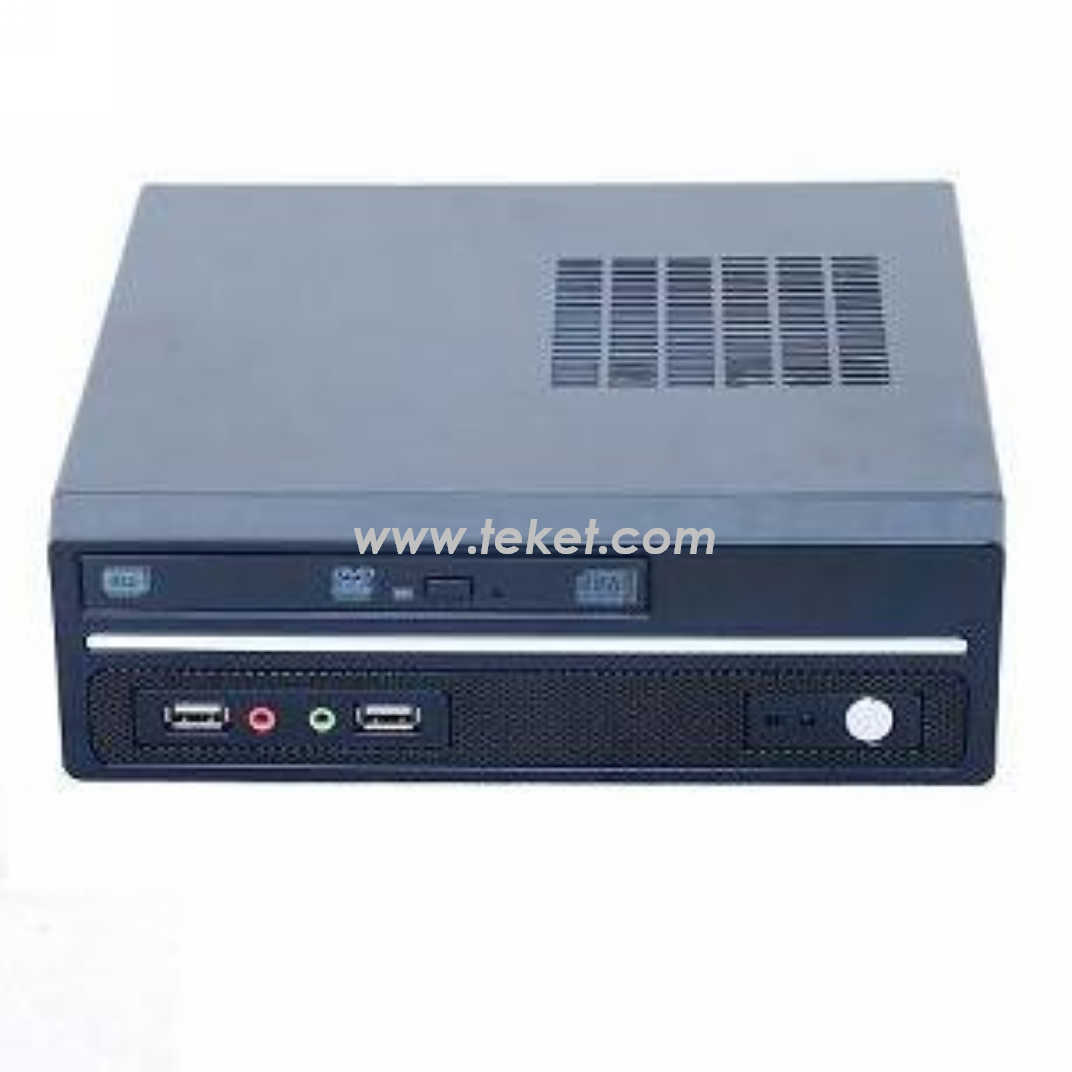

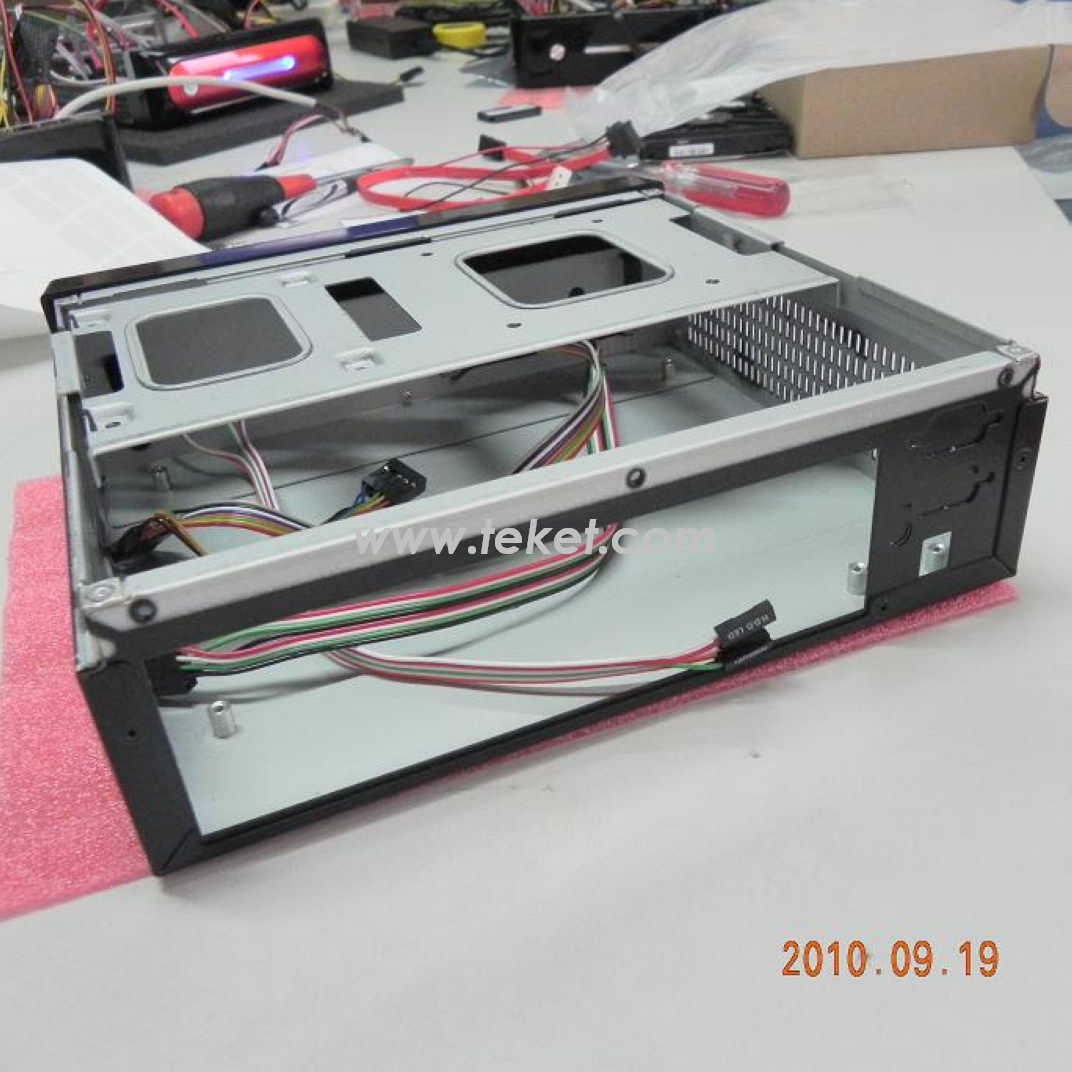

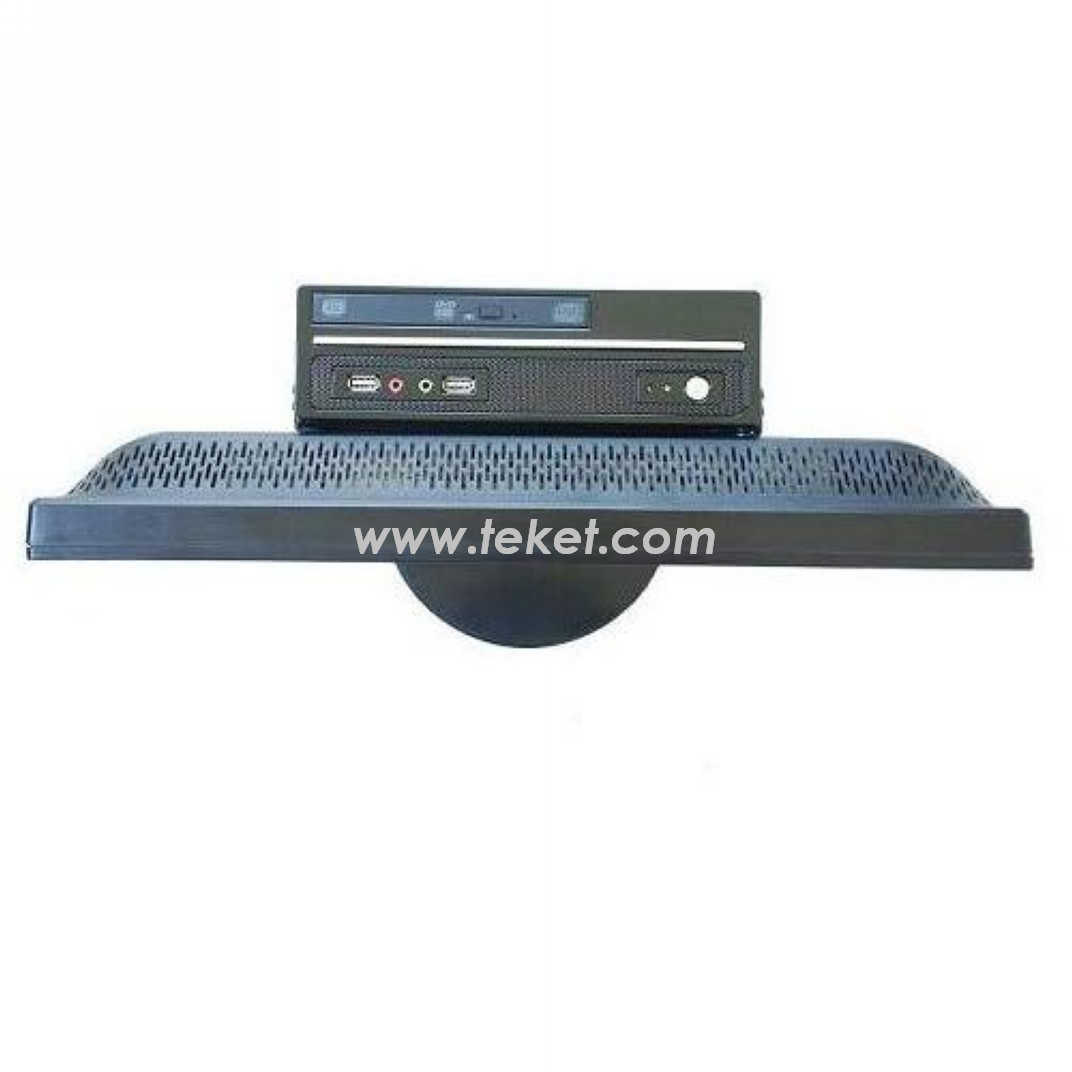

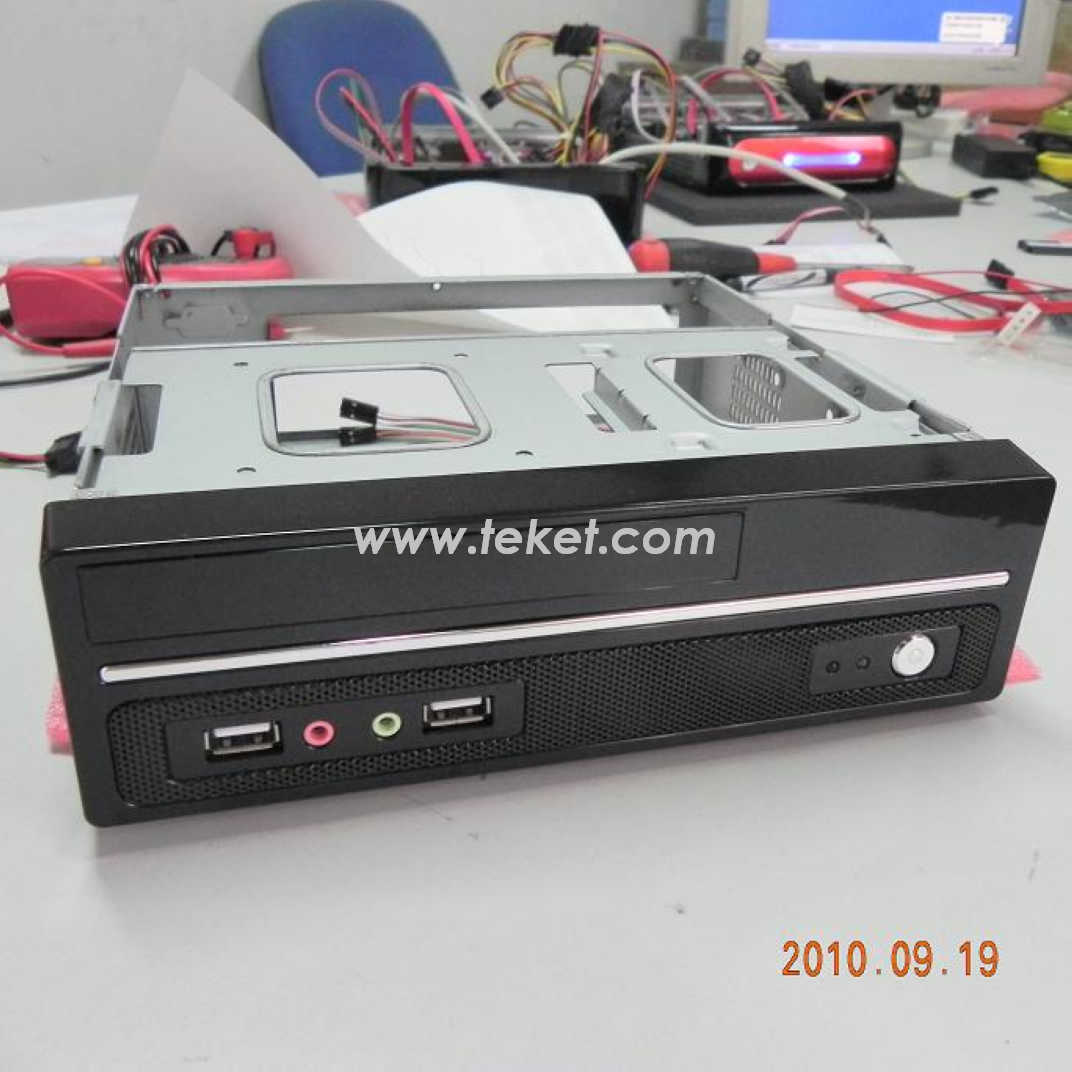

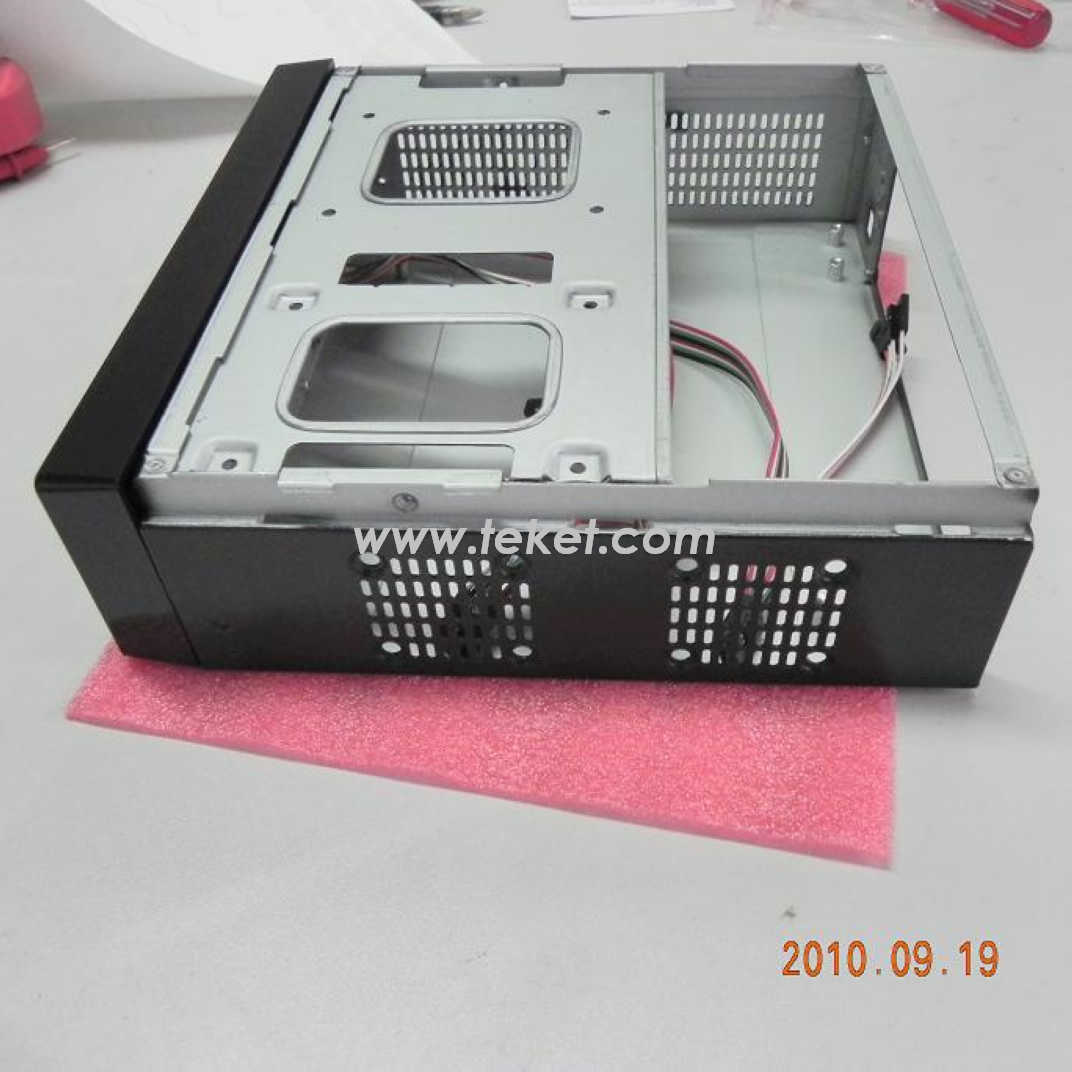

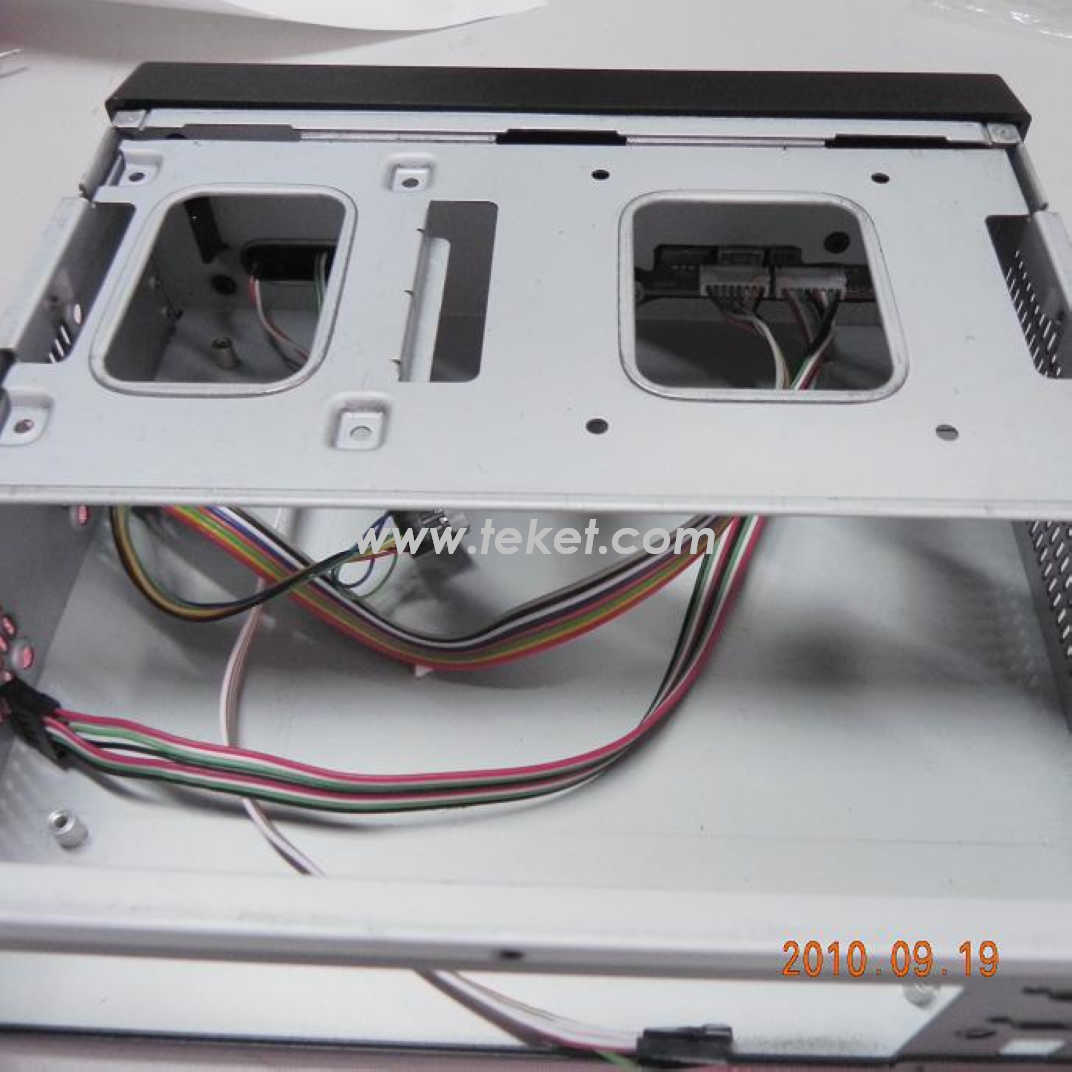

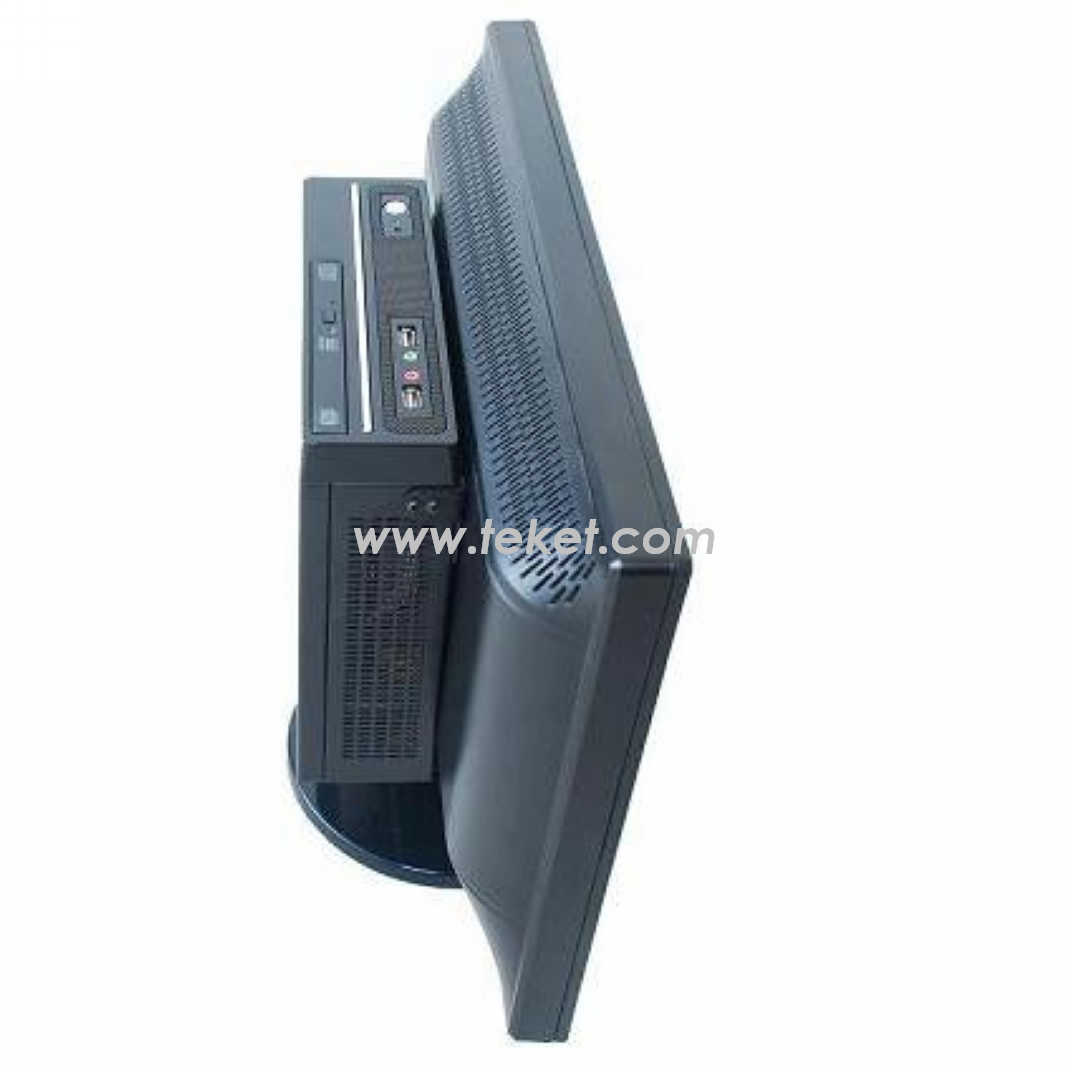

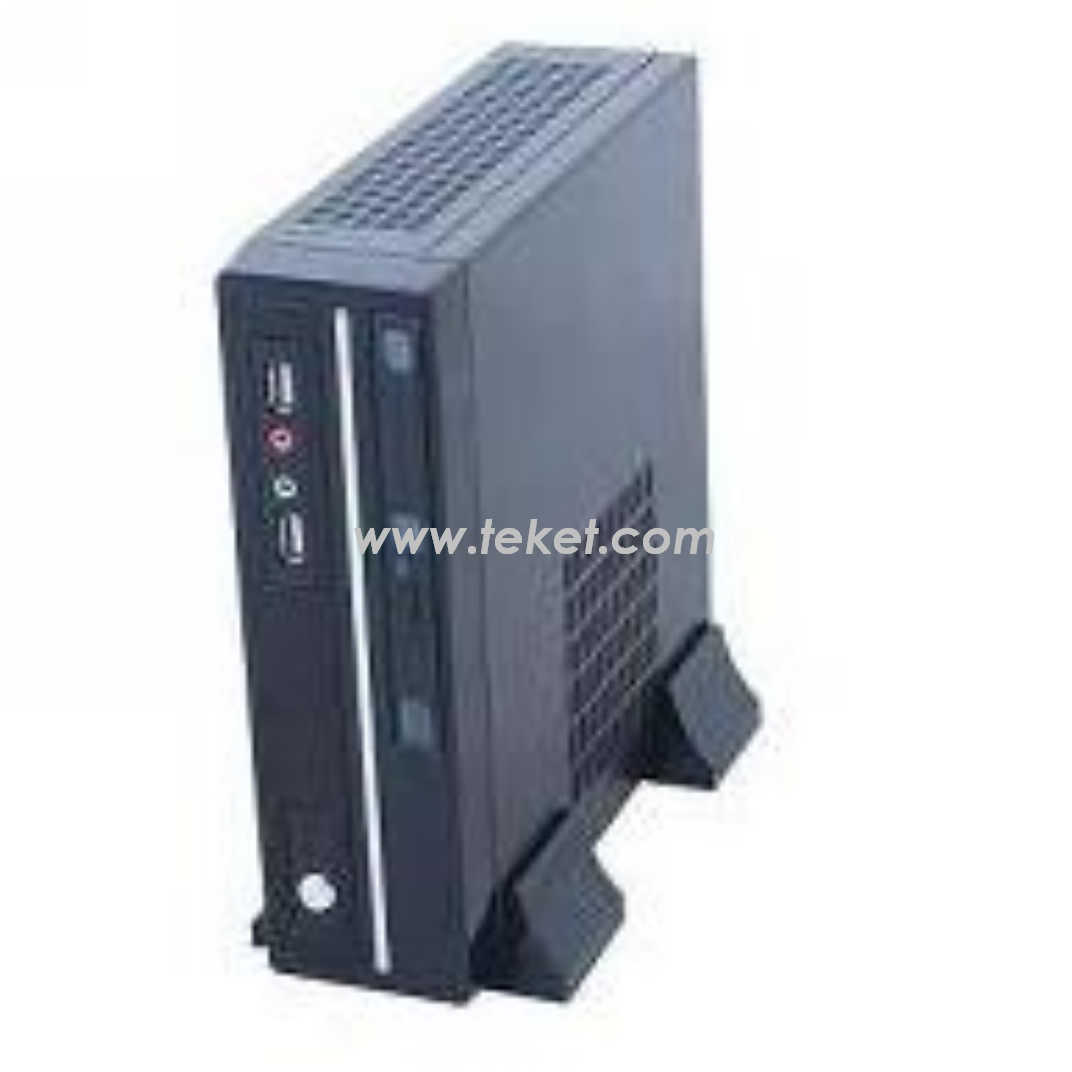

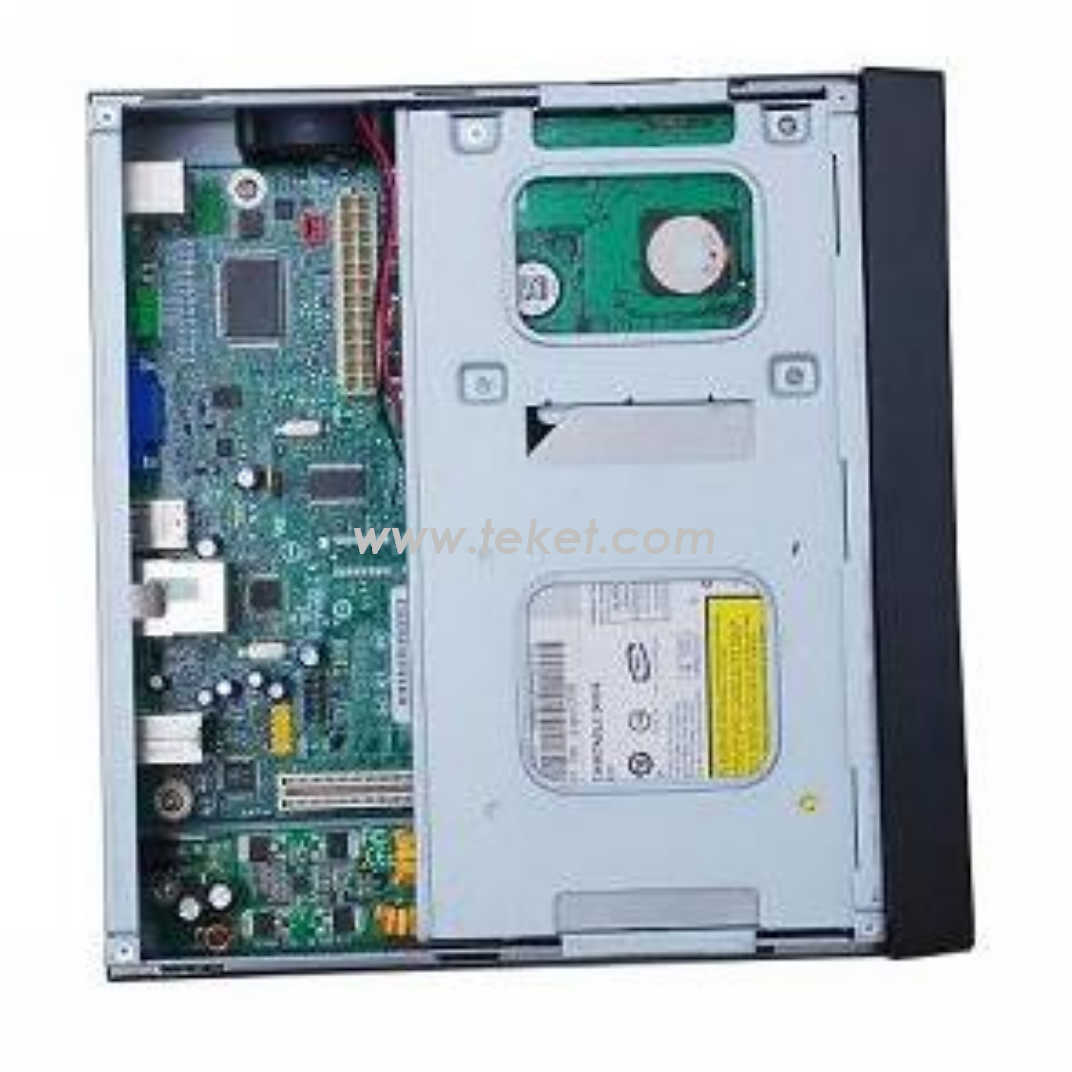

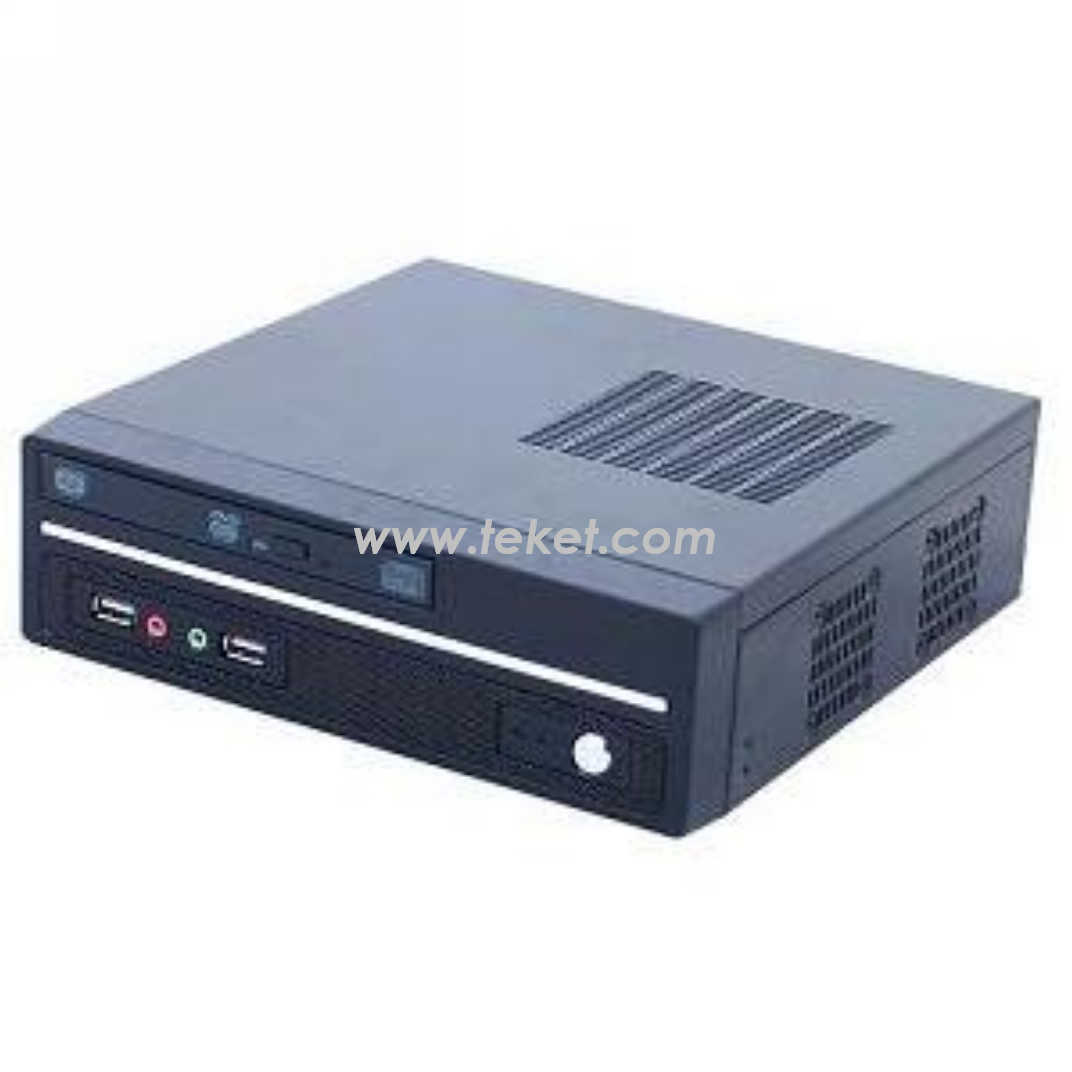

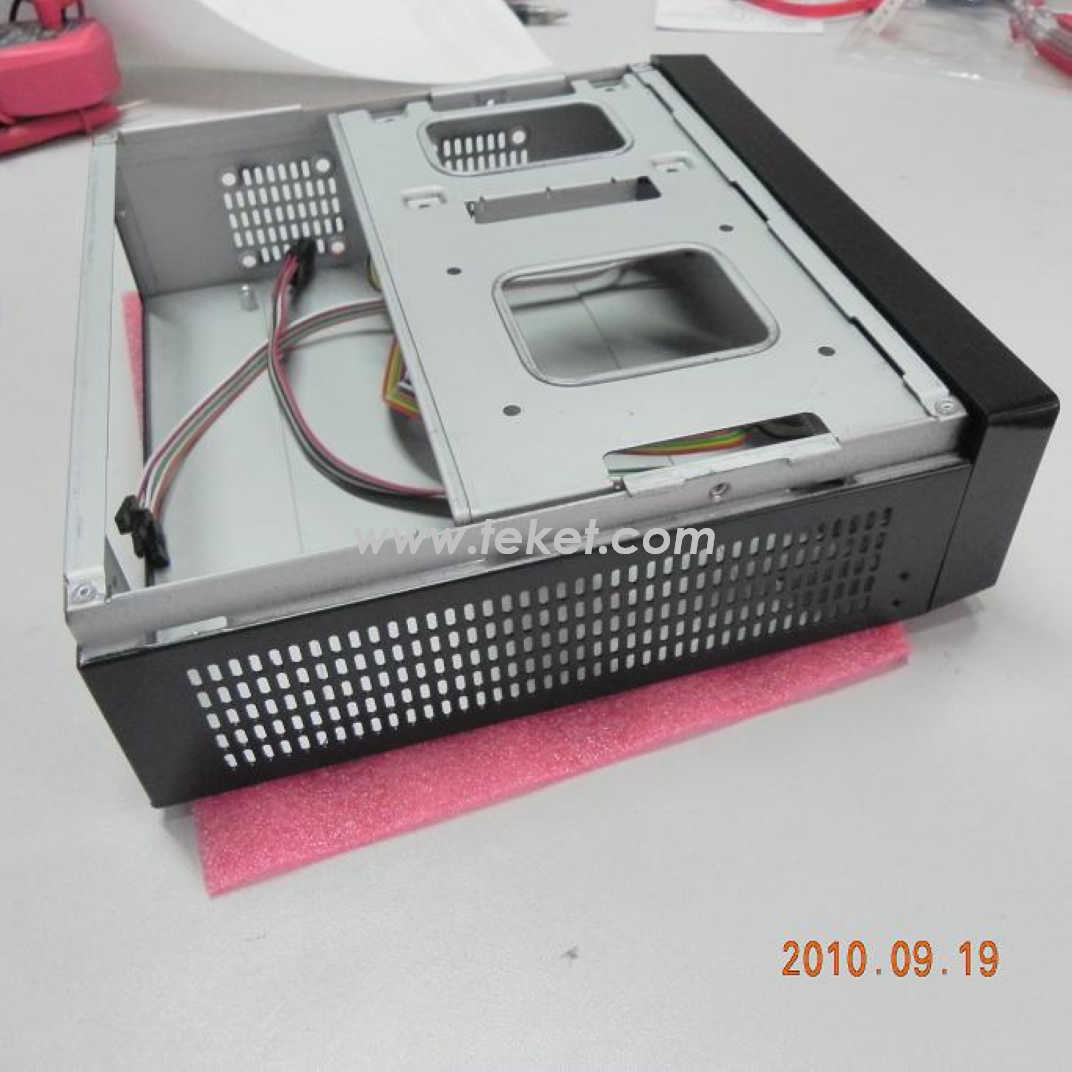

picture show
