>>Your Current Position: Display Device and Accessories



Multi-Touch Infrared Touch screen from 15" to 92"

Features
Dust and water proofing, anti-vandal;
Stable and no drift;
No light spots;
High durability and quick response to touch of any opaque object;
Wide range of temperature;
Transparency and high-resolution;
ROHS, CE, FCC compatible.

Applications
Industry control system;
Indoor/ outdoor kiosks,
Medical and healthcare kiosks;
Gas station
Self- service terminal
ATM
Queuing system;
Voting machine;
In vehicle and transportation;


Technical specification
Touch method: Finger, pen or any opaque object;
Accuracy: 1 mm
Touch resolution rate: 4096 * 4096 pixel
Response speed: < 16 ms
Scanning speed: 120 cycles/second
Transparency: > 92%
Intensity of touch: Over 60,000,000 single point touch
Operating Tem/Hum: -10 - +50 20---85% RH
Storage Tem/Hum: -30 - +60 0--- 95% RH
Type of support screen: LCD/PDP/CRT/PRT
Environment operable: Operable in various light conditions, indoor or outdoor
Degree of protection: IP 68 standard
Interface: RS232, USB or optional
Sensor: Infrared rays
OS compatible: Windows 2000/XP/Vista/Win7/Win8, Linux,
Certifications: CCC, CE, ROHS

PART ONE

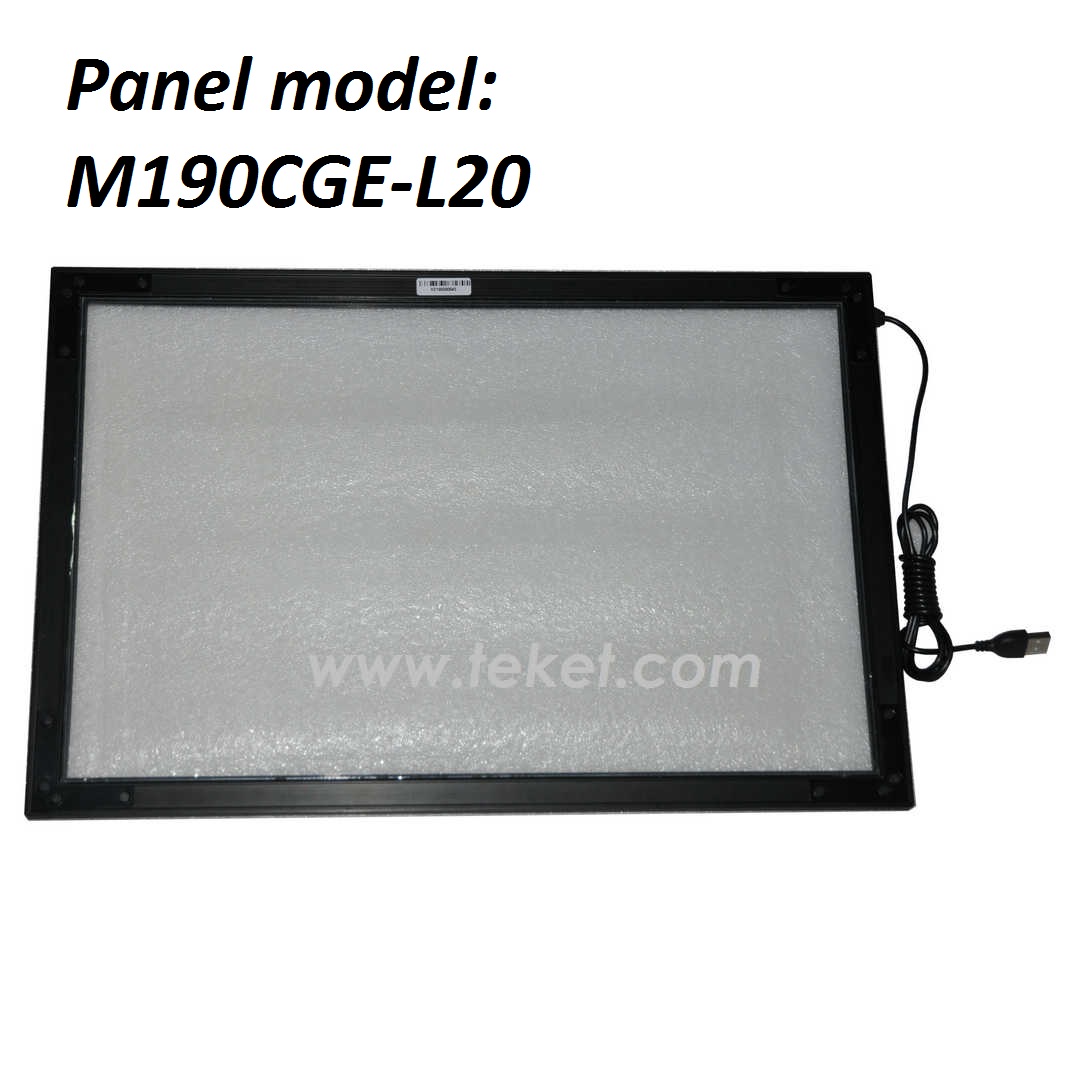

18.5"-26" Infrared Touchscreen Multi Touch Overlay Kit
Products Introduction
These series is launched for small size displays , high reliability products support 2, 4, 6touch point,
is the demand for standard products offer multitouch , touch precision, draw lines and smooth,
size from 15 to 24inch,customized to meet a variety of applications on the display device of the same size
Products Features
Support 2,4,6touch point. USB connecdt without driver.
Support Windows、Android、Linux systeam
Built-in hardware auto-detection function , quick touch -point scanning
Design highly reliable hardware connections
Sturdy structure , high strength, bulk shipments
Low power , no external power supply
Typical applications:
Various types of the same size interactive device , such as:
Game equipment
Indoor and outdoor machine
Industrial equipment
Automotive and transportation
Medical Equipment

Size Regular size 15",17",18.5",19",20",21.5",22",23",23.6",24"
Aspect Ratio,16:9,16:10,4:3
Custom Size 15"~24"inch
Function Touch point 2、4、6 Touch point
Resolution 32768×32768
Linearity error 1mm
Certification ISO9001:2008 CE
Response time 6ms~10ms
Agreement WIN7/TUIO
System Windows、Android、Linux
Minimum Object 5mm
Optical Transmittance 96%(with glass)
Environmental Indicators Temperature Operating Temperature:0℃~60℃
Storage Temperature:-40℃~85℃
Relative Humidity Humidity:10%~90%RH
Storage humidity:10%~90%RH,
Electrical Operating Voltage +5VDC,Support +4.75V~+5.25V
Power Supply USB
Power 1W~5W
Interface USB2.0
Mechanical Input Method Touch-sensitive media opaque
Touch Force No need
Security Optional different indicators depending on the level of security glass
Noise No have
Surface treatment Black anodized aluminum enclosure deal

PART TWO
27"-65" Infrared Touchscreen Multi Touch Overlay Kit
Products Introduction
This series is launched for small size displays , high reliability products support 2, 4, 6touch point,
is the demand for standard products offer multitouch , touch precision, draw lines and smooth,
size from 26 to 85inch,customized to meet a variety of applications on the display device of the same size
Products Features
Support 2,4,6touch point. USB connecdt without driver.
Support Windows、Android、Linux systeam
Built-in hardware auto-detection function , quick touch -point scanning
Design highly reliable hardware connections
Sturdy structure , high strength, bulk shipments
Low power , no external power supply

Applications
Banks and other financial institutions (business point within the business services, inquires)
Telecom (business hall, experience in business inquires inside hall of business promotion)
The government agency unit (public information release, public affairs)
Shopping center (shopping guide, retail tenants and commodity inquiry, advertising)
Fashion goods flagship store, boutique (new product introduction)
The company the reception room or meeting room (company introduction, exhibit shows)
The exhibition hall design company (activities assembly room to decorate)
Auto 4 S inn (models show)
Furniture and art store (product display)
The cinema (film screenings and choosing heroine appreciate)
Real estate sales hall, chain real estate intermediary window (family and landscape effect display)
Office buildings and apartment hall (ads)

Size Regular size 32",42",46",47",50",52",55",65",72",85"
Aspect Ratio,16:9,16:10,4:3
Custom Size 26"~85"inch
Function Touch point 2、4、6 Touch point
Resolution 32768×32768
Linearity error 1mm
Certification ISO9001:2008 CE
Response time 6ms~10ms
Agreement WIN7/TUIO
System Windows、Android、Linux
Minimum Object 5mm
Optical Transmittance 96%(with glass)
Environmental Indicators Temperature Operating Temperature:0℃~60℃
Storage Temperature:-40℃~85℃
Relative Humidity Humidity:10%~90%RH
Storage humidity:10%~90%RH,
Electrical Operating Voltage +5VDC,Support +4.75V~+5.25V
Power Supply USB
Power 1W~5W
Interface USB2.0
Mechanical Input Method Touch-sensitive media opaque
Touch Force No need
Security Optional different indicators depending on the level of security glass
Noise No have
Surface treatment Black anodized aluminum enclosure deal

Ording information

4:3 15-17 Inch Infrared Touchscreen Kit Overlay Kit
15" Infrared Touchscreen kit 15" 4:3,thick:8mm,340x305,264x230,1 point
15" Infrared Touchscreen kit 15" 4:3,thick:7mm,384x272,306x230,2 point
17" Infrared Touchscreen kit 17" 4:3,thick:8mm,388x340,264x230,1 point
17" Infrared Touchscreen kit 17" 4:3,thick:8.5mm,393x326,342x275,2 point
17" Infrared Touchscreen kit 17" 4:3,thick:9.9mm,380x312,340x272,2/6/10 point

18.5"-26" Infrared Touchscreen Multi Touch Overlay Kit
18.5" Infrared Touchscreen kit 18.5" 16:9,thick:8.5mm,463.6x284.2,412.6x233.2,mulit 2 points
19.0" Infrared Touchscreen kit 19.0" 16:9,thick:8.5mm,463.x308.3,412.6x257.3,mulit 2 points
20.0" Infrared Touchscreen kit 20.0" 16:10,thick:8.5mm,484.8x291.1,444.8x251.1,mulit 2 points
21.5" Infrared Touchscreen kit 21.5" 16:10,thick:8.5mm,530x321.5,479x270.5,mulit 2 points
22.0" Infrared Touchscreen kit 22.0" 16:10,thick:8.5mm,527x353,476x302,mulit 2 points
24.0" Infrared Touchscreen kit 24.0" 16:10,thick:8.5mm,592x368,522.5x328,mulit 2 points
26.0" Infrared Touchscreen kit 26.0" 16:10,thick:8.5mm,592x386,522.5x346,mulit 2 points

27"-65" Infrared Touchscreen Multi Touch Overlay Kit
27.0" Infrared Touchscreen kit 27" 16:9 thick:17.4, 338.20x598.20, Size:397.40x657.40,mulit 2 points
32.0" Infrared Touchscreen kit 32" 16:9 thick:17.4, 395.00x700.50, Size:454.20x759.70,mulit 2 points
37.0" Infrared Touchscreen kit 37" 16:9 thick:17.4, 462.90x821.40, Size:522.10x880.60,mulit 2 points
40.0" Infrared Touchscreen kit 40" 16:9 thick:17.4, 525.00x887.60, Size:584.20x946.80,mulit 2 points
42.0" Infrared Touchscreen kit 42" 16:9 thick:17.4, 525.00x932.30, Size:584.20x991.50,mulit 2 points
46.0" Infrared Touchscreen kit 46" 16:9 thick:17.4, 574.70x1020.10, Size:633.90x1079.30,mulit 2 points
47.0" Infrared Touchscreen kit 47" 16:9 thick:17.4, 588.00x1043.00, Size:647.20x1102.20,mulit 2 points
50.0" Infrared Touchscreen kit 50" 16:9 thick:17.4, 619.00x1098.00, Size:678.20x1157.20,mulit 2 points
55.0" Infrared Touchscreen kit 55" 16:9 thick:17.4, 682.40x1211.60, Size:741.60x1270.80,mulit 2 points
60.0" Infrared Touchscreen kit 60" 16:9 thick:17.4, 749.10x1330.80, Size:808.30x1390.00,mulit 2 points
65.0" Infrared Touchscreen kit 65" 16:9 thick:17.4, 805.60x1430.50, Size:864.80x1489.70,mulit 2 points
