>>Your Current Position: Front Panel



-->> CIR front panel Infrared Receive Board PS/2 or USB <<--

Type Picture Description

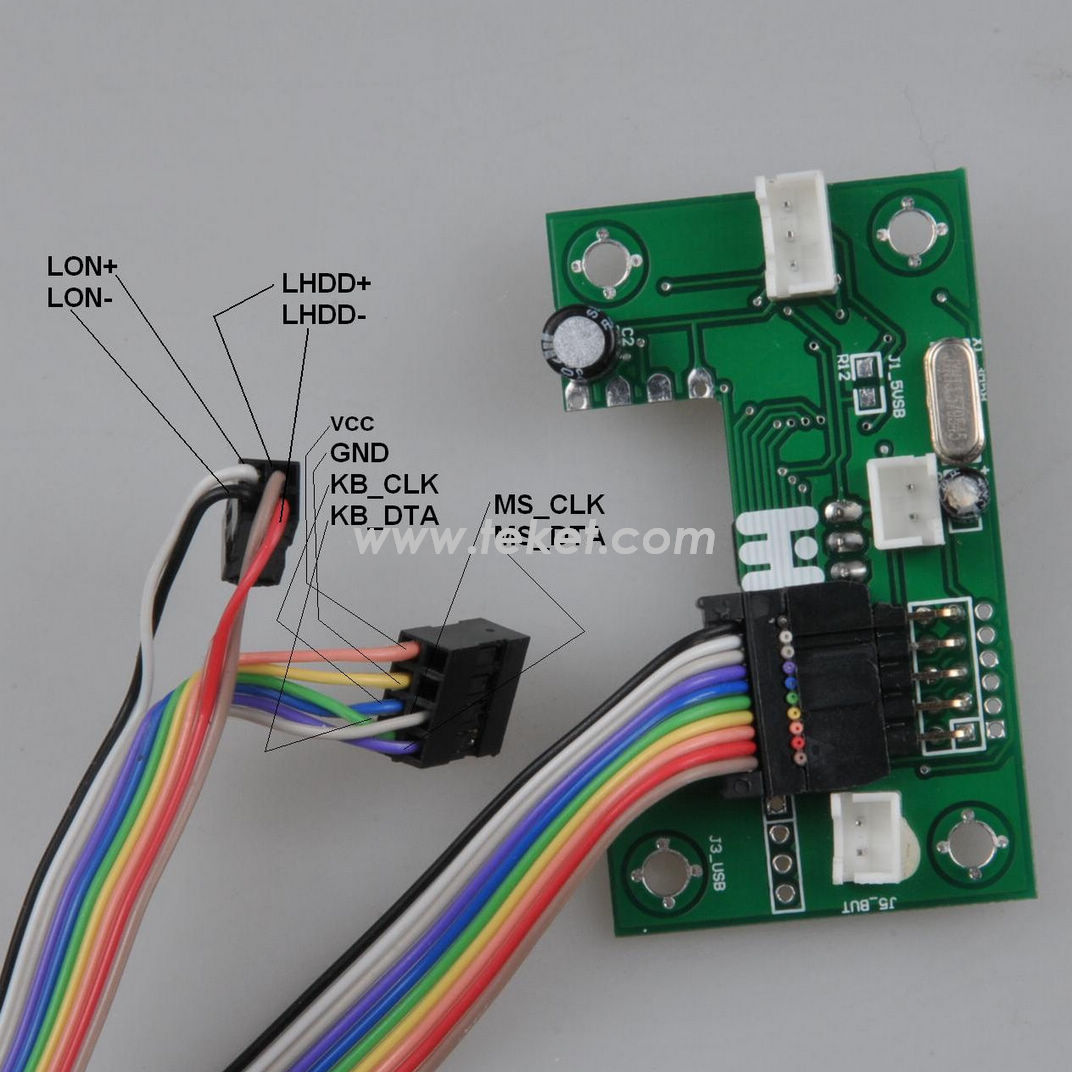

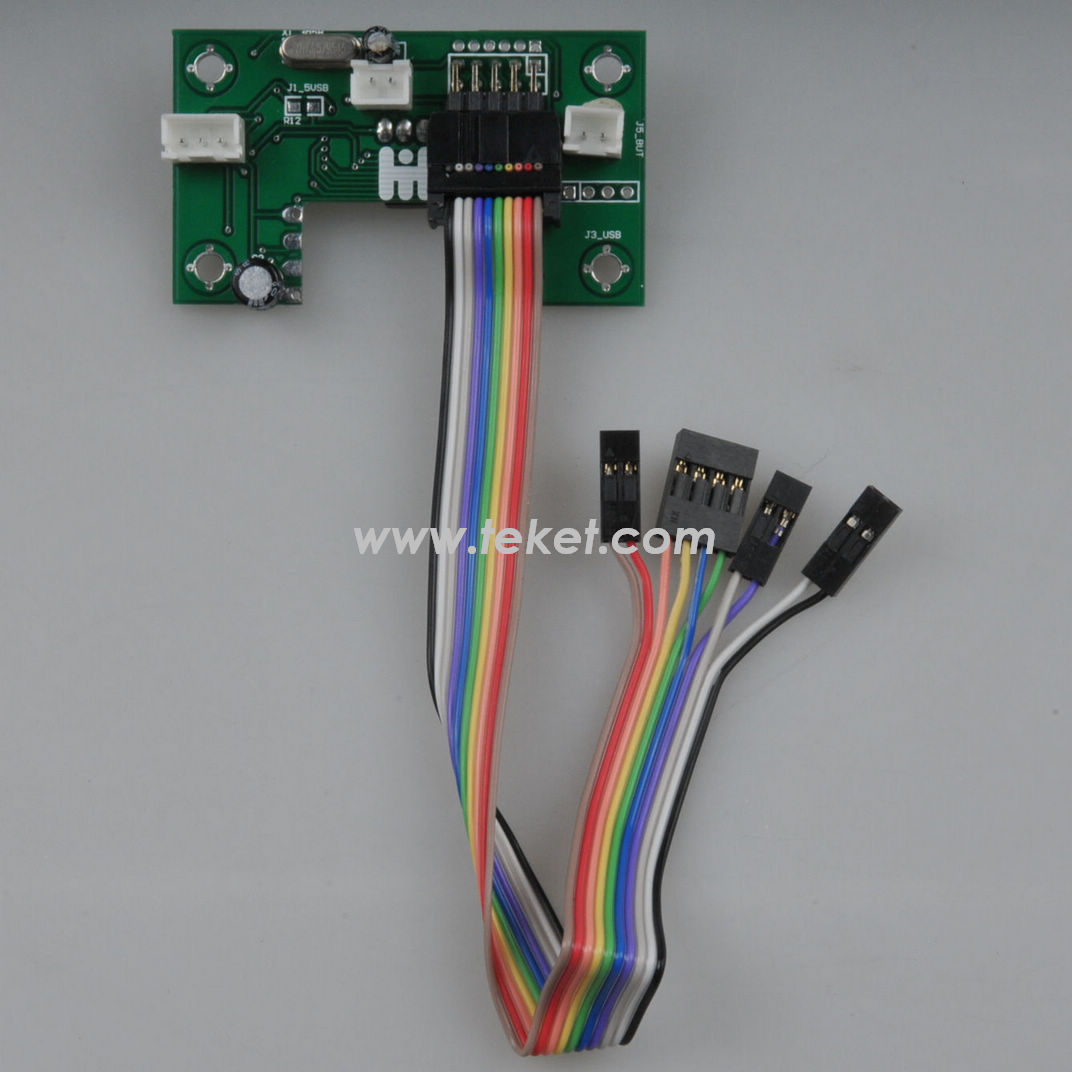

CIR3






pcb size: 62x36

1,ps2: 5x2pin or 6x1pin Optional
2,usb: 4x1pin
3,rf(2.4g): for future

LED
1,LRC: Remote operation led
2,LNUM: keyboard numlock led
3,LCAPS: keyboard caps led
4,LHD: hard disk led
5,LON: power on led

Support equipment
1,any infrared remote control
2,any infrared keyboard
(Processing required by the customer)

Features
1,Do not need to power on keys
2,Power on with remote control "power key" or any key of keyboard customer specified




  Designed for STB VOD in hotel
Contrl TV set in hotel romm
Contrl STB in hotel room
Only use one RCU!

Add 2rd infrared sensor receiving point.



CIR3: PS/2 support, USB module add

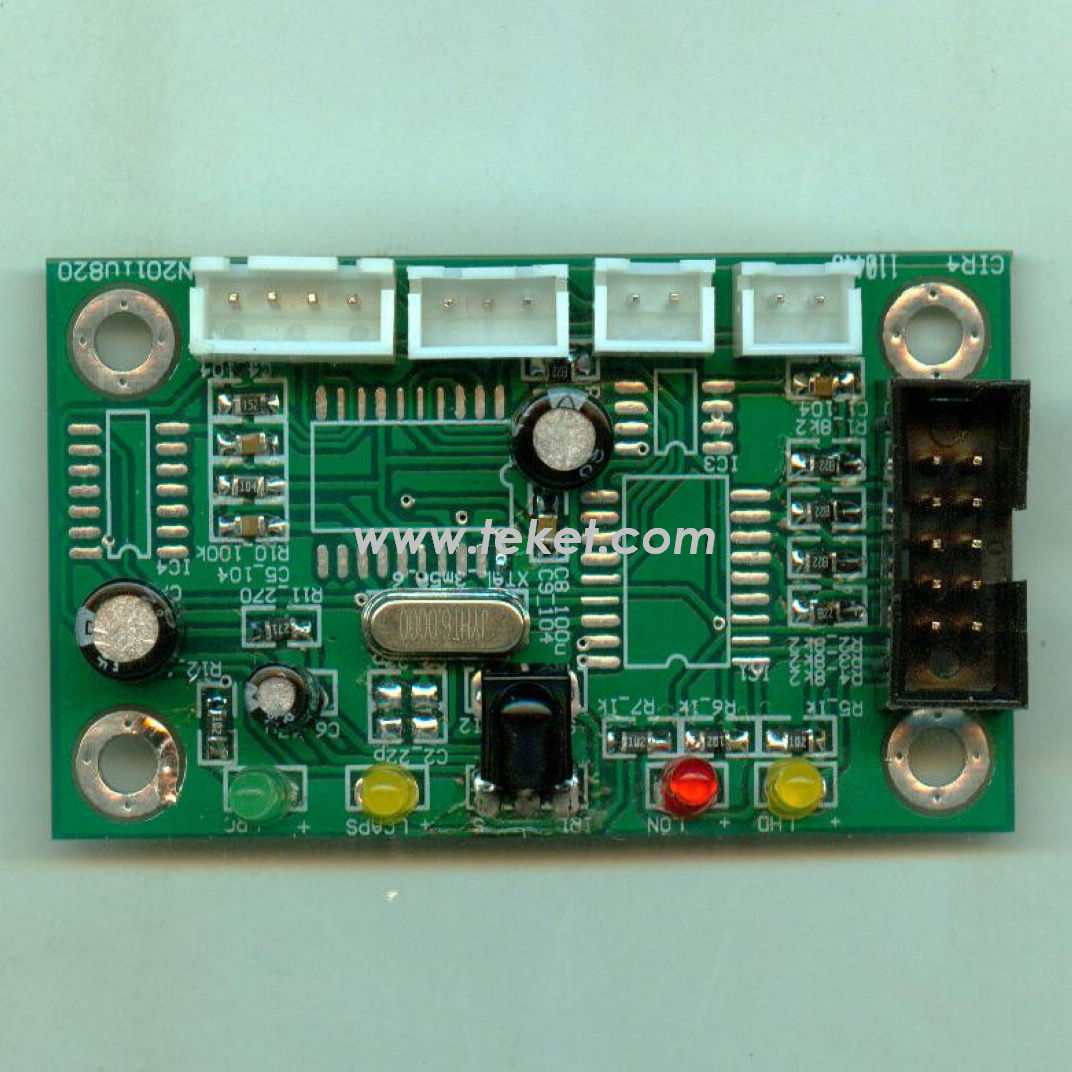

CIR4: USB+PS2 support
