>>Your Current Position:Open Pluggable Specification OPS Series PC

Intel 6th Skylake 7th Kabylake Gen LGA1151 Core i3 i5 i7 i7-6700 i7-7700 H110 Chipset SO-DIMM DDR4

Digital Signage Open Pluggable Specification:
Simplify digital signage development
Enables easier installation, use and maintenance of digital signs.
Makes digital signage devices more intelligent and connected.
The open pluggable specification (OPS) helps standardize the design and development of digital signage devices and pluggable media players. Intel created OPS to address digital signage market fragmentation and simplify device installation, usage, maintenance and upgrades.
OPS enables digital signage manufacturers to deploy interchangeable systems faster and in higher volumes, while lowering costs for development and implementation.
Installing digital signage equipment based on Intel architecture helps you implement scalable digital signage applications that can network easily with other equipment. This simplifies interoperability and application upgrades designed to meet the digital signage requirements of individual customers, while helping to future-proof technology investments.

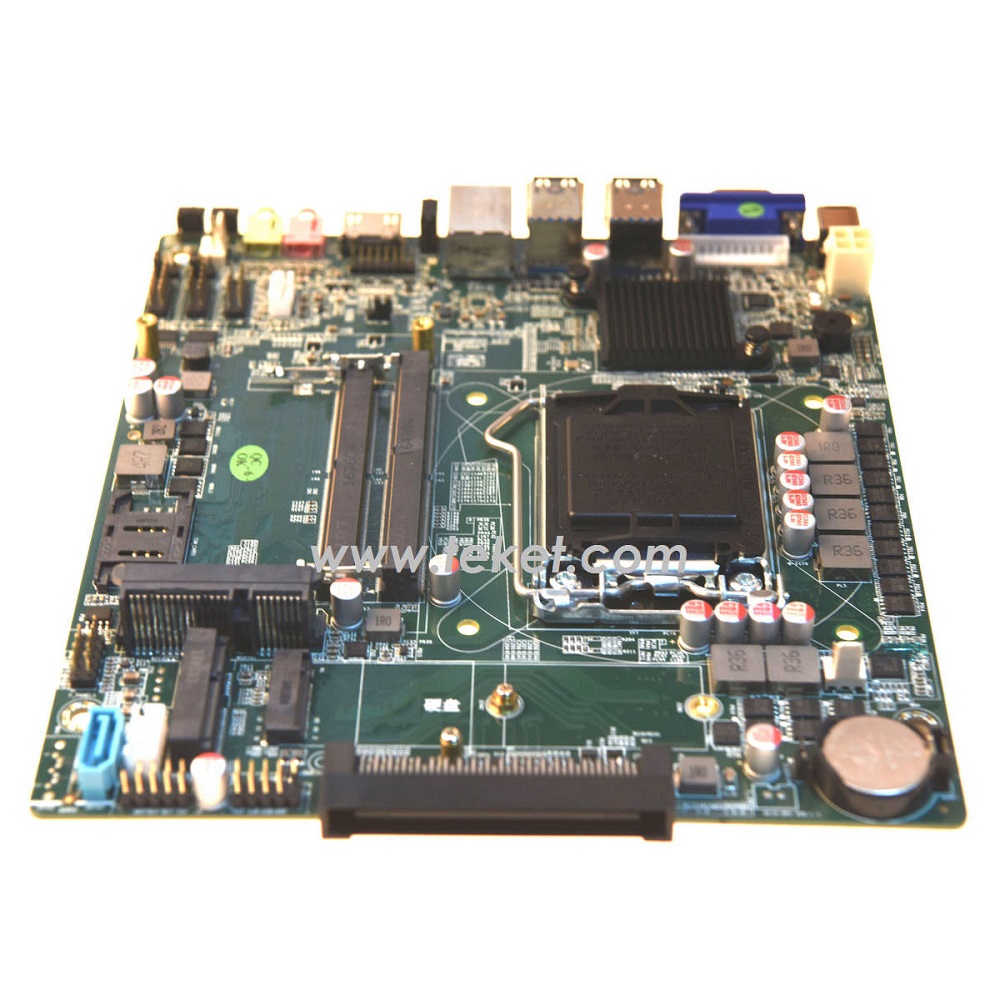

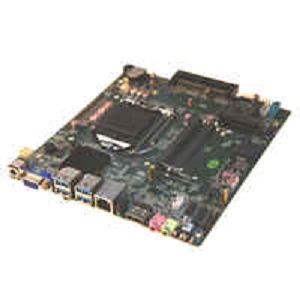

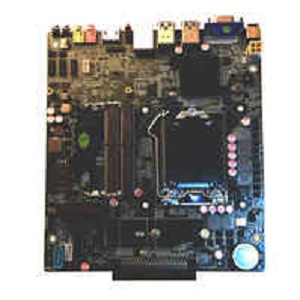

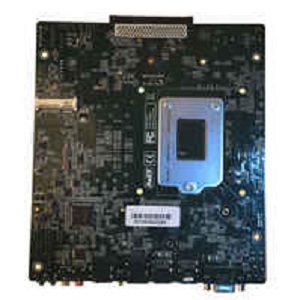

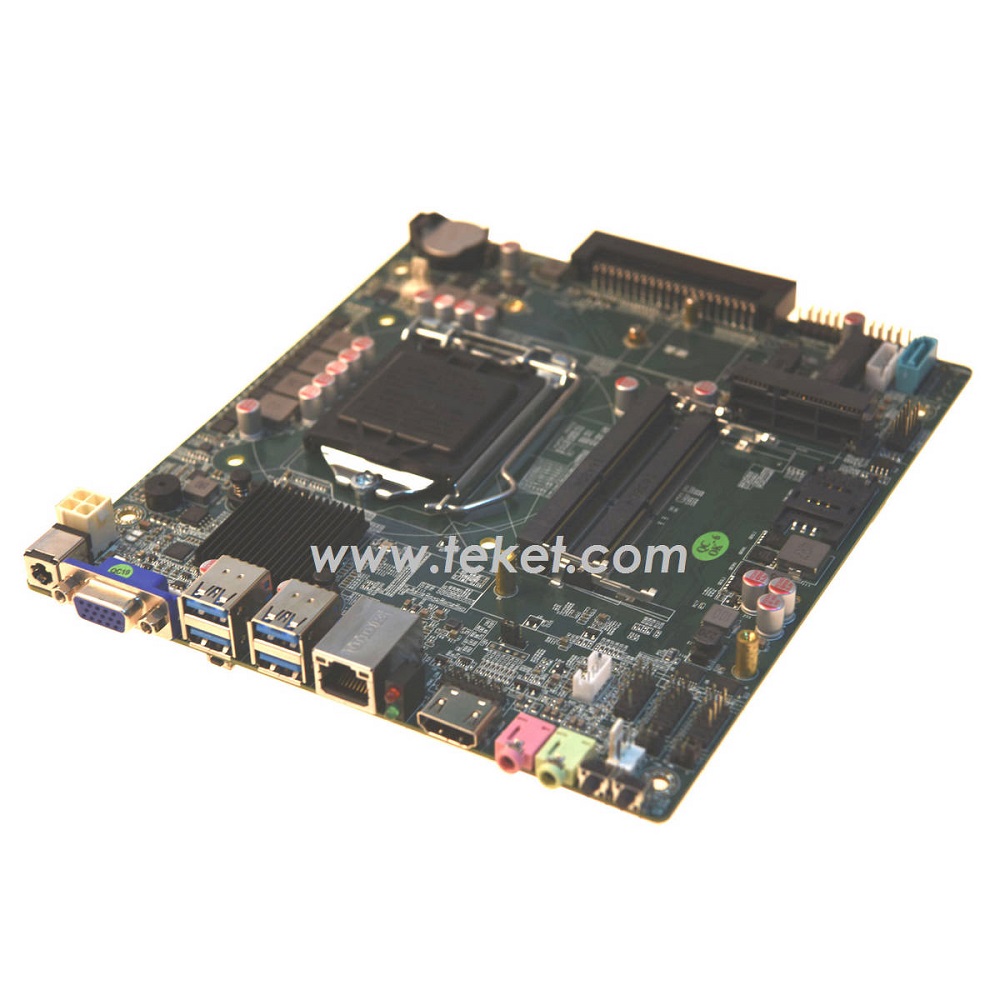

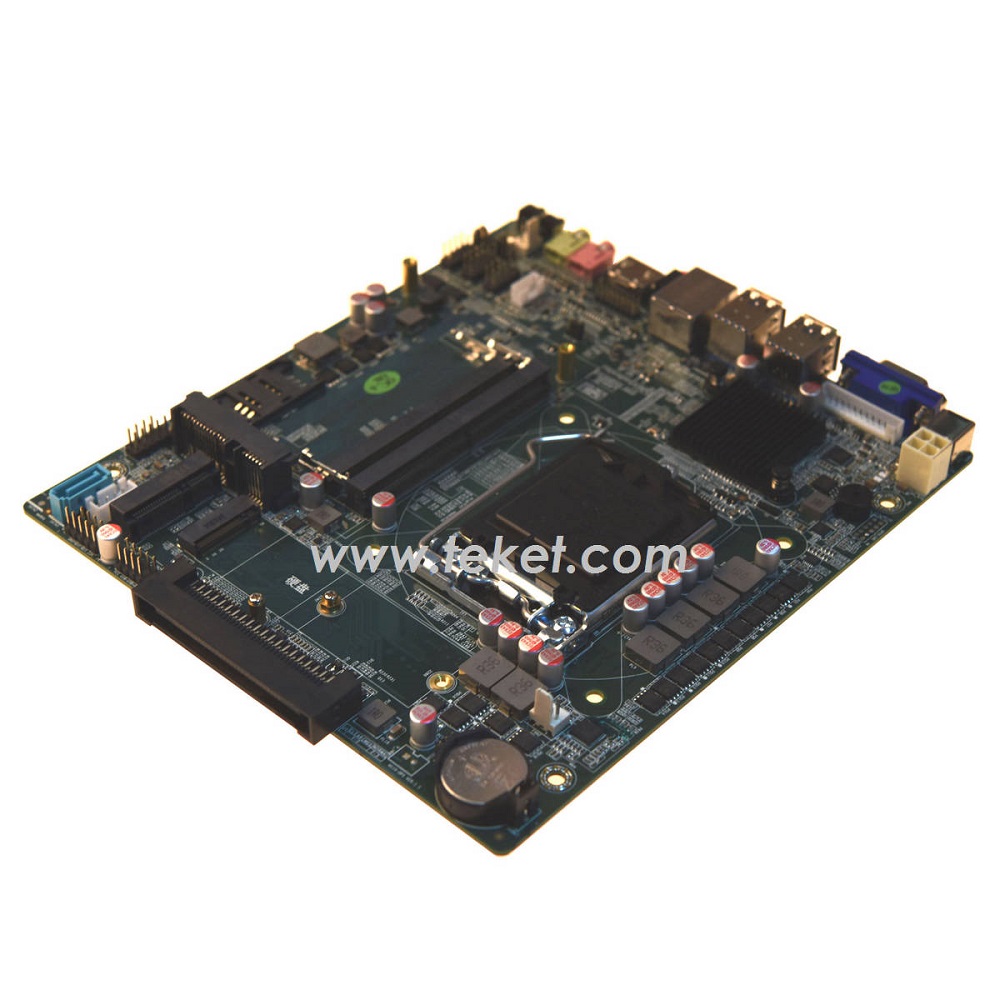

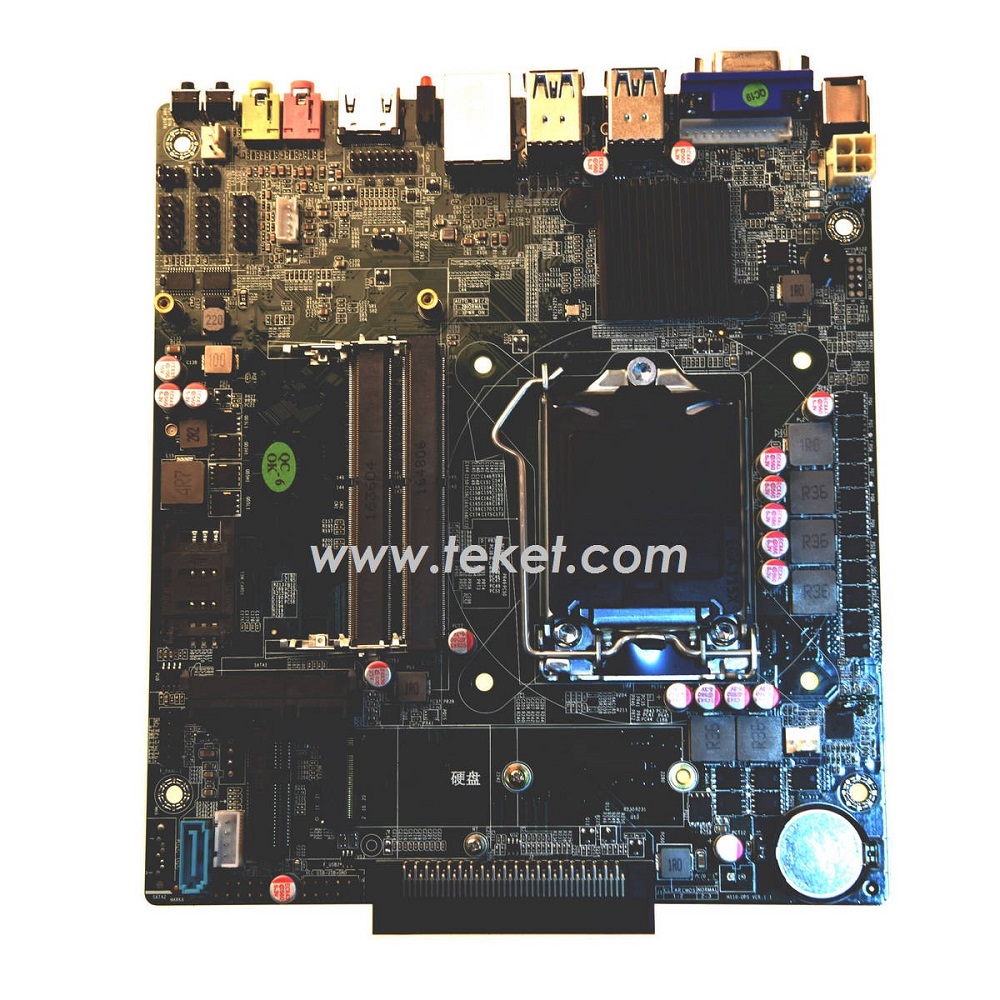

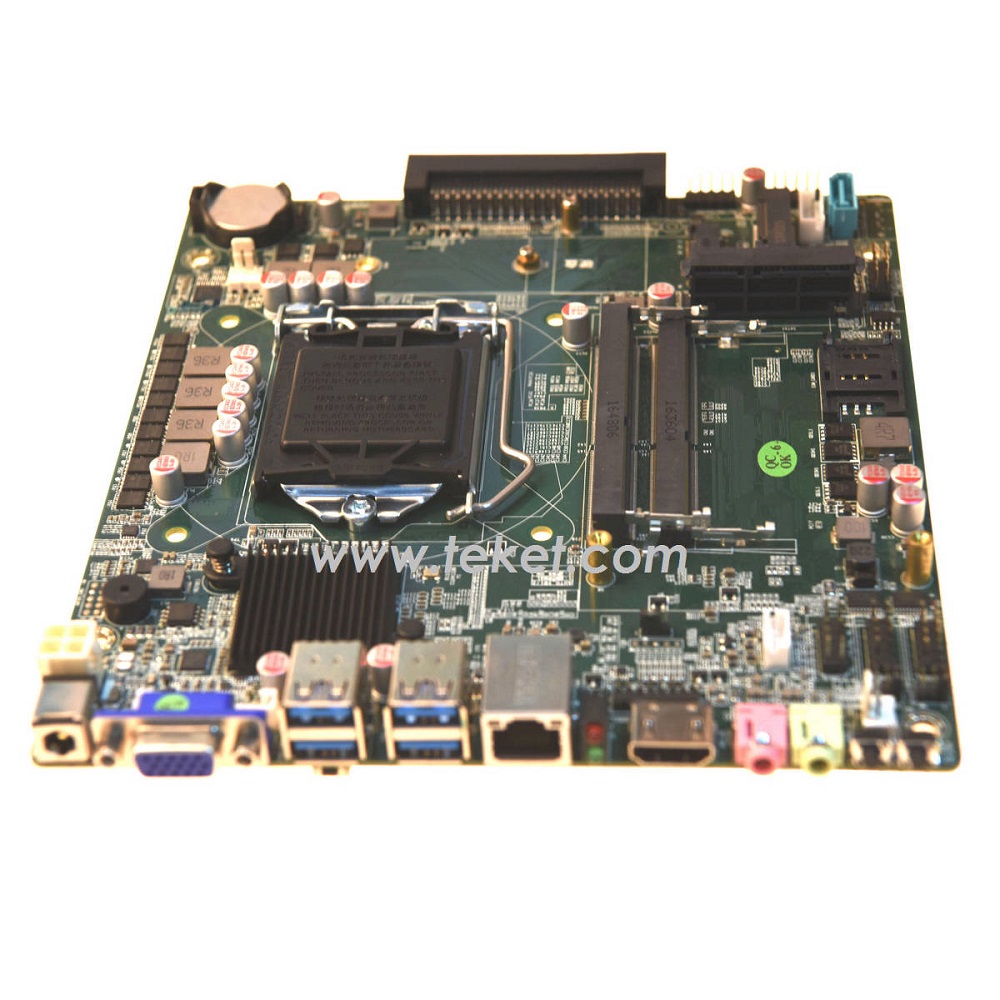

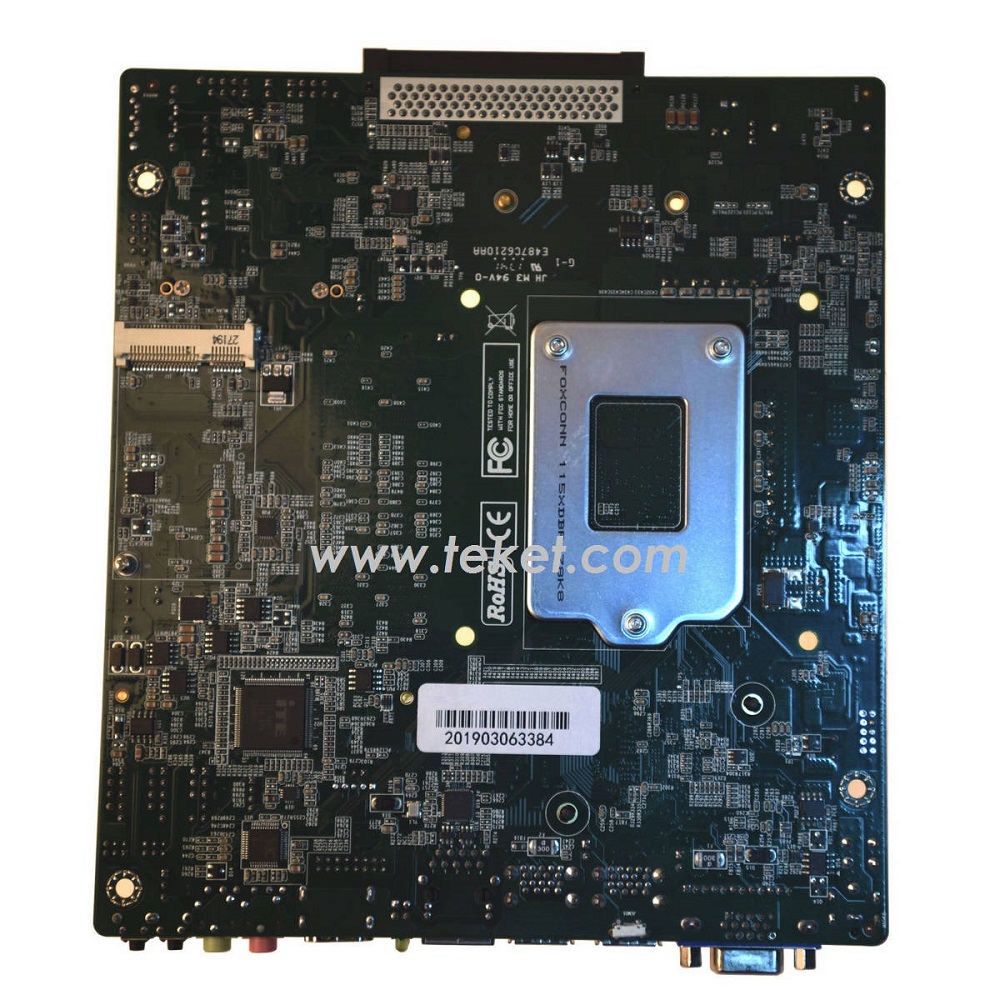

OPS-H110 motherboard

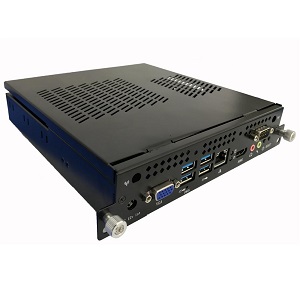

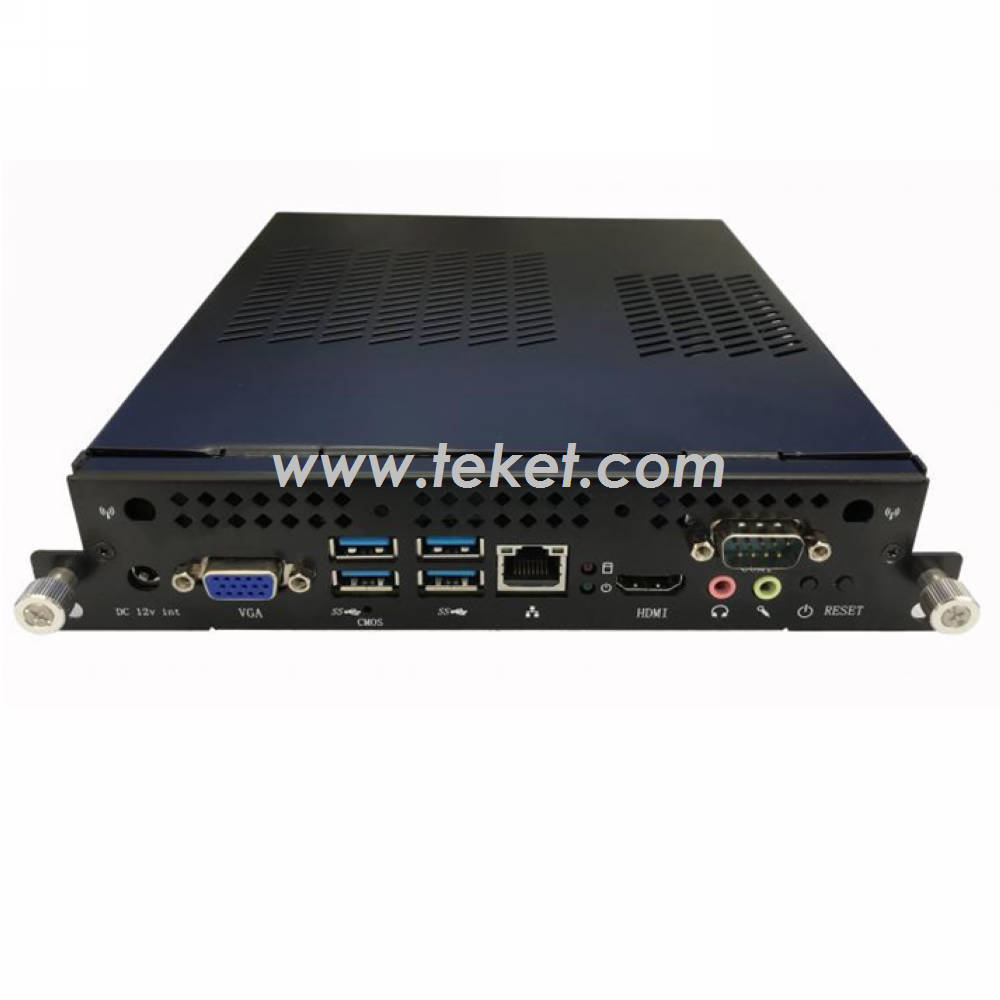

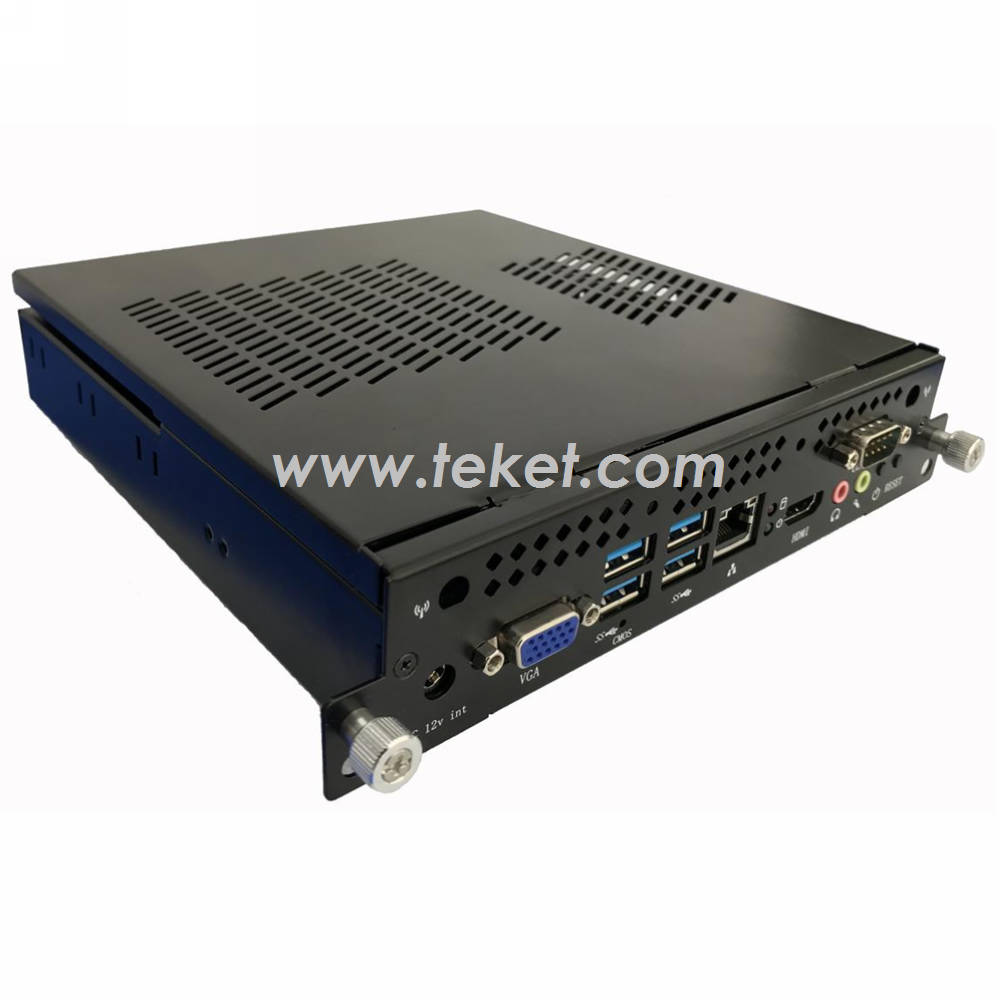

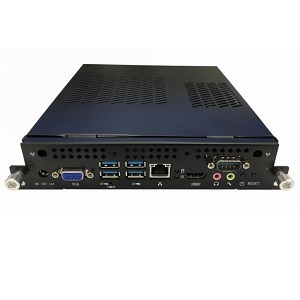

SOPS-H110 system (Add the letter S to indicate the system, barebone only)

CPU list
Intel 6gen Skylake, 7gen Kabylake LGA1151 slot i3 i5 i7
I3-6100 dual core quard thread 3.7Ghz
I5-6500 quard core quard thread 3.2Ghz to 3.60Ghz
I7-6700 quard core quard thread 3.4Ghz to 4.00Ghz

I3-7100 dual core quard thread 3.9Ghz
I5-7500 quard core quard thread 3.4Ghz to 3.80Ghz
I7-7700 quard core oct thread 3.6Ghz to 4.20Ghz

RAM: SO-DIMM DDR4 1.2V 2G,4G,8G,16G,32G
Storage: M.2 2280 SSD, MSATA, SSD or HDD
Display: DVMT, support HDI and VGA, HDI support 4K
NIC: 1*realtek 8111F

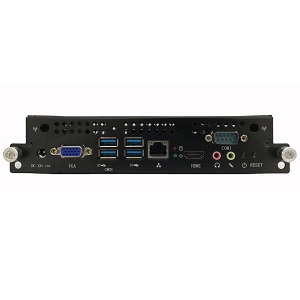

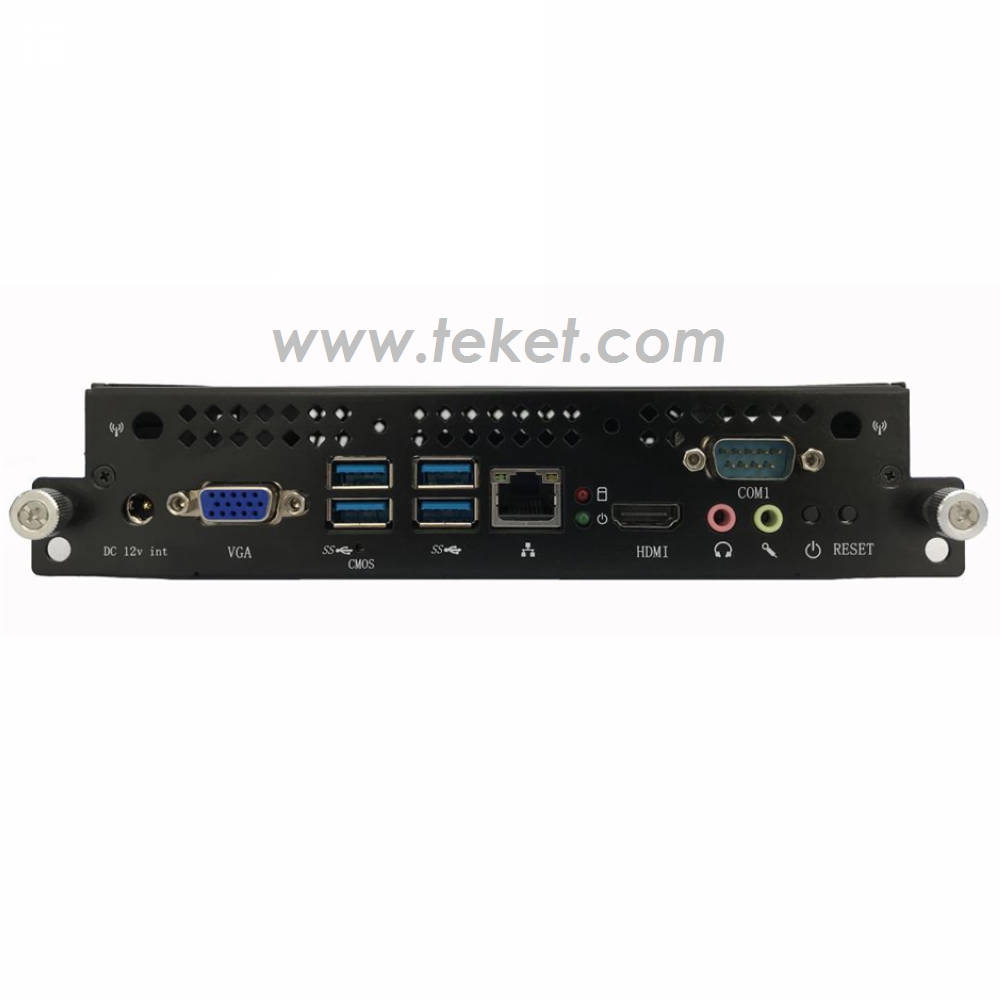

Display Interface: DC,1*HDI,1*VGA,4*USB3.0,1*LAN,1*AUDIO,1*COM,1*CMOS,1*PWR,1*RESET

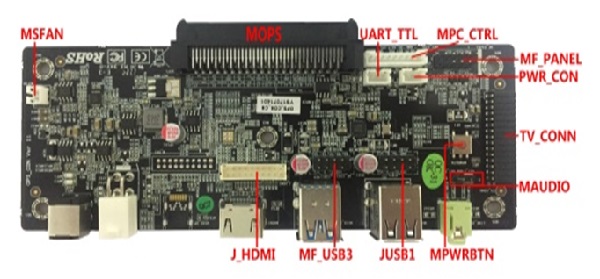

Sub Display Interface: DC_IN,2*2PIN(power),1*LAN,HDI,USB 3.0 and USB2.0
Power supply: DC-12V/19V
OS: Windows7,Windows8,Windows10 and Linux

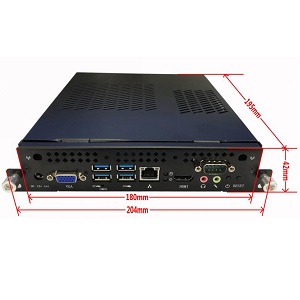

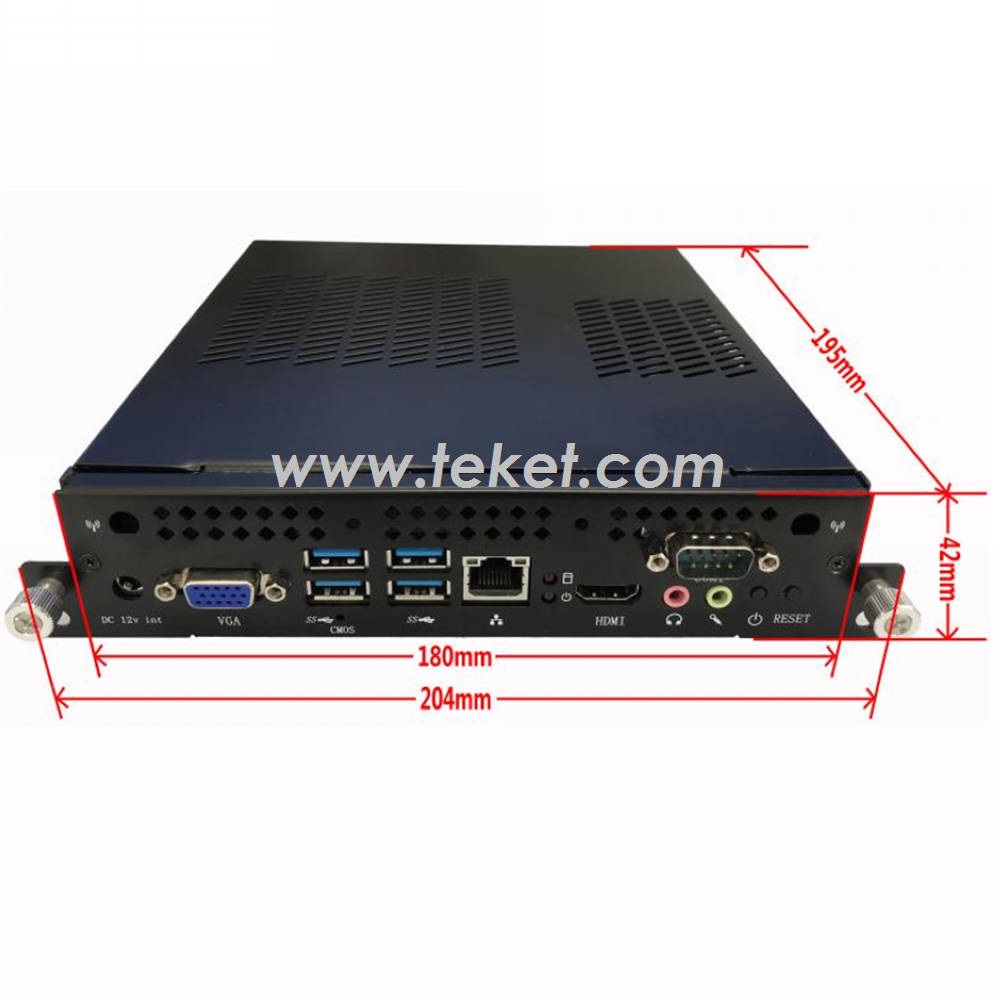

Size: 80*195*42mm (wall mount 204*195*32mm)

Power: 2*2PIN(12V/19V) or 12V/19V adaptor
I/O interface: DC_IN,2*2PIN,HDI,USB
MF_USB3(USB3.0 header) or MUSB_B(USB3.0)
JUSB_1(USB2.0 header) or MUSB_A(USB2.0)
MPC_CTRL, FAN_Header, 1*MPWRBTN(Power On)

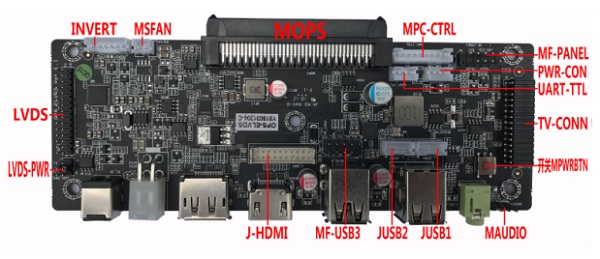

OPS-LVDS card support HDI+LVDS
OPS-DP card support HDI+DP
