Intel 4th Gen Haswell LGA1150 Core i3 i5 i7 H81 chipset MSATA SO-DIMM DDR3

Digital Signage Open Pluggable Specification：
Simplify digital signage development
Highlights
Enables easier installation, use and maintenance of digital signs.
Makes digital signage devices more intelligent and connected.
Overview
The open pluggable specification (OPS) helps standardize the design and development of digital signage devices and pluggable media players. Intel created OPS to address digital signage market fragmentation and simplify device installation, usage, maintenance and upgrades.
OPS enables digital signage manufacturers to deploy interchangeable systems faster and in higher volumes, while lowering costs for development and implementation.
Installing digital signage equipment based on Intel architecture helps you implement scalable digital signage applications that can network easily with other equipment. This simplifies interoperability and application upgrades designed to meet the digital signage requirements of individual customers, while helping to future-proof technology investments.

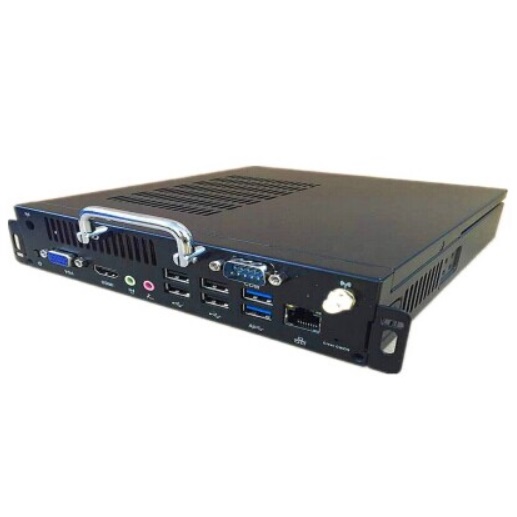

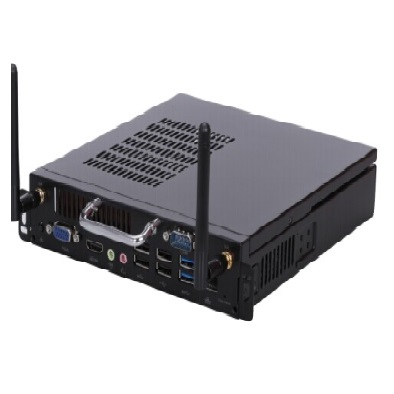

OPS-H81

CPU: LGA1150 slot
CPU: LGA1150 slot, Haswell
RAM: SO-DIMM DDR3 2G,4G,8G,
Storage: MSATA, SSD or HDD
Display: Intel display
NIC: 1*realtek 8111F
Display Interface: DC,1*HDI,1*VGA,2*USB3.0,2*USB2.0,1*LAN,1*COM
Sub Display Interface: DC_IN,2*2PIN(power),1*LAN,HDI,USB 3.0 and USB2.0
Power supply: DC-12V
OS: Windows7,Windows8,Windows10 and Linux
Size: 80*195*42mm

Power: 2*2PIN(12V/19V) or 12V/19V adaptor
I/O interface: DC_IN,2*2PIN,HDI,USB
HDI: 2*10PINUSB:
MF_USB3(USB3.0 header) or MUSB_B(USB3.0)
JUSB_1(USB2.0 header) or MUSB_A(USB2.0)
MPC_CTRL, FAN_Header, 1*MPWRBTN(Power On)
LINE_OUT,OPS_TV_CON header

OPS-LVDS card support HDI+LVDS
OPS-DP card support HDI+DP
