>>Your Current Position: OPS Series OPS-NV




-->> OPS Series OPS-NV <<--

Digital Signage Open Pluggable Specification:
Simplify digital signage development
Highlights
Enables easier installation, use and maintenance of digital signs.
Makes digital signage devices more intelligent and connected.
Overview
The open pluggable specification (OPS) helps standardize the design and development of digital signage devices and pluggable media players. Intel created OPS to address digital signage market fragmentation and simplify device installation, usage, maintenance and upgrades.
OPS enables digital signage manufacturers to deploy interchangeable systems faster and in higher volumes, while lowering costs for development and implementation.
Installing digital signage equipment based on Intel architecture helps you implement scalable digital signage applications that can network easily with other equipment. This simplifies interoperability and application upgrades designed to meet the digital signage requirements of individual customers, while helping to future-proof technology investments.

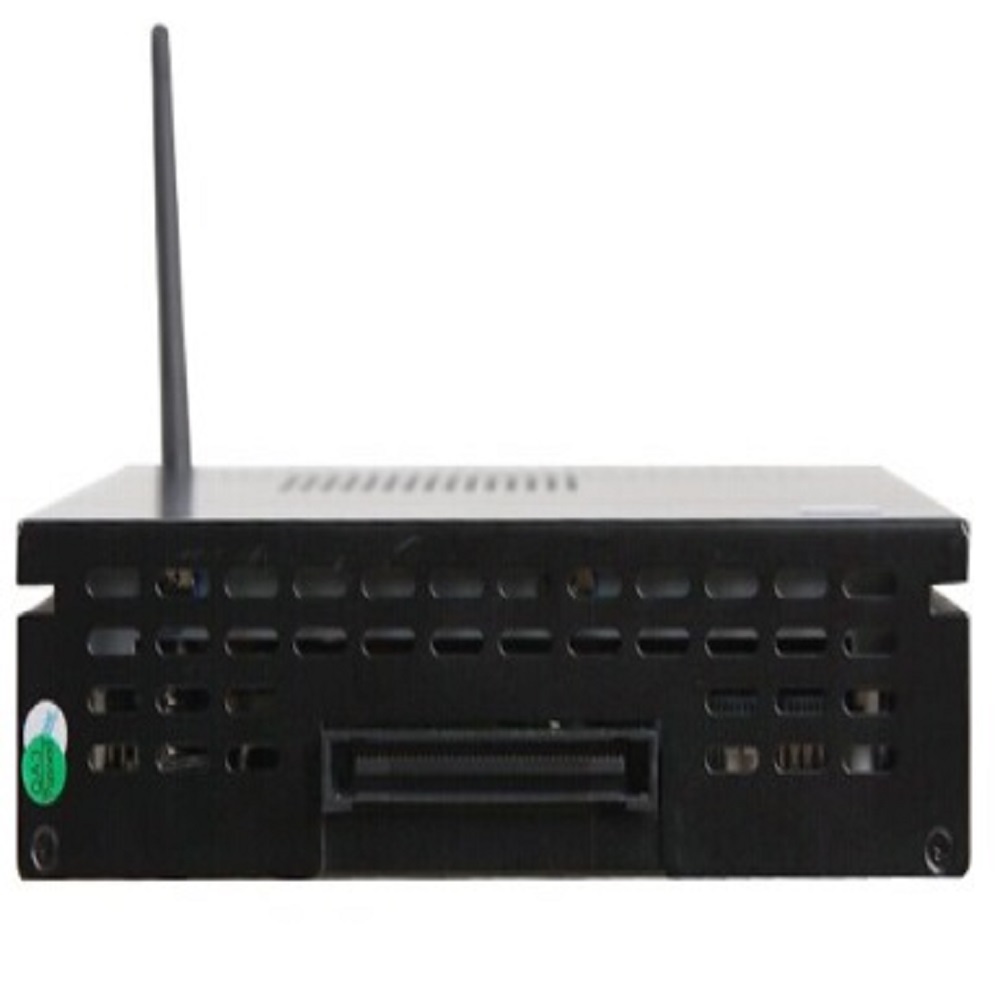

OPS-NV (GTX730,GTX1030)

CPU: Intel 4gen Haswell 1150 LGA, i3,i5,i7
RAM: SO-DIMM DDR3 1333/1600M, 1.5V, 2G,4G,8G,16G
Storage: MSATA, SSD or HDD
Display:
1,NV GT730 2G DDR3
2,NV GT1030T-2G support DP+HDMI
DVMT, supoort VGA and HDMI, HDMI support 4K
NIC: 1*i218LM
Display Interface: 1*VGA,1*LAN,2*USB3.0,4*USB2.0,1*DC,1*HDMI,Audi and Mic input
Sub Display Interface: DC_IN,2*2PIN,1*HDMI,USB2.0,USB3.0,1*LAN
Power supply: DC-12V
OS: Windows7,Windows8,Windows10 and Linux
Size: 180.8*195.2*42.5mm

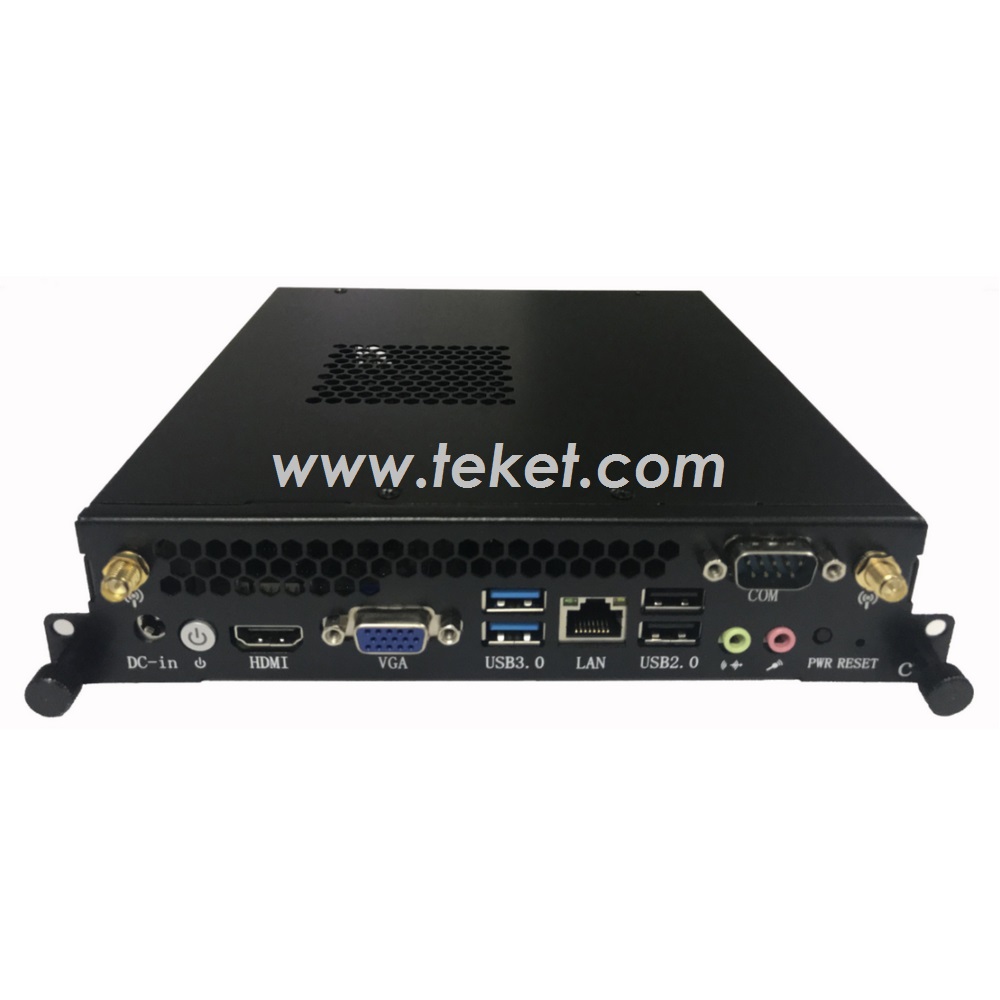

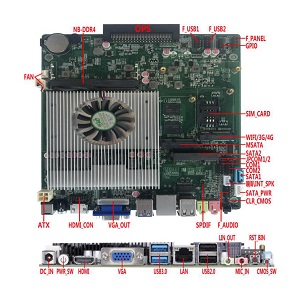

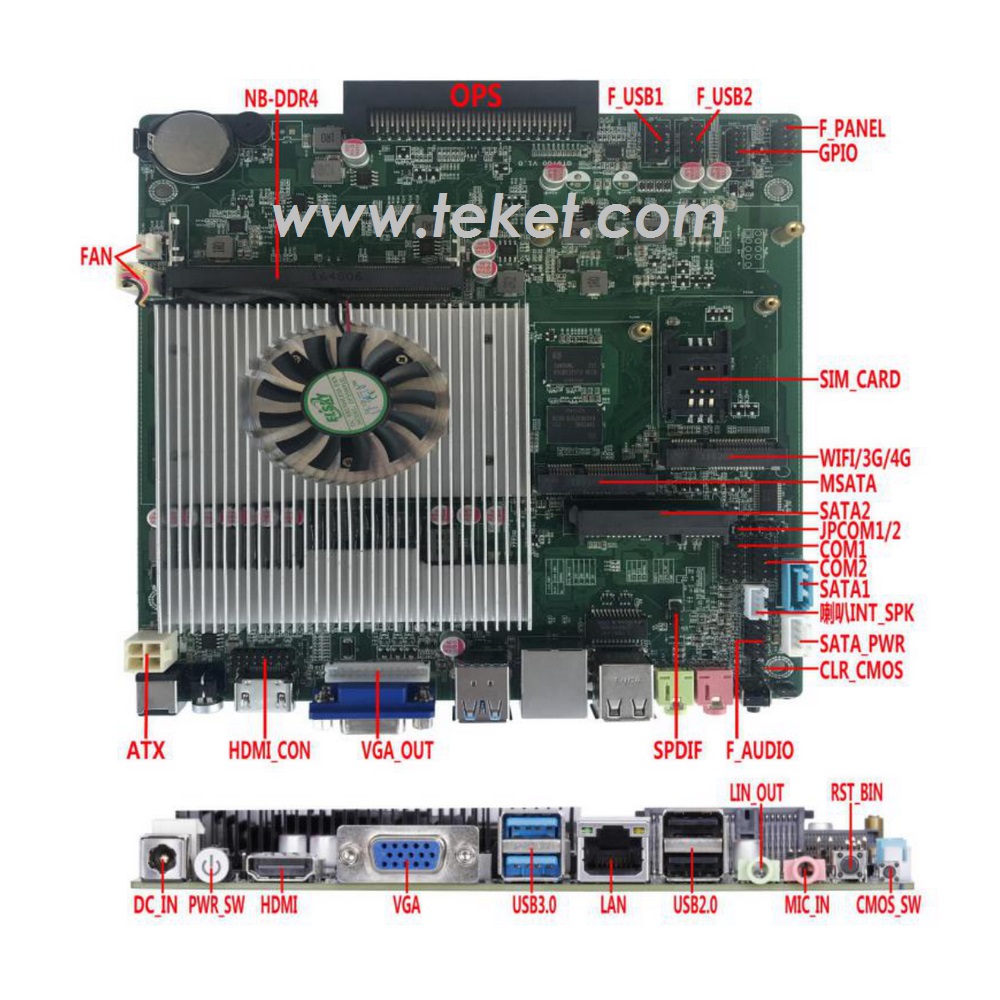

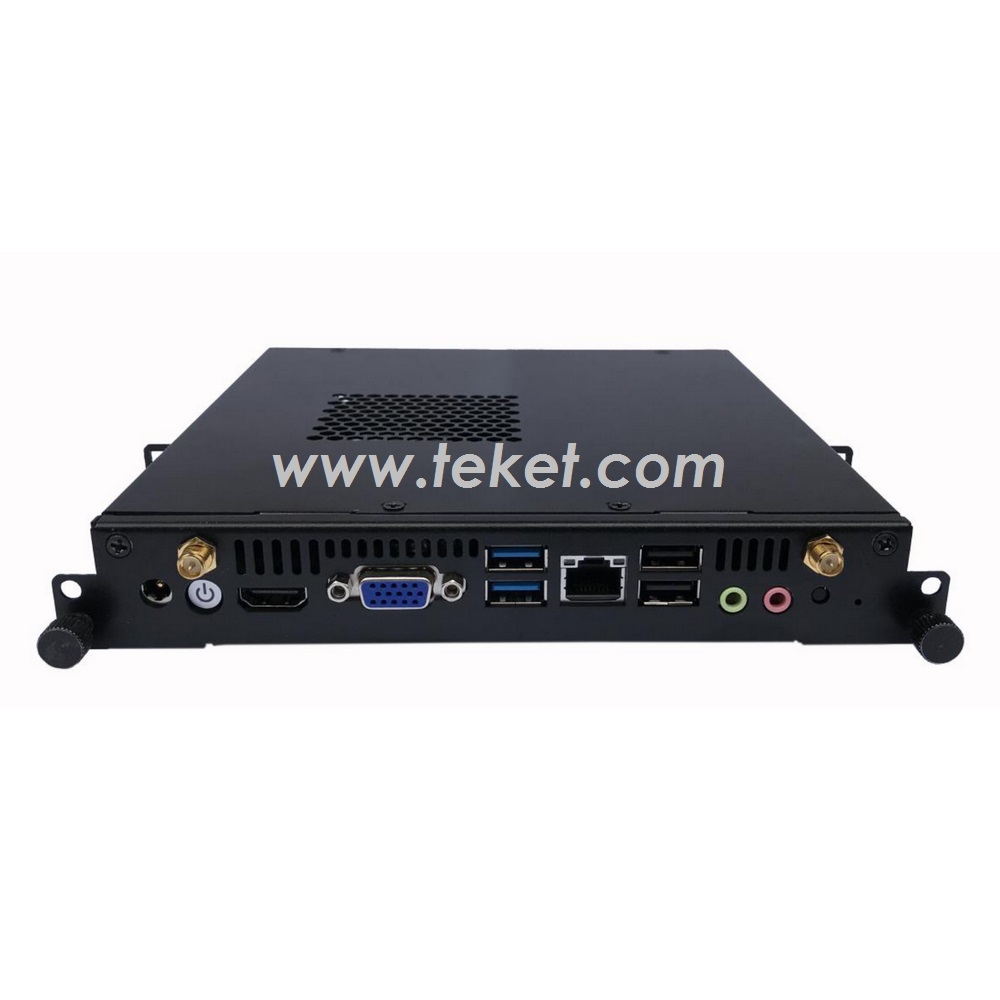

OPS-NV (MX150)


Product specifications:
Motherboard size 170mm*190mm*18mm
OPS size 180*195*30/33/42 MM
CPU supports 6 generations of 3855U, 3955U and i3-6100U, i5-6200U, i7-6500U
Support 7 generations 3865U, 3965U and i3-7100U, i5-7200U, i7-7500U
Chipset integrated in the CPU's intel Soc chipset
Power 1*DC_IN DC head inner diameter is 2.5MM, support 12V
The power consumption of the motherboard is about 35W. It is recommended to use 12V5A or above.
1*ATX(4Pin)
Memory 1*DIMM slot NB-DDR4 memory, support 2133/2400MHZ memory, maximum support 16G
Network function 1*LAN interface Realtek 8111F Gigabit Ethernet port, support Wake-on-LAN, PXE function
Display function Graphics integrated NVIDIA MX150 DDR5 2G discrete graphics support single display, dual display / three display copy,
Dual display / three display expansion
1*VGA standard interface Supports the highest resolution 1920*1200@60HZ
1*VGA_OUT pin Supports the highest resolution 1920*1200@60HZ (1*12Pin, 2.0mm)
1*HDMI 1.4 interface Supports the highest resolution 4096*2304@24HZ
1*HDMI_CON pin Supports the highest resolution 4096*2304@24HZ (2*8Pin, 2.0mm)
USB function 2*USB3.0 interface Rear standard USB3.0 interface
2*USB2.0 interface Rear standard USB2.0 interface
1*F_USB1 pin Front USB2.0 pin, one set has 2*USB2.0 (2*5Pin, 2.54mm)
1*F_USB2 pin Front USB2.0 pin, one set has 2*USB2.0 (2*5Pin, 2.54mm)
Sound function Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller
1*LINE_OUT interface supports audio output
1*MIC_IN interface Supports microphone input
1*INT_SPK supports 8 ohm 5 watt speaker output (amplifier) ​​(1*4Pin, 2.0mm)
1*F_AUDIO pin Standard audio pin (2*5Pin, 2.54mm)
1*SPDIF pin Digital audio pin (1*3Pin, 2.54mm)
Hard disk function 1*SATA1 interface Standard SATA hard disk interface, support SATA3.0
1*SATA2 interface 2.5-inch SATA3.0 notebook hard drive, can be directly installed hard drive
1*MSATA interface Support MINI_SATA disk, support MSATA3.0
1*SATA_PWR pin Hard disk power supply pin, 5V, 12V (1*4Pin, 2.54mm)
Switch function 1*PWR_SW button switch button
1*RST_BTN button Restart button
1*F_PANEL pin switch, power light, hard disk light, restart pin (2*5Pin, 2.54mm)
1*AUTO_SW pin Support hardware control power-on (1*3Pin, 2.0mm)
Other I/O 2*COM pins support standard RS232, COM2 optional RS232/422/485 (2*5Pin, 2.54mm)
1*JPCOM1 pin Set COM1 pin 9V0V/12V pin (2*3Pin, 2.0mm)
1*JPCOM2 pin Set COM2 pin 9V/5V/12V pin (2*3Pin, 2.0mm)
1*MINI_PCIE interface Supports WIFI/3G/4G
1*SIM_CARD card slot Support SIM card, SIM card is required when using 3G/4G
1*CLR_CMOS pin Main board clear, discharge pin (1*2Pin, 2.54mm)
1*CMOS_SW button Motherboard clear, discharge button
1*J_GPIO pin Standard GPIO pin (2*5Pin, 2.0mm)
2*FAN pin Fan pin (1*3Pin, 2.54mm)

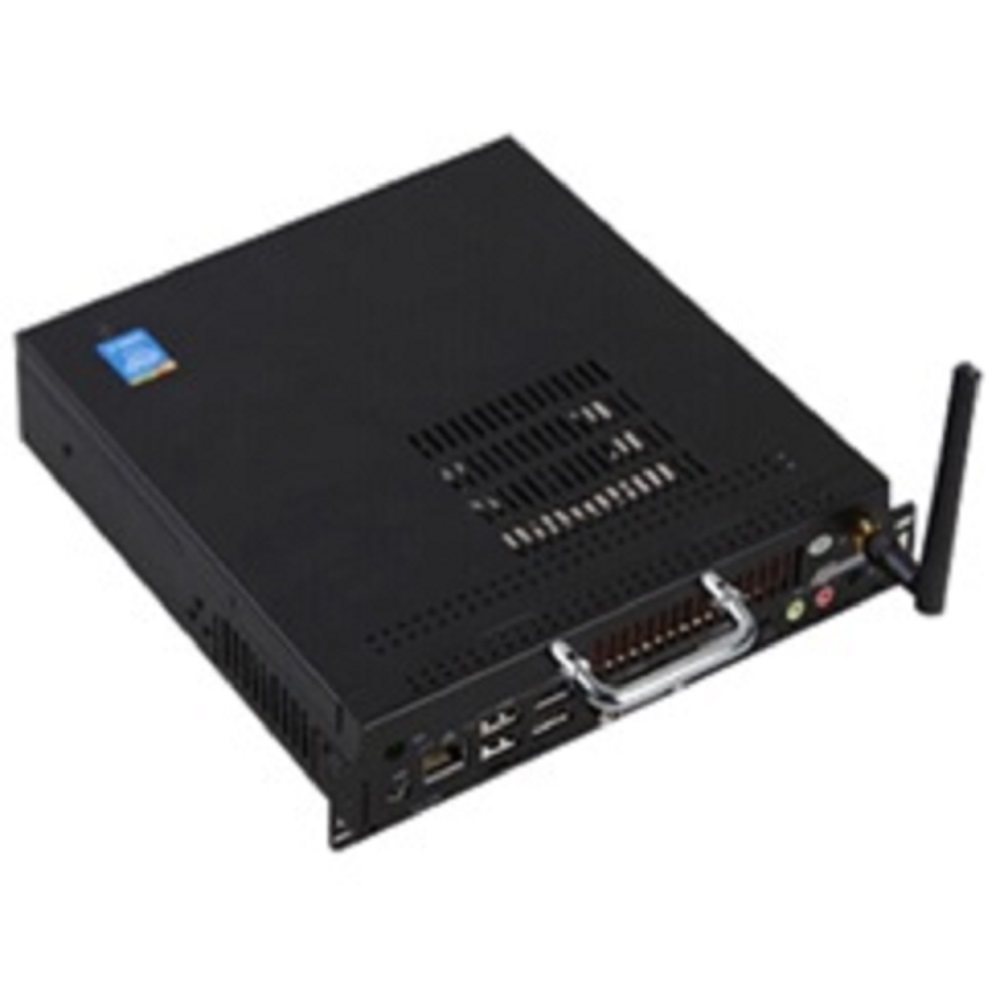

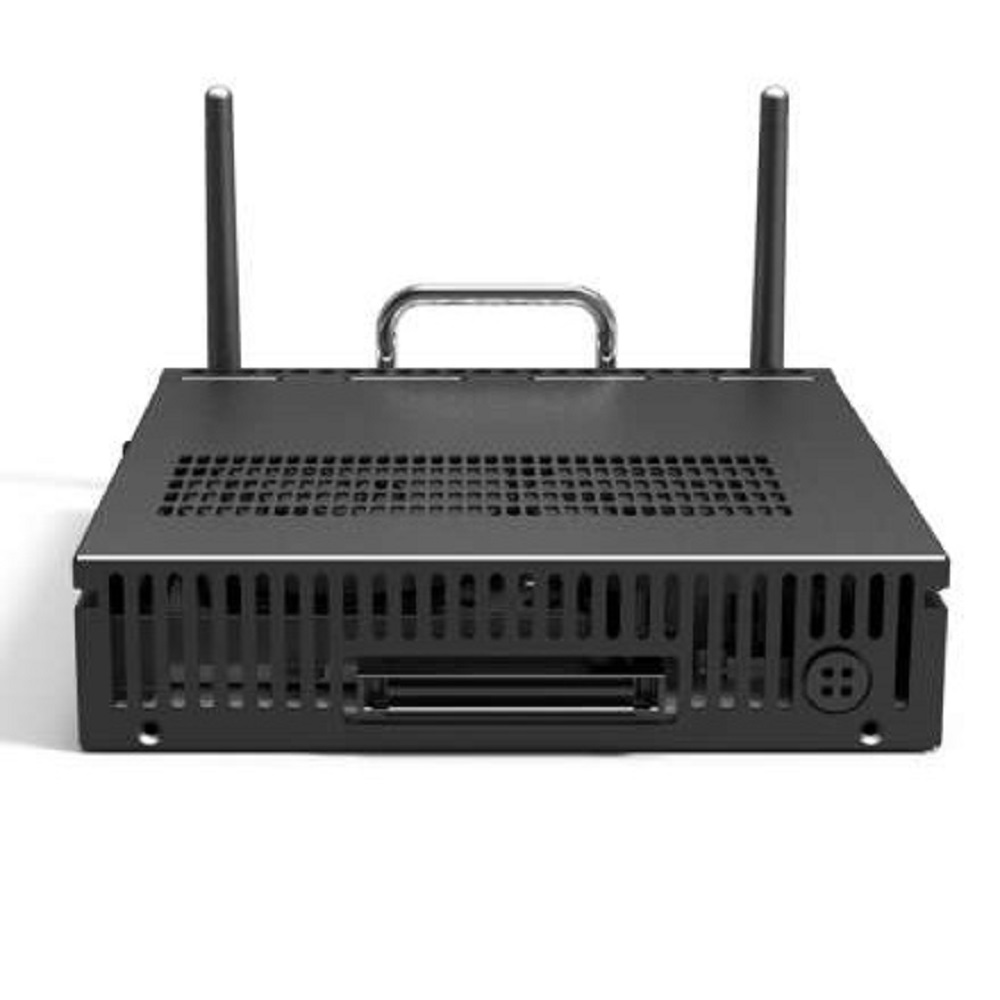

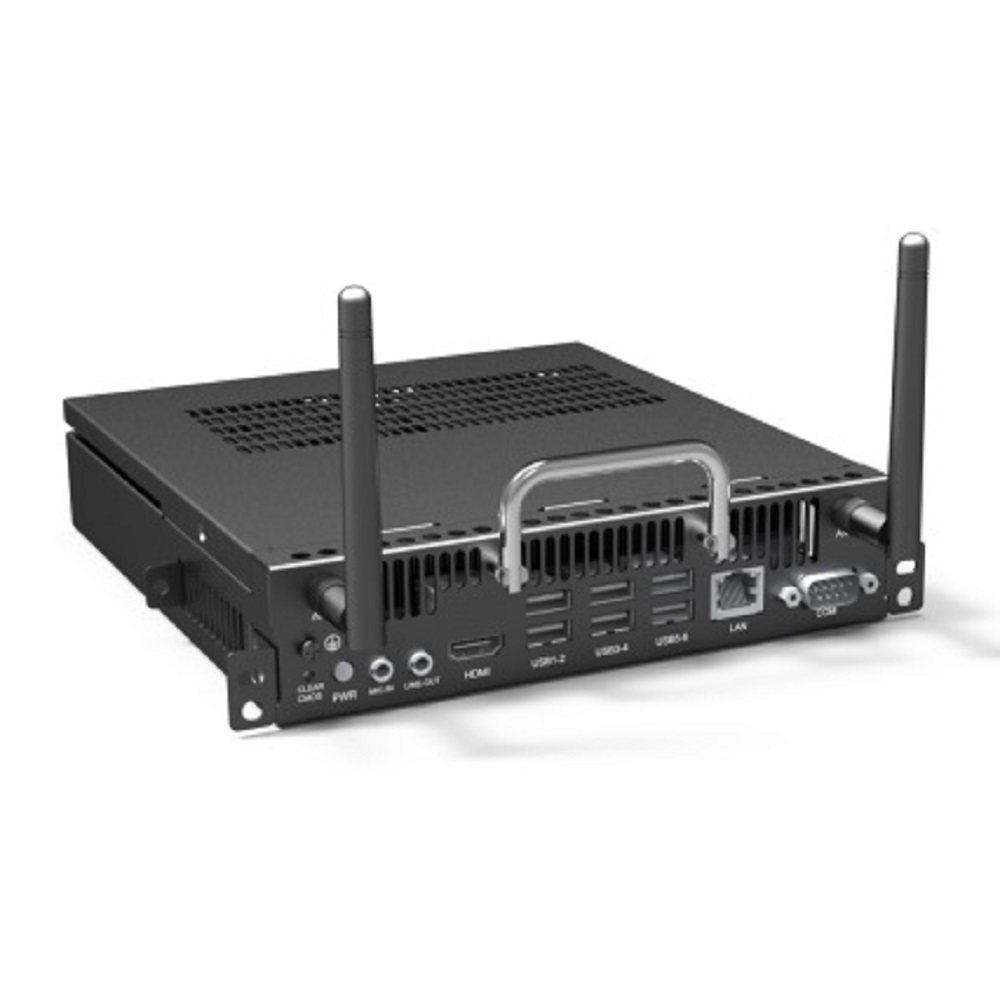

OPS-NV (GTX1050,GTX1060,GTX1070,GTX1080)

product features:
1) Fully compliant with the OPS-C standard
2) Adopt Intel's 7th generation chipset B250
3) CPU supports 7th generation Intel kaby lake i3/i5/i7 processor, compatible with 6th generation Intel sky lake i3/i5/i7 processor
4) Support MXM TYPE A/B discrete graphics, GTX1030-2G, GTX1050-2G, GTX1050TI-4G, GTX1060-6G etc.
5) Support WiFi Bluetooth

Specifications:
Model OPS-NV-GTX1050, OPS-NV-GTX1050TI, OPS-NV-GTX1060
CPU supports 7th generation Intel kaby lake i3/i5/i7 processor, compatible with the 6th generation
Socket Intel® socket LGA1151
Chipset Intel B250
Motherboard Interface
Memory 8G Up to 32G (2 slots for DDR4 2133/2400MHz)
SSD M.2, 128G/256G/512G
HDD 2.5”, Up to 4T
Sound card ALC892
NIC Integrated 10/100/1000M Adaption, INTELI210
Graphics card NV 1050, NV1050TI, NV1060 and other MXM standard TYPE A / B graphics card, TYPE B does not support SATA hard drive
WIFI MINI PCIE interface module, RTL8723BE
Bluetooth Above Bluetooth 4.0
USB2.0 / 3.0 USB2.0 interface 2 USB3.0 interface 4
COM interface 1
Lan Port (RJ45) 1 Gigabit Ethernet Port
Antenna 2

HDMI 2.0 1 (up to 4K@60Hz resolution)
JAE 1 JAE TX25 80-pin, OPS-C standard, can support tailgate HDMI&DP output 4K
Heat-removal System Dual Mode Dual Fan
Buttons and indicators POWER KEY, clear CMOS KEY, POWER LED (two-color)
Power
Power Supply Mode External Power Supply Module
Power Requirements 12V-19V DC
Max Power 180W
Standby Power under 0.5W
Physical Specifications
Color Black
Size (L*W*H) 180*195*42.5(mm)
Weight less than or equal to 2.0kg
Environmental Conditions
Operation Temperature 0°C - 40°C
Operation Humidity 10%-90%
Storage Temperature -20°C - 60°C
Storage Humidity 10% - 90%




Power: 2*2PIN(12V/19V) or 12V/19V adaptor
I/O interface: DC_IN,2*2PIN,HDMI,USB
HDMI: 2*10PINUSB:
MF_USB3(USB3.0 header) or MUSB_B(USB3.0)
JUSB_1(USB2.0 header) or MUSB_A(USB2.0)
MPC_CTRL, FAN_Header, 1*MPWRBTN(Power On)
LINE_OUT,OPS_TV_CON header

OPS-LVDS card support HDMI+LVDS
OPS-DP card support HDMI+DP



s8,Windows10 and Linux
Size: 180*195*43mm @2003-2020, Teket Innovation Technology Company Limited, ICP No: 05050856
