>>Your Current Position:Open Pluggable Specification OPS Series PC

Intel 2th 3th Gen Core i3 i5 i7 i7-2620M i7-3520M SO-DIMM DDR3 OPS-QM66

Digital Signage Open Pluggable Specification:
Simplify digital signage development
Highlights
Enables easier installation, use and maintenance of digital signs.
Makes digital signage devices more intelligent and connected.
Overview
The open pluggable specification (OPS) helps standardize the design and development of digital signage devices and pluggable media players. Intel created OPS to address digital signage market fragmentation and simplify device installation, usage, maintenance and upgrades.
OPS enables digital signage manufacturers to deploy interchangeable systems faster and in higher volumes, while lowering costs for development and implementation.
Installing digital signage equipment based on Intel architecture helps you implement scalable digital signage applications that can network easily with other equipment. This simplifies interoperability and application upgrades designed to meet the digital signage requirements of individual customers, while helping to future-proof technology investments.

OPS-QM66

CPU list
I3-2310M 2 core 4 thraed 2.1Ghz
I3-2350M 2 core 4 thread 2.3Ghz
I3-2370M 2 core 4 thread 2.4Ghz
I3-3110M 2 core 4 thread 2.4Ghz
I3-3120M 2 core 4 thread 2.5Ghz
I5-2520M 2 core 4 thread 2.5Ghz
I5-2540M 2 core 4 thread 2.6Ghz
I5-3320M 2 core 4 thread 2.6Ghz to 3.3Ghz
I5-3340M 2 core 4 thread 2.7Ghz to 3.4Ghz
I5-3360M 2 core 4 thread 2.8Ghz to 3.5Ghz
I5-3380M 2 core 4 thread 2.9Ghz to 3.6Ghz
I7-2620M 2 core 4 thread 3.0Ghz
I7-2640M 2 core 4 thread 2.8Ghz
I7-3520M 2 core 4 thread 2.9Ghz to 3.6Ghz
I7-3540M 2 core 4 thread 3.0Ghz to 3.7Ghz

RAM: SO-DIMM DDR3 1333/1600M, onboard 2G(option), 4G,8G
Storage: MSATA, SSD or HDD
Display: Intel HD series graphics, DVMT, supoort VGA,HDI and LVDS, 24bit LVDS
NIC: 1*realtek 8111F
Display Interface: VGA,HDI,LVDS(dual 8), support dual display (Synchronous Asynchronous)

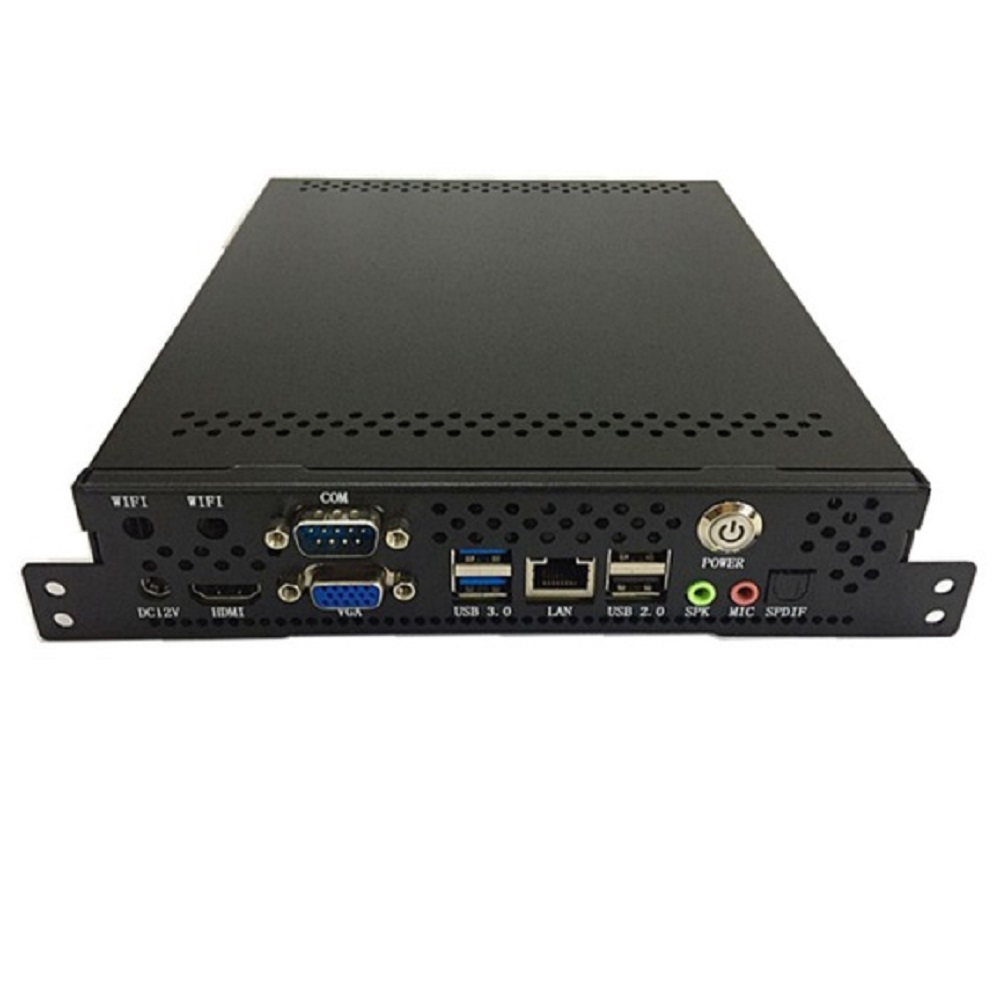

Sub Display Interface: DC_IN,1*HDI,1*VGA,2*USB2.0,2*USB3.0,1*LAN,1*AUDIO,1*SPDIF,1*COM
Power supply: DC-12V 7A
OS: Windows Xp,Windows7,Windows8,Windows10 and Linux
Size: 180*195*43mm


Power: 2*2PIN(12V/19V) or 12V/19V adaptor

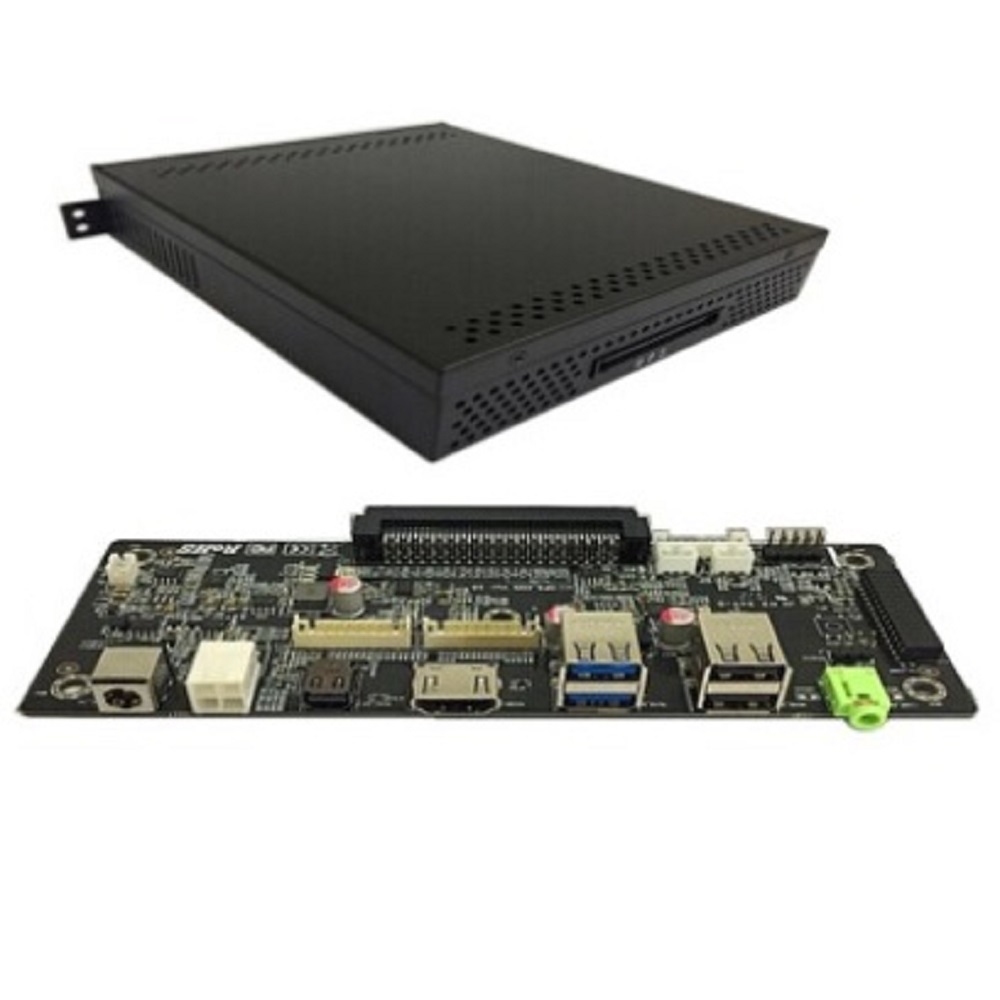

I/O interface: DC_IN,2*2PIN,HDI,USB
HDI: 2*10PINUSB:
MF_USB3(USB3.0 header) or MUSB_B(USB3.0)
JUSB_1(USB2.0 header) or MUSB_A(USB2.0)
MPC_CTRL, FAN_Header, 1*MPWRBTN(Power On)
LINE_OUT,OPS_TV_CON header

OPS-LVDS card support HDI+LVDS
OPS-DP card support HDI+DP
