>>Your Current Position:Open Pluggable Specification OPS Series PC

Intel 6th Skylake 7th Kabylake Gen LGA1151 Core i3 i5 i7 i7-6700 i7-7700 H110 Chipset OPS-QM99

Digital Signage Open Pluggable Specification:
Simplify digital signage development
Enables easier installation, use and maintenance of digital signs.
Makes digital signage devices more intelligent and connected.
The open pluggable specification (OPS) helps standardize the design and development of digital signage devices and pluggable media players. Intel created OPS to address digital signage market fragmentation and simplify device installation, usage, maintenance and upgrades.
OPS enables digital signage manufacturers to deploy interchangeable systems faster and in higher volumes, while lowering costs for development and implementation.
Installing digital signage equipment based on Intel architecture helps you implement scalable digital signage applications that can network easily with other equipment. This simplifies interoperability and application upgrades designed to meet the digital signage requirements of individual customers, while helping to future-proof technology investments.

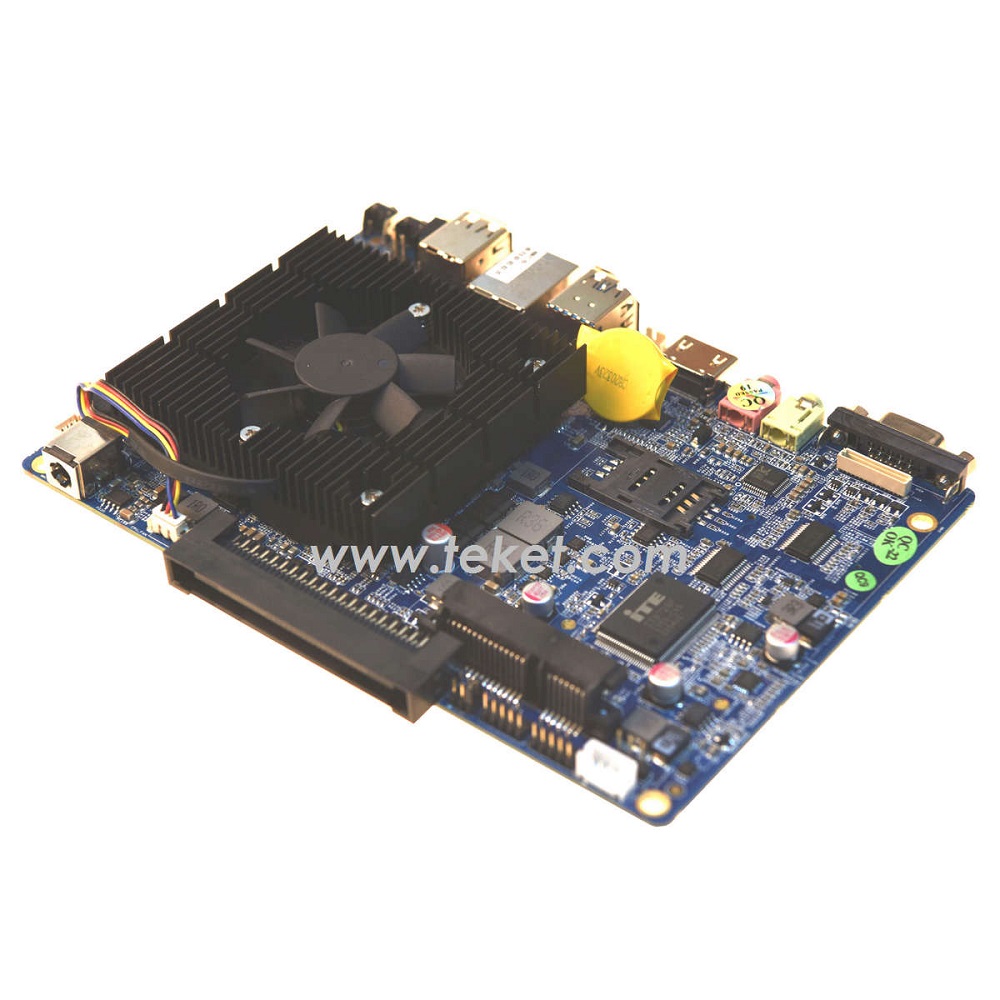

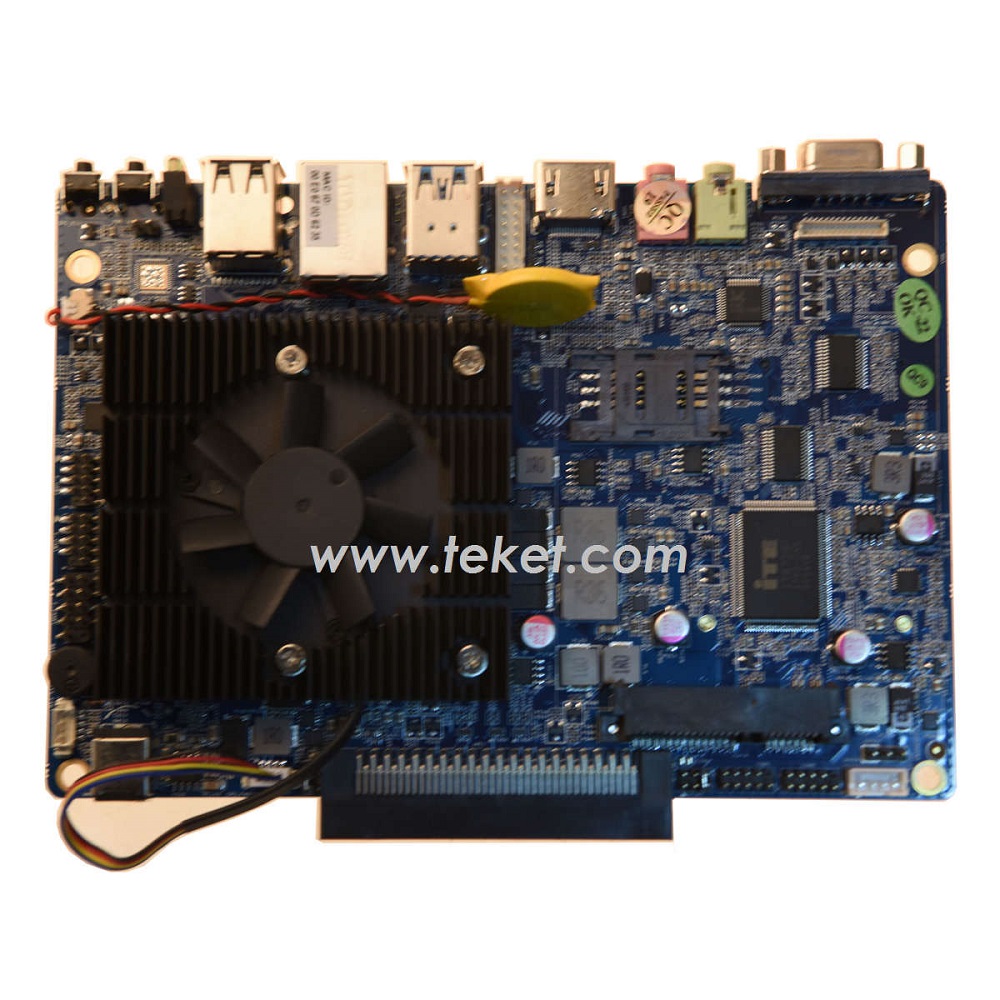

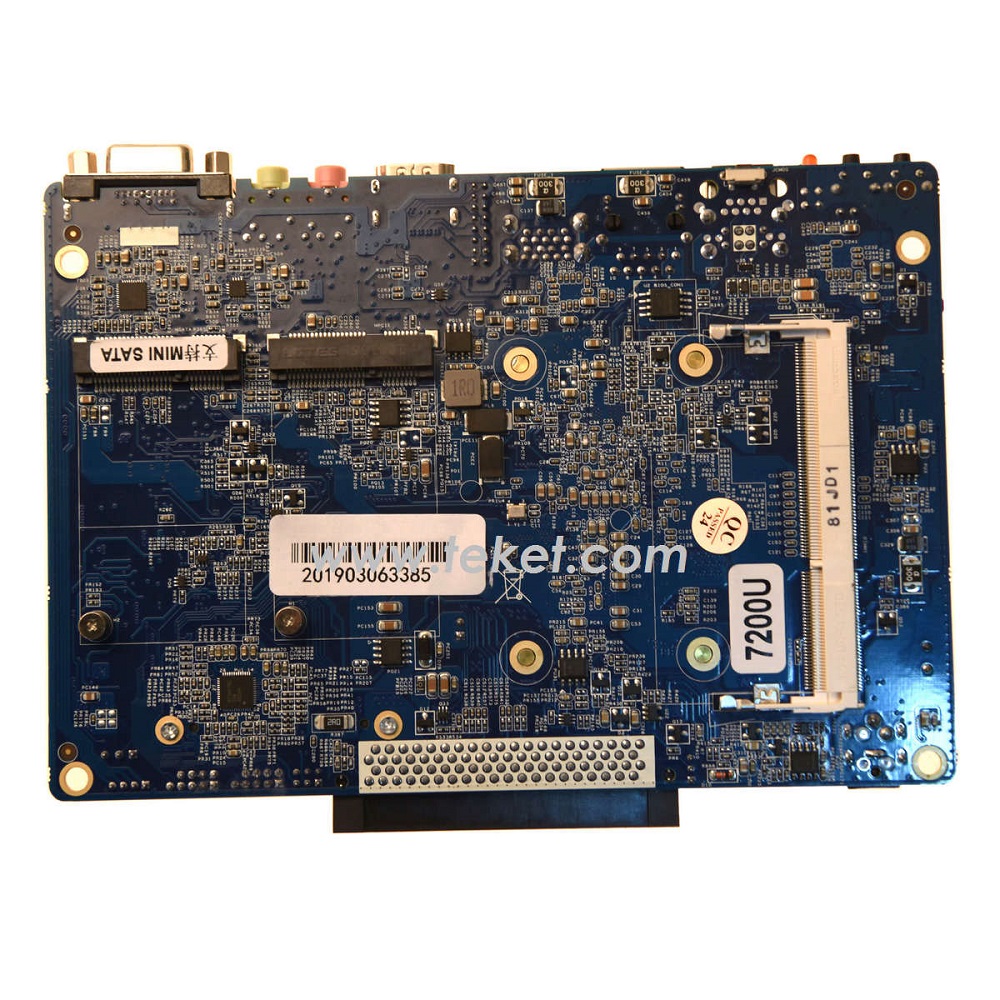

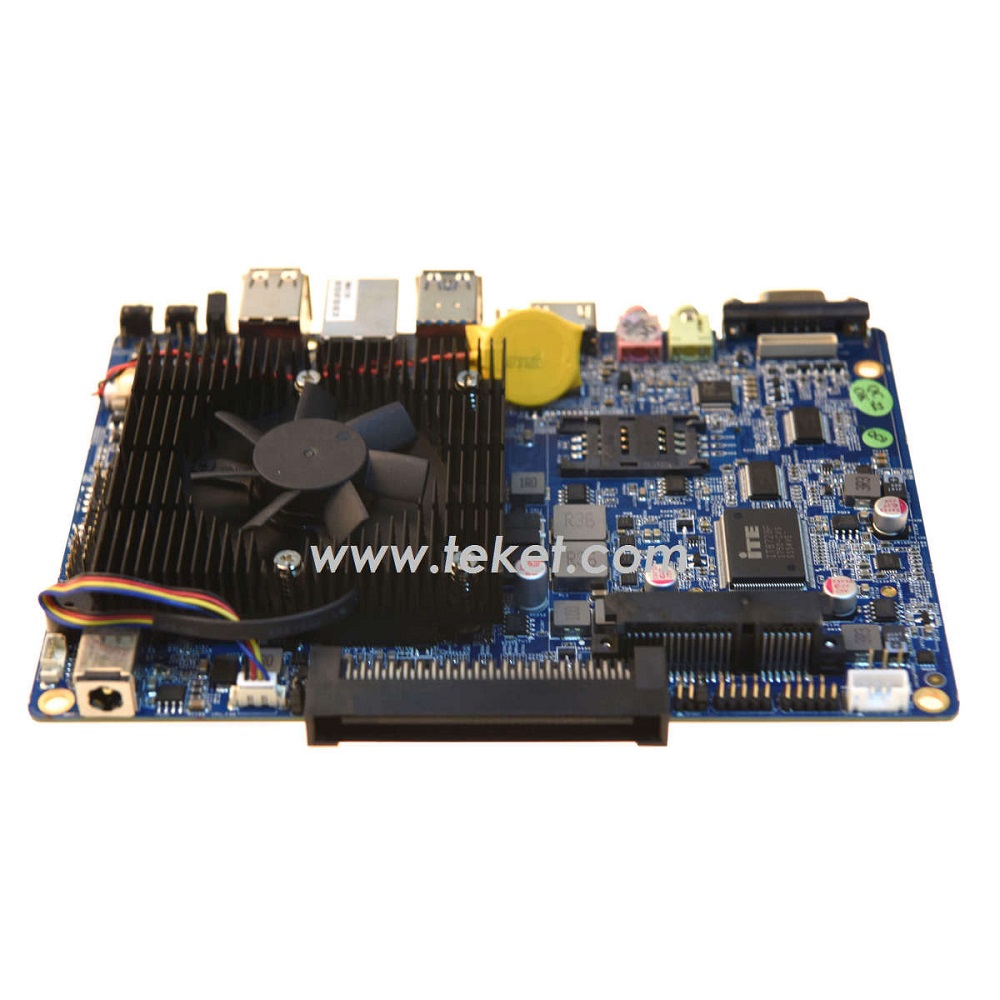

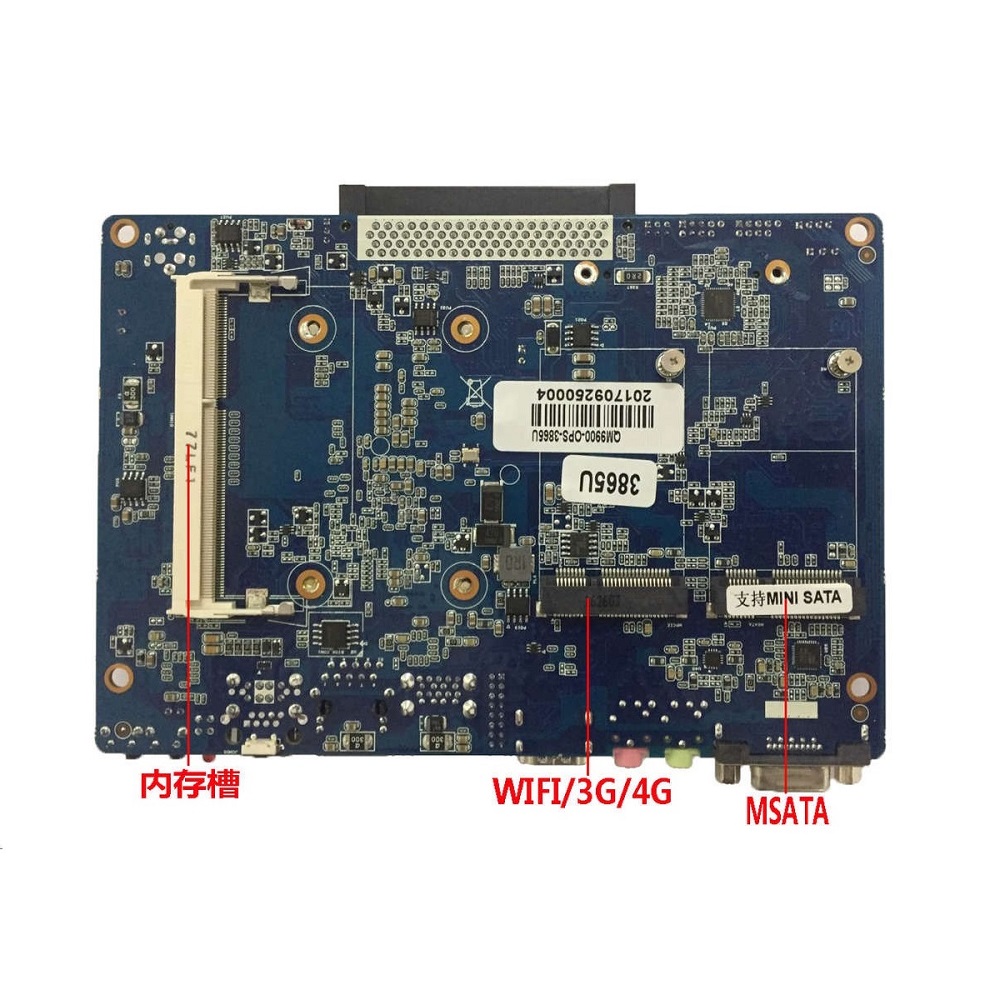

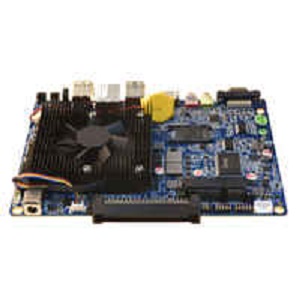

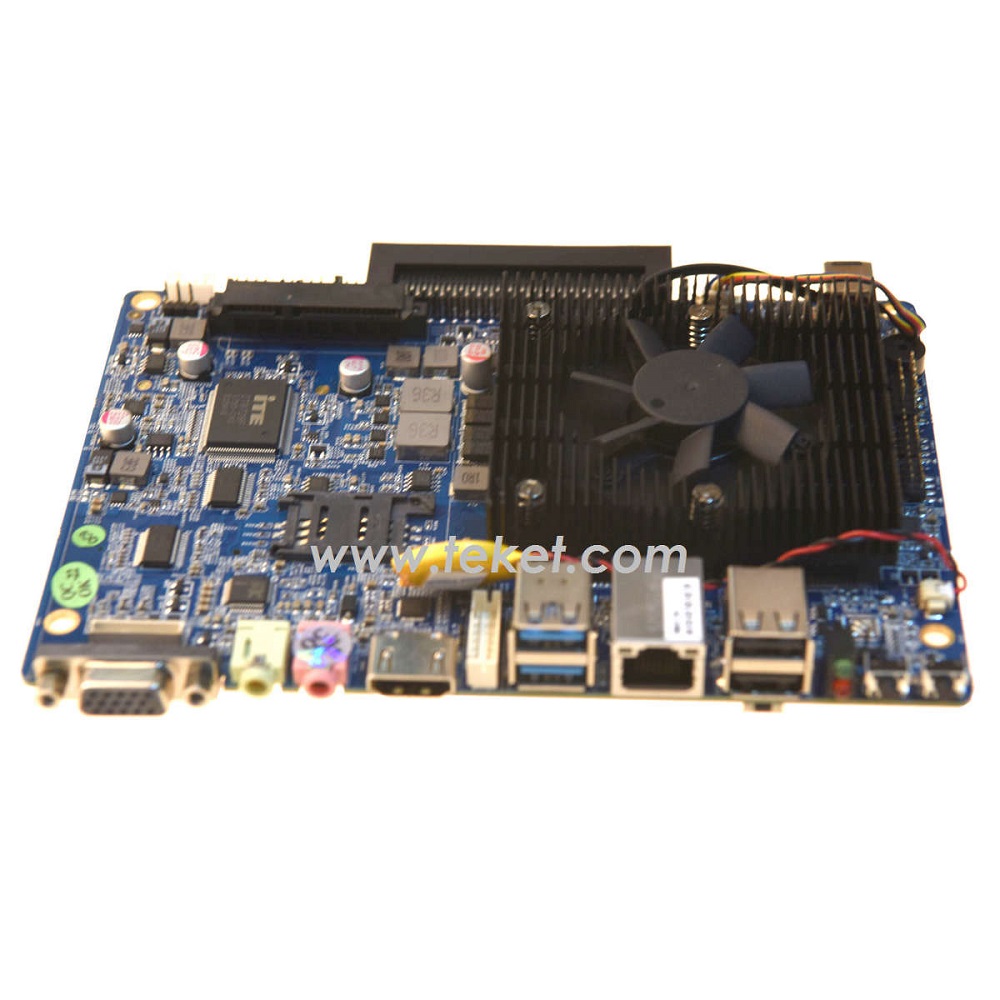

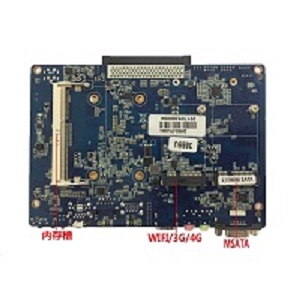

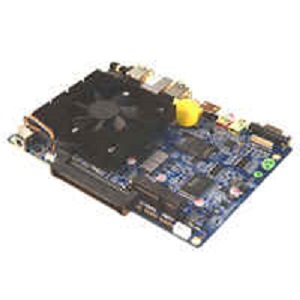

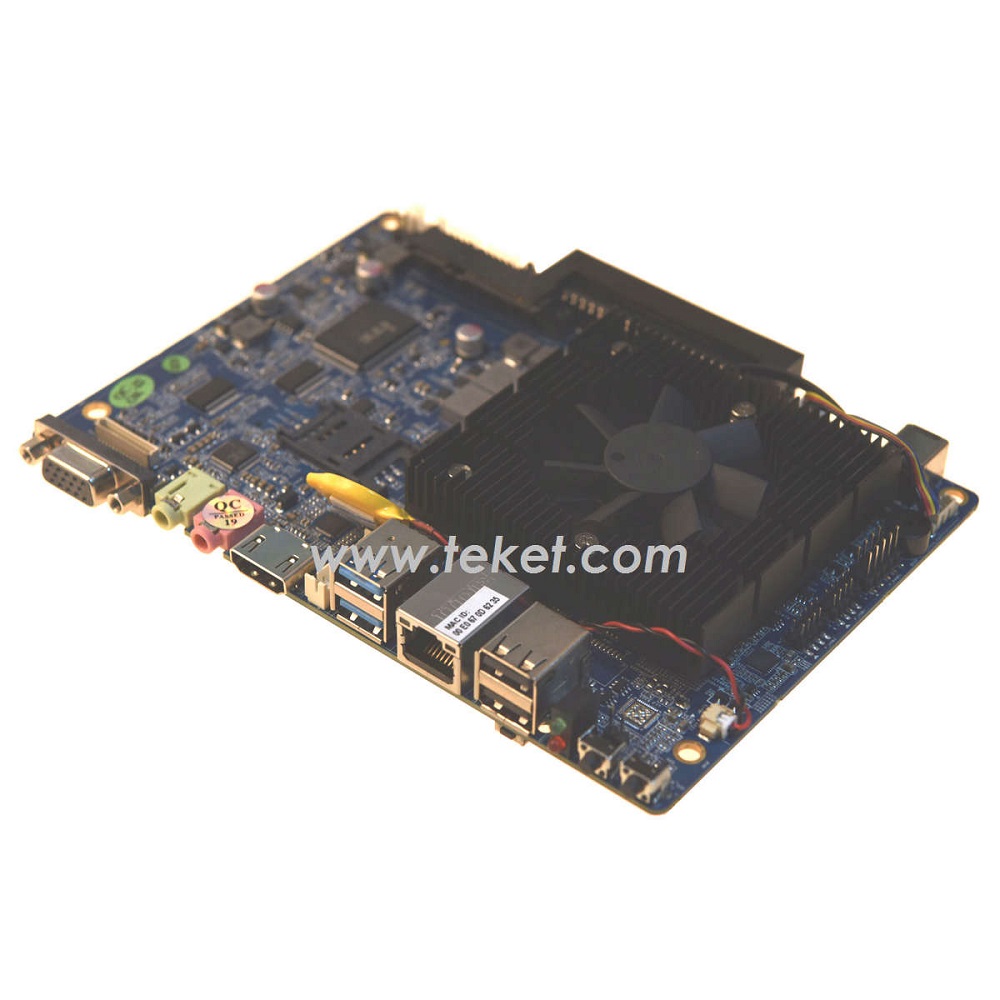

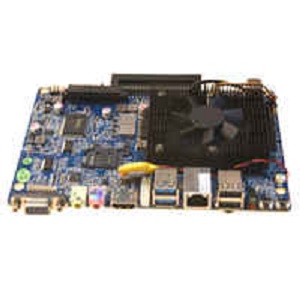

OPS-QM99 OPS motherboard

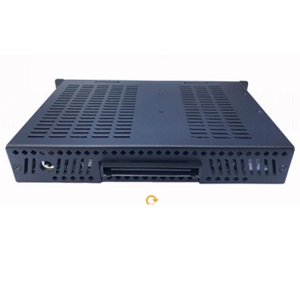

SOPS-QM99 OPS system barebone

CPU list
Celeron 3865U 2 core 2 thread 1.8Ghz
Celeron 3955U 2 core 2 thread 2.0Ghz
I3-6100 2 core 4 thread 2.3Ghz
I5-6200 2 core 4 thread 2.3Ghz to 2.8Ghz
I7-6500 2 core 4 thread 2.5Ghz to 3.1Ghz
Celeron 3965U 2 core 2 thread 2.2Ghz
I3-7100 2 core 4 thread 2.4Ghz
I5-7200 2 core 4 thread 2.5Ghz to 3.1Ghz
I7-7500 2 core 4 thread 2.7Ghz to 3.5Ghz

RAM: SO-DIMM DDR3 1333/1600M, 2G,4G,8G,16G
Storage: MSATA, SSD or HDD
Display: Intel HD series graphics, DVMT, supoort VGA and HDI, HDI support 4K
NIC: 1*realtek 8111F
Display Interface: VGA,HDI, support dual display (Synchronous Asynchronous)
Sub Display Interface: DC_IN,2*2PIN,1*HDI,USB2.0,USB3.0,1*LAN
Power supply: DC-12V/19V
OS: Windows Xp,Windows7,Windows8,Windows10 and Linux

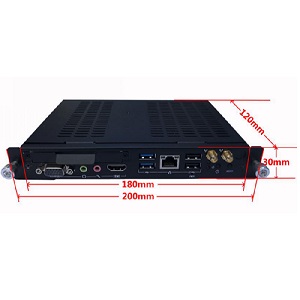

Size: 180*119*30mm (wall amount 2008120*30)

Power: 2*2PIN(12V/19V) or 12V/19V adaptor

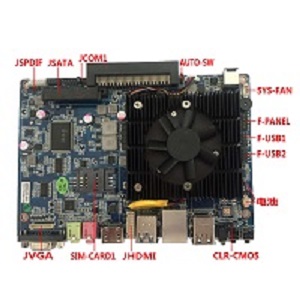

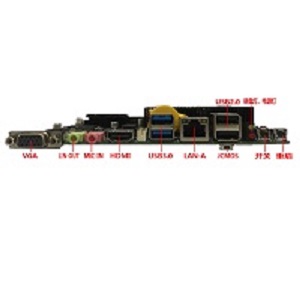

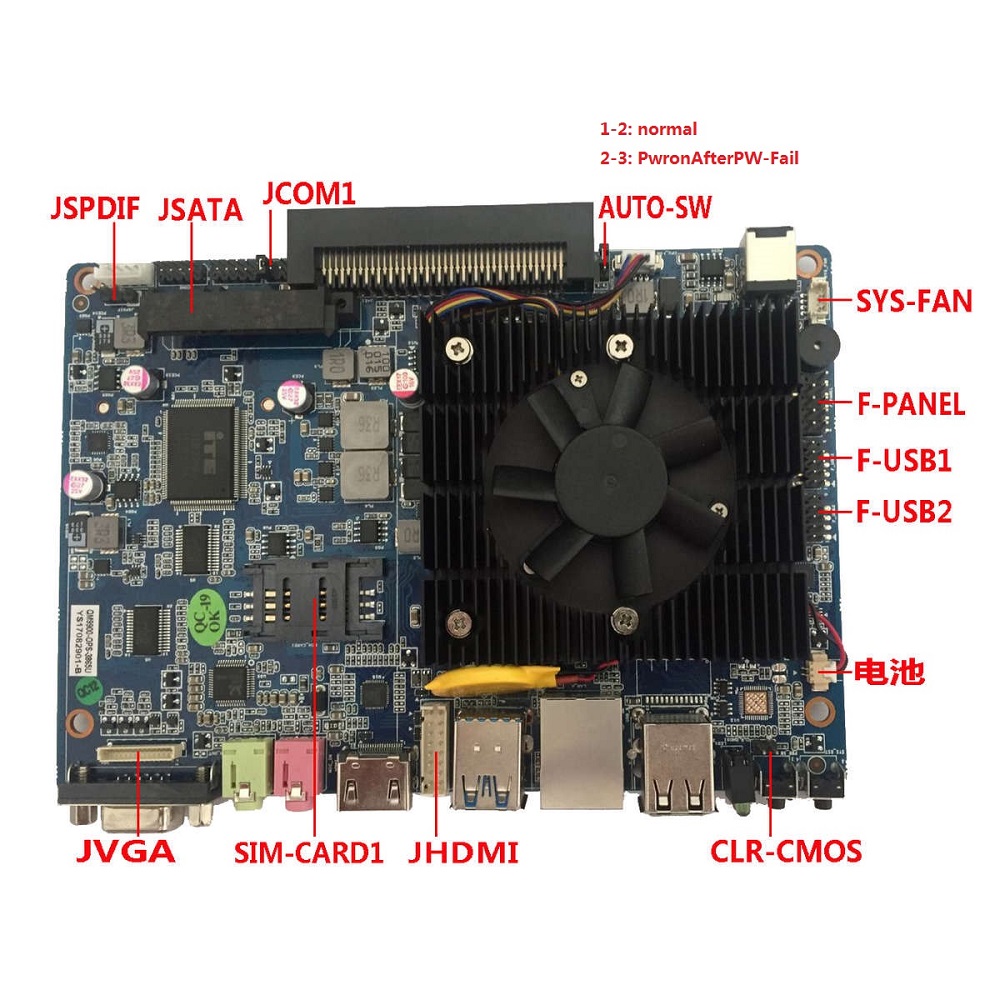

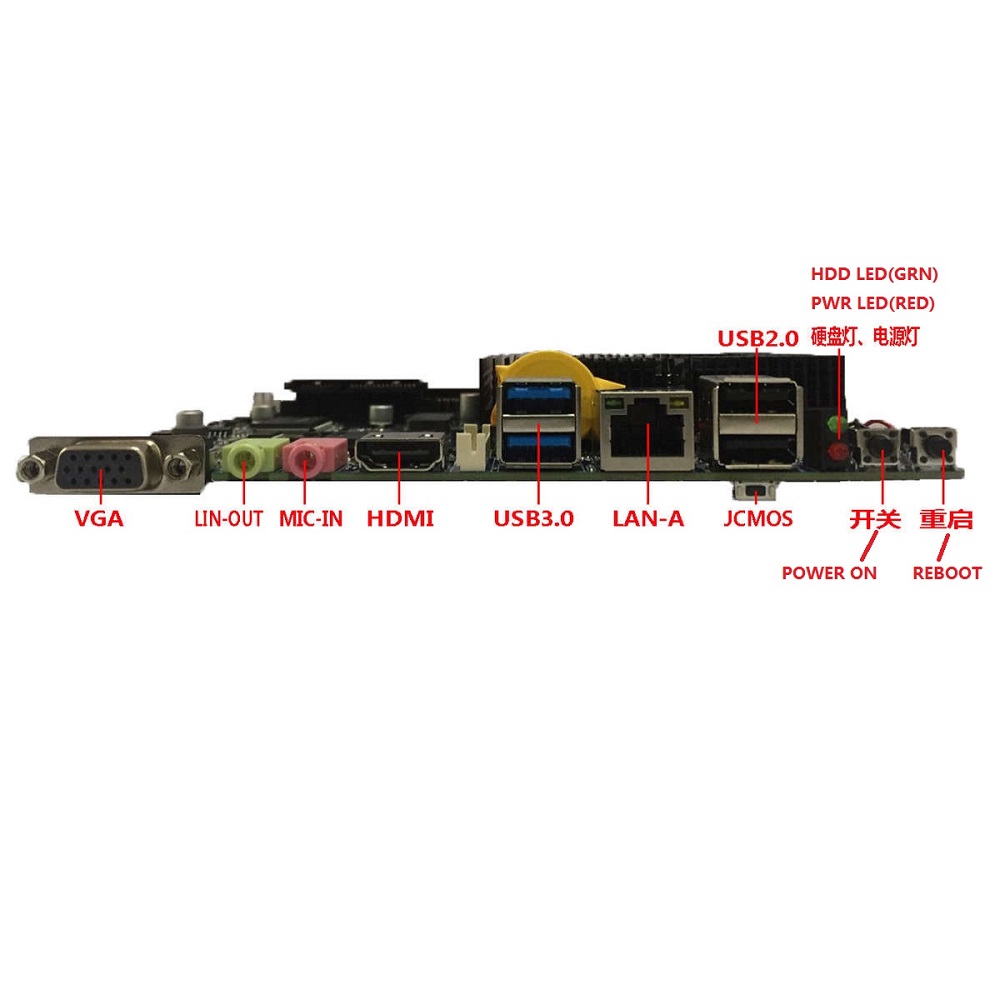

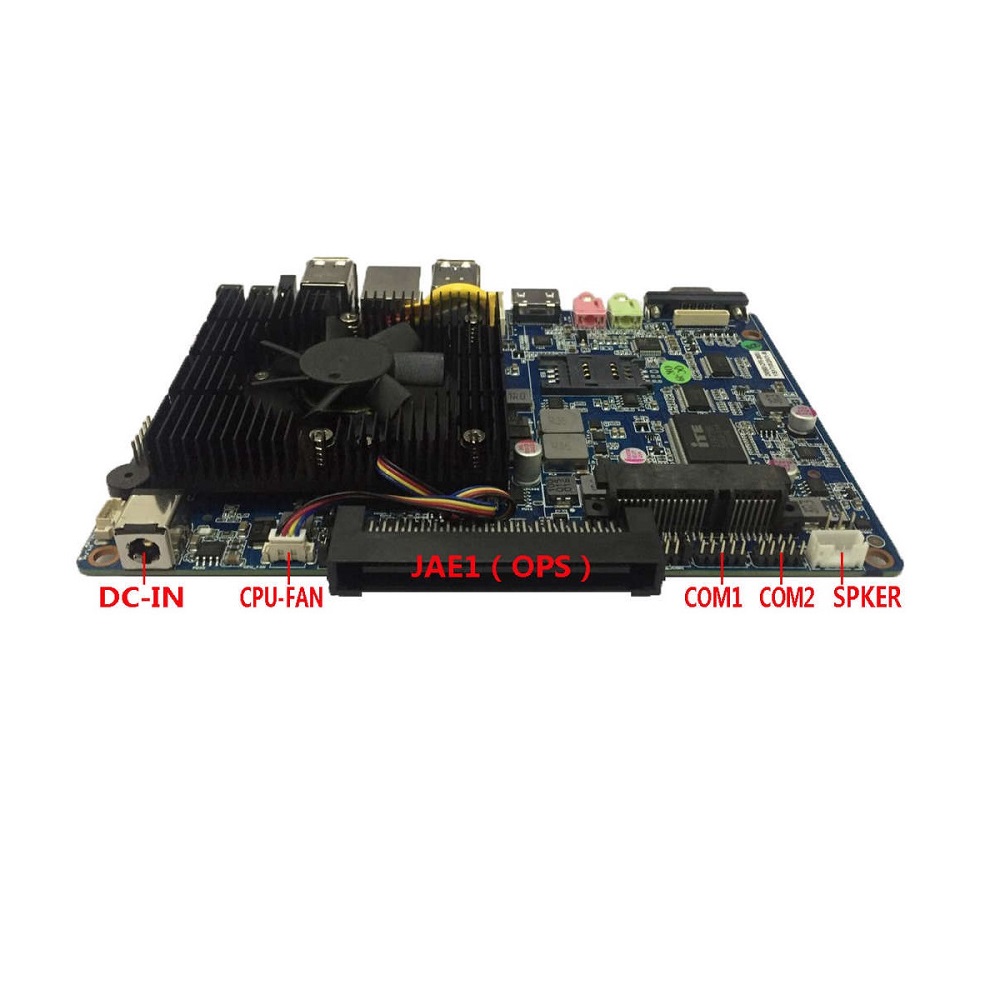

I/O interface: DC_IN,2*2PIN,HDI,USB
MF_USB3(USB3.0 header) or MUSB_B(USB3.0)
JUSB_1(USB2.0 header) or MUSB_A(USB2.0)
MPC_CTRL, FAN_Header, 1*MPWRBTN(Power On)

OPS-LVDS card support HDI+LVDS
OPS-DP card support HDI+DP
