>>Your Current Position: OPS Series OPS-H81




-->> OPS 6gen 7gen and 8gen CPU Series <<--

Digital Signage Open Pluggable Specification:
Simplify digital signage development
Highlights
Enables easier installation, use and maintenance of digital signs.
Makes digital signage devices more intelligent and connected.
Overview
The open pluggable specification (OPS) helps standardize the design and development of digital signage devices and pluggable media players. Intel created OPS to address digital signage market fragmentation and simplify device installation, usage, maintenance and upgrades.
OPS enables digital signage manufacturers to deploy interchangeable systems faster and in higher volumes, while lowering costs for development and implementation.
Installing digital signage equipment based on Intel architecture helps you implement scalable digital signage applications that can network easily with other equipment. This simplifies interoperability and application upgrades designed to meet the digital signage requirements of individual customers, while helping to future-proof technology investments.

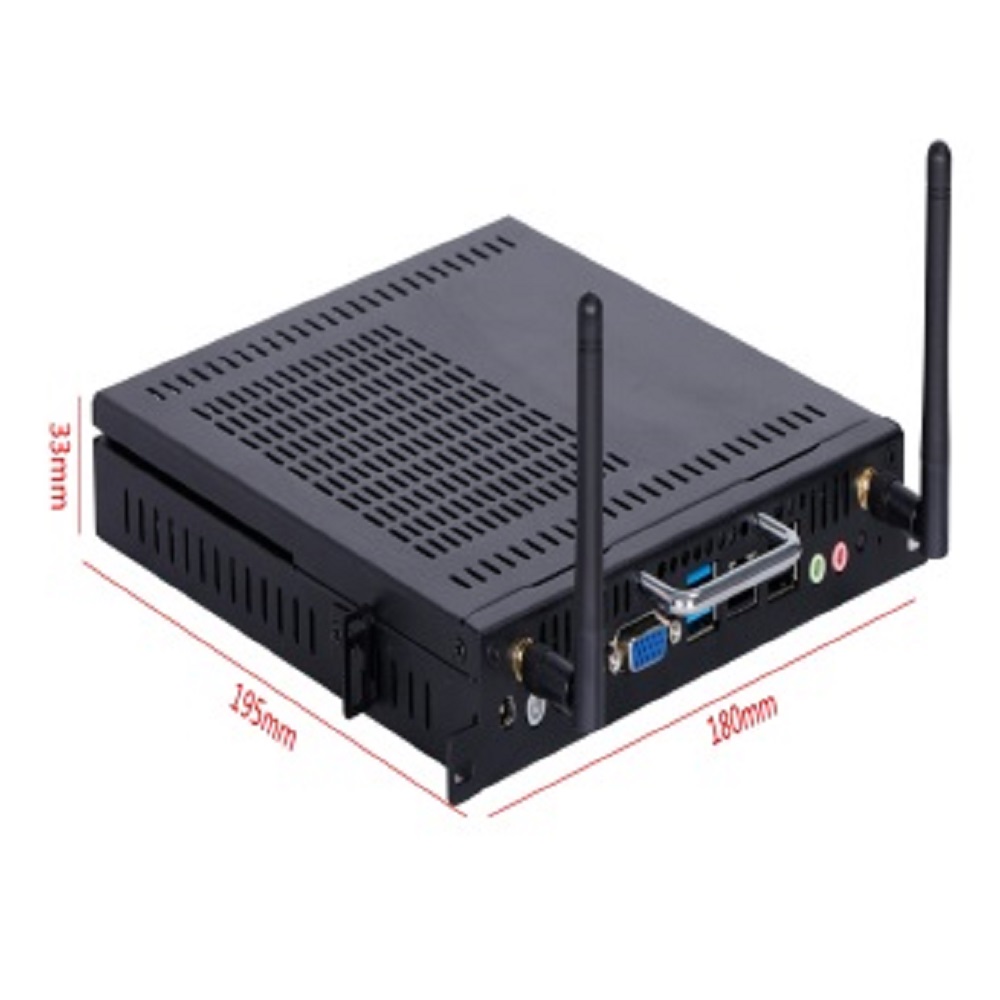

OPS6_OPS7_OPS8

OPS6-3865U,3855U dual core 4 threads 1.8G
OPS6-I3-6100U dual core 4 threads 2.3G
OPS6-I5-6200U dual core 4 threads 2.3G,up to 2.8G
OPS6-I7-6500U dual core 4 threads 2.5G,up to 3.1G
OPS7-I3-7100U dual core 4 threads 2.4G
OPS7-I5-7200U dual core 4 threads 2.5G,up to 3.1G
OPS7-I7-7500U dual core 4 threads 2.7G,up to 3.5G
OPS8-I3-8130U dual core 4 threads 2.4G
OPS8-I5-8250U dual core 4 threads 2.5G,up to 3.1G
OPS9-I7-8550U dual core 4 threads 2.7G,up to 3.5G

6th and 7th generation CPU, optional integrated independent display MX150-2G DDR4 graphics card
Memory support: NB-DDR3 (1.35V) maximum support 8G; hard disk support: MSATA disk, SSD disk and notebook hard disk optional; integrated HD4400 display core, 1*Realtec8111F Gigabit interface

Chassis size optional
model
P30: 180*195*30MM
P33: 180*195*33MM
P42: 180*195*42MM

RAM: SO-DIMM DDR4 up to 8GB,
Storage: MSATA, SSD or HDD
Display: Intel display or integrated independent display MX150-2G DDR4 graphics card
NIC: 1*realtek 8111F
Display Interface: DC,1*HDI,1*VGA,2*USB3.0,2*USB2.0,1*LAN,1*COM
Sub Display Interface: DC_IN,2*2PIN(power),1*LAN,HDI,USB 3.0 and USB2.0
Power supply: DC-12V
OS: Windows7,Windows8,Windows10 and Linux


Power: 2*2PIN(12V/19V) or 12V/19V adaptor
I/O interface: DC_IN,2*2PIN,HDI,USB
HDI: 2*10PINUSB:
MF_USB3(USB3.0 header) or MUSB_B(USB3.0)
JUSB_1(USB2.0 header) or MUSB_A(USB2.0)
MPC_CTRL, FAN_Header, 1*MPWRBTN(Power On)
LINE_OUT,OPS_TV_CON header

OPS-LVDS card support HDI+LVDS
OPS-DP card support HDI+DP
