-->> MINI PC Intel Origianl NUC with 4th generation Intel Core processor Core i3-4010U <<--

https://ark.intel.com/content/www/us/en/ark/products/76978/intel-nuc-kit-d34010wyk.html
Intel® NUC Kit D34010WYK
Internal Drive Form Factor mSATA SSD
# of Internal Drives Supported 1
RAID Configuration N/A

Intel® NUC Kit D34010WYKH
Internal Drive Form Factor mSATA and 2.5" Drive
# of Internal Drives Supported 2
RAID Configuration 2.5" SSD + mSATA SSD (RAID-0 RAID-1)

Intel® NUC Kit D34010WYK
Internal Drive Form Factor mSATA SSD
# of Internal Drives Supported 1
RAID Configuration N/A

Intel® NUC Kit D34010WYKH
Internal Drive Form Factor mSATA and 2.5" Drive
# of Internal Drives Supported 2
RAID Configuration 2.5" SSD + mSATA SSD (RAID-0 RAID-1)

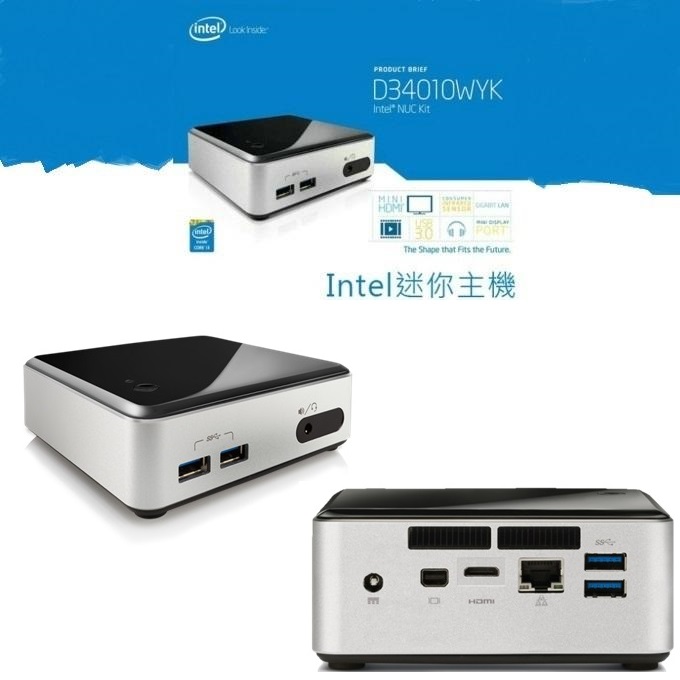

Intel? NUC with Intel? Core? i3 Processor (D34010WYK)
This generation of Intel? NUC models packs more innovative features into an even slimmer form factor.

Intel® NUC Kit D54250WYK
Intel® Core™ i5-4250U Processor (3M Cache, up to 2.60 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor mSATA SSD
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a

Product Overview

Built with a 4th generation Intel? Core? i3 processor, integrated Intel? HD Graphics 4400, and 8-channel audio, the Intel? NUC gives you the power to create a media center PC that lets you fully experience Hulu*, iTunes*, Netflix*, Pandora*, and other online entertainment content—and enjoy it all in crisp HD. The D34010WYK and D34010WYB SKUs of Intel NUC are equipped with Intel? Rapid Start Technology, ensuring you are quickly up and running, and Intel? Smart Connect Technology to keep you up to date at all times.

This new generation Intel NUC packs more features into an even slimmer form factor. What’s more, the sleek, small Intel NUC has a stereo/microphone jack and USB 3.0 for easy home theater connections and gaming requirements. Or, use it as a home office PC. The Intel NUC is small enough to unclutter your office, yet powerful enough to run the most demanding applications. The Intel NUC: as small as a desktop speaker, as powerful as a sonic boom.

Features and Configurations
All specifications are the same across board and kit unless otherwise noted.

Form factor UCFF
AA# (altered assembly)
Board: G99257-302
Kit: H14771-302
BIOS ID string WYLPT10H.86A
Processor 4th generation Intel? Core? i3-4010U processor (soldered down) with active fan heatsink
Memory Two SO-DIMM slots supporting up to 16 GB of 1600/1333 MHz 1.35V DDR3L memory (Note: 1.5V DDR3 memory is not supported)
Display One mini DisplayPort* 1.2 with audio support
One mini HDI* port 1.4a with audio support
Audio Intel? High Definition Audio (Intel? HD Audio)1 subsystem in the following configuration:
8-channel (7.1) digital audio via HDI 1.4a output and via one DisplayPort 1.2 connector
Headphone/microphone jack on the front panel
LAN support Intel? I218V Gigabit Ethernet Controller

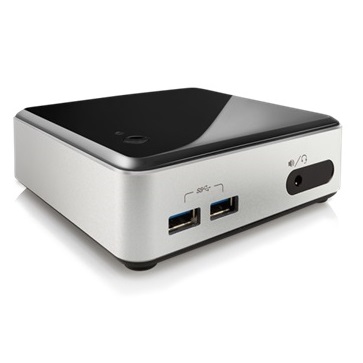

Peripheral interfaces Two USB 3.0 connectors (front panel)

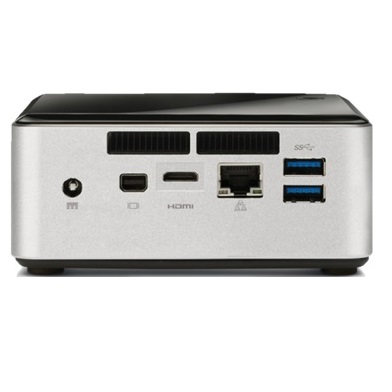

Two USB 3.0 connectors (back panel)
Two USB 2.0 ports (internal headers)
One SATA port (internal header)
Consumer infrared sensor on the front panel
Expansion capabilities One full length mini PCI Express* slot with mSATA support
One half-length mini PCI Express slot
Included in the box Board:
Fan heatsink (integrated onto board)
Intel? Core? i3 logo
Kit:
19V, 65W power adapter (brick)
Power cord options (Types B, E, G, or no cord)
VESA* mounting bracket
Integration guide
Wireless antennae (integrated into the chassis)
Intel Core i3 logo
Warranty 3-year limited warranty

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
