-->> Mini PC Intel NUC Kit DE3815TYKHE and Board DE3815TYBE Atom processor E3815 <<--

Intel? NUC with Intel? Atom? Processor (DE3815TYKHE)
From school and university computer labs to enterprise, government, and private organizations, the Intel? NUC is driving new models of computing in small spaces.

Intel® NUC Kit DE3815TYKHE
Intel Atom® Processor E3815 (512K Cache, 1.46 GHz)
DDR3L-1066 1.35V SO-DIMM
Internal Drive Form Factor 2.5" Drive
Graphics Output HDI, VGA, eDP

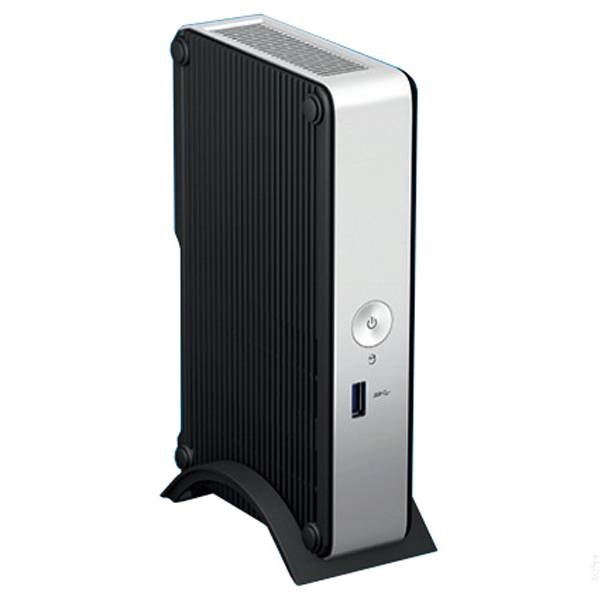

Mini PC: Intel? NUC Kit DE3815TYKHE and NUC Board DE3815TYBE
Mini PC: Intel? NUC Kit DE3815TYKHE and Board DE3815TYBE

Product Overview

The Intel? NUC kit DE3815TYKHE and board DE3815TYBE, built with an Intel? Atom? processor for intelligent systems, are a pint-sized powerhouse for value-conscious businesses and organizations. This low-cost, low-power solution introduces many firsts to the Intel NUC form-factor: fanless thermal solution for the ultimate silence and reliability, onboard flash storage for small-footprint software solutions, internal flat panel display connectivity for built-in screens, video graphics array (VGA) port for monitor compatibility in legacy installations, watchdog timer for resilient system availability, and also inter-integrated circuit (I2C) and pulse width modulation (PWM) signals for interfacing with sensors and other embedded devices enabling the Internet of Things. And with its three-year supply availability, the Intel NUC kit DE3815TYKHE and board DE3815TYBE will be around to support long development and production ramp cycles.

With its vertical industrial design and support for Linux* and Windows* embedded operating systems, this Intel NUC kit DE3815TYKHE and board DE3815TYBE were designed as the essential building block to power the thin-client market. A fanless kit and board with flash storage built in, and USB 3.0 and audio headset support, this Intel NUC fits right at home in schools, call centers, and other locations with a large installed base of VGA monitors.

Powered by the Intel Atom processor E3815, the Intel NUC kit DE3815TYKHE and board DE3815TYBE also provides an ideal combination of power consumption, performance, affordability, and software compatibility to drive light digital signage, point-of-sale, and kiosk solutions, amongst other usages. With 4 GB of embedded MultiMediaCard (eMMC) storage built in, many embedded applications will benefit from a lower overall system-level bill of materials (BOM) cost. Incidentally, high availability resilience can also be enabled for these and other unattended solutions via the built-in watchdog timer, providing priceless protection against costly and embarrassing downtimes. Last, but certainly not least, this Intel NUC provides a discrete trusted platform module device onboard for hardware-based data encryption—a must-have for applications where confidential information is at stake. Embedded possibilities are endless with the Intel NUC Kit DE3815TYKHE and board DE3815TYBE—just add RAM!

Features and Configurations
All specifications are the same across board and kit unless otherwise noted.

Processor
Intel? Atom? processor E3815 (1.46 GHz single core, 512 KB cache, 5 W thermal design power (TDP))
Memory
DDR3L SO-DIMM
1.35V, 1333/1600 MHz (down clocked to 1066 MHz), 8 GB maximum
Graphics
Intel? HD Graphics (up to 400 MHz)
1x HDI* 1.4a
1x Embedded DisplayPort* (eDP) 1.3 (2 lanes with backlight and adjustable voltage/timings)
1x VGA
Audio
Multi-channel digital audio via HDI interface
Back panel headphone/microphone jack
Peripheral connectivity
1x USB 3.0 connector on the front panel
2x USB 2.0 connectors on the back panel
3x internal USB 2.0 ports (2x5 + 1x5 headers)
Storage
4 GB eMMC storage device built in
Internal support for 2.5-inch HDD or SSD (up to 9.5mm thickness)
Networking
10/100/1000 Mbps Ethernet port
Half-length PCIe* mini-card slot and wireless antennas pre-assembled (for wireless card support)
Enclosure (kit only)
Metallic gray plastic ring with black sides
Dimensions: 190mm x 116mm x 40mm
Power adapter (kit only)
12V, 36W wall-mount AC-DC power adapter (12-19V DC back panel power connector)
Multi-country plugs (IEC types A/C/G/I)
Additional features
Fanless design
Discrete trusted platform module (TPM 1.2)
Watchdog timer (hardwired to board reset)
Custom Solutions header (DMIC, AppLaunch GPIO, HDI_CEC, SMBus, I2C[0:1], PWM[0:1] w/5V buffers, 1.8/3.3/5 Vstby power)
12-24V DC internal power header
Compatible with Windows* Embedded Standard 8 (WES 8), WES 7, Linux*
Vertical stand
VESA mount bracket (75 x 75mm and 100 x 100mm compatible) (kit only)
Kensington* lock support (kit ony)
3-year product life cycle
Included in the box Kit
Intel? NUC board DE3815TYBE
Intel? Atom? brand sticker
Board
Intel NUC board DE3815TYBE integrated in enclosure
Vertical stand
VESA mount bracket, with screws
12V, 36W wall-mount AC-DC power adapter with multi-country AC plugs
(IEC types A/C/G/I)
Intel Atom brand sticker
Integration guide
Warranty 3-year limited warranty

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809 2.4G/RF Wireless Keyboard with Touchpad K8C 2.4G/RF Wireless Keyboard with Touchpad K8
