-->> Mini PC Intel NUC DN2820FYKH Celeron processor N2820 <<--

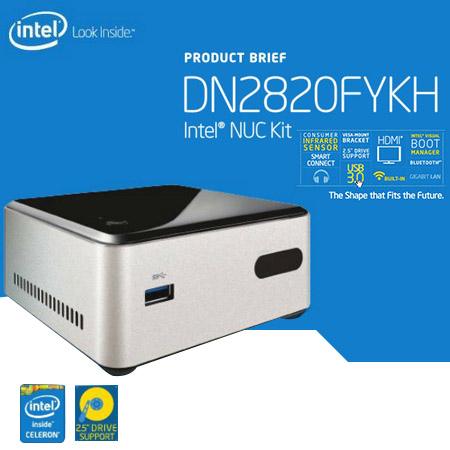

Intel? NUC with Intel? Celeron? Processor and 2.5-Inch Drive Support (DN2820FYKH)
Designed with value in mind, this Intel? NUC strikes the right balance of affordability, connectivity, and performance to drive your home office or home theater experience.

Intel® NUC Kit DN2820FYKH
Intel® Celeron® Processor N2830 (1M Cache, up to 2.41 GHz)
DDR3L-1066/1333 1.35V SO-DIMM
Internal Drive Form Factor 2.5" Drive
Graphics Output HDI 1.4a

Product Overview

Building an home theater PC (HTPC) or personal cloud? The Intel? NUC with an Intel? Celeron? processor gives you control over your digital media. HDI* video, an infrared sensor port, and internal 2.5-inch drive support will allow you to drive your home entertainment experience from the 4 inch x 4 inch form factor, so you can create a digital media center or personal cloud for your media files that fits in the palm of your hand.

In addition, this Intel NUC introduces the foundation for a new boot management capability that lets you choose the operating systems that work best for you via a user-friendly interface.

Features and Configurations
Processor
Intel? Celeron? processor N2820
(up to 2.4 GHz dual-core, 1 MB cache, 7.5 W TDP)

Memory
?1 DDR3L SODIMM
?1.35V, 1333/1600 MHz (down clocked to 1066 MHz), 8 GB maximum

Graphics
?Intel? HD Graphics (up to 756 MHz)
?1 x HDI* 1.4a

Audio
?Up to 7.1 surround audio via HDI interface
?Back panel headphone/microphone jack

Peripheral connectivity
?1 x USB 3.0 port on the front panel
?2 x USB 2.0 ports on the back panel
?Front panel consumer IR sensor

Storage
?Internal support for 2.5-inch HDD or SSD

Networking
?10/100/1000Mbps Ethernet port
?Intel? Wireless-N 7260BN pre-installed, including wireless antennas
(IEEE 802.11bgn, Bluetooth* 4.0, Intel? Wireless Display built-in)

Enclosure
?Silver aluminum ring with diamond cut around black top
?Dimensions: 116.6mm x 112mm x 51.5mm

Power adapter
?12V, 36W wall-mount AC adapter
?Multi-country plugs (IEC types A/C/G/I)

Additional features
?Intel? Visual BIOS
?Intel? Visual Boot Manager
?Windows* 8.1 and 8 Logo
?Compatible with Linux*
?VESA mount bracket (75 x 75mm and 100 x 100mm compatible)
?Half-length PCIe* mini-card slot (used by pre-installed wireless card)
?Low-acoustics active cooling design
?Kensington lock support
?3-year limited warranty

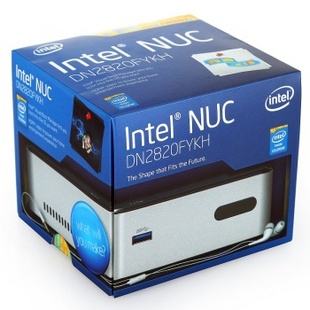

Included in the box
?Intel? NUC board DN2820FYB integrated in enclosure
?VESA mount bracket, with screws
?12V, 36W wall-mount AC adapter with multi-country AC plugs
(IEC types A/C/G/I)
?Intel Celeron brand sticker
?Integration guide

Warranty 3-year limited warranty

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
