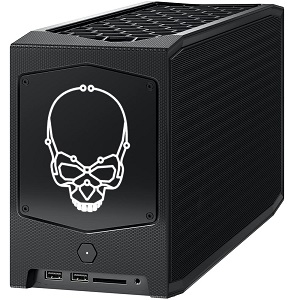

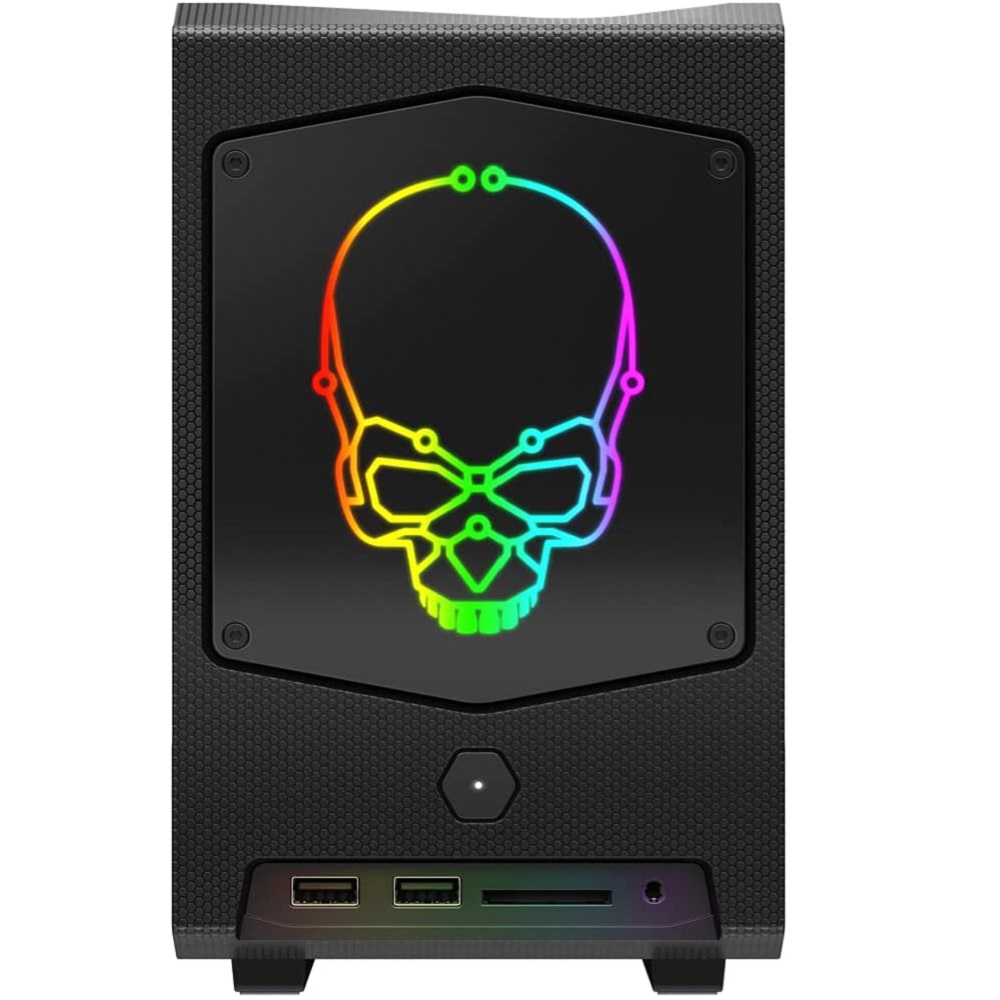

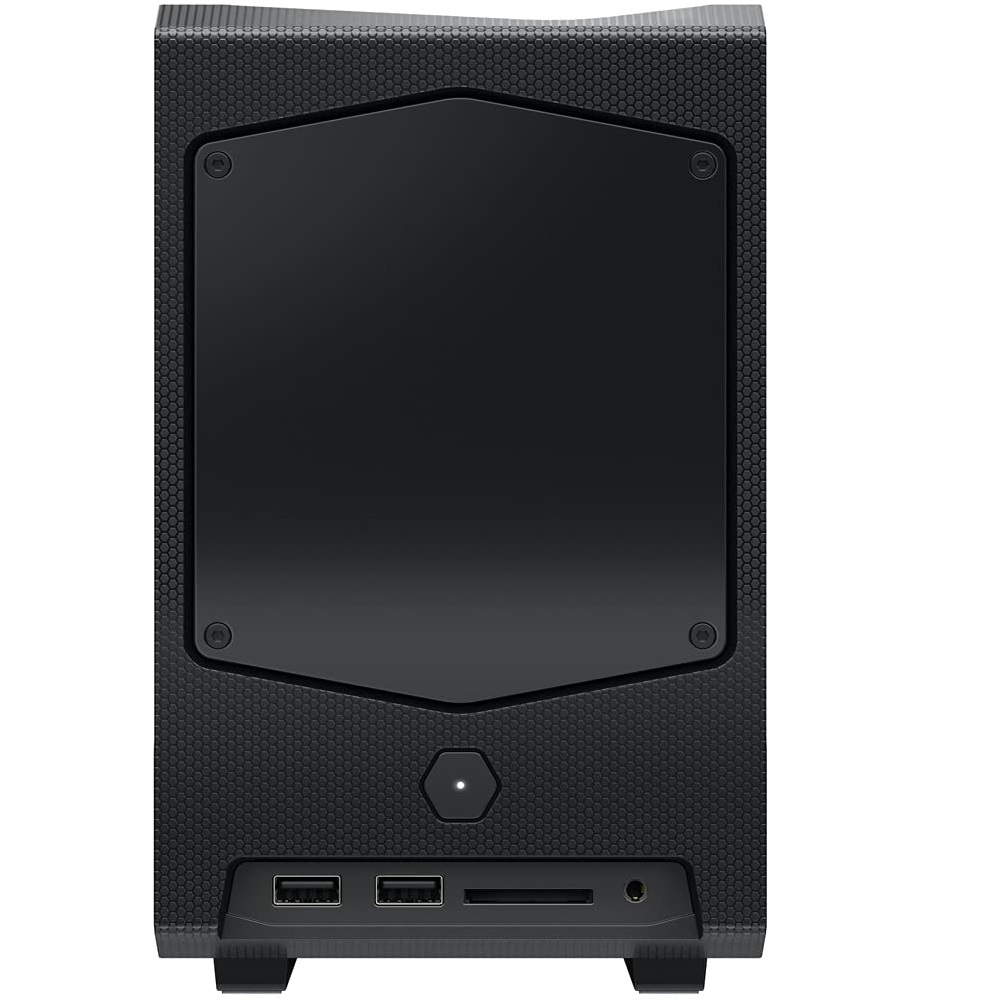

-->> Mini PC Intel NUC11 Extreme Kit Beast Canyon NUC11BTMi9 with 11th Generation Intel Core Processors i9-11900KB <<--

Intel® NUC 11 Extreme Kit - NUC11BTMi9

Essentials
Product Collection Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name Products formerly Beast Canyon
Status Launched
Launch Date Q3'21
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC11DBBi9
Board Form Factor PCIe
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 4
Lithography 10 nm SuperFin
TDP 65 W
Board Chipset Intel® WM590 Chipset
Processor Included Intel® Core™ i9-11900KB Processor (24M Cache, up to 4.90 GHz)
Intel vPro® Platform Eligibility ‡ No
Total Cores 8
Total Threads 16
Processor Base Frequency 3.30 GHz
Max Turbo Frequency 4.90 GHz
Warranty Period 3 yrs
Recommended Customer Price $1189.89 - $1192.35
Supplemental Information
Embedded Options Available No

Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types
DDR4 3200MHz 1.2V SO-DIMM
DDR4 3200 MHz 1.35V SO-DIMM - XMP is required to enable 1.35V memory
Max # of Memory Channels 2
Max Memory Bandwidth 51.2 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No

Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output
2x Thunderbolt 4, HDMI 2.0b
# of Displays Supported ‡ 3
Discrete Graphics
Via PCIe add-in card(s)

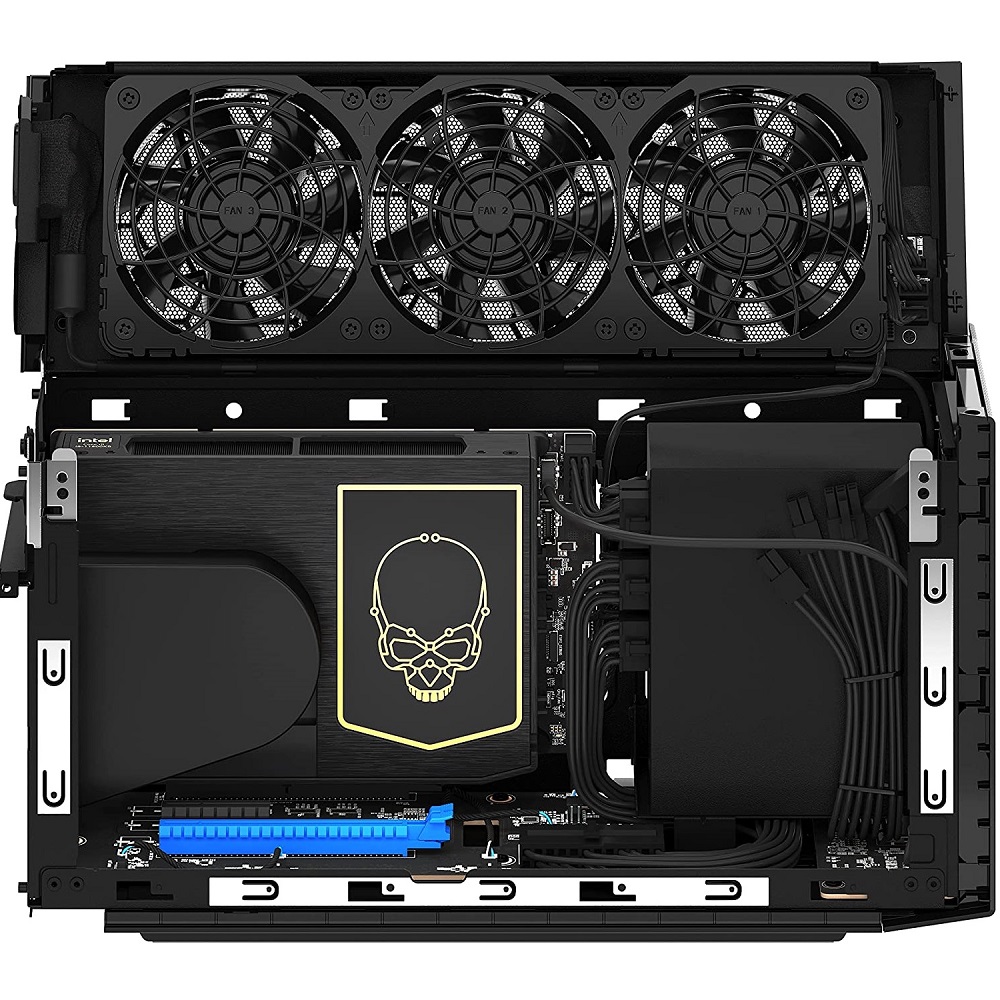

Expansion Options
PCI Express Revision Gen4
PCI Express Configurations ‡
2x M.2 PCIe X4 Gen3 slots (PCH), 2x M.2 PCIe X4 Gen4 slots (CPU); Double-wide PCIe X16 Gen4 (CPU) slot, PCIe X4 Gen4 (CPU) slot, 12" max card length
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (wireless)
Intel® Wi-Fi 6E AX210
M.2 Card Slot (storage)
2x via PCH + 2x via CPU (NVMe)

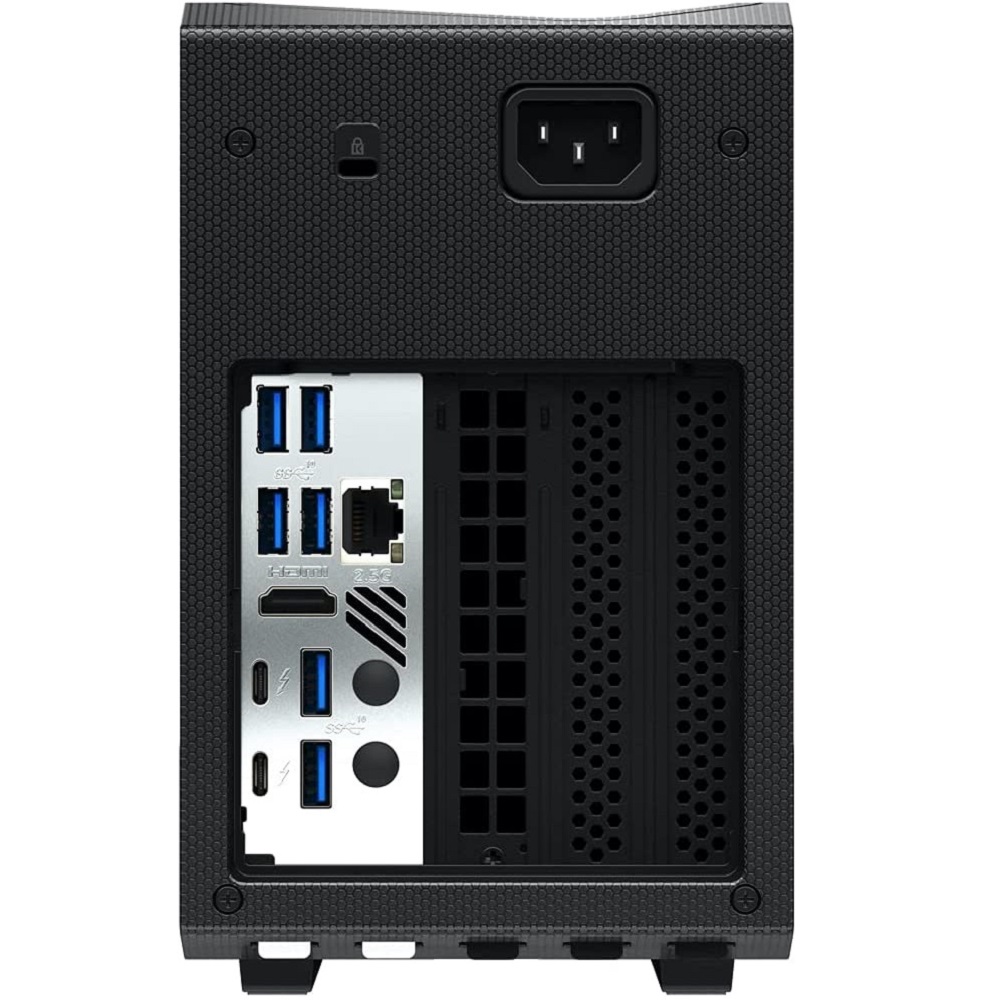

I/O Specifications
# of USB Ports 12
USB Configuration
6x rear USB 3.1g2, 2x Thunderbolt 4 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 3.1 via internal headers, 2x USB 2.0 via internal headers
USB Revision 3.1 Gen2, 2.0
USB 2.0 Configuration (External + Internal) 2x int.
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital; L+R+mic (F)
Integrated LAN Intel® Ethernet Controller i225-LM
Integrated Wireless‡ Intel® Wi-Fi 6E AX210(Gig+)
Integrated Bluetooth Yes
Additional Headers 2x USB2.0, FRONT_PANEL
# of Thunderbolt™ Ports 2x Thunderbolt™ 4

Package Specifications
Chassis Dimensions 357 x 189 x 120mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro® Platform Eligibility ‡ No
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability
Intel® AES New Instructions Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
