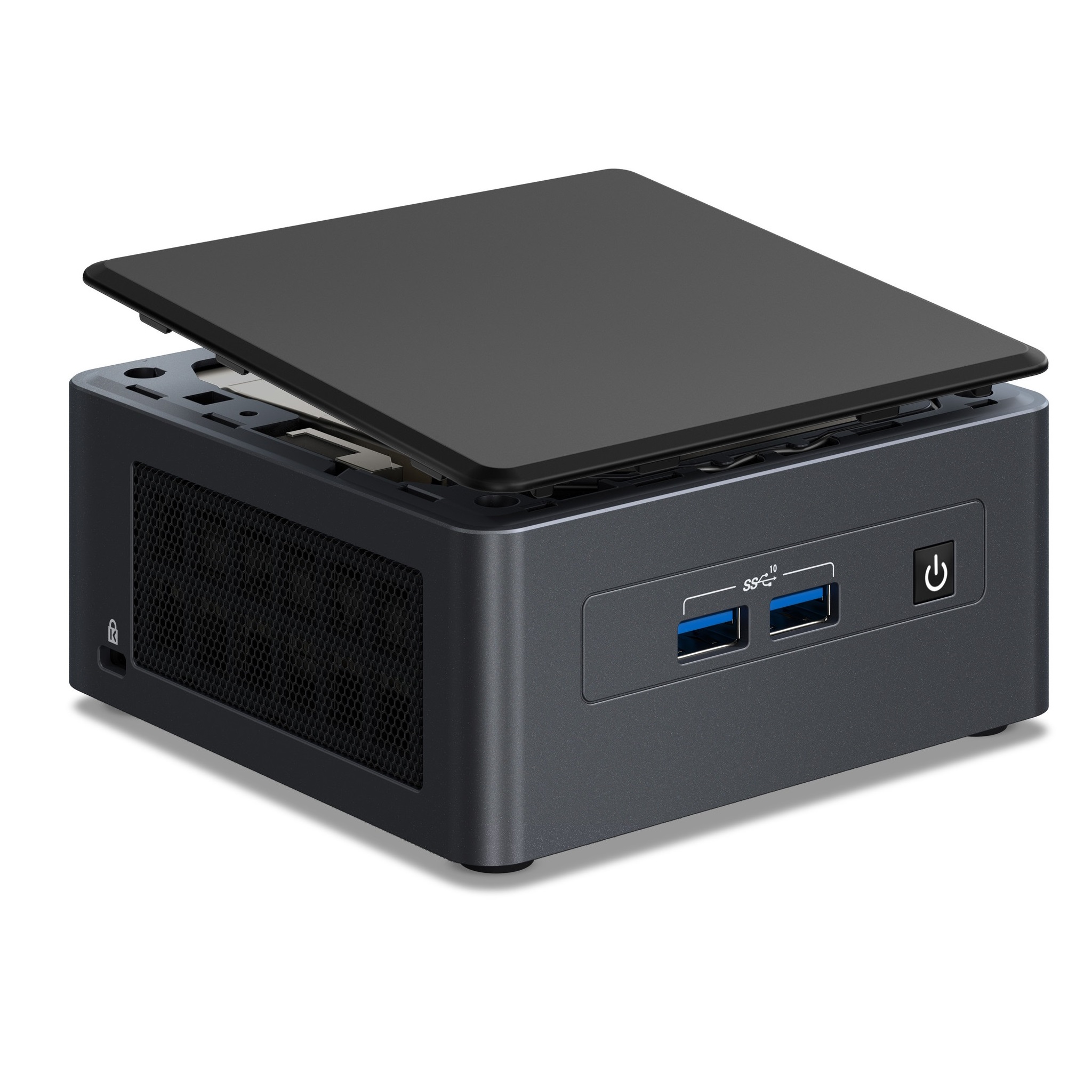

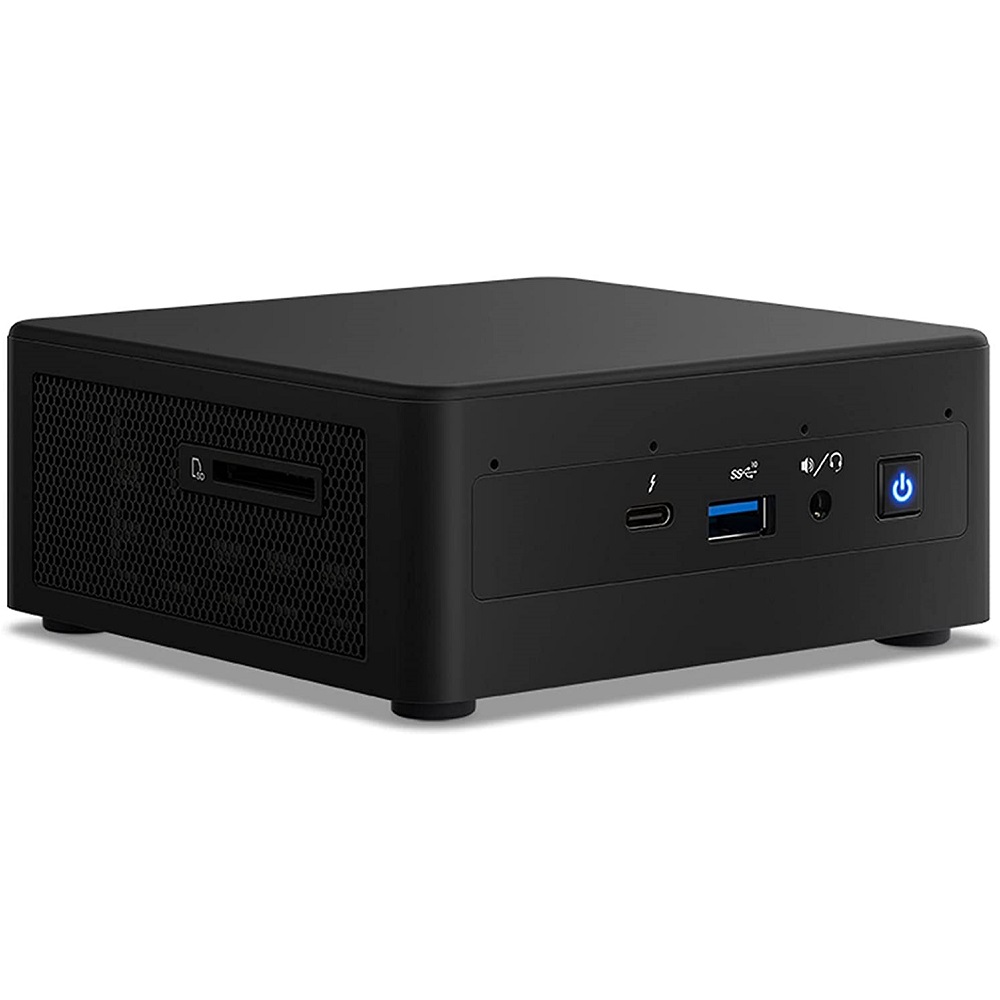

-->> Mini PC Intel Original NUC Kit Panther Canyon NUC11PAHi3 with 11th Generation Intel Core Processors i3-1115G4 <<--
-->> Mini PC Intel Original NUC Kit Panther Canyon NUC11PAHi5 with 11th Generation Intel Core Processors i5-1135G7 <<--
-->> Mini PC Intel Original NUC Kit Panther Canyon NUC11PAHi7 with 11th Generation Intel Core Processors i7-1165G7 <<--

https://ark.intel.com/content/www/us/en/ark/products/205033/intel-nuc-11-performance-kit-nuc11pahi3.html
Intel® NUC 11 Performance kit - NUC11PAHi3
https://ark.intel.com/content/www/us/en/ark/products/205040/intel-nuc-11-performance-kit-nuc11pahi5.html
Intel® NUC 11 Performance kit - NUC11PAHi5
https://ark.intel.com/content/www/us/en/ark/products/205073/intel-nuc-11-performance-kit-nuc11pahi7.html
Intel® NUC 11 Performance kit - NUC11PAHi7

Essentials
Product Collection Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name Products formerly Panther Canyon
Status Launched
Launch Date Q1'21
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC11PABi3
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive
# of Internal Drives Supported 2
Lithography 10 nm SuperFin
TDP 40 W
DC Input Voltage Supported 19 VDC

Processor Included Intel® Core™ i3-1115G4 Processor (6M Cache, up to 4.10 GHz)
# of Cores 2
# of Threads 4
Max Turbo Frequency 4.10 GHz

Processor Included Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
# of Cores 4
# of Threads 8
Max Turbo Frequency 4.20 GHz

Processor Included Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
# of Cores 4
# of Threads 8
Max Turbo Frequency 4.70 GHz

Intel vPro® Platform Eligibility ‡ No
Warranty Period 3 yrs

Supplemental Information
Embedded Options Available No
Description Other features: Includes far-field quad array microphones

Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 51.2 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No

Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output
HDMI 2.0a; USB-C (DP1.4); MiniDP 1.4
# of Displays Supported ‡ 4

Expansion Options
PCI Express Revision Gen4
PCI Express Configurations ‡ M.2 slot with PCIe X4 lanes
Removable Memory Card Slot SDXC with UHS-II support
M.2 Card Slot (storage) 22x80

I/O Specifications
# of USB Ports 7
USB Configuration

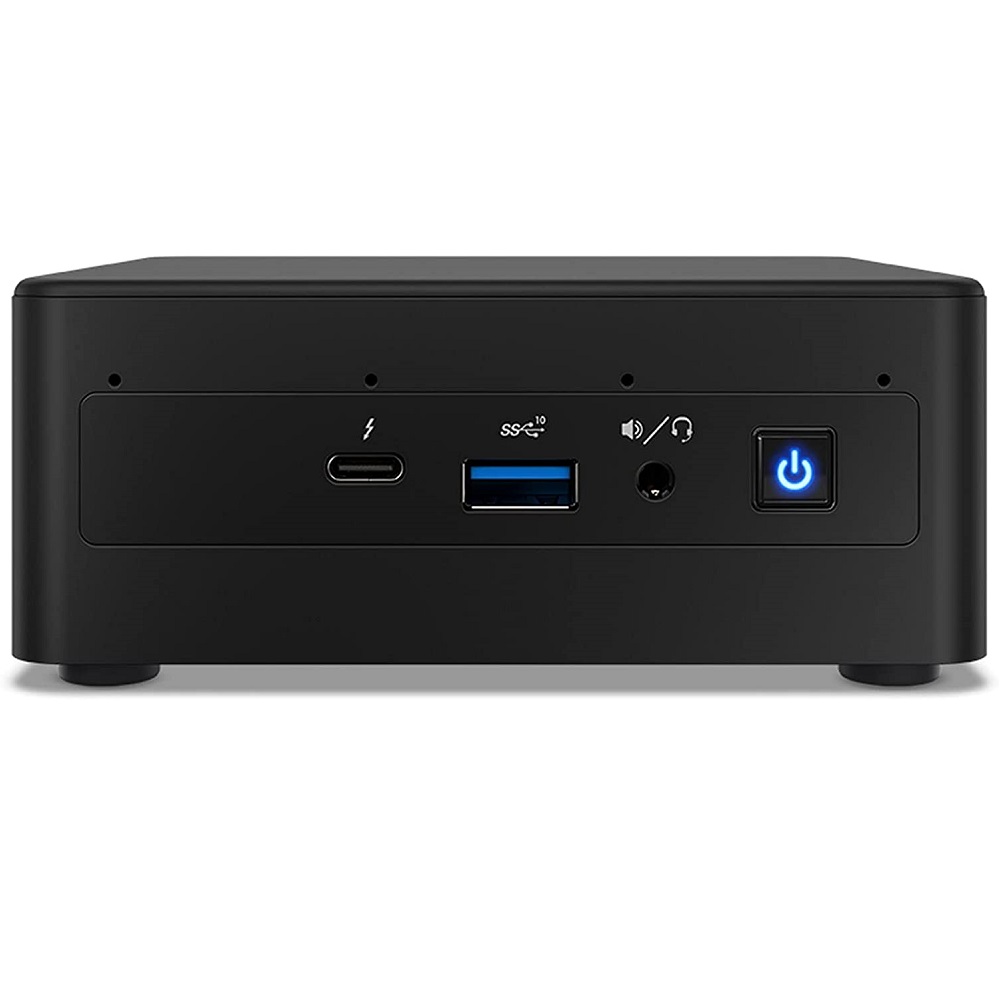

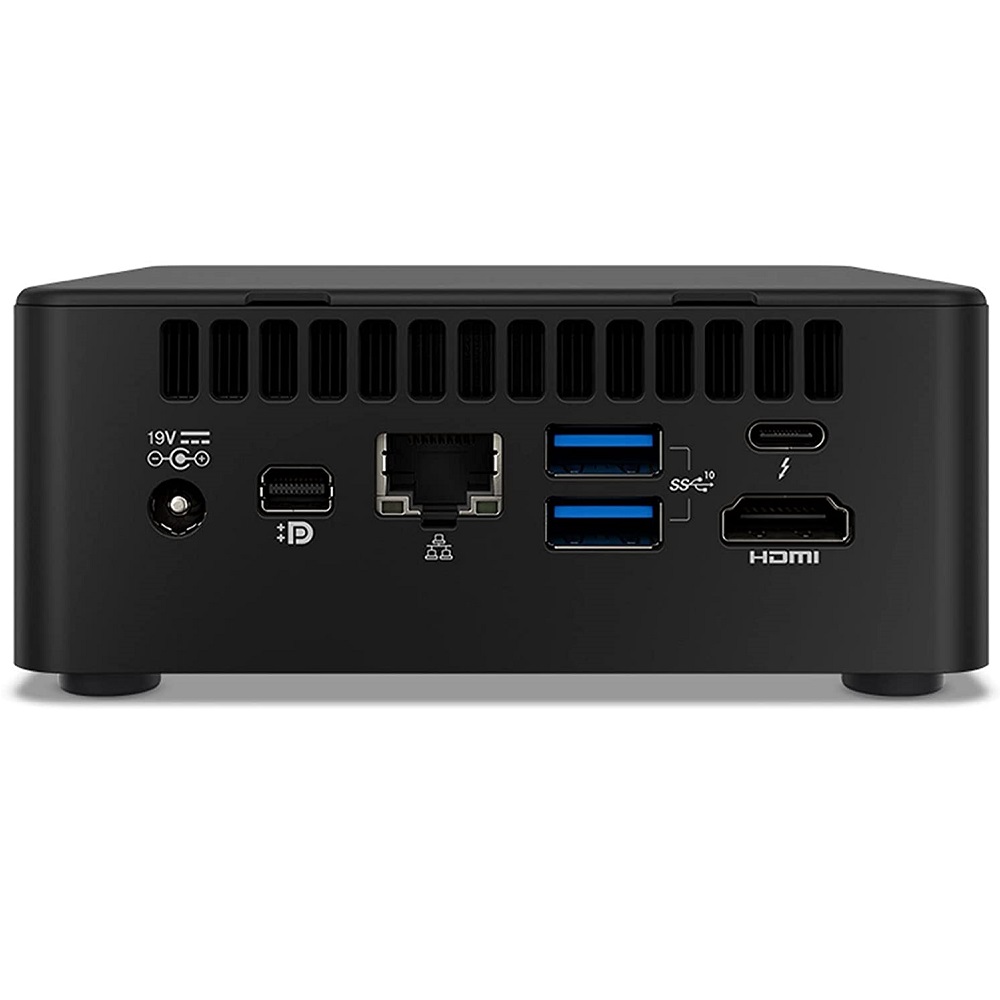

2x front (Type-A, Type-C) and 3x rear USB 3.2 Gen2 (2x Type-A, Type-C); USB 2.0, USB 3.1 Gen2 via internal headers
USB Revision 2.0, 3.2 Gen2
USB 2.0 Configuration (External + Internal) 0 + 1
USB 3.0 Configuration (External + Internal) 2B 2F + 1
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
Audio (back channel + front channel)
7.1 digital (HDMI mDP); L+R mic (F)
Integrated LAN Intel® Ethernet Controller i225-V
Integrated Wireless‡ Intel® Wi-Fi 6 AX201
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
Additional Headers CEC, USB3.1, USB2.0, FRONT_PANEL, RGB
# of Thunderbolt™ Ports 2x Thunderbolt™ 3

Package Specifications
Chassis Dimensions 117 x 112 x 51mm
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes

Intel vPro® Platform Eligibility ‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability
Intel® AES New Instructions Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
