-->> Mini PC Intel Original NUC Kit Phantom Canyon
NUC11PHKi7C with 11th Generation Intel Core Processors i7-1165G7 <<--

https://www.intel.com/content/www/us/en/products/boards-kits/nuc/kits/nuc11phki7c.html

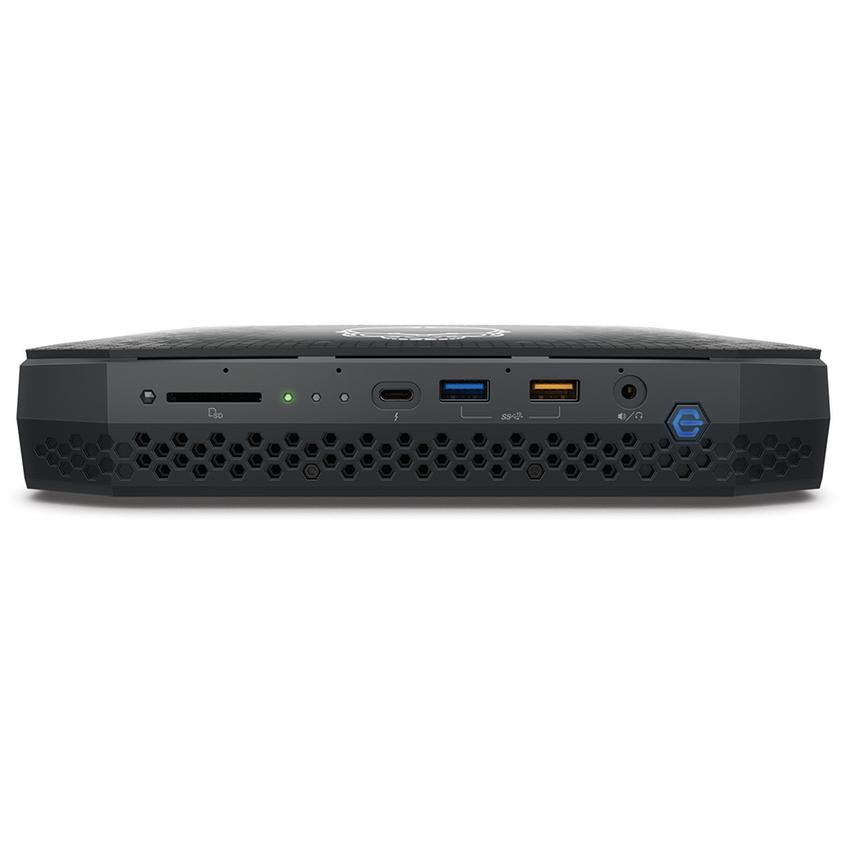

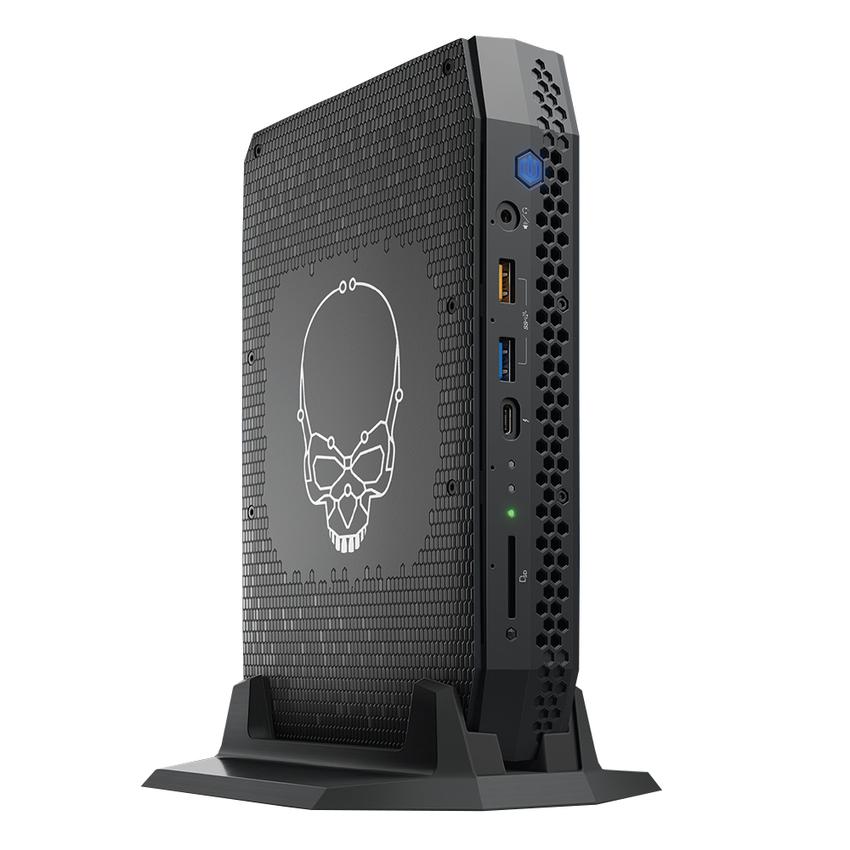

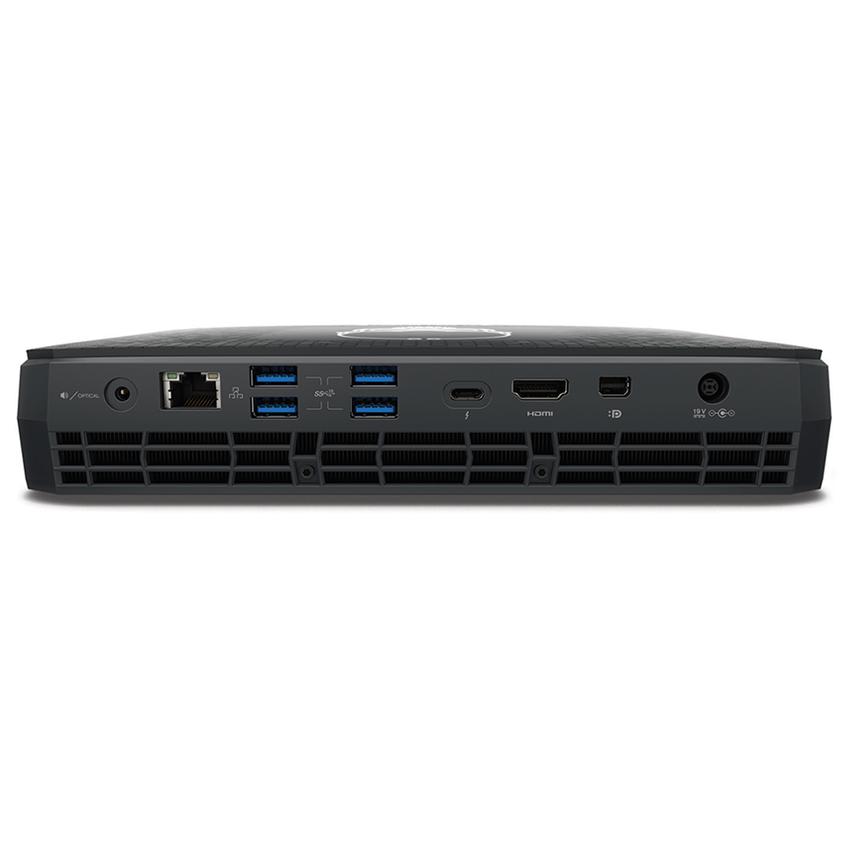

Intel® NUC 11 Enthusiast Kit - NUC11PHKi7C

https://ark.intel.com/content/www/us/en/ark/products/195961/intel-nuc-11-enthusiast-mini-pc-nuc11phki7caa.html
Intel® NUC 11 Enthusiast Mini PC - NUC11PHKi7CAA
Processor Included Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
ntel® NUC 11 Extreme Mini PC, w/ Core™ i7, RTX 2060, Optane™ Mem H10 (32GB+512GB) Solid State Storage, 16G RAM, Windows® 10 Home

The Intel® NUC kit features a customizable board and chassis that are ready to accept a wide variety of memory, storage, and operating systems. For businesses, students, educators, and DIYers.

Intel® NUC 11 Enthusiast Kit - NUC11PHKi7C
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
M.2 SSD Internal Drive Form Factor
2x TBT4; HDI 2.0a; mDP 1.4 Graphics Output

Technical Specifications
Essentials
StatusLaunched
Product CollectionIntel® NUC Kit with 11th Generation Intel® Core™ Processors
Launch Date Q1'21
Supported Operating SystemsWindows 10, 64-bit*
Board NumberNUC11PHBi7
Board Form FactorUCFF (5.5" x 8")
SocketSoldered-down BGA
Internal Drive Form FactorM.2 SSD
# of Internal Drives Supported2
Extended Life Program (XLP)No
Lithography 10 nm
TDP 150 W
DC Input Voltage Supported19.5 VDC
Processor IncludedIntel® Core™ i7-1165G7 Processor
Warranty Period 3 yrs
Use Conditions PC/Client/Tablet
Supplemental Information
Embedded Options Available No
DescriptionNvidia Geforce RTX 2060 graphics included.

Other features: Includes far-field quad array microphones, PC Stand for vertical operating orientation.
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 51.2 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics ‡ Intel® Iris® Xe Graphics
Integrated Graphics ‡ Yes
Graphics Output 2x TBT4; HDI 2.0a; mDP 1.4
# of Displays Supported ‡4
Discrete GraphicsNvidia Geforce RTX 2060
Expansion Options
PCI Express Revision Gen3
PCI Express Configurations ‡ Dual M.2 slots with PCIe x4 lanes
Removable Memory Card Slot SDXC with UHS-II support
M.2 Card Slot (storage) 22x80; 22x80,110
I/O Specifications
# of USB Ports10
USB Configuration3x front (2x Type-A, 1x Type-C) and 5x rear USB 3.1 (4x Type-A, 1x Type-C); 2x USB 2.0 via internal headers.
USB Revision 2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)2
USB 3.0 Configuration (External + Internal)8
Total # of SATA Ports 1
Max # of SATA 6.0 Gb/s Ports1
Audio (back channel + front channel)7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN Intel® Ethernet Connection i225-LM
Integrated Wireless‡Intel® Wi-Fi 6 AX201
Integrated BluetoothYes
Consumer Infrared Rx Sensor Yes
S/PDIF Out ConnectorTOSLINK
# of Thunderbolt™ Ports 2x Thunderbolt™ 4
Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro® Platform Eligibility ‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
