-->> Mini PC Intel Original NUC Kit Tiger Canyon NUC11TNHi7 with 11th Generation Intel Core Processors i7-1165G7 <<--

NUC11TBHi70Z00 NUC11TBHi70Z00
Launch Date Q1'21 Q1'22
Board Number NUC11TNBi7 NUC11TNBi70Z
Graphics Output Dual HDMI 2.0b w/HDMI CEC Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
USB Configuration

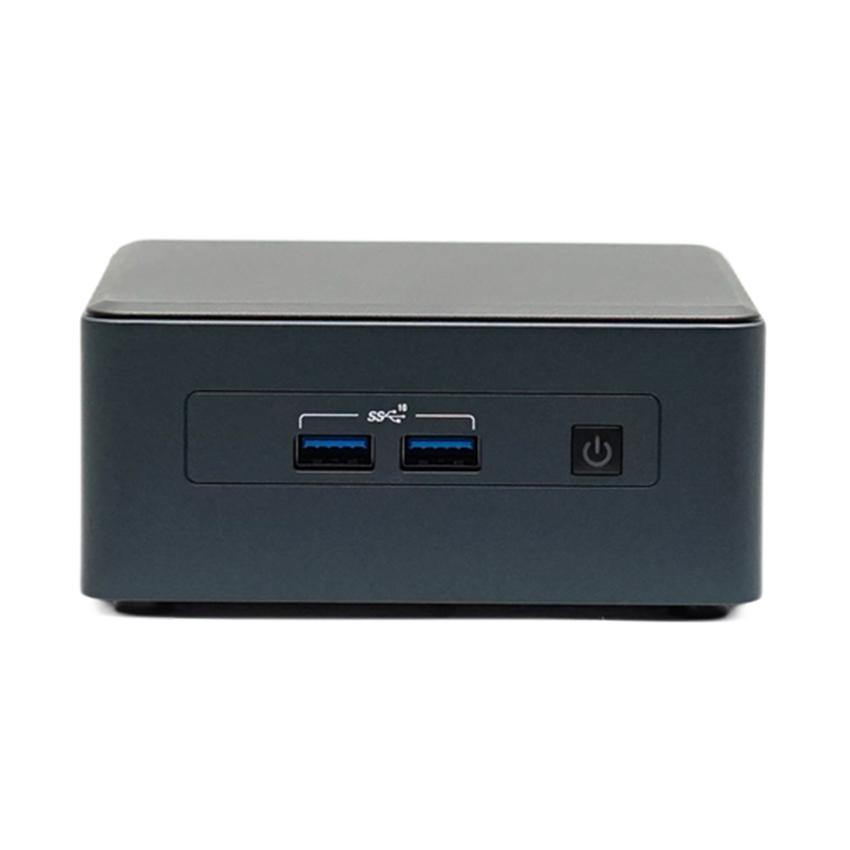

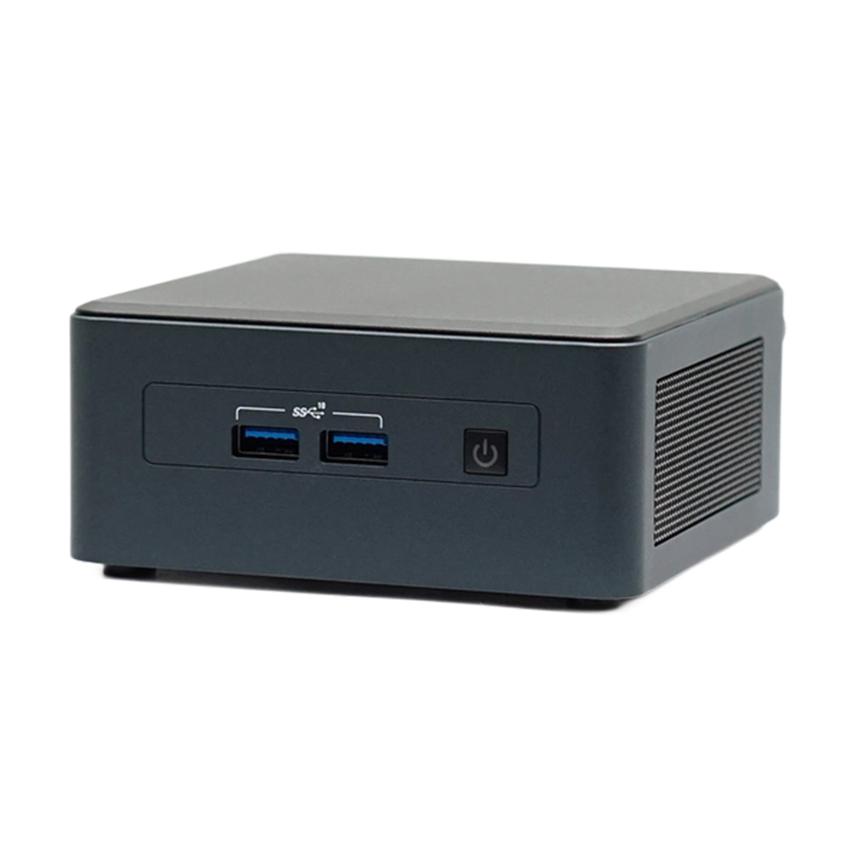

Front: 2x USB 3.2
Front: 2x USB 3.2

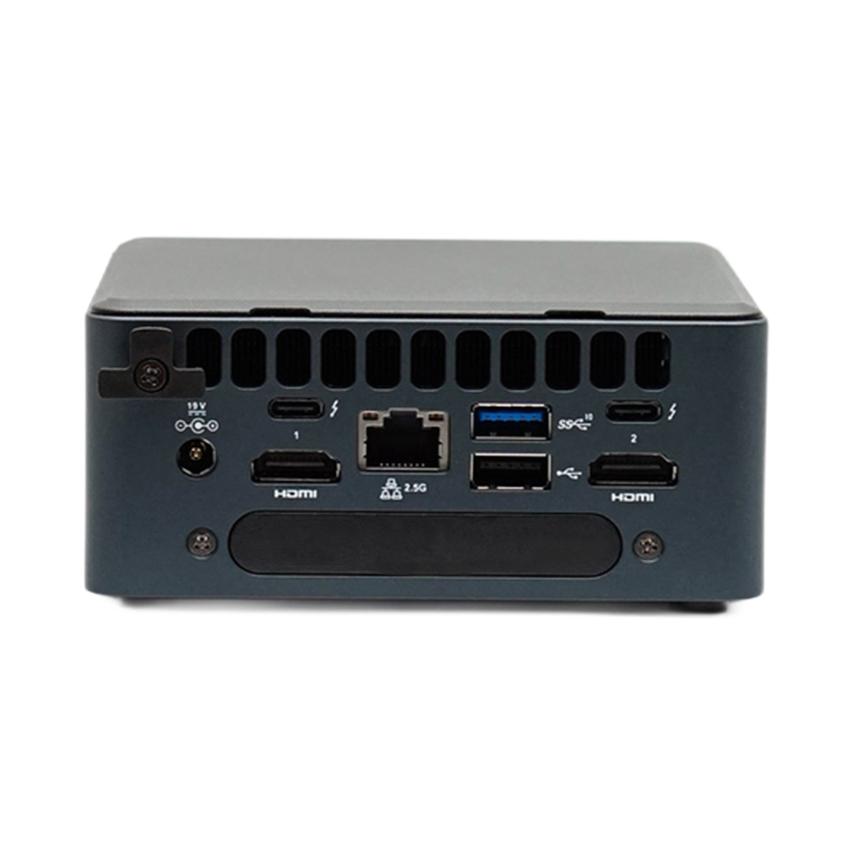

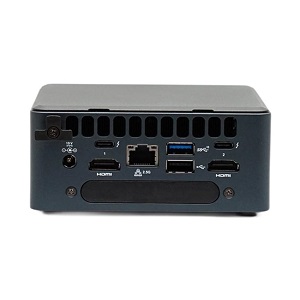

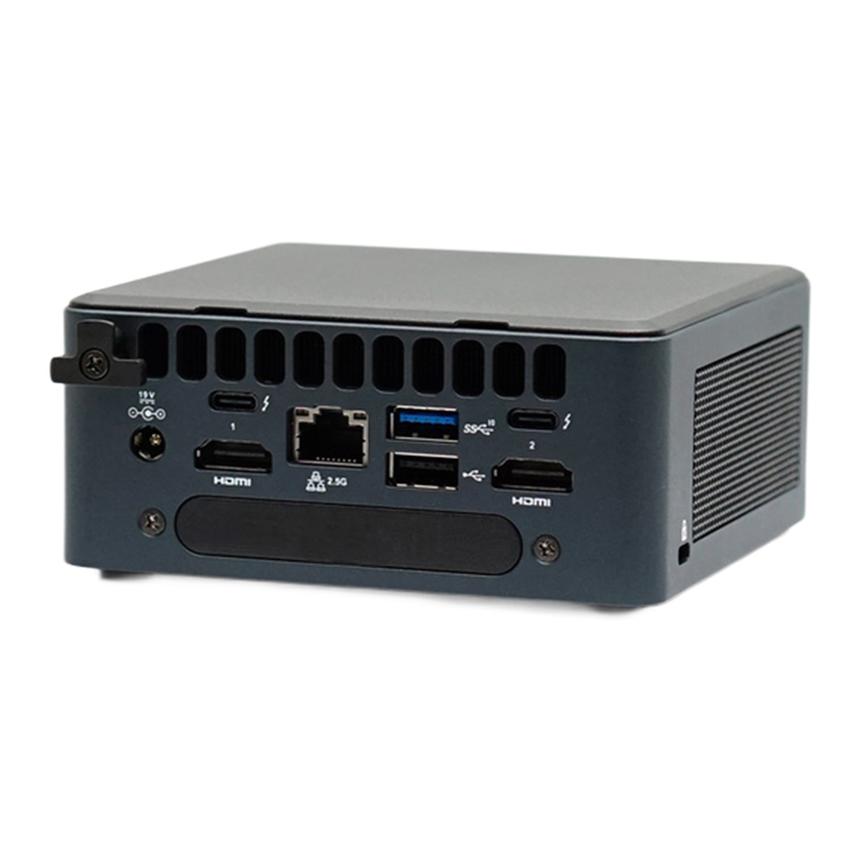

Rear: 1x USB 3.2, 1x USB 2.0
Rear: 1x USB 3.2, 1x USB 2.0, 2x USB 4 (type C),

Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)

# of Thunderbolt™ 3 Ports
1x Thunderbolt™ 4, 1x Thunderbolt™ 3

https://www.intel.com/content/www/us/en/products/boards-kits/nuc/kits/nuc11tnhi7.html
Intel® NUC 11 Pro Kit NUC11TNHi7

The Intel® NUC kit features a customizable board and chassis that are ready to accept a wide variety of memory, storage, and operating systems. For businesses, students, educators, and DIYers.

Intel® NUC 11 Pro Kit NUC11TNHi7
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions

Technical Specifications
Essentials
StatusLaunched
Product CollectionIntel® NUC Kit with 11th Generation Intel® Core™ Processors
Launch Date Q1'21
Expected Discontinuance 1H'24
Supported Operating SystemsWindows 10, 64-bit*, Windows 10 IoT Enterprise*, Windows Server 2019*, Red Hat Linux*, Ubuntu 20.04 LTS*
Board NumberNUC11TNBi7
Board Form FactorUCFF (4" x 4")
SocketSoldered-down BGA
Internal Drive Form FactorM.2 and 2.5" Drive
# of Internal Drives Supported3
TDP 28 W
DC Input Voltage Supported12-24 VDC
Processor IncludedIntel® Core™ i7-1165G7 Processor
Supplemental Information
Embedded Options Available No
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIMMs
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics ‡ Intel® Iris® Xe Graphics
Integrated Graphics ‡ Yes
Graphics Output Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C
# of Displays Supported ‡4
Expansion Options
PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡ PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless) 22x30 (E)
M.2 Card Slot (storage) 22x80 NVMe (M); 22x42 SATA (B)
I/O Specifications
# of USB Ports4
USB ConfigurationFront: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Total # of SATA Ports 1
Serial Port via Internal HeaderYes
Integrated LAN Intel® Ethernet Controller i225-LM
Integrated Wireless‡Intel® Wi-Fi 6 AX201
Integrated BluetoothYes
Additional Headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt™ Ports 1x Thunderbolt™ 4, 1x Thunderbolt™ 3
Package Specifications
Chassis Dimensions117 x 112 x 54 [mm] (LxWxH)
Advanced Technologies
Intel® Optane™ Memory Supported ‡ No
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® ME Firmware Version 15
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Security & Reliability
Intel® AES New Instructions Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
