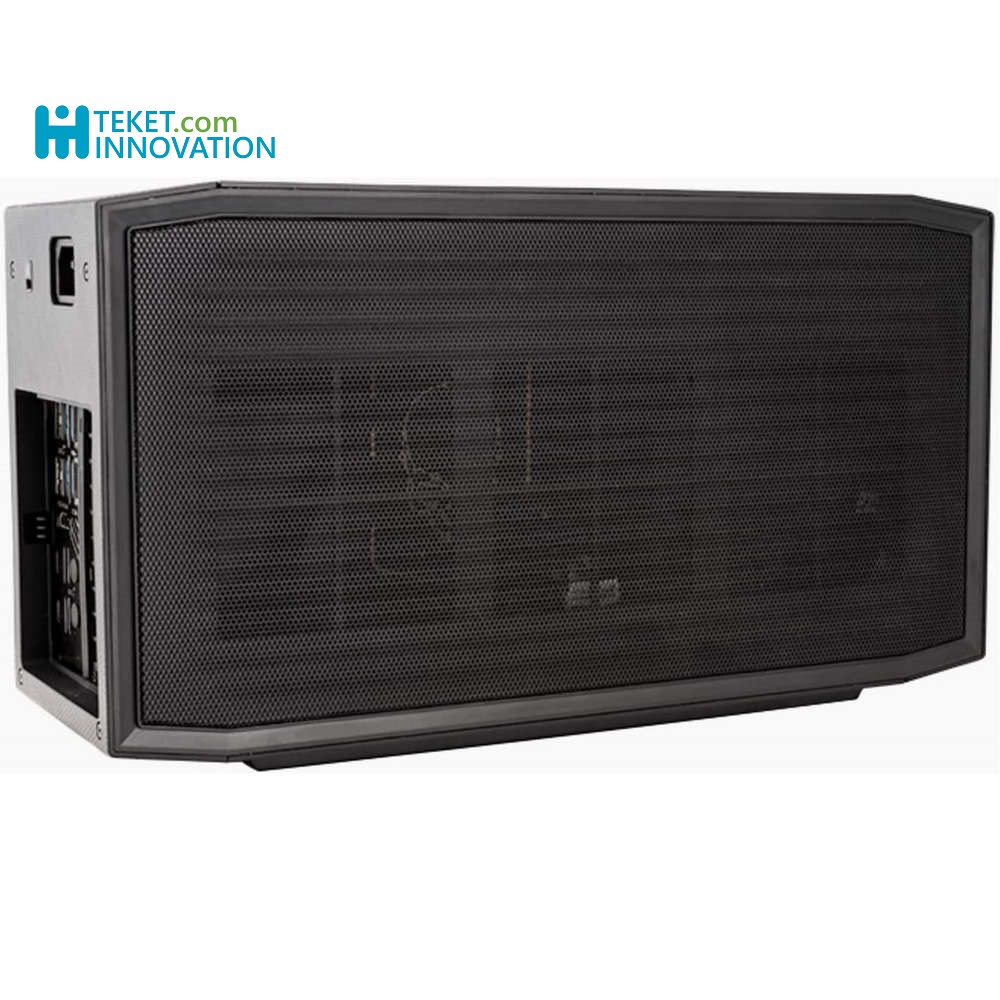

-->> Mini PC Intel Original NUC Kit Dragon Canyon NUC12DCMi9 with 12th Generation Intel Core Processors i9-12900 <<--

Intel® NUC 121 Pro Kit NUC12DCMi9
Intel® Core™ Intel Core i9-12900 Processor (30M Cache, up to 5.10 GHz)
M.2 Card Slot (wireless) Intel Wi-Fi 6E AX211
M.2 Card Slot (storage) 2x via PCH + 1x via CPU (NVMe)
357 x 189 x 120 [mm] (LxWxH) Chassis Dimensions

Board Number NUC12EDBi7 NUC12EDBi9
Processor Included Intel Core i7-12700 Processor (25M Cache, up to 4.90 GHz) Intel Core i9-12900 Processor (30M Cache, up to 5.10 GHz)
Total Cores 12 16
Total Threads 20 24
Max Turbo Frequency 4.90 GHz 5.10 GHz
Recommended Customer Price $1215.73 - $1218.20 $1472.91 - $1475.37

NUC12DCMi7 vs NUC12DCMv7
Launch Date Q122 Q222
Board Number NUC12EDBi7 NUC12EDBv7
Board Chipset Intel Z690 Chipset Intel W680 Chipset
Intel vPro Platform Eligibility No Yes
Recommended Customer Price $1215.73 - $1218.20 $1341.25
Integrated LAN 10GbE (AQC113) 10GbE (AQC113) + Intel i225-LM

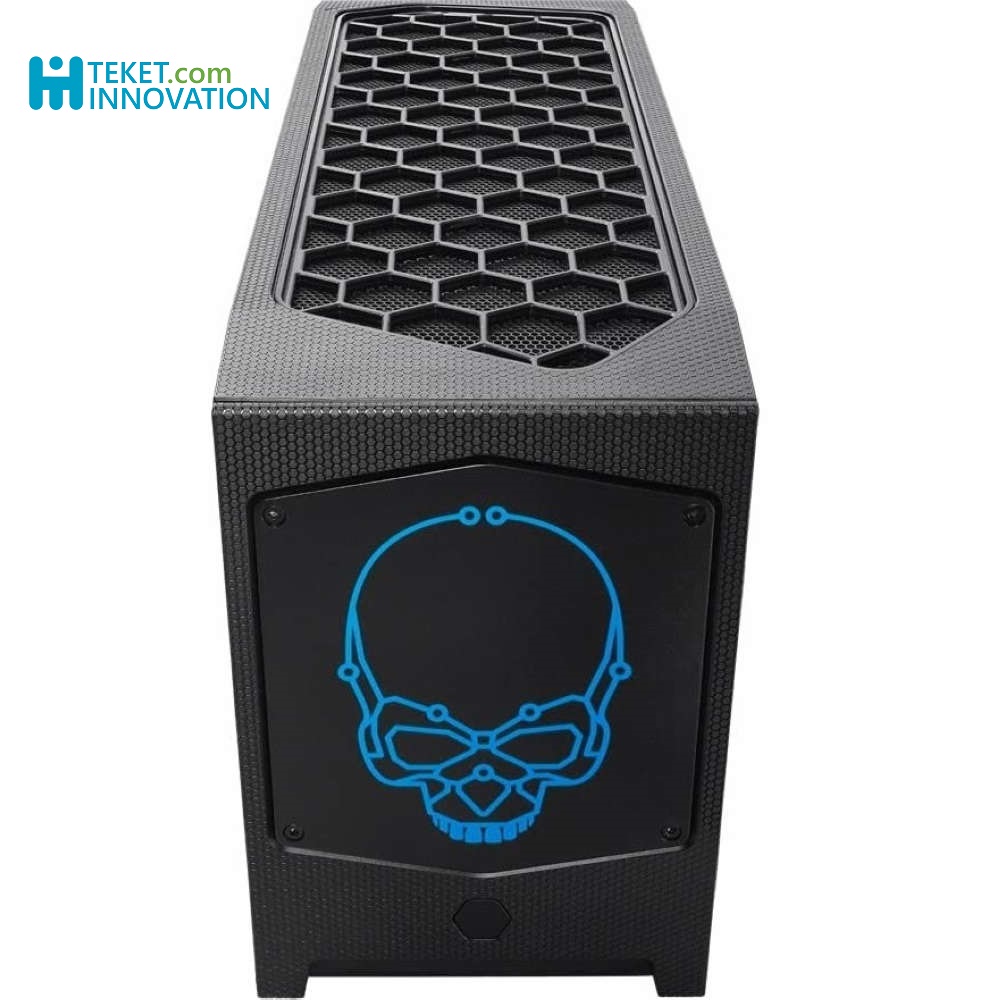

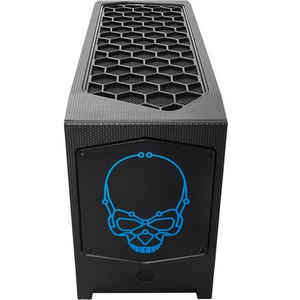

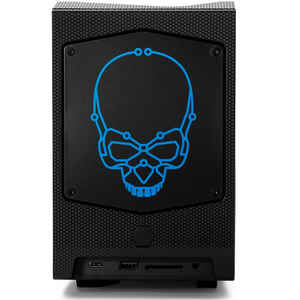

Intel NUC 12 Extreme Kit - NUC12DCMi9
Essentials
Product Collection Intel NUC Kit with 12th Generation Intel Core Processors
Code Name Products formerly Dragon Canyon
Status Launched
Launch Date Q1'22
Supported Operating Systems Windows 11, 64-bit*, Windows 10, 64-bit*

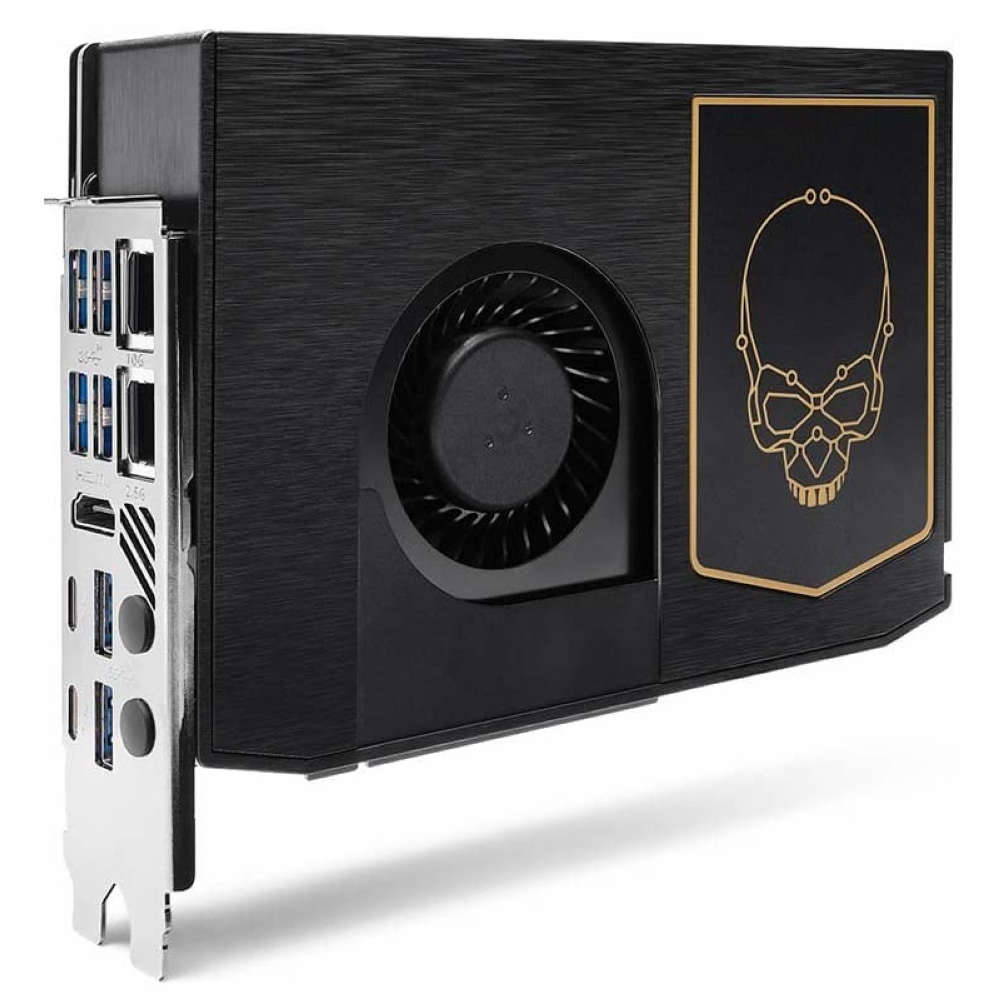

Board Number NUC12EDBi9
Board Form Factor PCIe
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 3
Lithography Intel 7
TDP 65 W
Board Chipset Intel Z690 Chipset
Processor Included Intel Core i9-12900 Processor (30M Cache, up to 5.10 GHz)
Intel vPro Platform Eligibility No
Total Cores 20
Total Threads 24
Max Turbo Frequency 4.90 GHz 5.10 GHz
Warranty Period 3 yrs
Recommended Customer Price $1215.73
Supplemental Information
Embedded Options Available No
Memory & Storage Max Memory Size (dependent on memory type) 64 GB
Memory Types
DDR4 3200MHz 1.2V SO-DIMM
DDR4 3200 MHz 1.35V SO-DIMM - XMP is required to enable 1.35V memory
Max # of Memory Channels 2
Max Memory Bandwidth 51.2 GB/s
Max # of DIMMs 2
ECC Memory Supported # No
Processor Graphics Integrated Graphics Yes
Graphics Output 2x Thunderbolt 4, HDMI 2.0b
# of Displays Supported 3
Discrete Graphics Via PCIe add-in card
Expansion Options
PCI Express Revision Gen5, Gen4
PCI Express Configurations

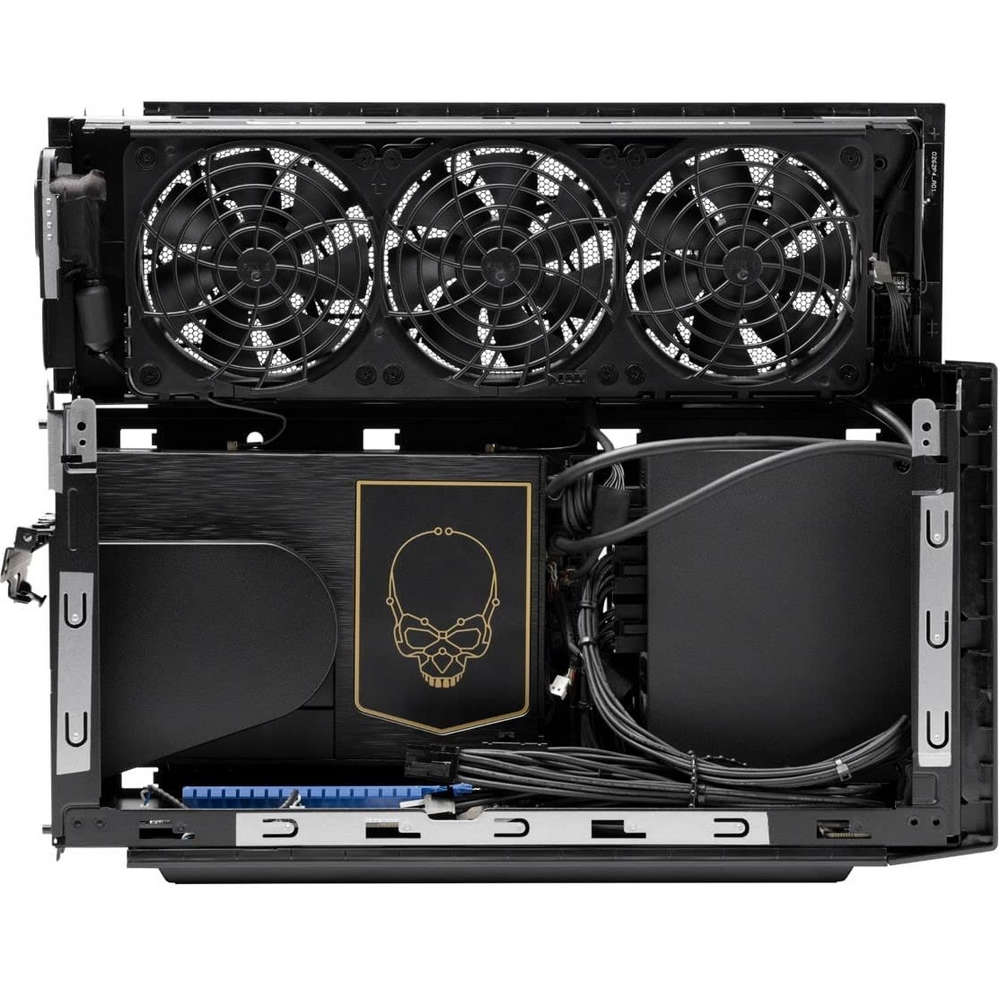

2x M.2 PCIe X4 Gen4 slots (PCH), M.2 PCIe X4 Gen4 slots (CPU); Double-wide PCIe X16 Gen5 (CPU) slot, 12" max card length
Removable Memory Card Slot SDXC with UHS-II support
M.2 Card Slot (wireless) Intel Wi-Fi 6E AX211
M.2 Card Slot (storage) 2x via PCH + 1x via CPU (NVMe)
I/O Specifications
# of USB Ports 12
USB Configuration
Rear: 6x USB 3.2g2, 2x TB4 (USB 3.2g2); Front: USB 3.2g2 Type-A and Type-C; Internal Header: 2x USB 2.0
USB Revision 3.2 Gen2, 2.0
USB 2.0 Configuration (External + Internal) 2x int.
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital; L+R+mic (F)
Integrated LAN 10GbE (AQC113)
Integrated Wireless Intel Wi-Fi 6E AX211(Gig+)
Integrated Bluetooth Yes
Additional Headers 2x USB2.0, FRONT_PANEL
# of Thunderbolt Ports 2x Thunderbolt 4
Package Specifications

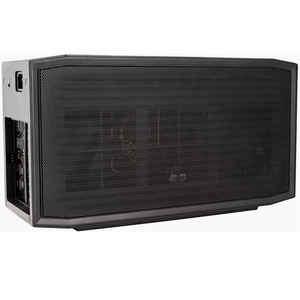

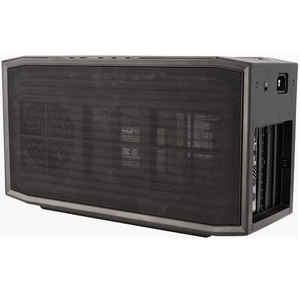

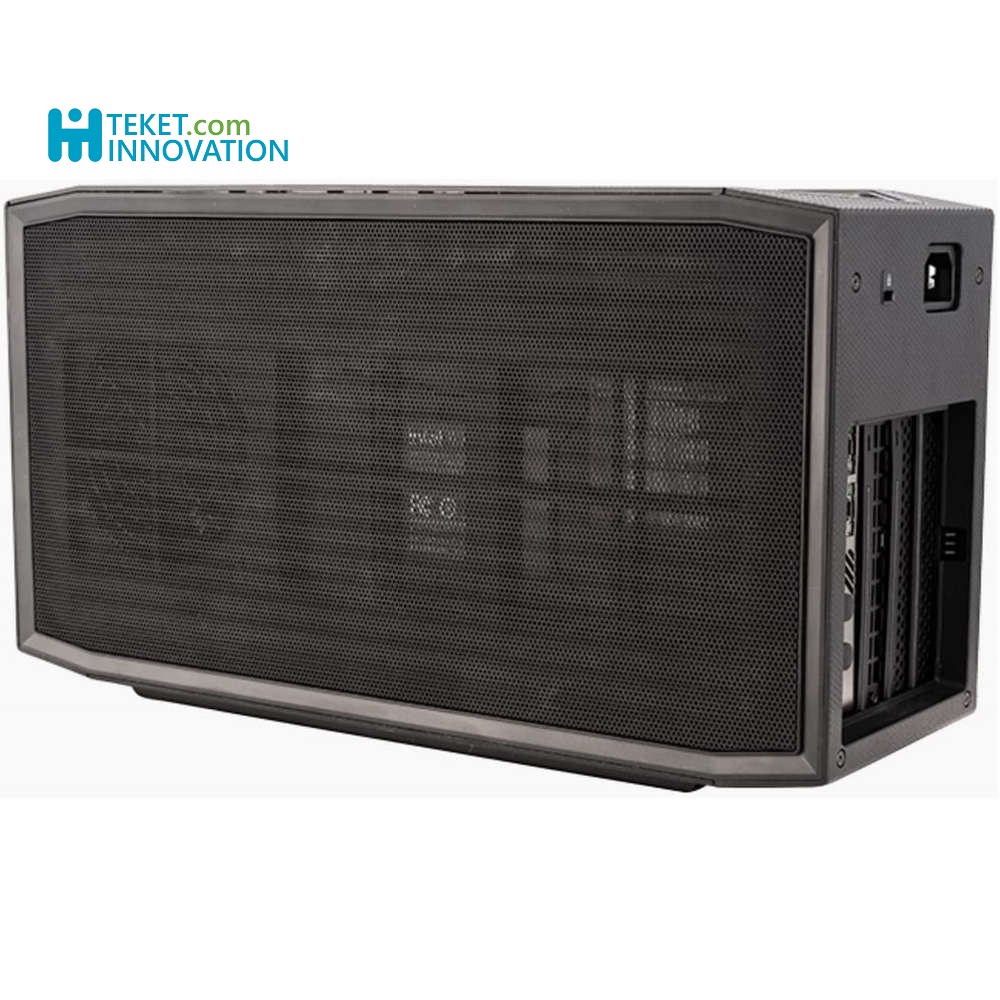

Chassis Dimensions 357 x 189 x 120mm
Advanced Technologies
Intel Optane Memory Supported Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel vPro Platform Eligibility No
Intel Rapid Storage Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Platform Trust Technology (Intel PTT) Yes
Security & Reliability
Intel AES New Instructions Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
