-->> Mini PC Intel Original NUC Kit Serpent Canyon NUC12SNKi7 with 12th Generation Intel Core Processors i7-12700H <<--

https://ark.intel.com/content/www/us/en/ark/products/196170/intel-nuc-12-enthusiast-kit-nuc12snki72.html
Intel® NUC 12 Enthusiast Kit - NUC12SNKi72
Essentials
Product Collection
Intel® NUC Kit with 12th Generation Intel® Core™ Processors
Code Name Products formerly Serpent Canyon

Intel® Core™ i7-12700H
Cores 14, Threads 20
Intel® Arc™ A770M Graphics & Iris™ Xe

Base CPU Frequency
Turbo Boost
4.7GHz Turbo
Cores & Threads
Cores 14, Threads 20
Graphics
Intel® Arc™ A770M Graphics & Iris™ Xe
Max Memory
64GB
Networking
1x Intel® 2.5Gb (i225-LM) Ethernet port, Intel® Killer Wi-Fi 6E AX1690 i, 802.11ax 2x2 3.0 Gbps w/ 6GHz & DCT + Bluetooth® 5.2
Max Resolution
7680 x 4320
Video Output
1x HDMI 2.1, 2x DP 2.0, 2x DP 2.0 via Thunderbolt Alt-DP
I/O
2x Thunderbolt 4 ports, 6x USB 3.2 Gen2 Type-A ports, 1x SDXC slot

Essentials
Product Collection
Intel® NUC Kit with 12th Generation Intel® Core™ Processors
Code Name Products formerly Serpent Canyon
Status Launched
Launch Date Q3'22
Supported Operating Systems Windows 11, 64-bit*
Board Number NUC12SNBi72
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 3
Extended Life Program (XLP) No
DC Input Voltage Supported 19.5 VDC
Processor Included
Intel® Core™ i7-12700H Processor (24M Cache, up to 4.70 GHz)
Total Cores 14
Total Threads 20
Lithography Intel 7
Max Turbo Frequency 4.70 GHz
Warranty Period 3 yrs
Use Conditions
PC/Client/Tablet
Recommended Customer Price
$1282.93 - $1450.76
Supplemental Information
Embedded Options Available No
Description
Other features: Includes far-field dual array microphones, stand for vertical operating orientation, VESA mounting plate, RGB-backlit logo with replaceable mask.
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 51.2 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output 2x Thunderbolt™ 4, HDMI (4K60), 2x DP 1.4 Cert
Discrete Graphics Intel® Arc™ A770M Graphics w/ 16GB GDDR6 VRAM
Expansion Options
PCI Express Revision Gen4, Gen3
PCI Express Configurations ‡
2x M.2 slots w/ PCIe x4 Gen4,
1x M.2 slot w/ PCIe x4 Gen3
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (wireless) 22x30
M.2 Card Slot (storage) 3x 22x80

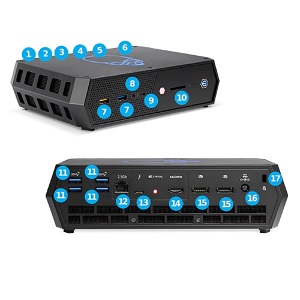

I/O Specifications # of USB Ports b10
USB Configuration
3x front (2x Type-A, 1x Type-C) and 5x rear (4x Type-A, 1x Type-C); 2x USB 2.0 via internal headers
USB Revision 2.0, 3.2 Gen2
USB 2.0 Configuration (External + Internal) 2
USB 3.0 Configuration (External + Internal) 8
Total # of SATA Ports 1
Max # of SATA 6.0 Gb/s Ports 1
Audio (back channel + front channel)
7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN
Intel® Ethernet Connection i225-LM
Integrated Wireless‡
Intel® Killer(tm) Wi-Fi 6E AX1690 (i/s)
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
S/PDIF Out Connector TOSLINK
# of Thunderbolt™ Ports
2x Thunderbolt™ 4
Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
