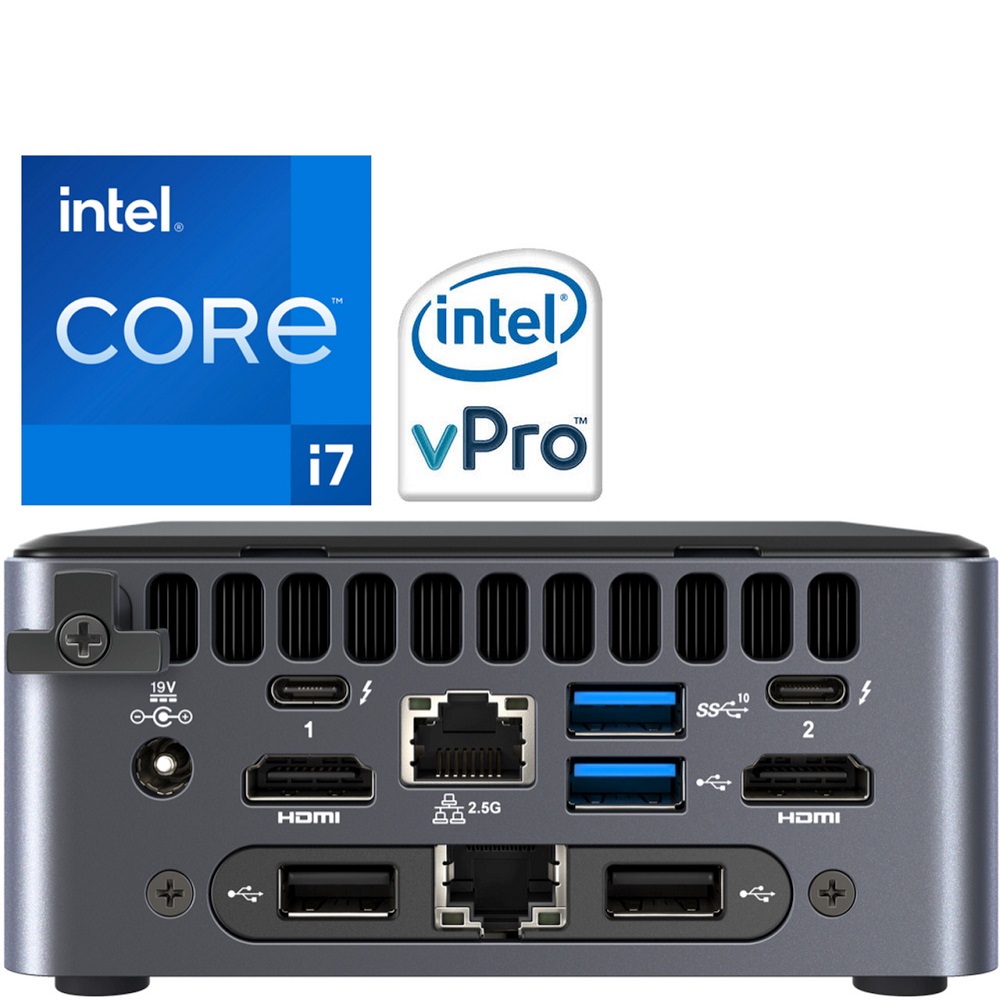

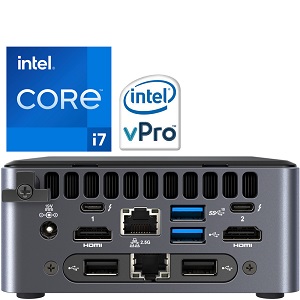

-->> Mini PC Intel Original NUC Kit Wall Street Canyon NUC12WSHv70L with 12th Generation Intel Core Processors Dual LAN i3-1220P i5-1250P i7-1270P <<--

https://ark.intel.com/content/www/us/en/ark/compare.html?productIds=121618,121633,121652
Model NUC12WSHi30L NUC12WSHv50L NUC12WSHv70L
Board Number NUC12WSBi3 NUC12WSBv5 NUC12WSBv7
Processor Included
Intel® Core™ i7-1270P Processor (18M Cache, up to 4.80 GHz)
Intel® Core™ i5-1250P Processor (12M Cache, up to 4.40 GHz)
Intel® Core™ i3-1220P Processor (12M Cache, up to 4.40 GHz)
Integrated LAN Dual Intel® Ethernet Controller i225
Integrated Wireless Intel® Wi-Fi 6E AX211(Gig+)
# of Thunderbolt™ Ports 2x Thunderbolt™ 4
Intel® vPro™ Platform Eligibility (NUC12WSBv5/v7 only)
Intel® Trusted Execution Technology (NUC12WSBv5/v7 only)

https://ark.intel.com/content/www/us/en/ark/products/121652/intel-nuc-12-pro-kit-nuc12wshv70l.html
Intel® NUC 12 Pro Kit NUC12WSHv70L


Essentials
Product Collection
Intel® NUC Kit with 12th Generation Intel® Core™ Processors
Code Name Products formerly Wall Street Canyon
Status Launched
Launch Date Q3'22
Expected Discontinuance 1H'25
Supported Operating Systems
Windows 11 Home*, Windows 11 Pro*, Windows 10 Home*, Windows 10 IoT Enterprise*, Windows 10 Pro*, Red Hat Linux*, Ubuntu 20.04 LTS*
Board Number NUC12WSBv7
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor
M.2 and 2.5" Drive
# of Internal Drives Supported 3
TDP 35 W
DC Input Voltage Supported 12-20 VDC
Processor Included
Intel® Core™ i7-1270P Processor (18M Cache, up to 4.80 GHz)
Intel vPro® Platform Eligibility Yes
Total Cores 12
Total Threads 16
Lithography Intel 7
Max Turbo Frequency 4.80 GHz
Supplemental Information
Embedded Options Available No
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SODIMMs
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported No
Processor Graphics
Integrated Graphics Yes
Graphics Output
Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
# of Displays Supported 4
Expansion Options
PCI Express Revision
Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations
PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless) 22x30 (E)
M.2 Card Slot (storage) 22x80 NVMe (M)
I/O Specifications
# of USB Ports 6
USB Configuration

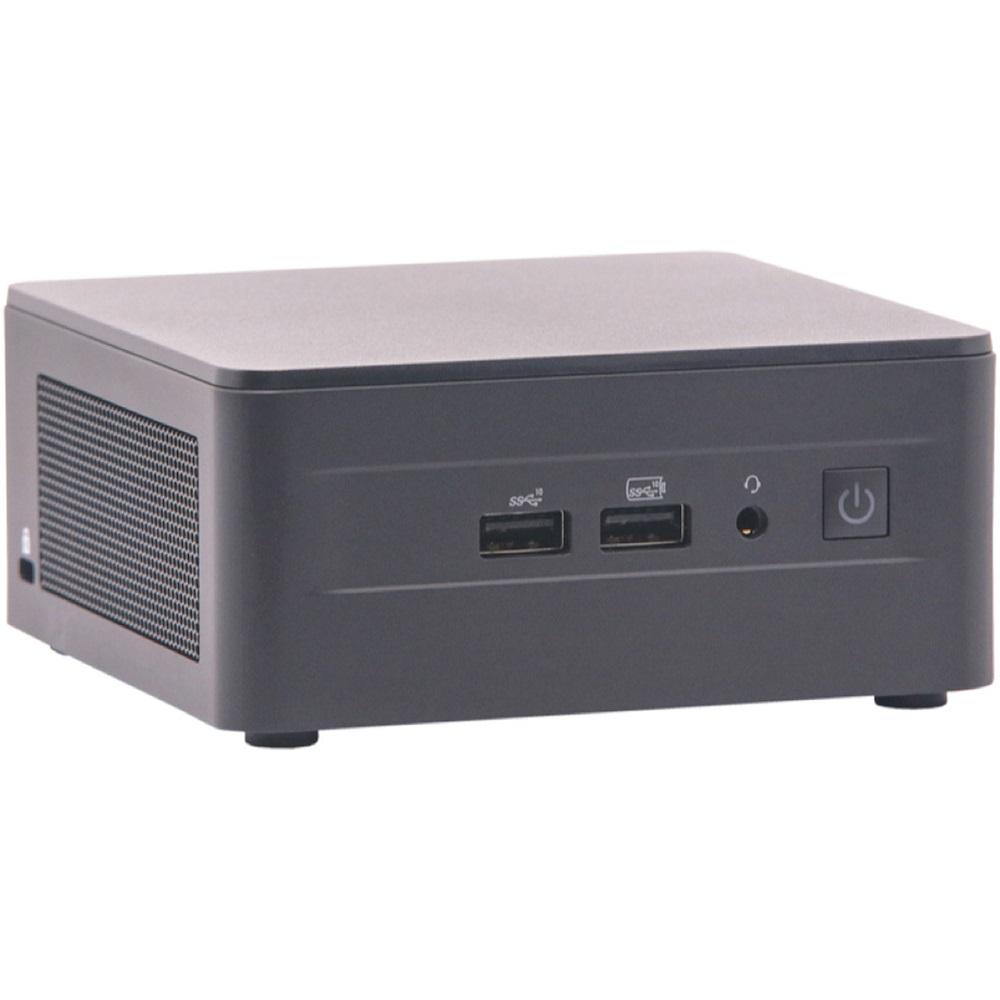

Front: 2x USB 3.2

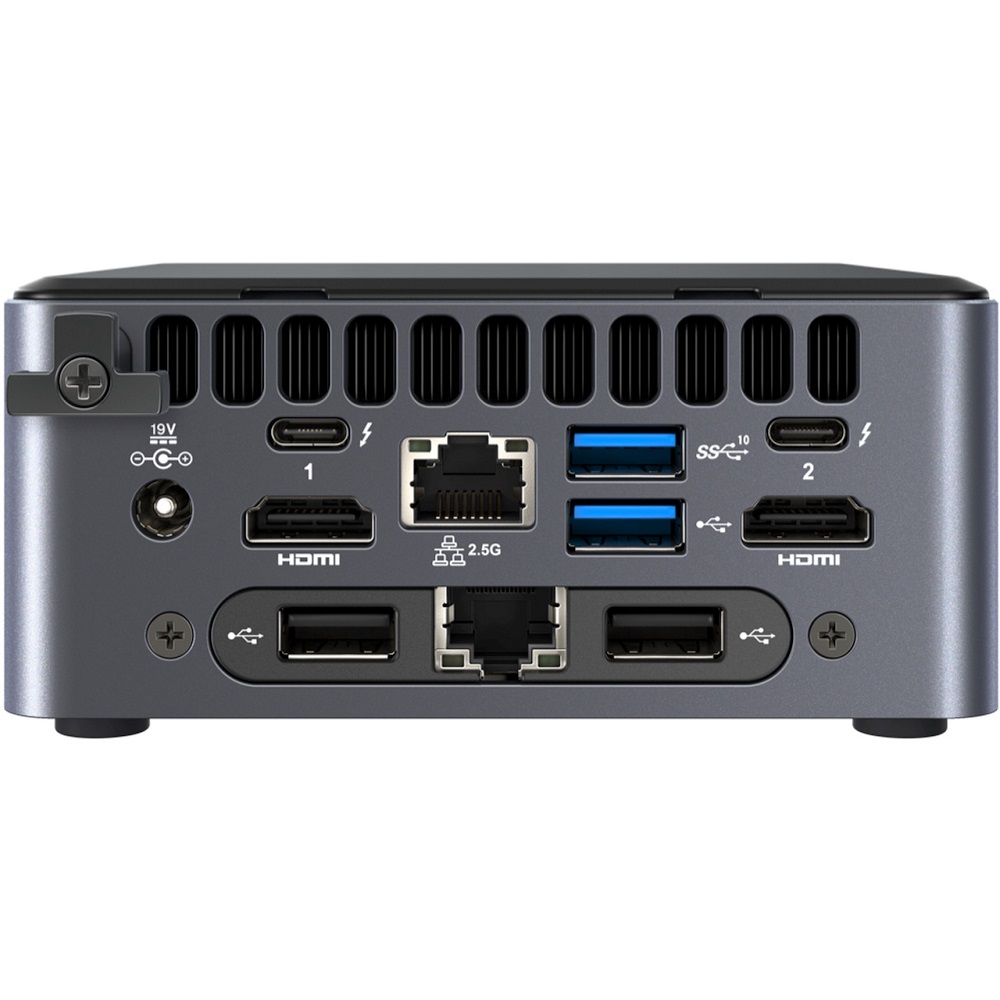

Rear: 2x USB 4 (type C), 1x USB 3.2, 3x USB 2.0
Internal: 2x USB 2.0 (headers)
Total # of SATA Ports 1
Serial Port via Internal Header No
Audio (back channel + front channel)
Front panel: 3.5mm headphone/mic jack
Integrated LAN
Dual Intel® Ethernet Controller i225
Integrated Wireless
Intel® Wi-Fi 6E AX211(Gig+)
Integrated Bluetooth Yes
Additional Headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt™ Ports
2x Thunderbolt™ 4
Package Specifications
Chassis Dimensions
117 x 112 x 54 [mm] (LxWxH)
Advanced Technologies
Intel® Optane™ Memory Supported No
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel vPro® Platform Eligibility Yes
Intel® ME Firmware Version 16
TPM Yes
TPM Version 2.0
Intel® HD Audio Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Security & Reliability
Intel vPro® Eligibility
Intel vPro® Platform
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
