>>Your Current Position: Intel NUC board and MINI PC Kit

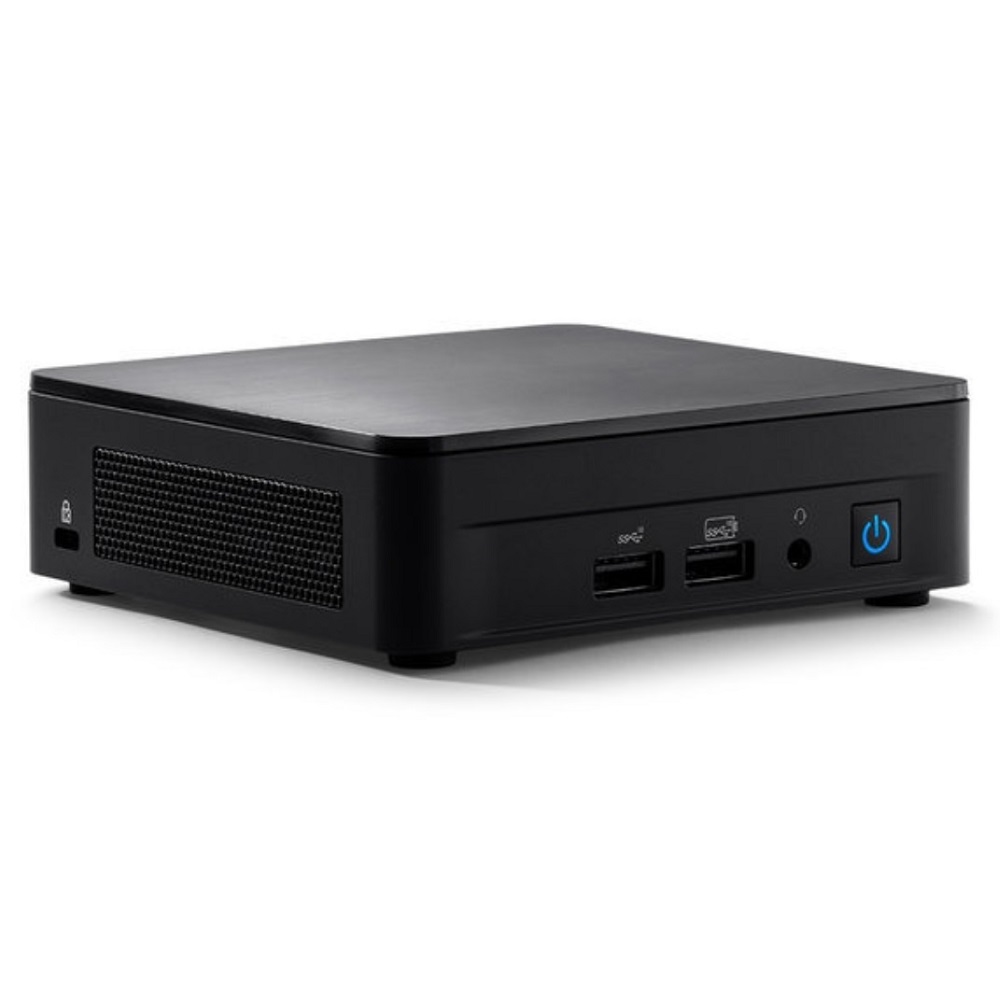

-->> Mini PC Intel Original NUC Kit Wall Street Canyon NUC12WSK with 12th Generation Intel Core Processors i3-1220P i5-1240P i7-1260P <<--

https://ark.intel.com/content/www/us/en/ark/products/121637/intel-nuc-12-pro-kit-nuc12wski7.html
Intel® NUC 12 Pro Kit NUC12WSKi3
Intel® NUC 12 Pro Kit NUC12WSKi5
Intel® NUC 12 Pro Kit NUC12WSKi7
Intel® NUC 12 Pro Mini PC NUC12WSKi30Z
Intel® NUC 12 Pro Mini PC NUC12WSKi50Z
Intel® NUC 12 Pro Mini PC NUC12WSKi70Z

Board Number
NUC12WSBi3/NUC12WSBi30Z
NUC12WSBi5/NUC12WSBi50Z
NUC12WSBi7/NUC12WSBi70Z
TPD 20W 35W 35 W
Processor Included
Intel® Core™ i3-1220P Processor (12M Cache, up to 4.40 GHz) Total Cores 10 Total Threads 12 4.40 GHz TDP25W
Intel® Core™ i5-1240P Processor (12M Cache, up to 4.40 GHz) Total Cores 12 Total Threads 16 4.40 GHz TDP35W
Intel® Core™ i7-1260P Processor (18M Cache, up to 4.70 GHz) Total Cores 12 Total Threads 16 4.70 GHz TDP35W

i30Z/i50Z/i70Z mini pc
USB Configuration
Front: 2x USB 3.2
Rear: 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Graphics Output Dual HDMI 2.0b w/HDMI CEC
# of Displays Supported 2
Included Memory
2x 4GB DDR4-3200 SODIMMs (i30Z,i50Z)
2x 8GB DDR4-3200 SODIMMs (i70Z)
Included Storage 500GB Gen 4 NVMe SSD
Pre-Installed Operating System Windows 11 Pro*

i3/i5/i7 nuc kit(barebone)

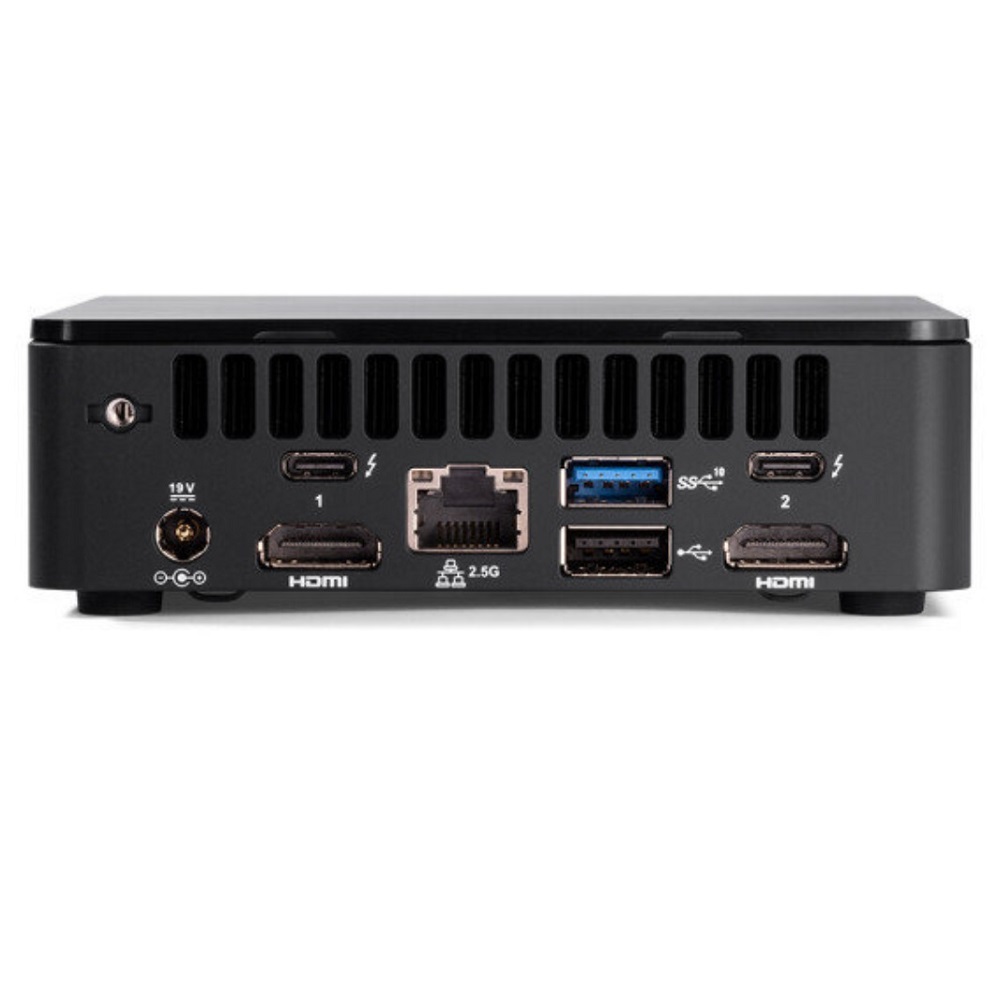

USB Configuration

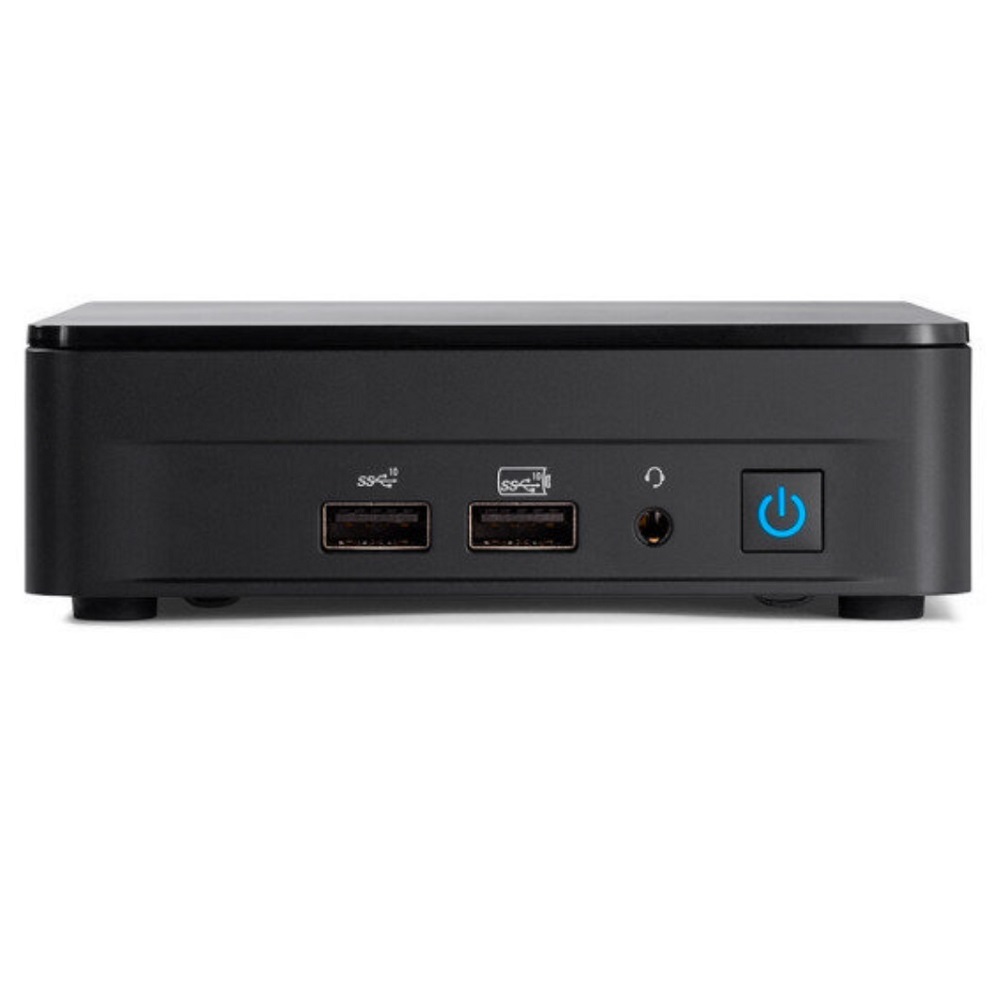

Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
# of Thunderbolt™ Ports 2x Thunderbolt™ 4
# of Displays Supported Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
# of Displays Supported 4


Essentials
Product Collection
Intel® NUC Kit with 12th Generation Intel® Core™ Processors
Code Name Products formerly Wall Street Canyon
Status Launched
Launch Date Q3'22
Expected Discontinuance 1H'25
Supported Operating Systems
Windows 11 Home*, Windows 11 Pro*, Windows 10 Home*, Windows 10 IoT Enterprise*, Windows 10 Pro*, Red Hat Linux*, Ubuntu 20.04 LTS*
Board Number
NUC12WSBi7
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor
M.2 SSD
# of Internal Drives Supported 2
TDP 35 W
DC Input Voltage Supported 12-20 VDC
Processor Included
Intel® Core™ i7-1260P Processor (18M Cache, up to 4.70 GHz)
Total Cores 12
Total Threads 16
Lithography Intel 7
Max Turbo Frequency 4.70 GHz
Recommended Customer Price $649.70
Supplemental Information
Embedded Options Available No
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types
DDR4-3200 1.2V SODIMMs
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported No
Processor Graphics
Integrated Graphics Yes
Graphics Output
Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
# of Displays Supported 4
Expansion Options
PCI Express Revision
Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations
PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless) 22x30 (E)
M.2 Card Slot (storage) 22x80 NVMe (M); 22x42 SATA (B)
I/O Specifications
# of USB Ports 4
USB Configuration
Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Serial Port via Internal Header No
Audio (back channel + front channel)
Front panel: 3.5mm headphone/mic jack
Integrated LAN
Intel® Ethernet Controller i225-V
Integrated Wireless
Intel® Wi-Fi 6E AX211(Gig+)
Integrated Bluetooth Yes
Additional Headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt™ Ports
2x Thunderbolt™ 4
Package Specifications
Chassis Dimensions 117 x 112 x 37 [mm] (LxWxH)
Advanced Technologies
Intel® Optane™ Memory Supported No
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® ME Firmware Version 16
Intel® HD Audio Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Security & Reliability
Intel® AES New Instructions Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809 2.4G/RF Wireless Keyboard with Touchpad K8C 2.4G/RF Wireless Keyboard with Touchpad K8
