-->> Mini PC Intel Original NUC Kit Grass Canyon NUC5CPYH with Intel Celeron processor N3050 N3060 <<--

https://ark.intel.com/content/www/us/en/ark/products/85254/intel-nuc-kit-nuc5cpyh.html

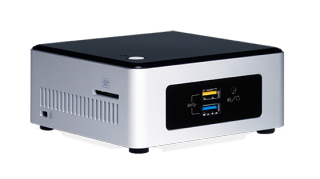

Intel® NUC Kit NUC5CPYH
Board Number NUC5CPYB
Intel® Celeron® Processor N3060 (2M Cache, up to 2.48 GHz)
# of Cores 2
Total Threads 2

https://ark.intel.com/content/www/us/en/ark/products/87740/intel-nuc-kit-nuc5ppyh.html
Intel® NUC Kit NUC5PPYH
Board Number NUC5PPYB
Intel® Pentium® Processor N3700 (2M Cache, up to 2.40 GHz)
# of Cores 4
Total Threads 4

https://ark.intel.com/content/www/us/en/ark/products/88065/intel-nuc-kit-nuc5pgyh.html
Intel® NUC Kit NUC5PGYH
Board Number NUC5PGYB
Intel® Pentium® Processor N3700 (2M Cache, up to 2.40 GHz)
# of Cores 4
Total Threads 4
Included Memory 2 GB
Other features: 2GB DDR3L SO-DIMM; 32GB eMMC on-board; Windows® 10, 64-bit Home pre-installed.

Intel? NUC Kit with Intel? Celeron? Processor and 2.5-Inch Drive Support (NUC5CPYH)
From entry-level consumers in emerging markets, to organizations looking for a value-oriented mini-PC, NUC5CPYH is the smart choice.

Intel® NUC Kit NUC5CPYH
Intel® Celeron® Processor N3050 (2M Cache, up to 2.16 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Graphics Output VGA (HDB15); HDI 1.4b
Internal Drive Form Factor 2.5" Drive

Product Overview

NUC5CPYH is one of the most fully featured Intel? NUCs. Based on a dual-core Celeron? processor, this Intel NUC includes new features such as a VGA port, SDXC card slot and TOSLINK* audio output while continuing to offer 4x USB 3.0 ports, 4K video support, and 802.11ac Wi-Fi*. Also, we’ve secured the base with the Kensington lock, significantly improving IT asset security. From entry-level consumers in emerging markets, to organizations looking for a value-oriented mini-PC, NUC5CPYH is the smart choice.

Features and Configurations

Processor
Intel? Celeron? processor N3050
(2.16 GHz Dual Core , 6W TDP)

Memory
DDR3L SODIMM
1.35V, 1333/1600 MHz, 8GB maximum

Graphics
Intel? HD Graphics
1x HDI* 1.4a
1x HDB15 VGA

Audio
Up to 7.1 surround audio via HDI
Headphone/Microphone jack on the front panel
Headphone/TOSLINK* jack on the rear panel

Peripheral Connectivity
2x USB 3.0 ports on the back panel
2x USB 3.0 ports on the front panel (1x charging capable)
2x Internal USB 2.0 via header
Consumer Infrared sensor on the front panel

Storage
Internal SATA3 support for 2.5" HDD/SSD (up to 9.5mm thickness)
SDXC slot with UHS-I support on the side

Networking
10/100/1000Mbps Network Connection
Intel? Wireless-AC 3165 M.2 2230, wireless antennas (IEEE 802.11ac, Bluetooth* 4, Intel? Wireless Display)

Enclosure
Silver with Black Top
Plastic shell with metal inner structure
Dimensions : 115mm x 111mm x 51.6mm

Power Adapter
19V, 65W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)

Additional Features
Support for user-replaceable 3rd party lids
NFC and AUX_PWR headers
OS certs: Windows* 7 & 8.1 Logo’d
OS compatibility: Ubuntu*, Linux Mint*, Android*, Fedora*, OpenSUSE*
VESA* mount bracket and mounting hole support
Low-acoustics active cooling design
Kensington lock support with base security
Integration Guide
12-19V DC Power Input
3-year limited warranty

Included
in the box
Intel NUC Kit NUC5CPYH integrated in enclosure
VESA mount bracket, with screws
19V, 65W wall-mount AC-DC power adapter with multi-country AC plugs (IEC types A/C/G/I)
Integration guide
Processor badge

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
