-->> MINI PC Intel Original NUC Kit Maple Canyon NUC5i3MYHE with Intel Core i3-5010U i5-5300U <<--

Intel? NUC with Intel? Core? i3 Processor and 2.5-Inch Drive Support (NUC5i3MYHE)
This Intel? NUC’s 4K display support makes it perfect for digital signage with video analytics, digital kiosk, intelligent vending, or PC replacement.

Intel® NUC Kit NUC5i3MYHE
Intel® Core™ i3-5010U Processor (3M Cache, 2.10 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output 2x mDP, 1x eDP

Intel? NUC with Intel? Core? i5 Processor and 2.5-Inch Drive Support (NUC5i5MYHE)
Comes with Intel? vPro? technology for an added layer of security and manageability for businesses and intelligent systems.

Intel® NUC Kit NUC5i5MYHE
Intel® Core™ i5-5300U Processor (3M Cache, up to 2.90 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output 2x mDP, 1x eDP

Product Overview

From enterprise to small and medium business, university computing labs to call centers, the Intel? NUC is driving new models of computing in small spaces. The Intel? NUC NUC5i3MYHE kit and NUC5i3MYBE board, built with a 5th generation Intel? Core? i3 processor, have a small footprint, but big potential. With 4K display support it’s an ideal device for digital signage with video analytics, digital kiosk, intelligent vending, or PC replacement. The advanced capabilities of the Intel? Core? i3 processor gives your customers performance to run video analytics to help target and personalize messages and offers to the right audience. And the triple display capability means your customers can deliver their messages across multiple screens.

A serial port option to connect legacy embedded devices means that you can customize the Intel NUC for a wide-range of usages, including POS systems. A replaceable lid further extends options for customization, enabling third-party innovation and new usage models with NFC and USB headers. Your customers can choose the type of storage they want, as well. The Intel NUC NUC5i3MYHE and NUC5i3MYBE have the option to install a 2.5" HDD or an M.2 SSD. The choice gives your customers options to store all their files locally or take advantage of the fast, power-efficient M.2 form factor which minimizes load times and improves reliability.

Features and Configurations
All specifications are the same across board and kit unless otherwise noted.

Processor 5th generation Intel? Core? i3-5010U processor (2.1GHz Dual Core, 3MB Cache, 15W TDP)
Processor 5th generation Intel? Core? i5-5300U vPro? processor 2.3GHz up to 2.9GHz Turbo, Dual Core, 3MB Cache, 15W TDP
Memory Dual-channel DDR3L SODIMMs
1.35V, 1333/1600 MHz, 16GB maximum
Graphics Intel? HD 5500 Graphics
2x Mini DisplayPort 1.2
1x eDP connector (2-lane with backlight adjustable voltage/timings)
Audio Up to 7.1 surround audio via Mini DisplayPort
Headphone/microphone jack on the front panel

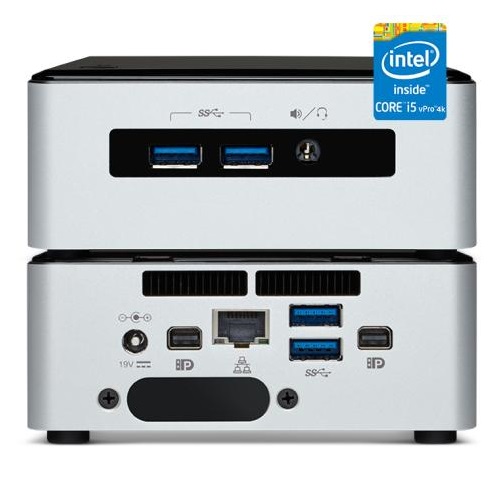

Peripheral Connectivity 2x USB 3.0 ports (front panel)
2x USB 3.0 ports (back panel)
2x USB 2.0 ports (internal header)
Storage Internal support for M.2 Key Type B SSD card (22x42 or 22x80)
Internal SATA3 support for 2.5" HDD/SSD (up to 9.5mm thickness
Networking Integrated Intel? 10/100/1000Mbps Ethernet Network Connection
M.2 22x30 slot and wireless antennas pre-assembled
(for wireless card support)

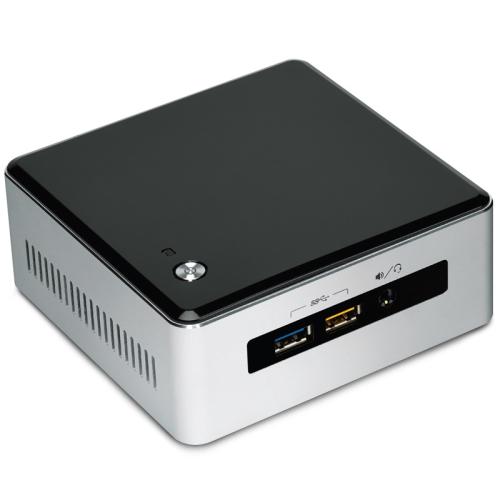

Enclosure (kit only) Silver with Black Top and Diamond Cut around the Top
Aluminum and Plastic
Dimensions: 4.52" x 4.37" x 1.9" or 115 mm x 111 mm x 48.7 mm
Power Adapter 19V, 65W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)
Additional Features Discrete trusted platform module (TPM v2.0)
Watchdog timer (hard-coded to board reset)
Backpanel serial port expandability (via 3rd party cable)
Support for user-replaceable third-party lids
High-Speed Custom Solutions connector (PCIe x4)
Custom Solutions header (DMIC, AppLaunch GPIO, HDI_CEC, SMBus, I2C[0:1], GPIO[0:1], 3.3/5 Vstby power), and NFC header
2x Serial ports via header (TXD/RXD/RTS/CTS, w/5V x-ceivers)
Power connectors: 12-19V DC (back panel), 12-24V DC (internal)
OS certs: Windows* 7 & 8.1
OS compatibility: Ubuntu*, Linux Mint, Fedora, OpenSUSE, …
VESA mount bracket and mounting hole support
Low-acoustics active cooling design
Kensington lock support
Integration guide
3-year product life cycle
3-year limited warrantyIncluded
in the box Intel? NUC Kit NUC5i3MYHE integrated in enclosure (kit only)
VESA mount bracket, with screws
19V, 65W wall-mount AC-DC power adapter with multi-country AC plugs (IEC types A/C/G/I)
Integration guide
Processor badge

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
