-->> Mini PC Intel Original NUC Kit Rock Canyon NUC5i3RYH NUC5i5RYH NUC5i7RYH with 5th Generation Intel Core Processors i3-5010U i5-5250U i7-5557U <<--

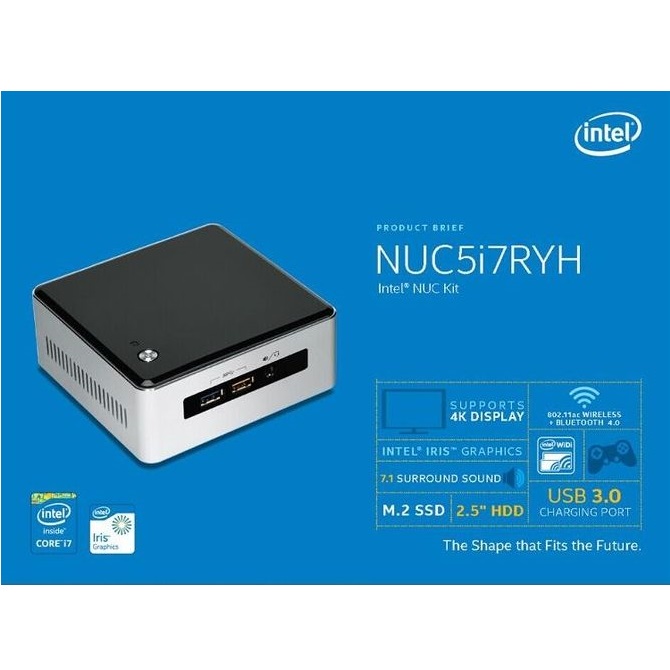

Intel? NUC with Intel? Core? i7 Processor and 2.5-Inch Drive Support (NUC5i7RYH)
Equipped with a 5th Generation Intel? Core? i7-5557U processor, NUC5i7RYH is the highest performing Intel? NUC ever. Intel? Iris? graphics 6100 deliver amazing multimedia experiences and makes NUC5i7RYH perfect for immersive gaming.

Intel® NUC Kit NUC5i3RYH
Intel® Core™ i3-5010U Processor (3M Cache, 2.10 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a

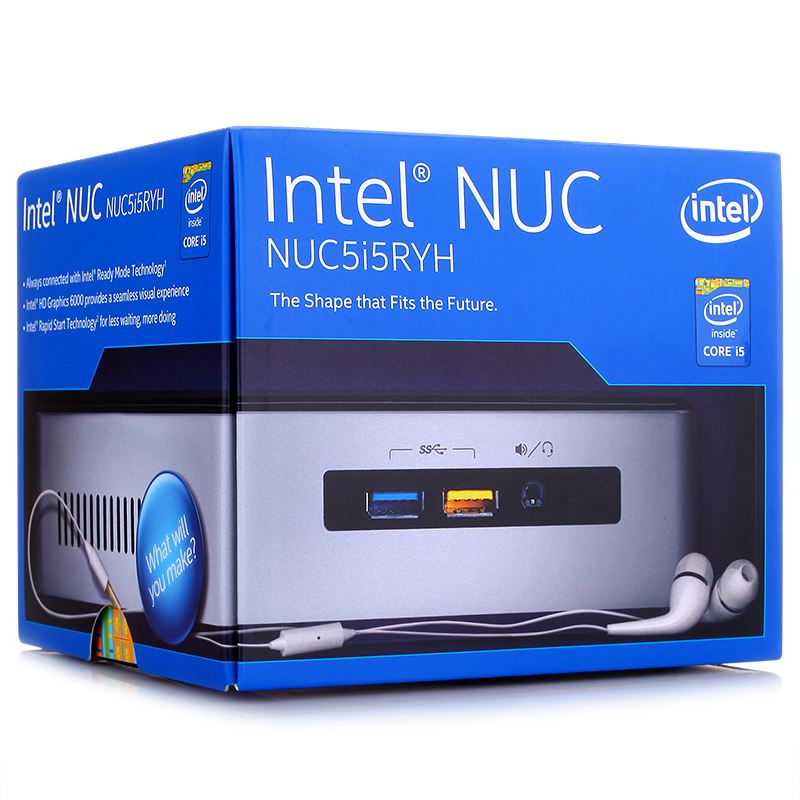

Intel® NUC Kit NUC5i5RYH
Intel® Core™ i5-5250U Processor (3M Cache, up to 2.70 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a

Intel® NUC Kit NUC5i7RYH
Intel® Core™ i7-5557U Processor (4M Cache, up to 3.40 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a

Product Overview

Equipped with a 5th generation Intel? Core? i7-5557U processor, NUC5i7RYH is the highest performing Intel? NUC ever. Iris? graphics 6100 delivers amazing multimedia experiences and makes NUC5i7RYH perfect for immersive gaming. A replaceable lid provides plenty of options to extend system capabilities or add personal style. Intel? Turbo Boost Technology 2.01 delivers performance that adapts to your needs. Add a 2.5-inch HDD or an M.2 SSD for more storage. Complete with Wi-Fi* 802.11ac wireless, Bluetooth*, and 7.1 surround sound, NUC5i7RYH is ideal for home theater PCs, media server PCs, and home hubs.

Features and Configurations

Processor 5th generation Intel? Core? i3-5010U processor (2.1 GHz Dual Core, 3 MB Cache, 15 W TDP)
Graphics Intel? HD Graphics 5500
Processor 5th generation Intel? Core? i5-5250U processor (1.6 GHz up to 2.7 GHz Turbo, dual core, 3 MB cache, 15 W TDP)
Graphics Intel? HD Graphics 6000
Processor 5th generation Intel? Core? i7-5557U processor (3.1 GHz up to 3.4 GHz, Intel? Turbo Boost Technology, dual-core, 4 MB cache, 28 W thermal design power (TDP))
Memory Dual-channel DDR3L SODIMMs 1.35V, 1333/1600 MHz, 16 GB maximum
Graphics Iris? graphics 6100

1x mini HDI* 1.4a
1x mini DisplayPort* 1.2
Audio Up to 7.1 surround audio via mini HDI and mini DisplayPort
headphone and microphone jack on the front panel
Peripheral connectivity
2x USB 3.0 ports on the back panel
2x USB 3.0 ports on the front panel (1x charging capable)
2x internal USB 2.0 via header
Consumer infrared sensor on the front panel
Storage Internal support for M.2 SSD card (22x42, 22x60, or 22x80)
Internal SATA3 support for 2.5-inch HDD/SSD (up to 9.5 mm thickness)
Networking Intel? PRO 10/100/1000 Network Connection
Intel? Wireless-AC 7265 M.2 soldered-down, wireless antennas (IEEE 802.11ac, Bluetooth* 4, Intel? Wireless Display)
Enclosure Silver with black top and diamond cut around the top
Aluminum and plastic, dimensions: 115 mm x 111 mm x 48.7 mm
Power adapter 19 V, 65 W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)
Additional features Support for user-replaceable 3rd party lids
NFC and AUX_PWR headers
OS certs: Windows* 7 and 8.1 logo'd
OS compatibility: Linux*
VESA mount bracket and mounting hole support
Low-acoustics active cooling design
Kensington* lock support
Integration guide
12-19 V DC power input
Power sensing circuit for protection against over-power shutdowns
3-year limited warrantyIncluded
in the box Intel? NUC NUCi7RYH integrated in enclosure
VESA mount bracket, with screws
19 V, 65 W wall-mount AC-DC power adapter with multi-country AC plugs (IEC types A/C/G/I)
Integration guide
Processor badge

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
