-->> Mini PC Intel Origial NUC Kit Swift Canyon NUC6I3SYH with 6th Generation Intel Core i3-6100U <<--
-->> Mini PC Intel Origial NUC Kit Swift Canyon NUC6I5SYH with 6th Generation Intel Core i5-6260U <<--

https://ark.intel.com/content/www/us/en/ark/products/89189/intel-nuc-kit-nuc6i3syh.html
Intel® NUC Kit NUC6i3SYH
https://ark.intel.com/content/www/us/en/ark/products/89190/intel-nuc-kit-nuc6i5syh.html
Intel® NUC Kit NUC6i5SYH

Intel® NUC Kit NUC6i3SYH
Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
DDR4-2133 1.2V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; HDI 1.4b

Intel® NUC Kit NUC6i5SYK
Intel® Core™ i5-6260U Processor (4M Cache, up to 2.90 GHz)
DDR4-2133 1.2V SO-DIMM
Internal Drive Form Factor M.2 SSD
Graphics Output Mini-DP 1.2; HDI 1.4b

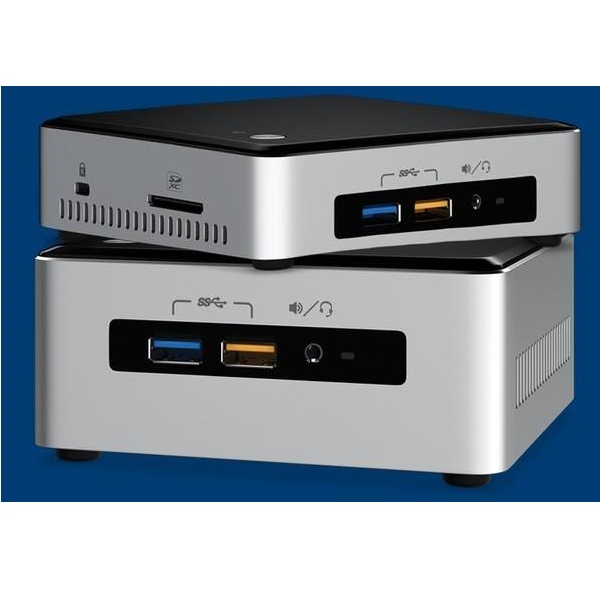

Product Overview
Intel? NUC Kit NUC6i3SYH/NUC6i5SYH is equipped with Intel’s newest architecture, the 6th generation Intel? Core? i3-6100U processor. With 7.1 surround sound and a full-sized HDI* port for brilliant 4K resolution, NUC6i3SYH can power home entertainment and light gaming. NUC6i3SYH/NUC6i5SYH has room for a 2.5” drive so you can store all your media and an M.2 SSD so you can transfer your data at lightning speed. Designed for Windows? 10, NUC6i3SYH has the performance to stream media, manage spreadsheets, or create presentations.

Essentials
Product Collection Intel® NUC Kit with 6th Generation Intel® Core™ Processors
Code Name Products formerly Swift Canyon
Status Discontinued
Launch Date Q4'15
Supported Operating Systems Windows 10, 64-bit*, Windows 8.1, 64-bit*, Windows 7, 64-bit*
Board Number NUC6i3SYB
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive
# of Internal Drives Supported 2
Lithography 14 nm
TDP 15 W
DC Input Voltage Supported 12-19 VDC
Processor Included Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
Processor Included Intel® Core™ i5-6260U Processor (4M Cache, up to 2.90 GHz)
Intel vPro® Platform Eligibility ‡ No
# of Cores 2
# of Threads 4
Processor Base Frequency 2.30 GHz
Processor Base Frequency 1.80 GHz
Max Turbo Frequency 2.90 GHz
Warranty Period 3 yrs

Supplemental Information
Embedded Options Available No
Description Other features: Includes SDXC card slot

Memory & Storage
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-2133 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 34.1 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No

Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output Mini-DP 1.2; HDI 1.4b
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3

Expansion Options
PCI Express Revision Gen3
PCI Express Configurations ‡ M.2 slot with PCIe x4 lanes
Removable Memory Card Slot SDXC with UHS-I support
M.2 Card Slot (storage) 22x42/80

I/O Specifications
# of USB Ports 6
USB Configuration 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision 2.0, 3.0
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital (HDI mDP); L+R+mic (F)
Integrated LAN Intel® Ethernet Connection I219-V
Integrated Wireless‡ Intel® Wireless-AC 8260 + Bluetooth 4.2
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
Additional Headers CEC, 2x USB2.0, AUX_PWR

Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro® Platform Eligibility ‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability
Intel® AES New Instructions Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
