-->> Mini PC Intel Original NUC Kit Swift Canyon NUC6i3SYK with Intel Core i3-6100U <<--
-->> Mini PC Intel Original NUC Kit Swift Canyon NUC6i5SYK with Intel Core i5-6260U <<--

https://ark.intel.com/content/www/us/en/ark/products/89186/intel-nuc-kit-nuc6i3syk.html
Intel® NUC Kit NUC6i3SYK
https://ark.intel.com/content/www/us/en/ark/products/89188/intel-nuc-kit-nuc6i5syk.html
Intel® NUC Kit NUC6i5SYK

Intel® NUC Kit NUC6i3SYK
Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
DDR4-2133 1.2V SO-DIMM
Internal Drive Form Factor M.2 SSD
Graphics Output Mini-DP 1.2; HDI 1.4b

Product Overview
Intel? NUC Kit NUC6i3SYK is equipped with Intel’s newest architecture, the 6th generation Intel? Core? i3-6100U processor. With 7.1 surround sound and a full-sized HDI* port for brilliant 4K resolution, NUC6i3SYK can power home entertainment and light gaming. The thin NUC6i3SYK has room for and an M.2 SSD so you can transfer your data at lightning speed. Designed for Windows? 10, NUC6i3SYK has the performance to stream media, manage spreadsheets, or create presentations, all in a slim 4” by 4” form factor.

Intel® NUC Kit NUC6i5SYH
Intel® Core™ i5-6260U Processor (4M Cache, up to 2.90 GHz)
DDR4-2133 1.2V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; HDI 1.4b

Mini PC Intel? NUC Kit NUC6I5SYK
Intel? NUC Kit NUC6i5SYK is equipped with Intel’s newest architecture, the 6th generation Intel? Core? i5-6260U processor. Intel? Iris? graphics 540 with 4K display capabilities provides brilliant resolution for gaming and home theaters. The thin NUC6i5SYK has room for an M.2 SSD so you can transfer your data at lightning speed. Designed for Windows? 10, NUC6i5SYK has the performance to stream media, manage spreadsheets, or create presentations, all in a slim 4” x 4” form factor.

Features and Configurations

Processor 6th generation Intel? Core? i3-6100U processor (2.3 GHz Dual Core, 3 MB Cache, 15W TDP)
Memory Dual-channel DDR4 SODIMMs 1.2V, 2133 MHz, 32GB maximum
Graphics Intel? HD graphics 520
1x full-size HDI* 1.4b
1x Mini DisplayPort* 1.2
Audio Up to 7.1 surround audio via HDI and Mini DisplayPort
Headphone/Microphone jack on the front panel
Peripheral Connectivity
2x USB 3.0 ports on the back panel
2x USB 3.0 ports on the front panel (1x charging capable)
2x Internal USB 2.0 via header
Consumer Infrared sensor on the front panel
Storage Internal support for M.2 SSD card (22x42 or 22x80)
SDXC slot with UHS-I support on the side
Networking Intel? 10/100/1000Mbps Network Connection
Intel? Wireless-AC 8260 M.2 soldered-down, wireless antennas (IEEE 802.11ac, Bluetooth* 4.1, Intel? Wireless Display 6.0)
Enclosure Silver with Black Top and Diamond Cut around the Top
Aluminum and Plastic
Dimensions : 115mm x 111mm x 32mm
Power Adapter 19V, 65W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)
Additional Features Support for user-replaceable 3rd party lids
NFC and AUX_PWR headers
OS certs: Windows?10 and Windows* 8.1 Logo
OS compatibility: Ubuntu*, Linux Mint*, Fedora*, OpenSUSE*
VESA mount bracket and mounting hole support
Low-acoustics active cooling design
Kensington* lock with base security
Integration Guide
12-19V DC Power Input

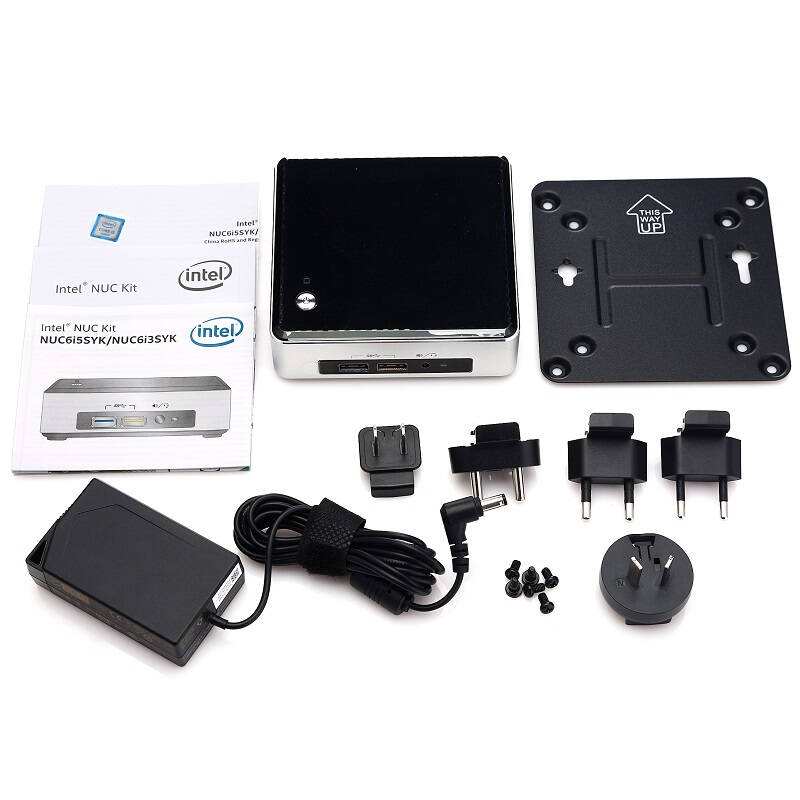

3-year limited warrantyIncluded in the box
Intel? NUC Kit NUC6i3SYK integrated in enclosure
?VESA* mount bracket and mounting hole support
?19V, 65W wall-mount AC-DC power adapter with multi-country AC plugs
?Integration Guide
?Processor Badge

Processor 6th generation Intel? Core? i5-6260U processor with Intel? Iris? graphics (1.9 GHz up to 2.8 GHz Turbo, Dual Core, 4 MB Cache, 15W TDP)
Memory Dual-channel DDR4 SODIMMs 1.2V, 2133 MHz, 32GB maximum
Graphics Intel? Iris? graphics 540
1x full-size HDI* 1.4b
1x Mini DisplayPort* 1.2
Audio Up to 7.1 surround audio via HDI* and Mini DisplayPort*
Headphone/Microphone jack on the front panel
Peripheral Connectivity
2x USB 3.0 ports on the back panel
2x USB 3.0 ports on the front panel (1x charging capable)
2x Internal USB 2.0 via header
Consumer Infrared sensor on the front panel
Storage Internal support for M.2 SSD card (22x42 or 22x80)
SDXC slot with UHS-I support on the side
Networking Intel? 10/100/1000Mbps Network Connection
Intel? Wireless-AC 8260 M.2 soldered-down, wireless antennas (IEEE 802.11ac, Bluetooth* 4.1, Intel? Wireless Display 6.0)
Enclosure Silver with Black Top and Diamond Cut around the Top
Aluminum and Plastic
Dimensions : 115mm x 111mm x 32mm
Power Adapter 19V, 65W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)
Additional Features Support for user-replaceable 3rd party lids
NFC and AUX_PWR headers
OS certs: Windows?10 and Windows* 8.1 Logo
OS compatibility: Ubuntu*, Linux Mint*, Fedora*, OpenSUSE*
Low-acoustics active cooling design
Kensington* lock with base security
12-19V DC Power Input
3-year limited warrantyIncluded in the box Intel? NUC Kit NUC6i3SYK integrated in enclosure
?VESA* mount bracket and mounting hole support
?19V, 65W wall-mount AC-DC power adapter with multi-country AC plugs
?Integration Guide
?Processor Badge

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
