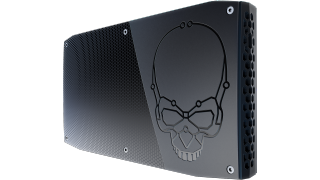

-->> Mini PC Intel Original NUC Kit Skull Canyon NUC6i7KYK with 6th Generation Intel Core Processors i7-6260U <<--

Intel® NUC Kit NUC6i7KYK
Intel® Core™ i7-6770HQ Processor (6M Cache, up to 3.50 GHz)
DDR4-2133+ 1.2V, 1.35V SO-DIMM
Graphics Output Mini-DP 1.2; HDI 2.0; USB-C (DP1.2)
Internal Drive Form Factor M.2 SSD

Essentials
Product Collection Intel® NUC Kit with 6th Generation Intel® Core™ Processors
Code Name Products formerly Skull Canyon
Status Discontinued
Launch Date Q2'16
Supported Operating Systems Windows 10, 64-bit*, Windows 8.1, 64-bit*, Windows 7, 64-bit*, Windows Server 2012 R2*, Windows Server 2012*
Board Number NUC6i7KYB
Board Form Factor UCFF (4" x 5")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 2
Lithography 14 nm
TDP 45 W
DC Input Voltage Supported 19 VDC
Processor Included Intel® Core™ i7-6770HQ Processor (6M Cache, up to 3.50 GHz)
Intel vPro® Platform Eligibility ‡ No
# of Cores 4
# of Threads 8
Processor Base Frequency 2.60 GHz
Max Turbo Frequency 3.50 GHz
Warranty Period 3 yrs

Supplemental Information
Embedded Options Available No
Description Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot

Memory & Storage
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-2133+ 1.2V, 1.35V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 34.1 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No

Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output Mini-DP 1.2; HDI 2.0; USB-C (DP1.2)
# of Displays Supported ‡ 3

Expansion Options
PCI Express Revision Gen3
PCI Express Configurations ‡ Dual M.2 slots with PCIe x4 lanes
Removable Memory Card Slot SDXC with UHS-I support
M.2 Card Slot (storage) 2x 22x42/80

I/O Specifications
# of USB Ports 9
USB Configuration 2x front and 2x rear USB 3.0, 1x USB 3.1 via Thunderbolt 3; 2x USB 2.0, 2x USB 3.0 via headers
USB Revision 2.0, 3.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2F, 2R, 2i
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration (2x M.2 SATA or 2x M.2 PCIe) SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN Intel® Ethernet Connection I219-LM
Integrated Wireless‡ Intel® Wireless-AC 8260 + Bluetooth 4.2
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
S/PDIF Out Connector TOSLINK
Additional Headers
CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL
# of Thunderbolt™ Ports 1x Thunderbolt™ 3

Package Specifications
Chassis Dimensions 211 x 116 x 28 mm

Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro® Platform Eligibility ‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability
Intel® AES New Instructions Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
