-->> Mini PC Intel Original NUC Kit JUNE CANYON NUC7PJYH NUC7PJYHN with 7th Generation Intel Celeron Processors J5005 <<--

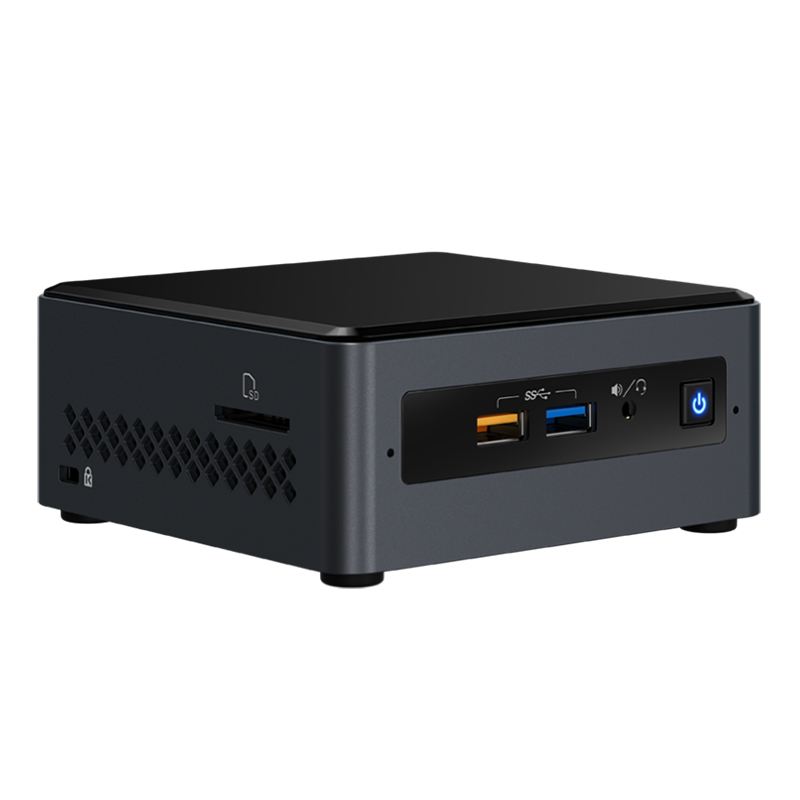

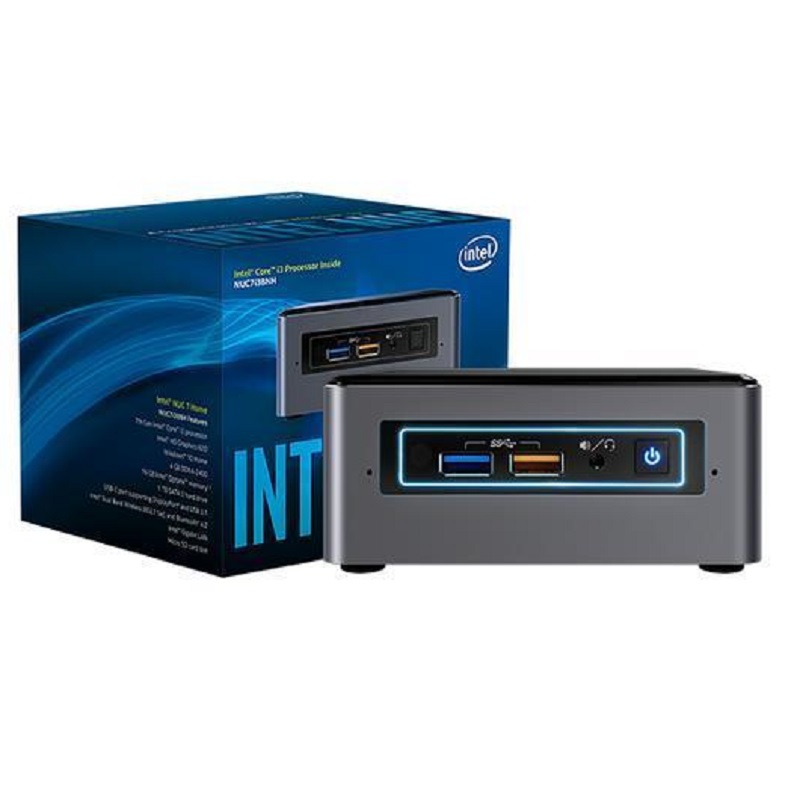

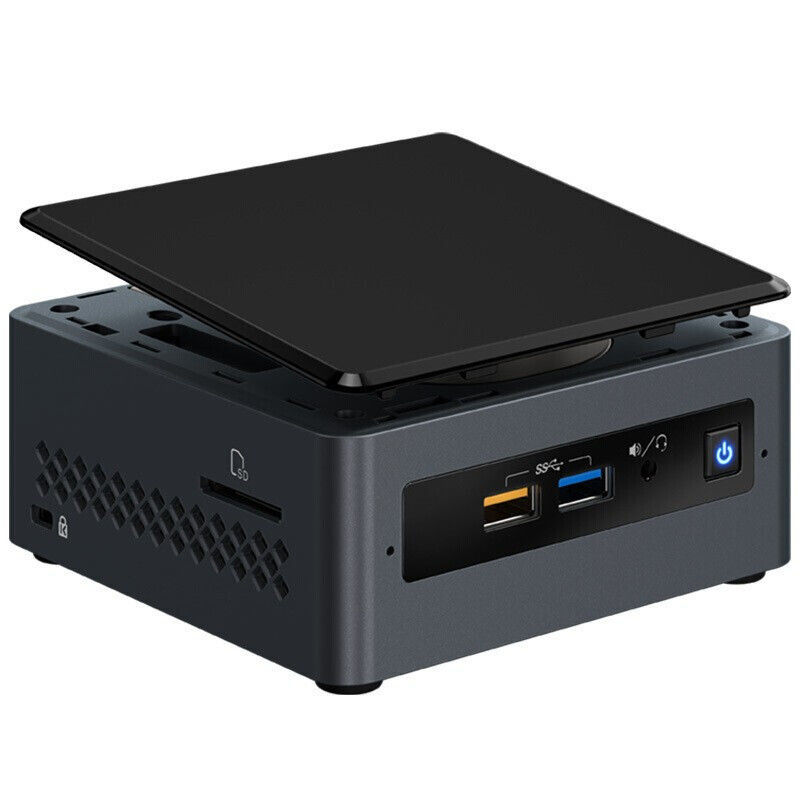

Intel® NUC Kit NUC7PJYHN
Q1'18->Q2'21
NUC7JYB->NUC7JYBN
Other features: Includes SDXC card slot, no audio codec.
Max # of Memory Channels 2->3
2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers

Other features: Includes SDXC card slot, dual microphones
->
Other features: Includes SDXC card slot, no audio codec.

Audio (back channel + front channel)
7.1 digital; L+R+mic (F); L+R+TOSLINK (R)->7.1 digital
Intel® HD Audio Technology Yes->N/A

https://ark.intel.com/content/www/us/en/ark/products/126137/intel-nuc-kit-nuc7pjyh.html
Intel® NUC Kit NUC7PJYH






Essentials
Product Collection Intel® NUC Kit with Intel® Pentium® Processors
Code Name Products formerly JUNE CANYON
Status Launched
Launch Date Q1'18
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC7JYB
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor 2.5" Drive
# of Internal Drives Supported 1
Lithography 14 nm
TDP 10 W
DC Input Voltage Supported 12-19 VDC
Processor Included Intel® Pentium® Silver J5005 Processor (4M Cache, up to 2.80 GHz)
Intel vPro® Platform Eligibility ‡ No
# of Cores 4
# of Threads 4
Processor Base Frequency 1.50 GHz
Warranty Period 3 yrs

Supplemental Information
Embedded Options Available No
Description Other features: Includes SDXC card slot, dual microphones

Memory & Storage
Max Memory Size (dependent on memory type) 8 GB
Memory Types
DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 38.4 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No

Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output 2x HDMI 2.0a
# of Displays Supported ‡ 2

Expansion Options
Removable Memory Card Slot SDXC with UHS-I support

I/O Specifications
# of USB Ports 6
USB Configuration 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision 2.0, 3.0
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 1
Max # of SATA 6.0 Gb/s Ports 1
RAID Configuration N/A

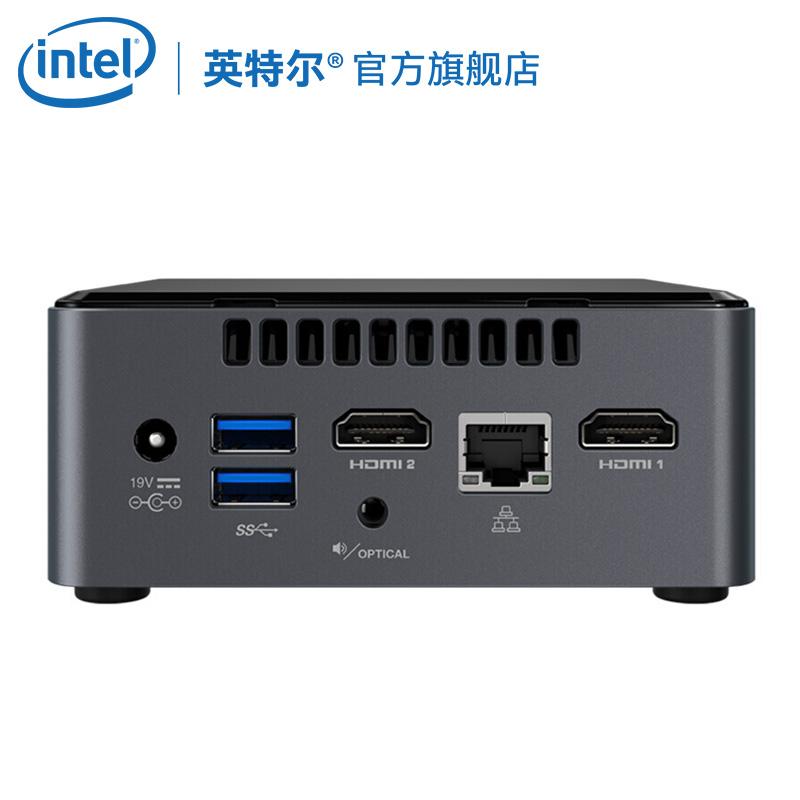

Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN Realtek 8111H-CG
Integrated Wireless‡ Intel® Wireless-AC 9462 + Bluetooth 5.0
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
S/PDIF Out Connector TOSLINK
Additional Headers
CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL

Package Specifications
Chassis Dimensions 115 x 111 x 51mm

Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro® Platform Eligibility ‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability
Intel® AES New Instructions Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809 2.4G/RF Wireless Keyboard with Touchpad K8C 2.4G/RF Wireless Keyboard with Touchpad K8
