-->> Mini PC Intel Original NUC Kit BEAN CANYON NUC8i3PNH NUC8v5PNH NUC8v7PNH with 8th Generation Intel Core Processors i3-8145U i5-8365U i7-8665U <<--

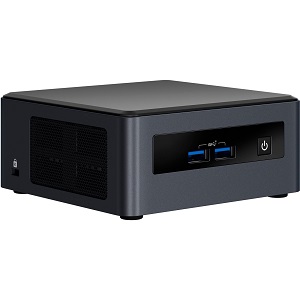

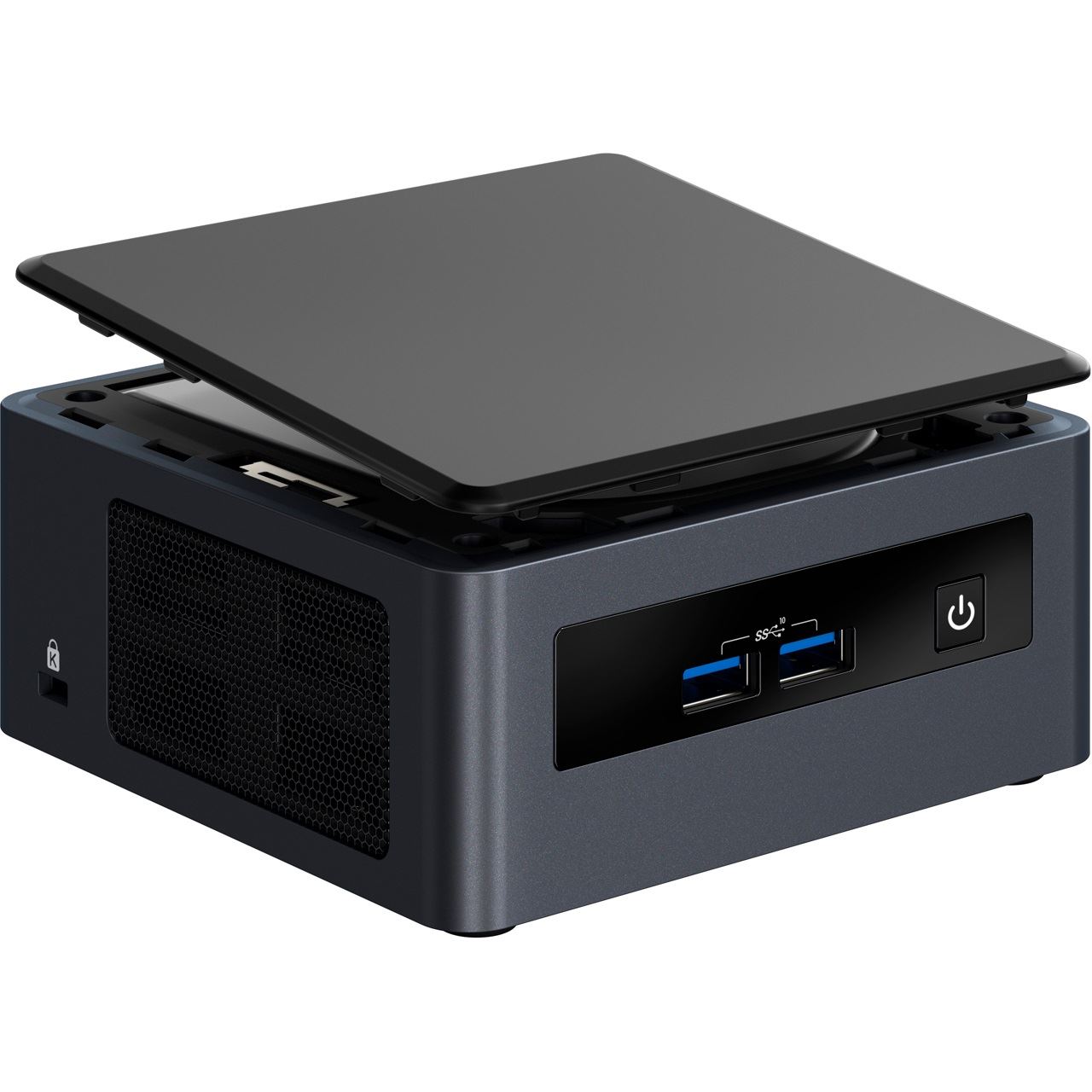

Intel® NUC 8 Pro Kit NUC8i3PNH
https://ark.intel.com/content/www/us/en/ark/products/199134/intel-nuc-8-pro-kit-nuc8i3pnh.html

Intel® NUC 8 Pro Kit NUC8v5PNH
https://ark.intel.com/content/www/us/en/ark/products/199081/intel-nuc-8-pro-kit-nuc8v5pnh.html

Intel® NUC 8 Pro Kit NUC8v7PNH
https://ark.intel.com/content/www/us/en/ark/products/199110/intel-nuc-8-pro-kit-nuc8v7pnh.html

Board Number NUC8i3PNB NUC8v5PNB NUC8v7PNB
Intel vPro® Platform Eligibility NO YES YES
TPM NO YES YES
TPM Version NO 2.0 2.0
Intel® Trusted Execution Technology NO YES YES

Intel® Core™ i3-8145U Processor (4M Cache, up to 3.90 GHz) 2/4 2.10 GHz 3.90 GHz
Intel® Core™ i5-8365U Processor (6M Cache, up to 4.10 GHz) 4/8 1.60 GHz 4.10 GHz
Intel® Core™ i7-8665U Processor (8M Cache, up to 4.80 GHz) 4/9 1.90 GHz 4.80 GHz

Essentials
Product Collection Intel® NUC Kit with 8th Generation Intel® Core™ Processors
Code Name Products formerly Provo Canyon
Status Launched
Launch Date Q1'20
Supported Operating Systems Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu 18.04 LTS*
Board Number NUC8i3PNB
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 1
Lithography 14 nm
DC Input Voltage Supported 12-24 VDC
Processor Included Intel® Core™ i3-8145U Processor (4M Cache, up to 3.90 GHz)
Intel vPro® Platform Eligibility ‡ No
# of Cores 2
# of Threads 4
Processor Base Frequency 2.10 GHz
Max Turbo Frequency 3.90 GHz
Warranty Period 3 yrs
Supplemental Information
Description Intel® NUC 8 Pro Kit

Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported ‡ No

Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output Dual HDI 2.0a, DP 1.2 via Type C, 4-lane eDP 1.4
# of Displays Supported ‡ 3

Expansion Options
PCI Express Revision Gen 3
PCI Express Configurations ‡
PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot
M.2 Card Slot (wireless) 22x30 (key E) slot
M.2 Card Slot (storage) 22x80 (key M) slot

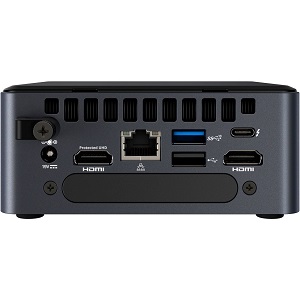

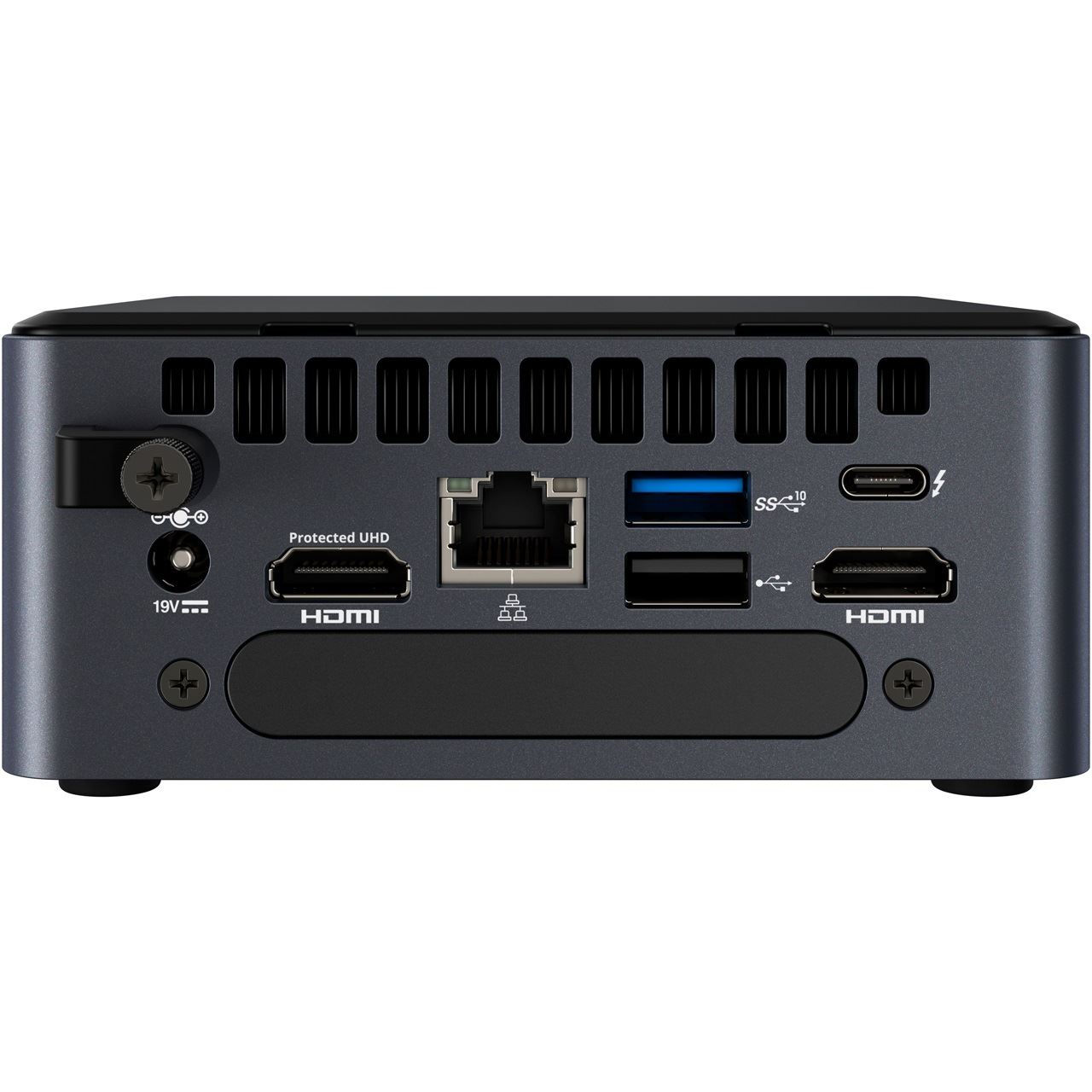

I/O Specifications
# of USB Ports 4
USB Configuration
USB 3.1 (type C): 1 rear

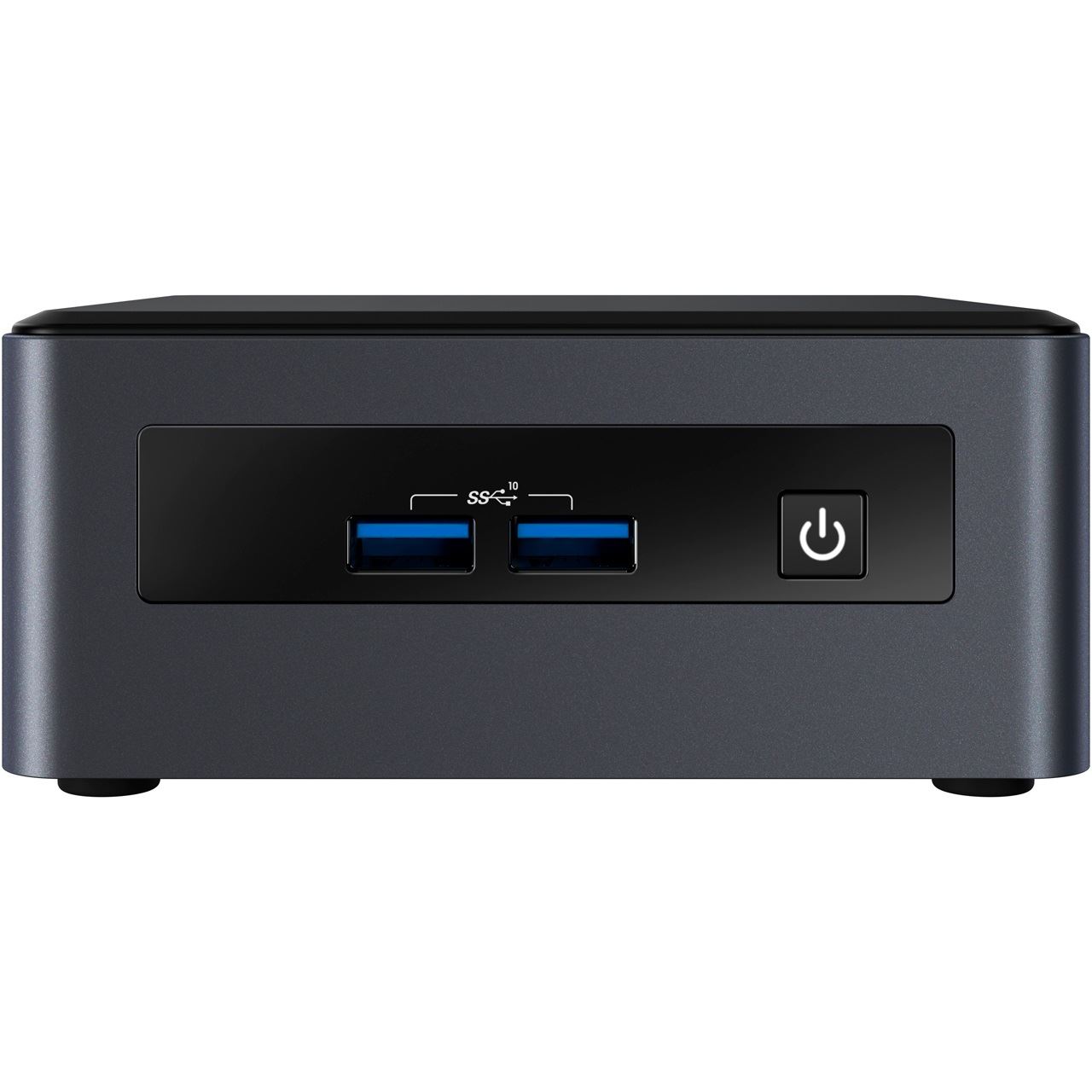

USB 3.1 (type A): 2 front, 1 rear
USB 3.0: 1 header
USB 2.0: 1 rear, 2 headers

Total # of SATA Ports 1
RAID Configuration 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Serial Port via Internal Header Yes
Integrated LAN Intel® i219-LM 10/100/1000 Mbps Ethernet
Integrated Wireless‡ Intel® Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth Yes
Additional Headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt™ Ports 1x Thunderbolt™ 3

Package Specifications
Chassis Dimensions 117 x 112 x 53 mm

Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro® Platform Eligibility ‡ No
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology ‡ No

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
