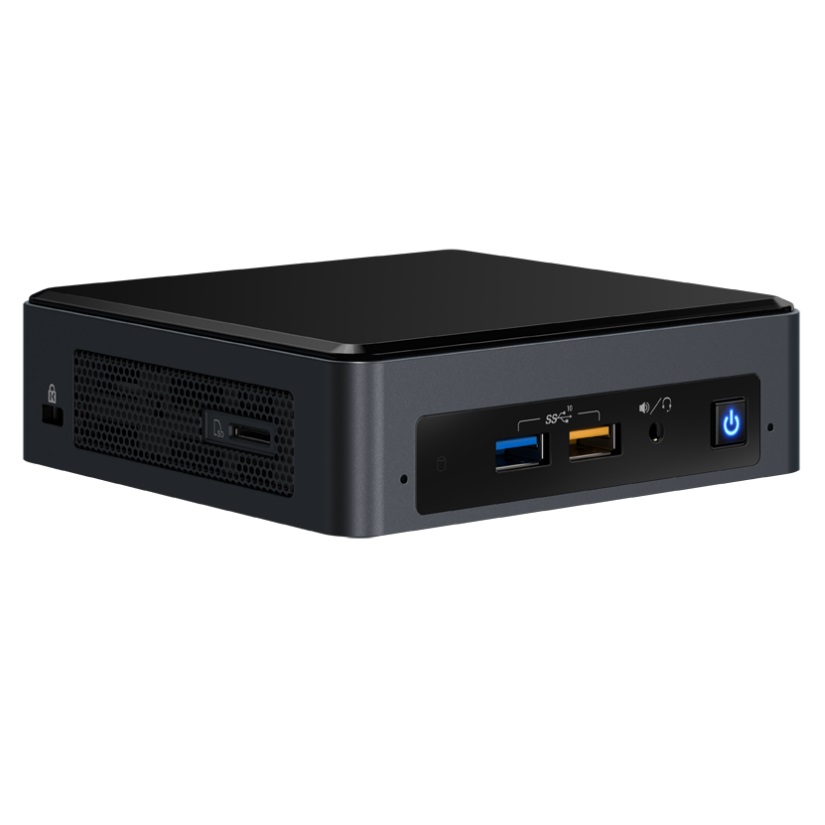

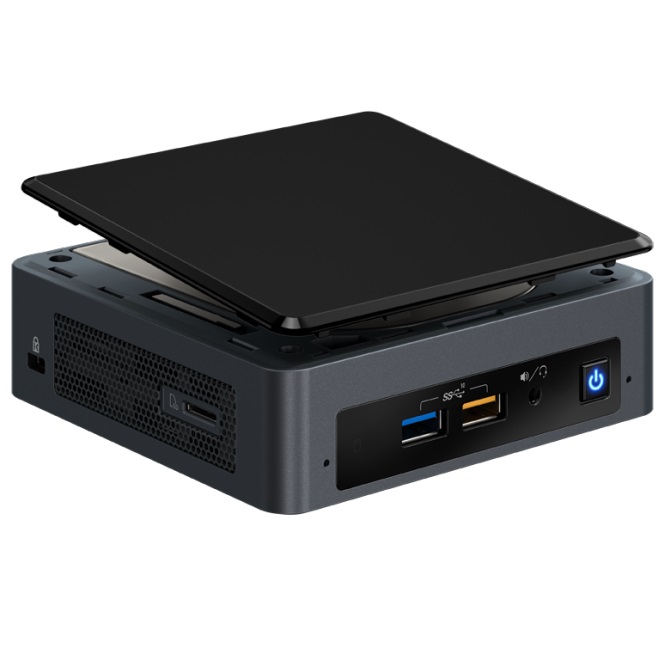

-->> Mini PC Intel Original NUC Kit BEAN CANYON NUC8i3BEK with 8th Generation Intel Core Processors i3-8109U <<--

NUC8i3BEH
# of Internal Drives Supported 2
M.2 and 2.5" Drive
Chassis Dimensions 117 x 112 x 51mm

NUC8i3BEK
# of Internal Drives Supported 1
M.2 SSD
Chassis Dimensions 117 x 112 x 36mm

Intel® NUC Kit NUC8i3BEK
Essentials
Product Collection
Intel® NUC Kit with 8th Generation Intel® Core™ Processors
Code Name Products formerly BEAN CANYON
Status Launched
Launch Date Q3'18
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC8BEB
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD

Intel® NUC Kit NUC8i3BEK
Essentials
Product Collection
Intel® NUC Kit with 8th Generation Intel® Core™ Processors

Code Name Products formerly BEAN CANYON
Status Launched
Launch Date Q3'18
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC8BEB
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 1
Lithography 14 nm
TDP 28 W
DC Input Voltage Supported 12-19 VDC
Processor Included
Intel® Core™ i3-8109U Processor (4M Cache, up to 3.60 GHz)
Intel vPro® Platform Eligibility ‡ No
# of Cores 2
# of Threads 4
Processor Base Frequency 3.00 GHz
Max Turbo Frequency 3.60 GHz
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available No
Description
Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones

Memory & Storage
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 38.4 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Processor Graphics ‡ Intel® Iris® Plus Graphics 655
Integrated Graphics ‡ Yes
Graphics Output HDI 2.0a; USB-C (DP1.2)
# of Displays Supported ‡ 3
Expansion Options PCI Express Revision Gen3
PCI Express Configurations ‡ M.2 slot with PCIe X4 lanes
Removable Memory Card Slot microSDXC with UHS-I support
M.2 Card Slot (storage) 22x42/80
I/O Specifications
# of USB Ports 6
USB Configuration

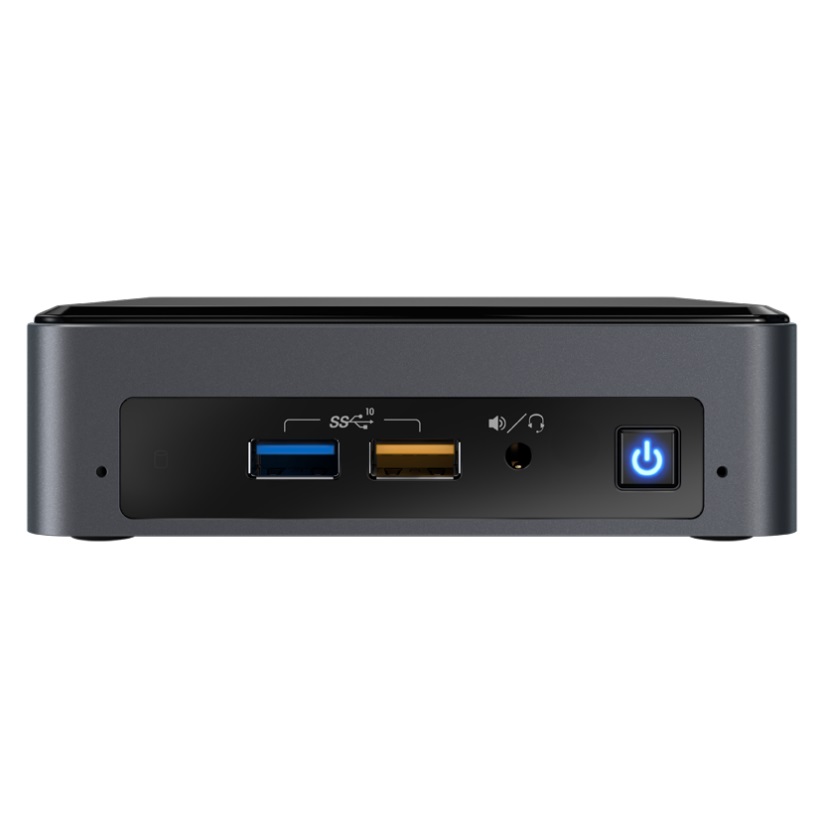

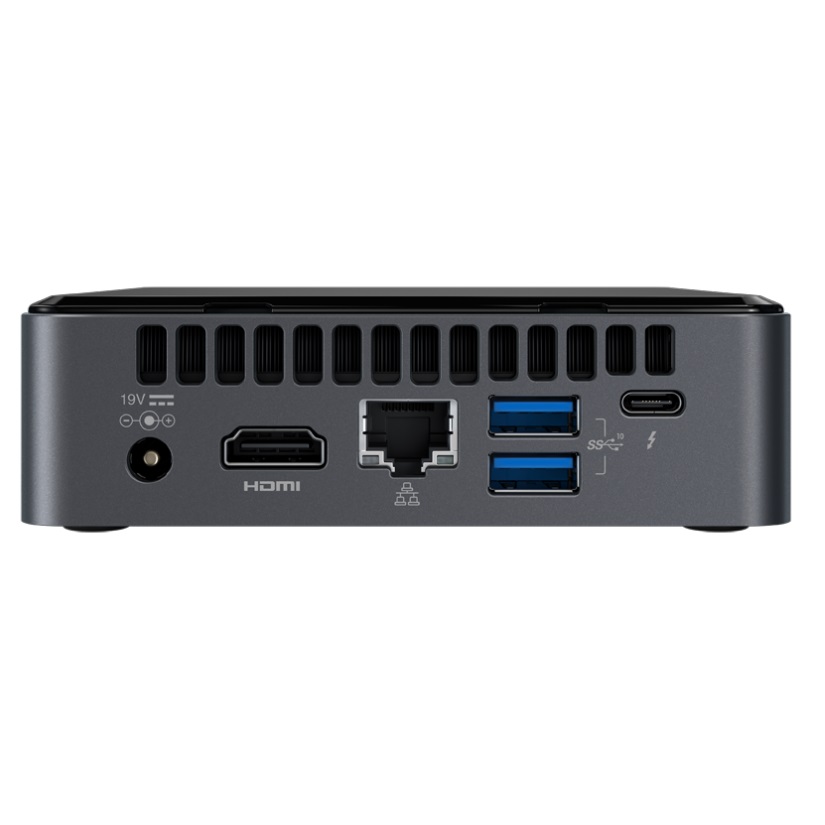

2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers
USB Revision 2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
Audio (back channel + front channel) 7.1 digital (HDI mDP); L+R mic (F)
Integrated LAN Intel® Ethernet Connection I219-V
Integrated Wireless‡ Intel® Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
Additional Headers CEC, 2x USB2.0, FRONT_PANEL
# of Thunderbolt™ Ports 1x Thunderbolt™ 3
Package Specifications
Chassis Dimensions 117 x 112 x 36mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro® Platform Eligibility ‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
Security & Reliability
Intel® AES New Instructions Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
