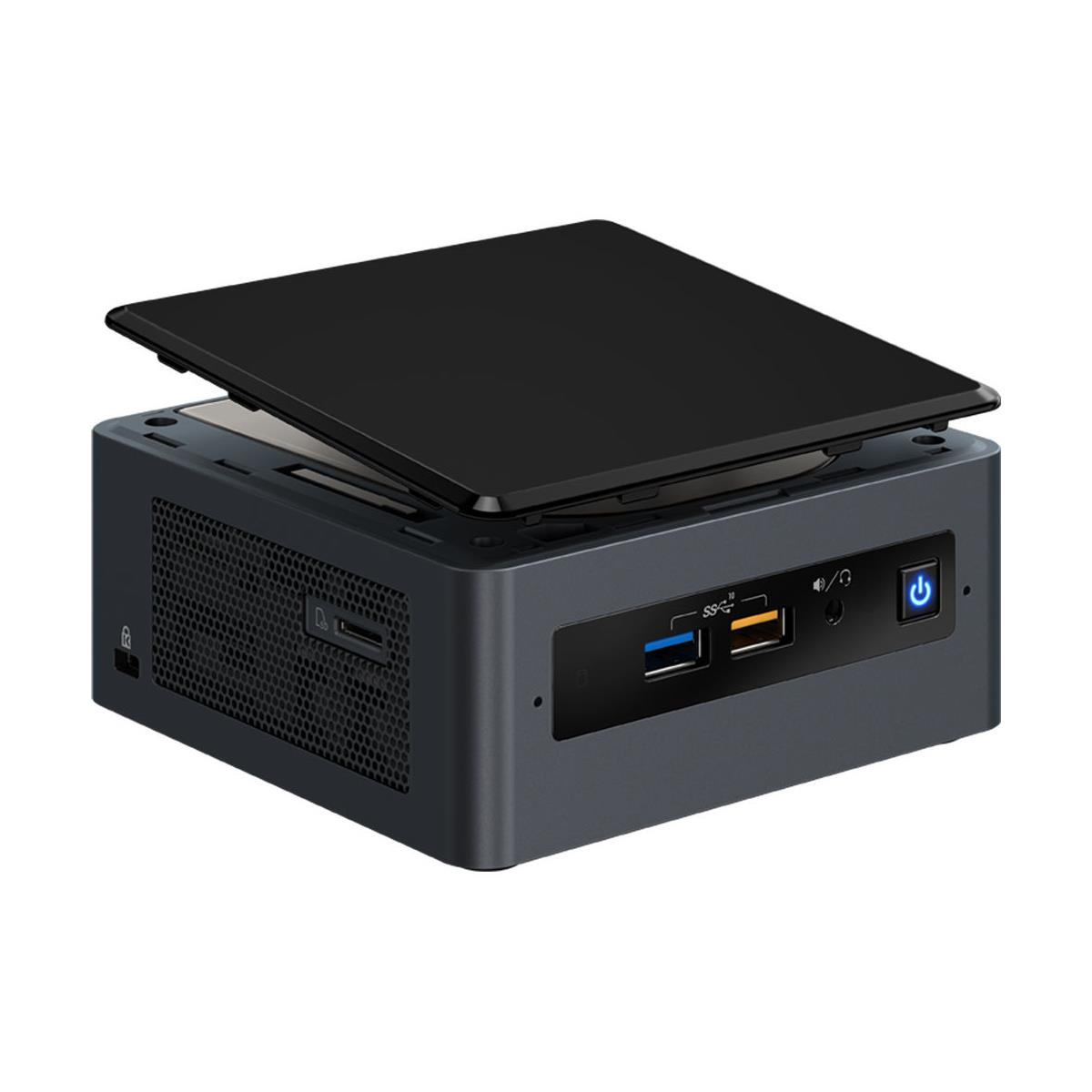

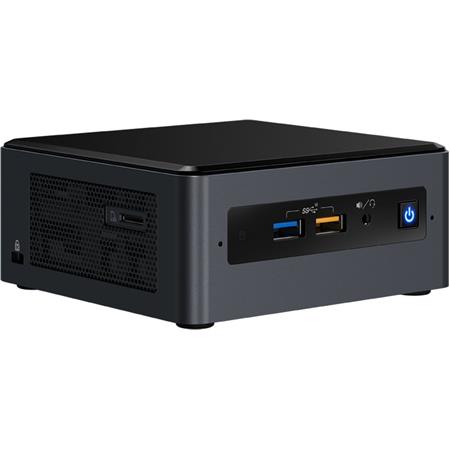

-->> Mini PC Intel Original NUC Kit BEAN CANYON NUC8i5BEHS with 8th Generation Intel Core Processors i5-8260U <<--

Intel® NUC Kit NUC8i5BEHS
BEH: max 32gb ram, CPU i3-8109U 28W or i5-8259U 28W, Iris Plus 655
BEHS: max 64g ram, CPU i3-8140U 15W or i5-8260U 15W, UHD 620

NUC8i5BEH，NUC8i5BEHS
# of Internal Drives Supported 2
M.2 and 2.5" Drive
Chassis Dimensions 117 x 112 x 51mm

NUC8i5BEK
# of Internal Drives Supported 1
M.2 SSD
Chassis Dimensions 117 x 112 x 36mm

Intel® NUC Kit NUC8i5BEHS
Essentials
Product Collection
Intel® NUC Kit with 8th Generation Intel® Core™ Processors
Code Name Products formerly BEAN CANYON
Status Launched
Launch Date Q1'20
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC8BEB
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5" Drive

Essentials
Product Collection
Intel® NUC Kit with 8th Generation Intel® Core™ Processors
Code Name
Products formerly BEAN CANYON
Status
Launched
Launch Date
Q1'20
Supported Operating Systems
Windows 10, 64-bit*
Board Number
NUC8BEB
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 and 2.5" Drive
# of Internal Drives Supported 2
Lithography 14 nm
TDP 15 W
DC Input Voltage Supported
12-19 VDC
Processor Included
Intel® Core™ i5-8260U Processor (6M Cache, up to 3.90 GHz)
Intel vPro® Platform Eligibility ‡
No
# of Cores 4
# of Threads 8
Processor Base Frequency 1.60 GHz
Max Turbo Frequency 3.90 GHz
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available
No
Description
Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones
Memory & Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 38.4 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output
HDI 2.0a; USB-C (DP1.2)
# of Displays Supported ‡ 3
Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations ‡
M.2 slot with PCIe X4 lanes
Removable Memory Card Slot
microSDXC with UHS-I support
M.2 Card Slot (storage)
22x42/80
I/O Specifications
# of USB Ports
6

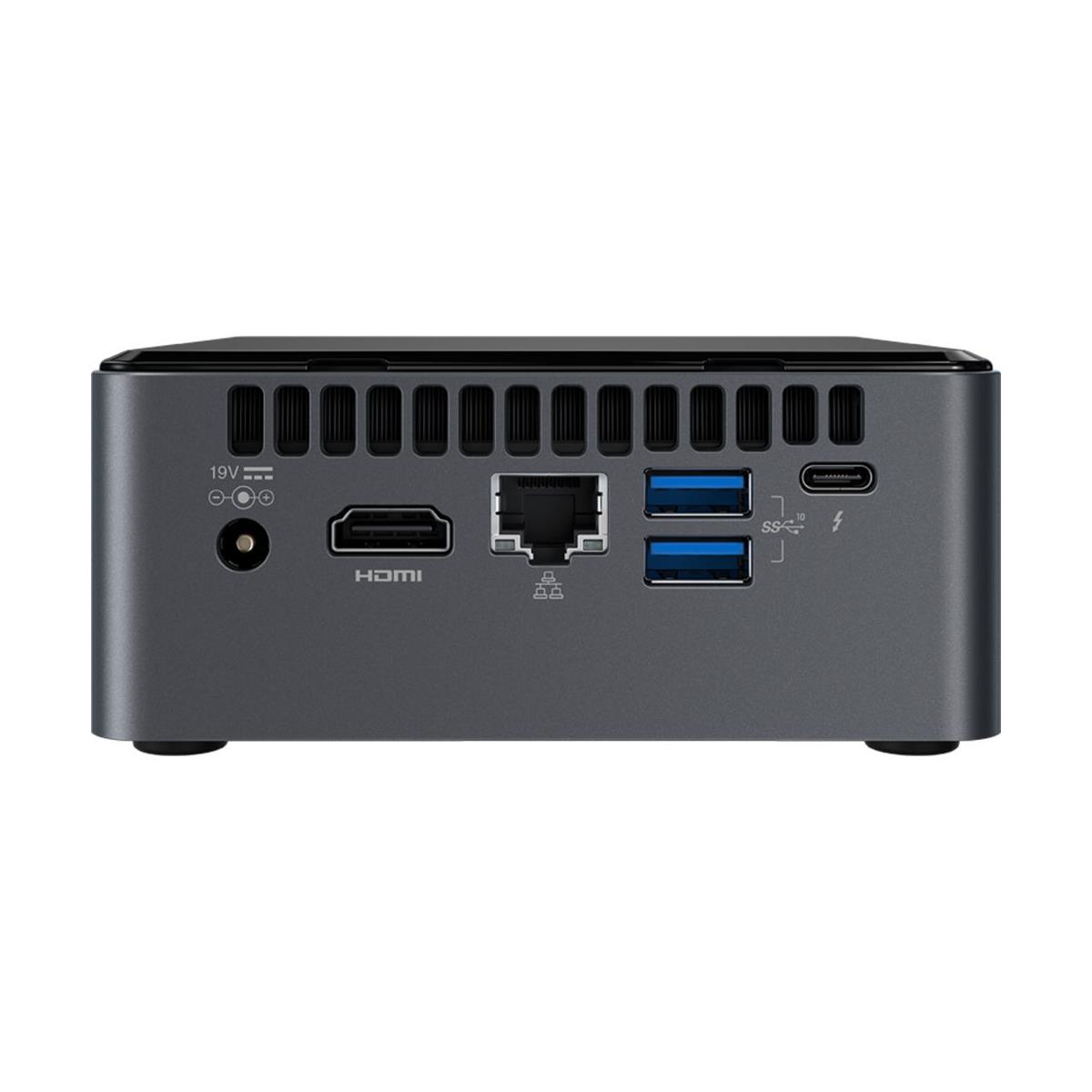

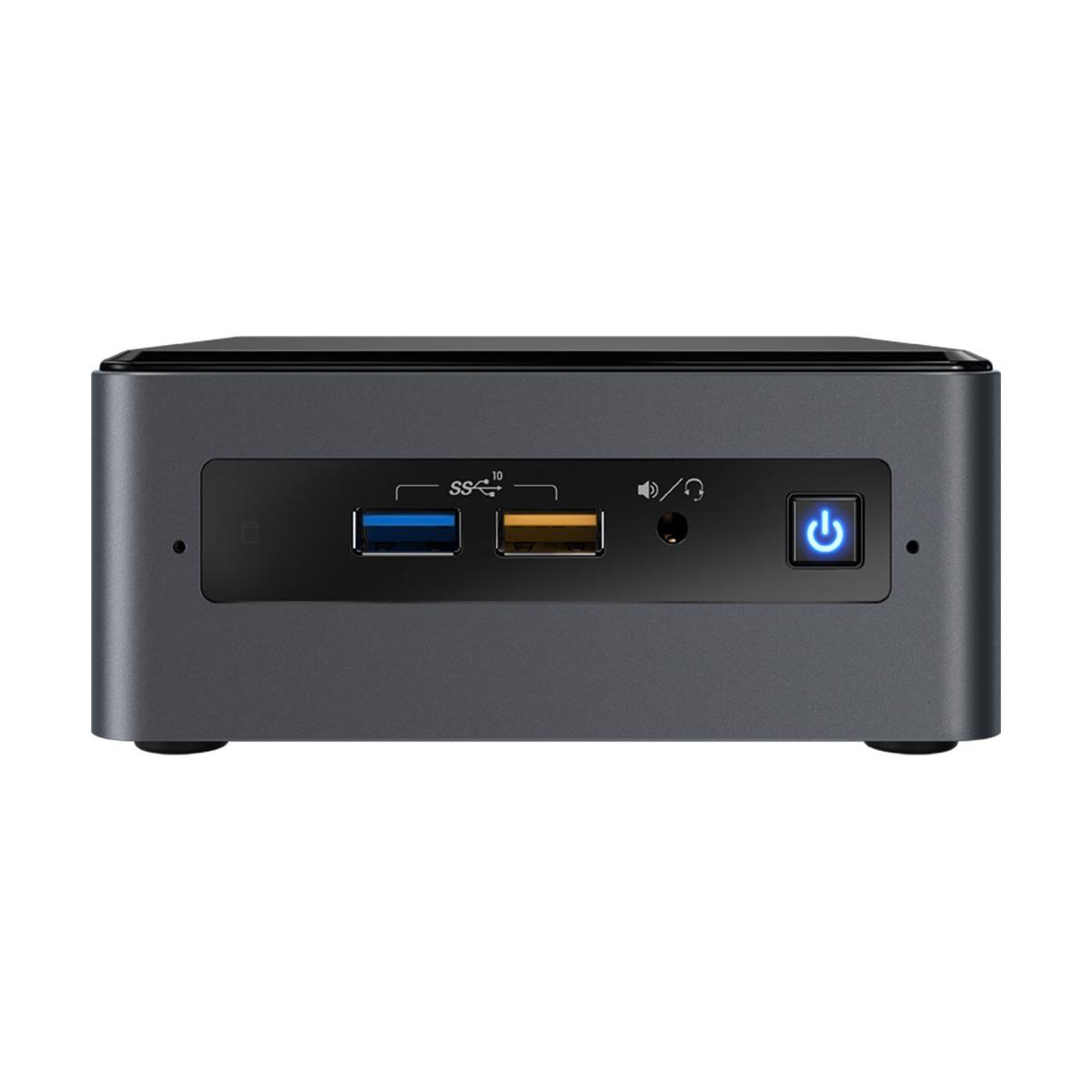

USB Configuration
2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers
USB Revision
2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total # of SATA Ports
2
Max # of SATA 6.0 Gb/s Ports
2
RAID Configuration
2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital (HDI mDP); L+R mic (F)
Integrated LAN
Intel® Ethernet Connection I219-V
Integrated Wireless‡
Intel® Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
Additional Headers
CEC, 2x USB2.0, FRONT_PANEL
# of Thunderbolt™ Ports
1x Thunderbolt™ 3
Package Specifications
Chassis Dimensions
117 x 112 x 51mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel vPro® Platform Eligibility ‡
No
TPM
No
Intel® HD Audio Technology
Yes
Intel® Rapid Storage Technology
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Security & Reliability
Intel® AES New Instructions
Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
