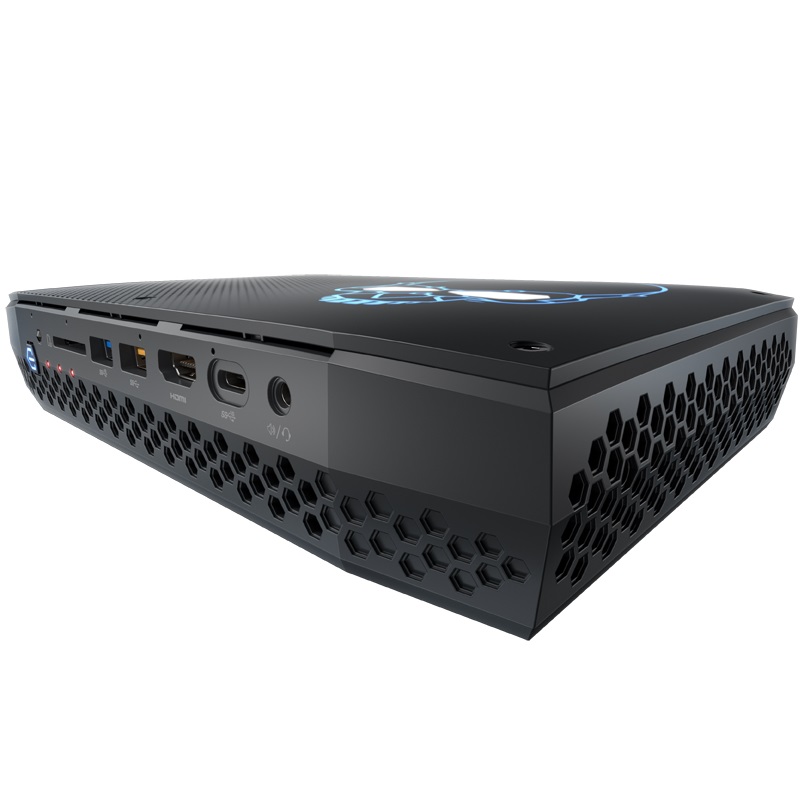

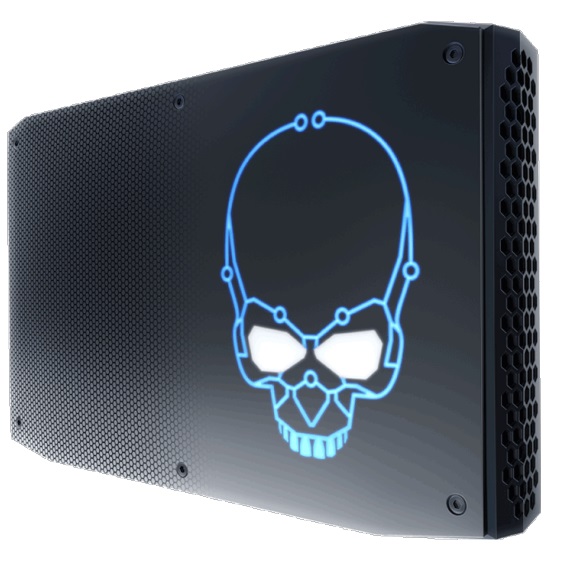

-->> Mini PC Intel Original NUC Kit HADES CANYON NUC8i7HVK with 8th Generation Intel Core Processors i7-8809G <<--

NUC8i7HVK
Technical Specifications
Essentials
StatusLaunched
Product CollectionIntel® NUC Kit with 8th Generation Intel® Core™ Processors
Code Name Products formerly HADES CANYON
Launch Date Q1'18
Supported Operating SystemsWindows 10, 64-bit*, Windows Server 2016*
Board NumberNUC8i7HVB
Board Form FactorUCFF (5.5" x 8")
SocketSoldered-down BGA
Internal Drive Form FactorM.2 SSD
# of Internal Drives Supported2

Supplemental Information
Embedded Options Available No
Description Other features: Includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot and front USB-A and USB-C ports w/ USB 3.1 Gen 2

Memory & Storage
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-2400+ 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 38.4 GB/s
Max # of DIMMs 2
ECC Memory Supported No

Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output 2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDI 2.0a
# of Displays Supported ‡ 6
Discrete Graphics Radeon™ RX Vega M GH graphics

Expansion Options
PCI Express Revision Gen3
PCI Express Configurations ‡ Dual M.2 slots with PCIe x4 lanes
Removable Memory Card Slot SDXC with UHS-I support
M.2 Card Slot (wireless) 2230
M.2 Card Slot (storage) 22x42/80, 22x80

I/O Specifications
# of USB Ports 13

USB Configuration

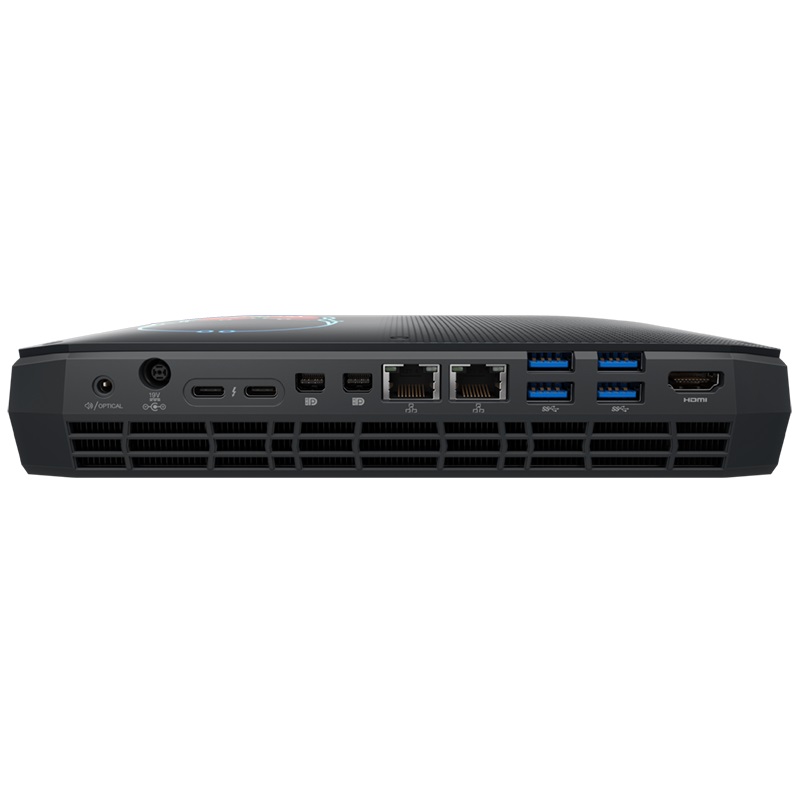

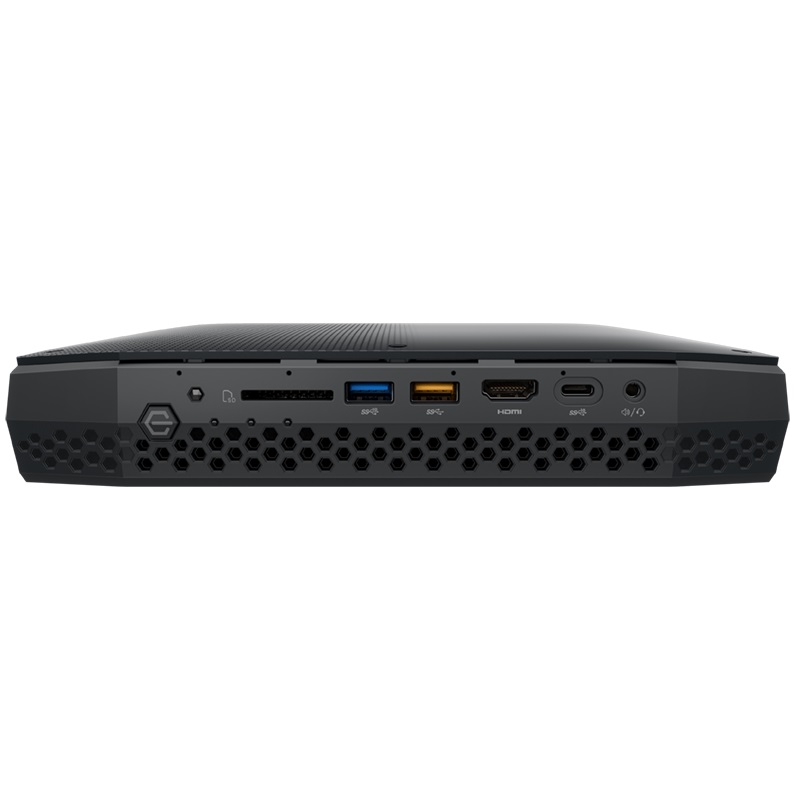

F: USB3, 2x USB 3.1g2 (Type A and C); R: 4x USB3, 2x Thunderbolt3 (USB3.1g2); INT: 2x USB2, 2x USB3

USB Revision 2.0, 3.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 1F, 4R, 2i
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN Intel® Ethernet Connection i219-LM and i210-AT
Integrated Wireless‡ Intel® Wireless-AC 8265 + Bluetooth 4.2
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
S/PDIF Out Connector TOSLINK
Additional Headers
CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL
# of Thunderbolt™ Ports 2x Thunderbolt™ 3

Package Specifications
Chassis Dimensions 221 x 142 x 39mm

Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro® Platform Eligibility ‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability
Intel® AES New Instructions Yes

https://ark.intel.com/content/www/us/en/ark/products/187824/intel-nuc-8-enthusiast-a-mini-pc-with-windows-10-nuc8i7hvkvaw.html
Intel® NUC 8 Enthusiast, a Mini PC with Windows 10 - NUC8i7HVKVAW
Description
Other features: 512GB NVMe SSD, 8GB RAM, Windows® 10 x64 Home pre-installed, includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot and front USB-A and USB-C ports w/ USB 3.1 Gen 2
Included Storage 512GB Intel 760p NVMe SSD
Included Memory 2x 4GB DDR4-2400

https://ark.intel.com/content/www/us/en/ark/products/147502/intel-nuc-8-enthusiast-a-mini-pc-with-windows-10-nuc8i7hvkva.html
Intel® NUC 8 Enthusiast, a Mini PC with Windows 10 - NUC8i7HVKVA
Description
Other features: 1TB NVMe SSD, 16GB RAM, Windows® 10 x64 Home pre-installed, includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot and front USB-A and USB-C ports w/ USB 3.1 Gen 2
Included Storage 1TB NVMe SSD
Included Memory 2x 8GB DDR4-2400

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
