3.5" industrial pc with 6*COM HDMI WIFI fanless N26ECM V1.0 size 172*107*54

Model: N26ECM

Motherboard Model: SBC35N26
more spec: http://www.teket.com/en/motherboard/intel/sbc35n26.htm

Intel Atom SBC 3.5" Motherboard SBC35
For Industral

1),This board have two mini pcie slot, one full height for msata ssd (for example teket msata-008m), one half height for wifi card (for example intel 3945abg), Our company can provide msata ssd and wifi card too.

2),This baord support 1080p playback, 12v dc in, support fanless, support audio interface, two lan ports, x86-based platform support all kinds of OS included Ubuntu. this is standard intel platform and this platform have good compatibility. industrail grade.







CPU Intel® CPU on Board
Dual-core Intel® Atom™ N2600/N2800 processor (optional)
Chipset Intel® NM10 Express


N2600:Intel GMA3600 graphics(share 128/224MB)
N2800:Intel GMA3650 graphics(share 128/224MB)

System Memory 2 x SO-DIMM, DDR3-800MHz, Max. 4 GB
512MB VRAM on board
Expansion Slots 2 x Mini PCIe (1 x Mini-PCIe, 1 x mSATA)

Storage Intel® NM10 Express Chipset built-in
2 x SATA Ⅱ 3.0 Gb/s ports
LAN Realtek RTL8111D Gigabit LAN controller

Audio High Definition Audio CODEC
Supports Optical S/PDIF out ports on rear
USB 6 USB 2.0/1.1 ports (4 ports on board, 2 ports on back panel)

Back Panel I/O Ports 2 x USB 2.0/1.1
1 x HDMI port
1 x DVI port
1 x LAN port (RJ45)
1 x Optical S/PDIF-out port
1 x 2 Jack audio interface
1 x DC-in power Jack (For 12V/19V adapter)
Internal I/O Connectors 2 x USB headers support for 4 USB 2.0 ports
2 x SATA Ⅱ connectors
1 x COM header
1 x 4-pin ATX 12V Power connector
1 x 24-bit LVDS connector

Form Factor Mini-ITX Form Factor
3.5" SBC 6 layers, pcb size: 148x102mm

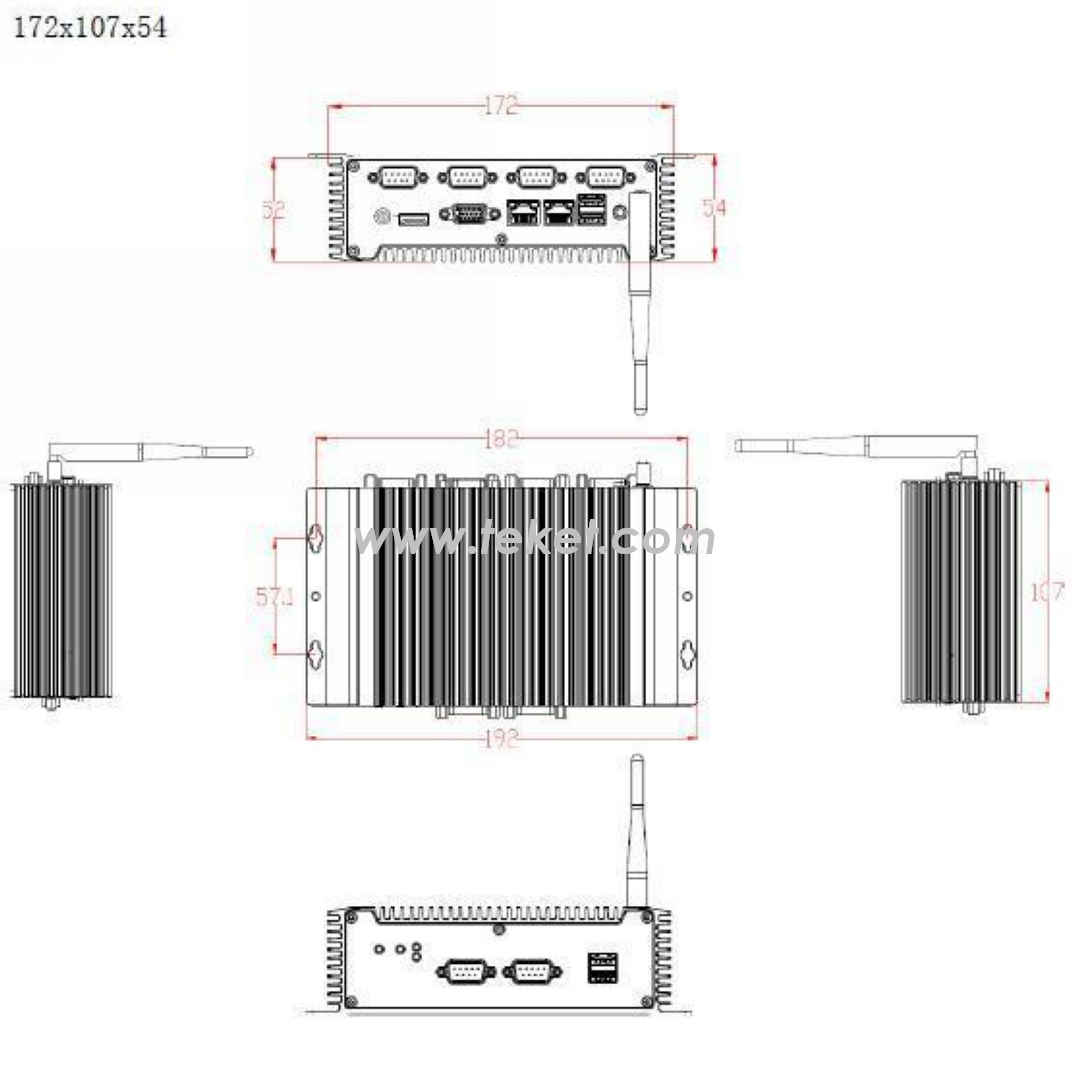

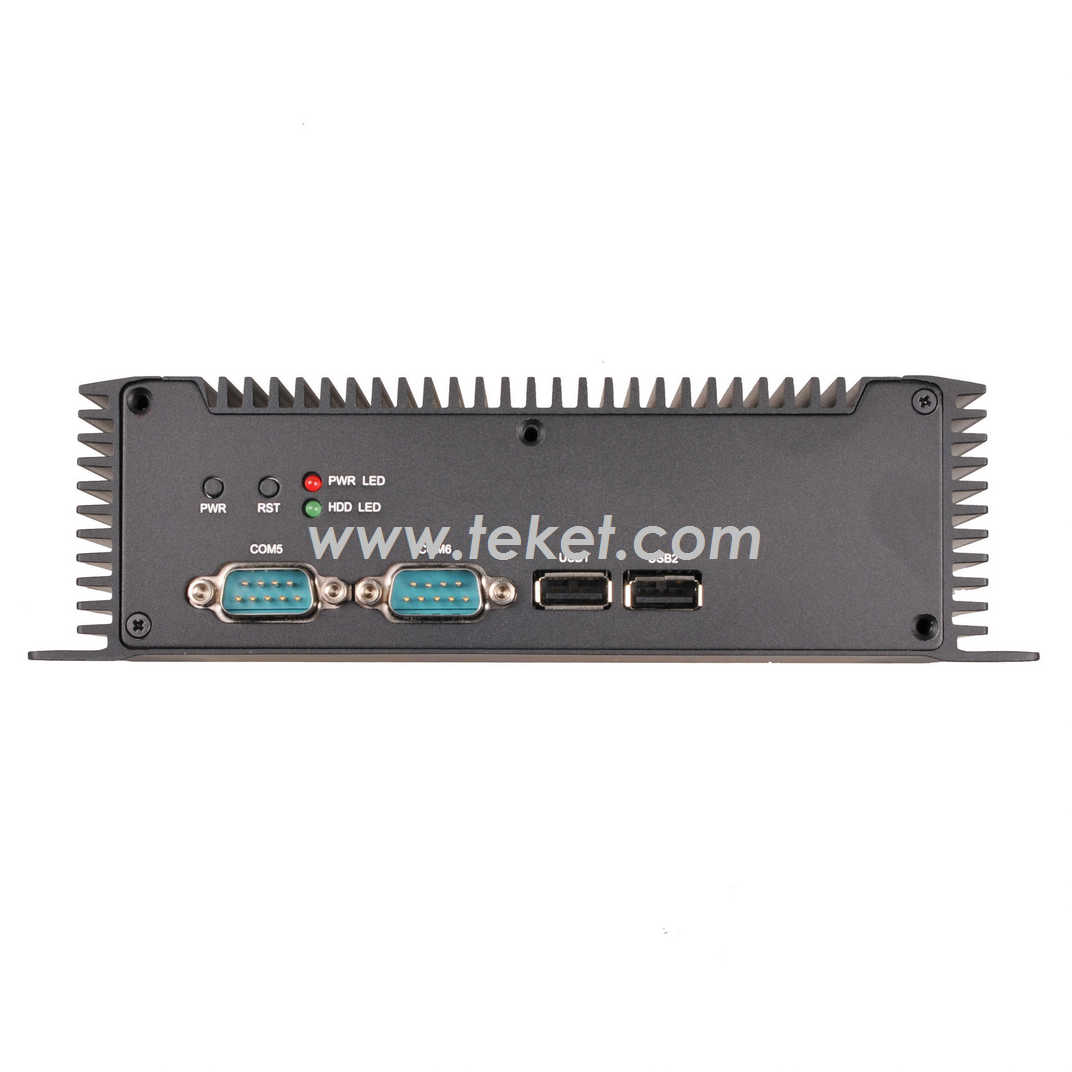

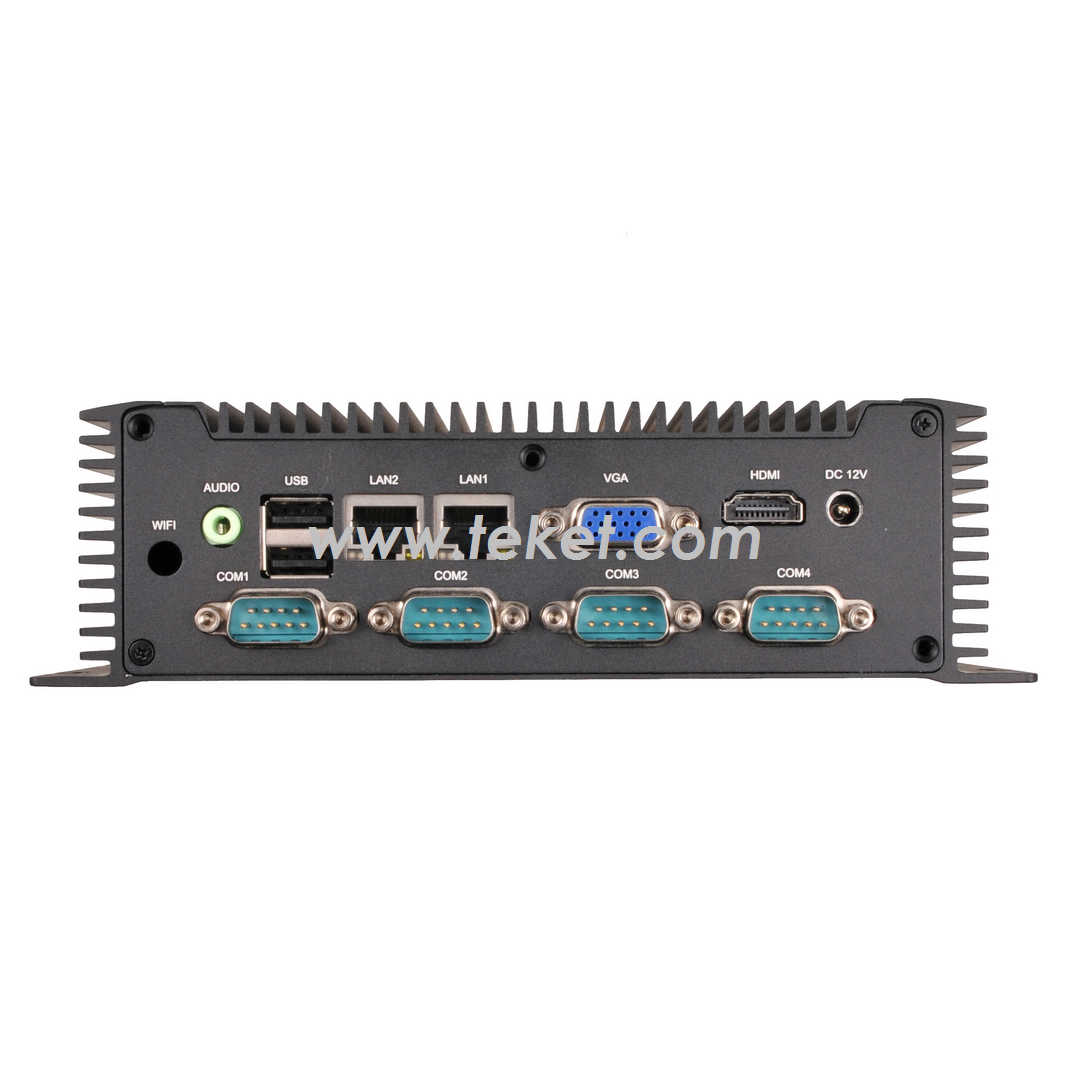

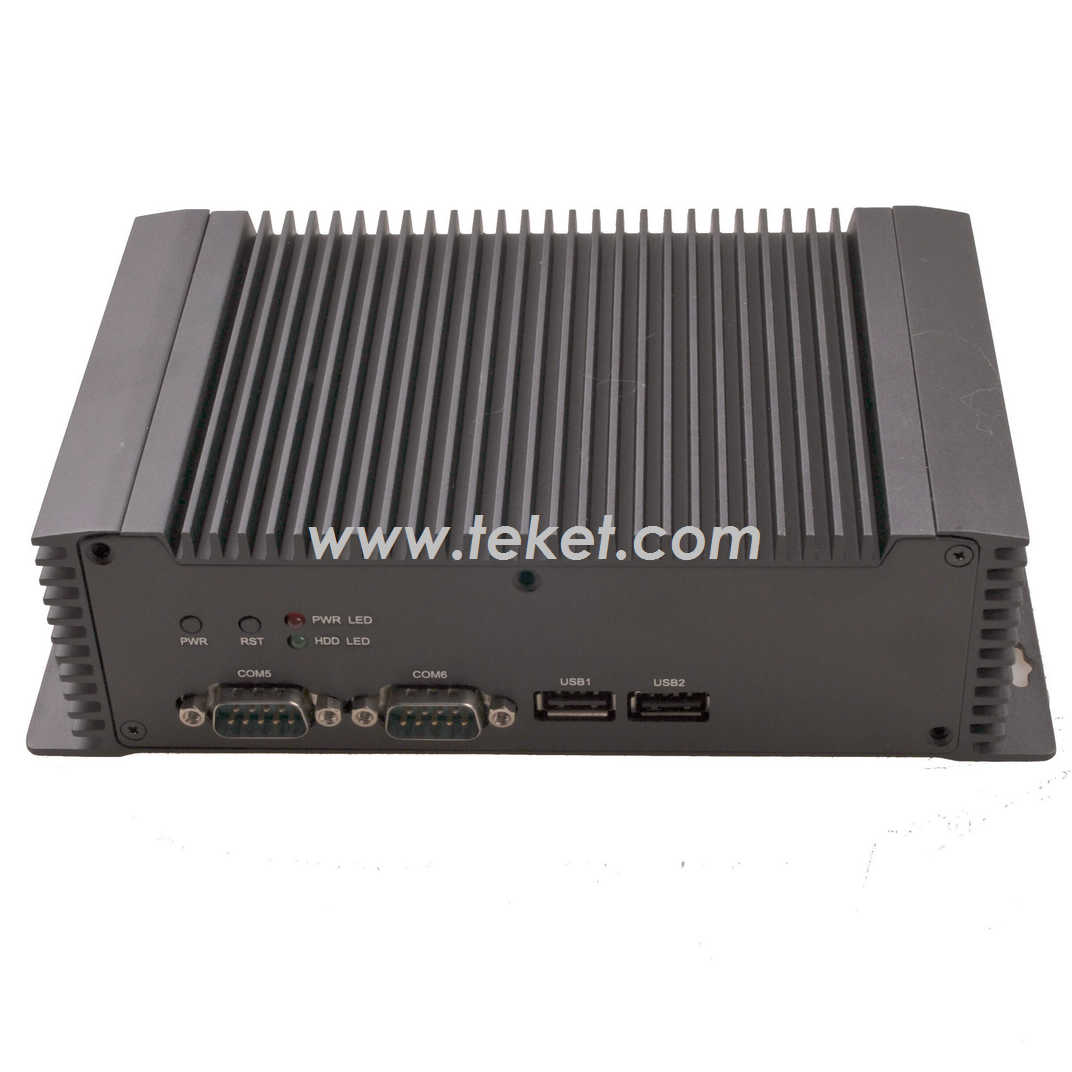

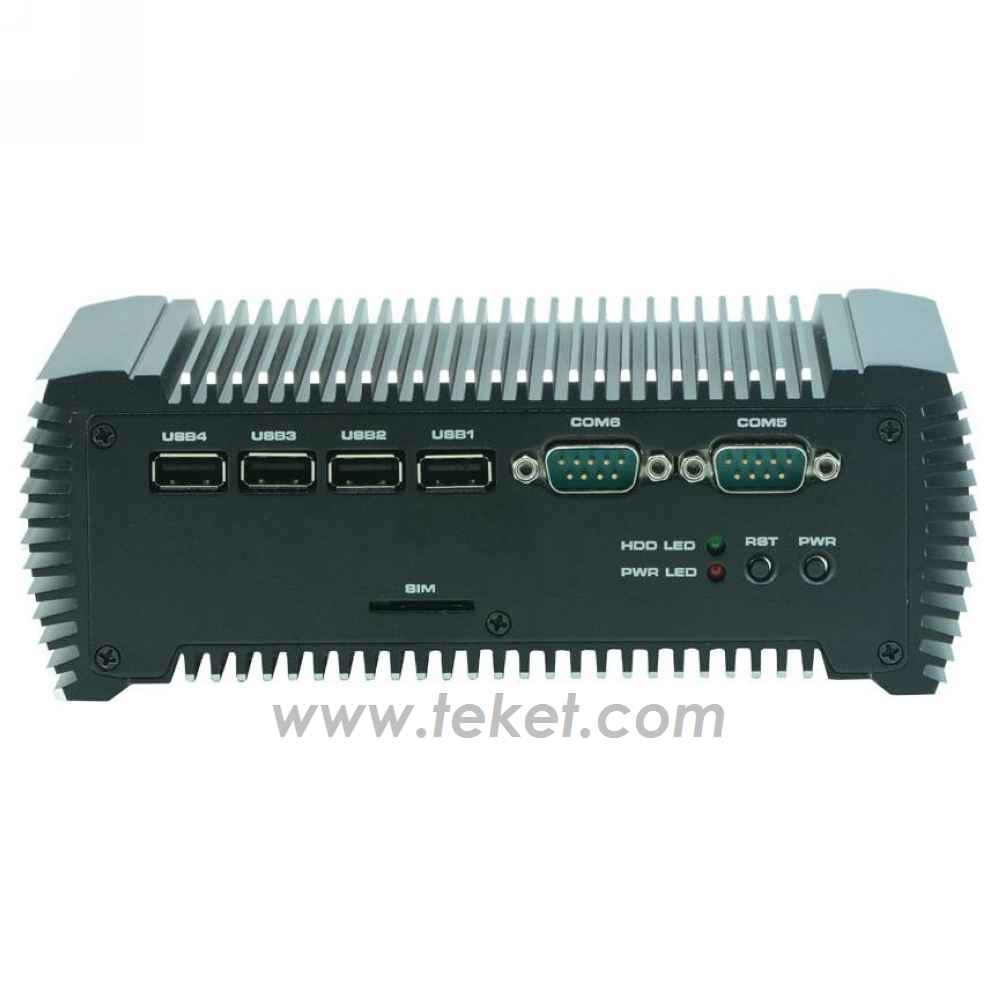

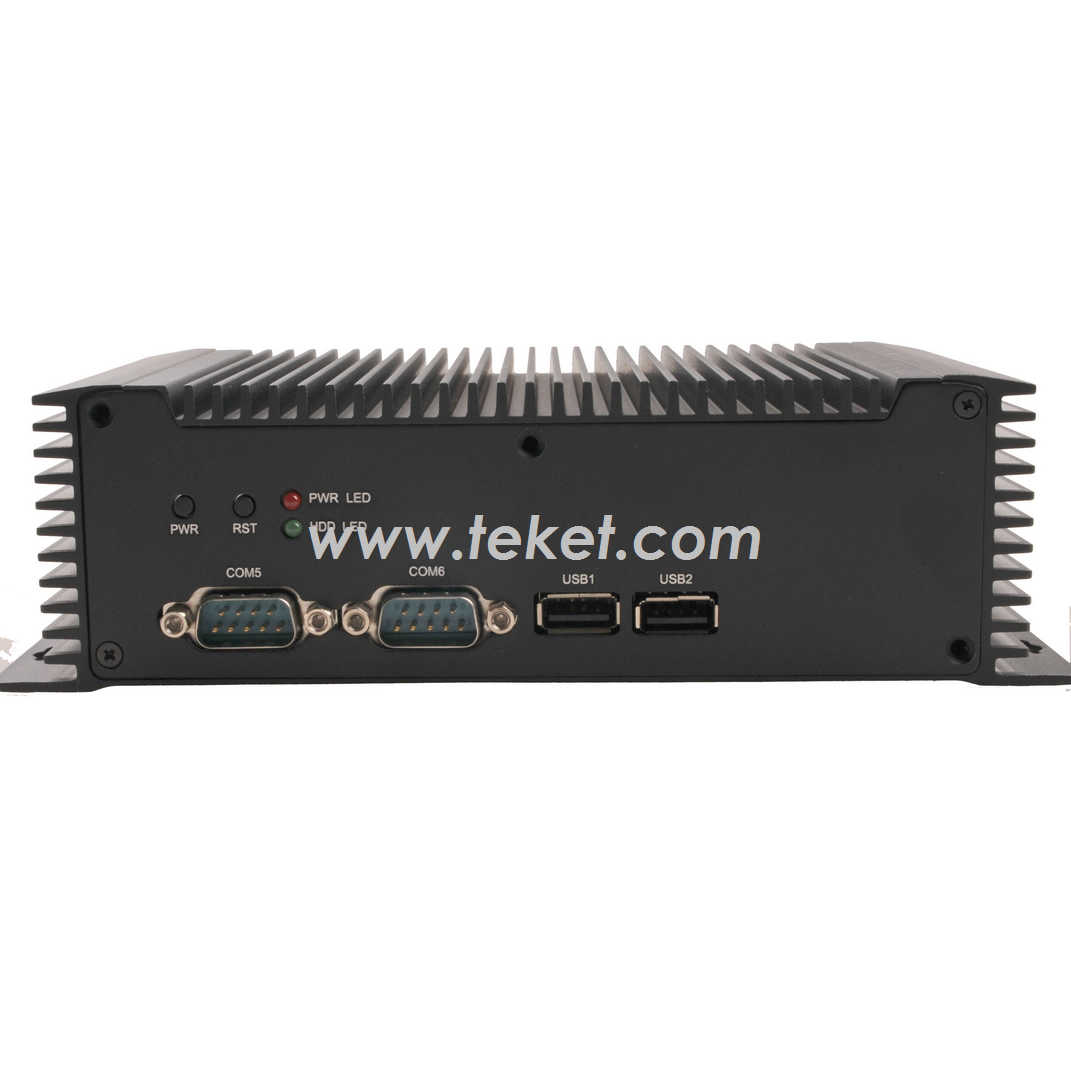

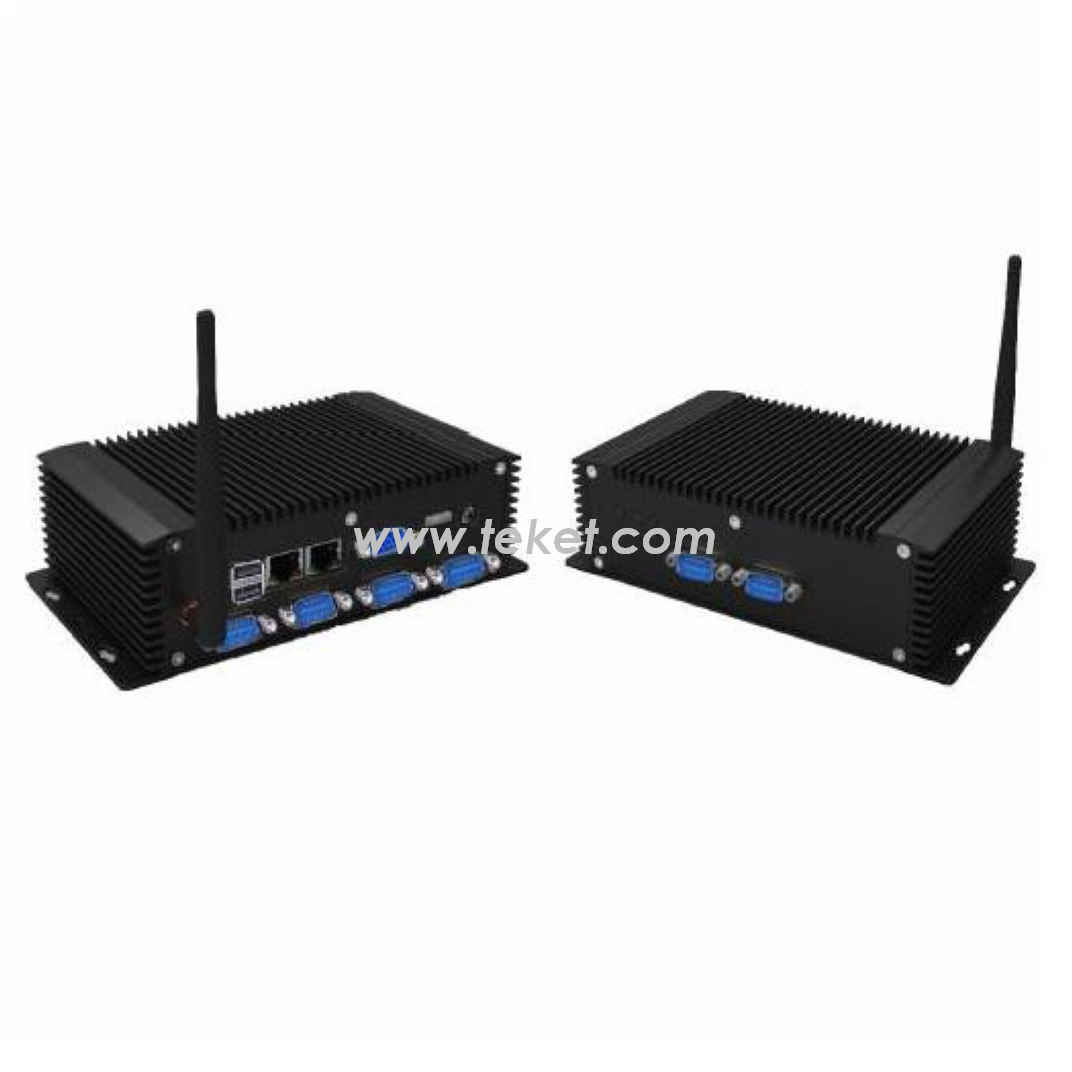

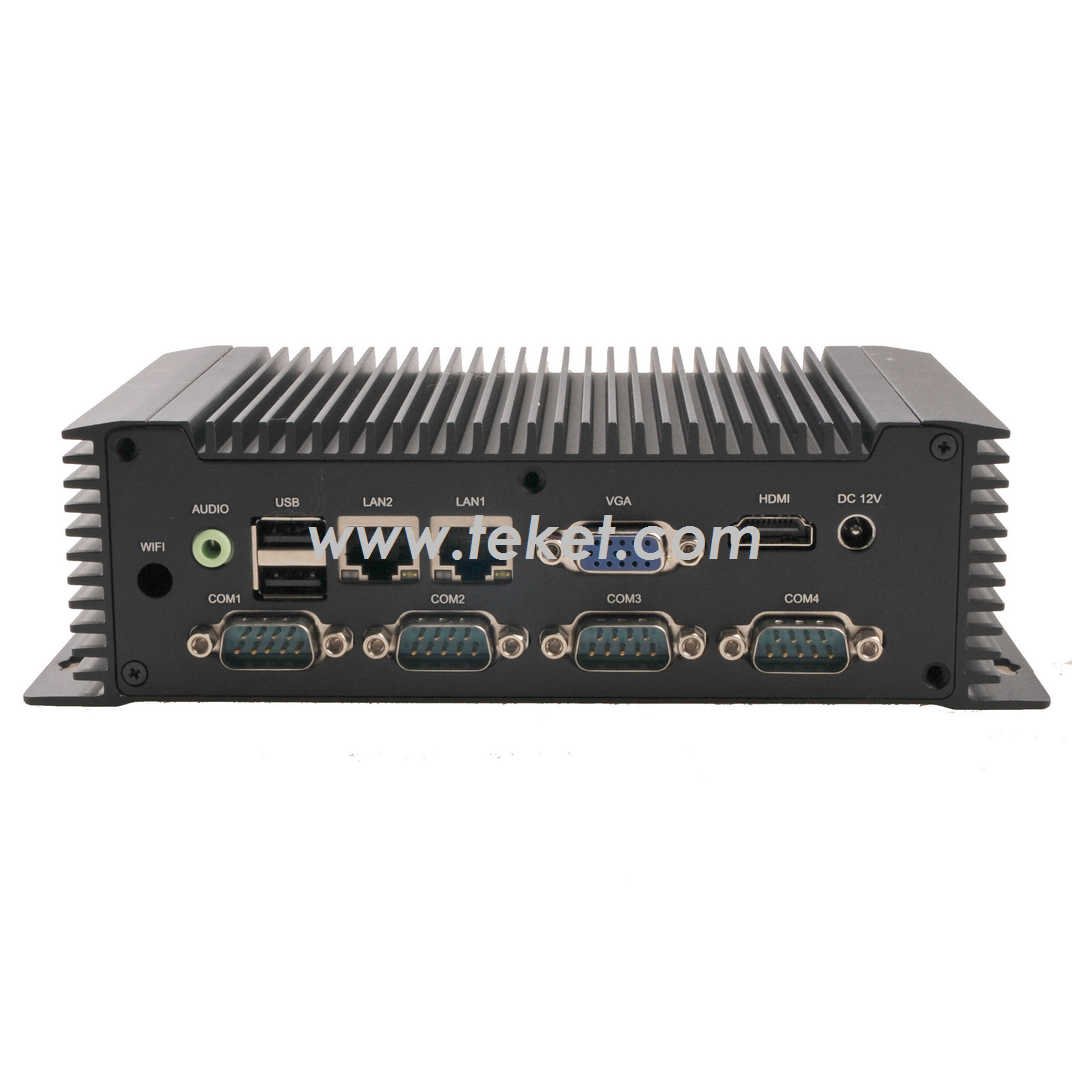

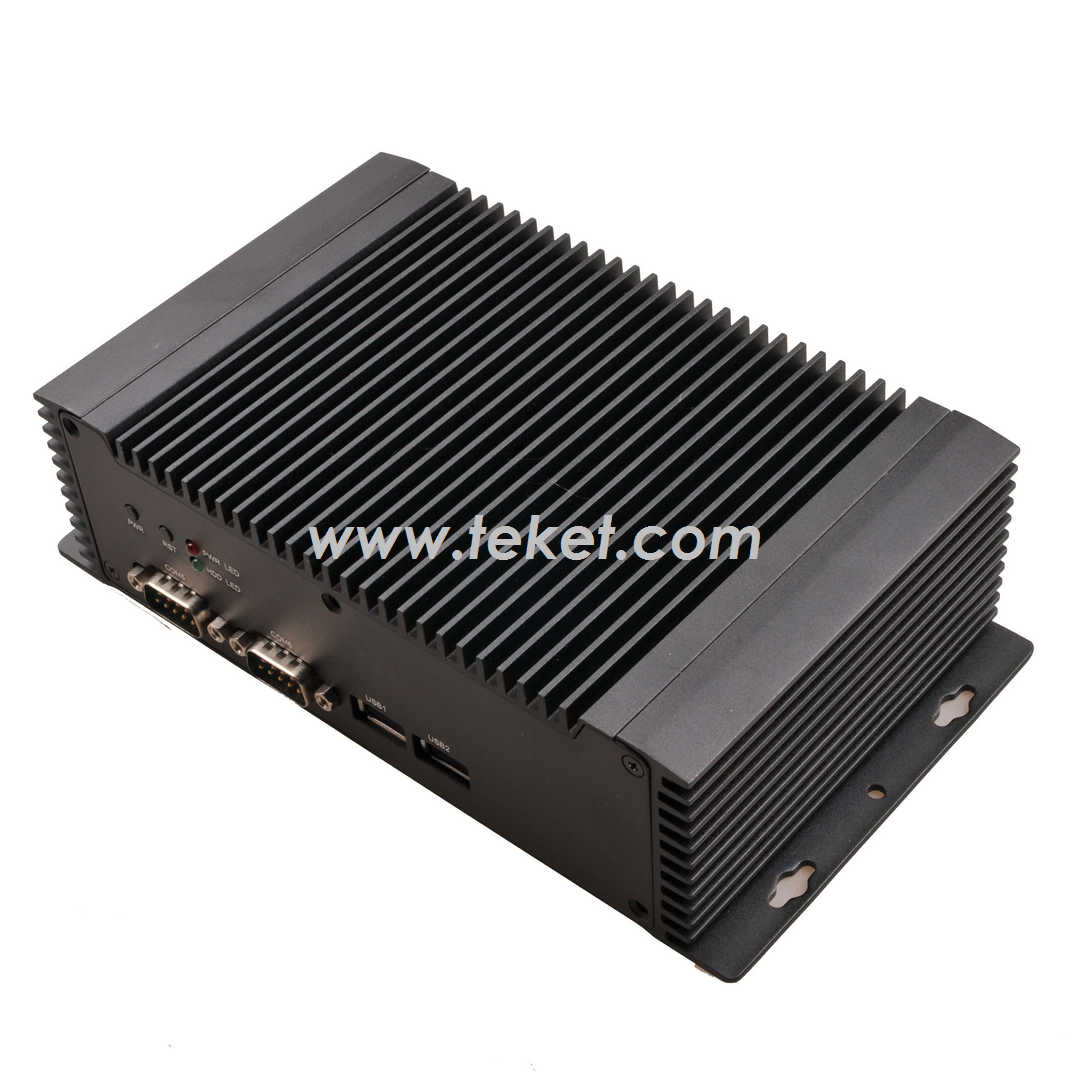

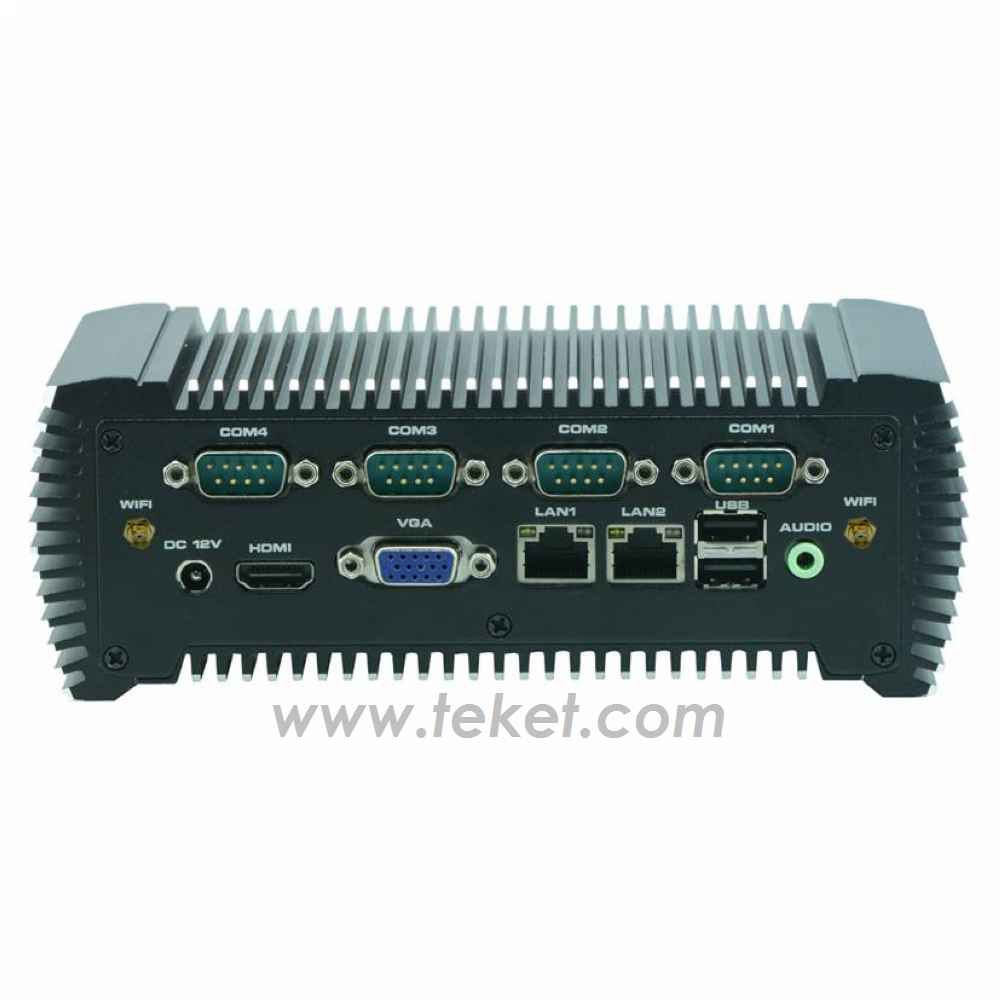

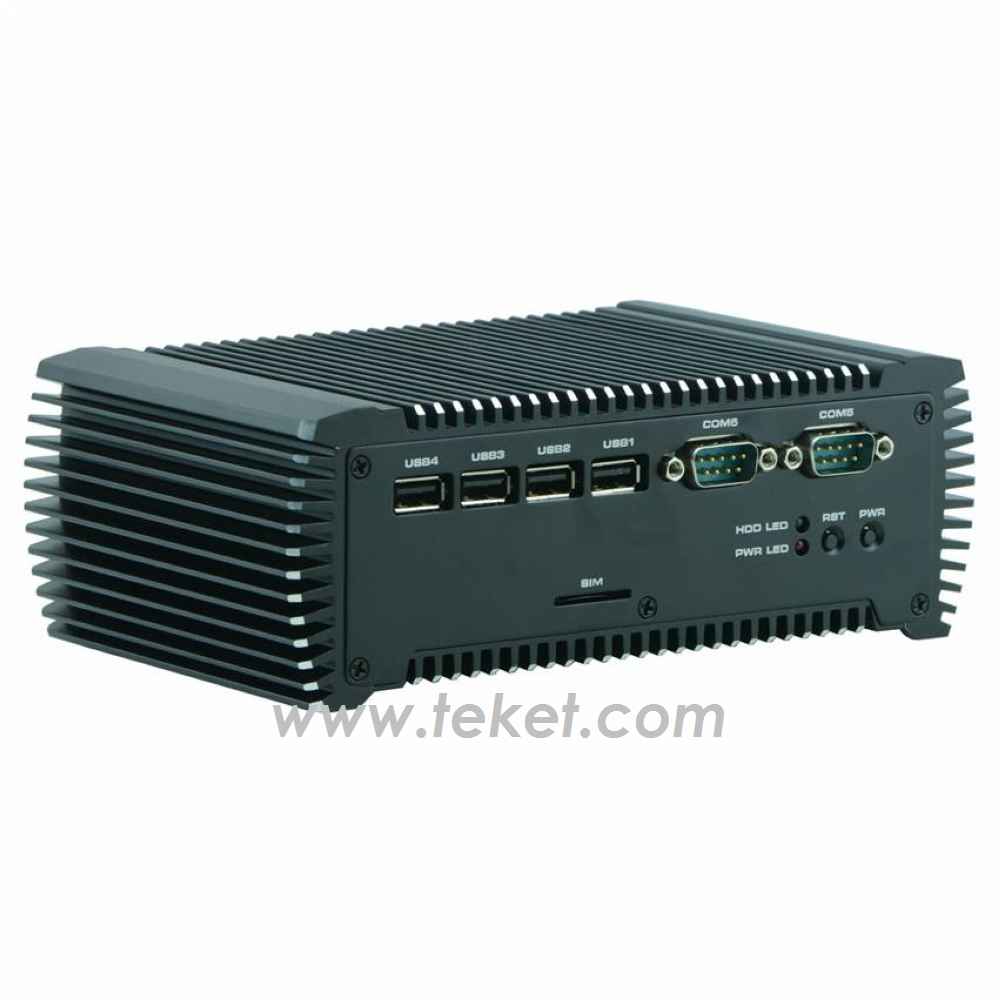

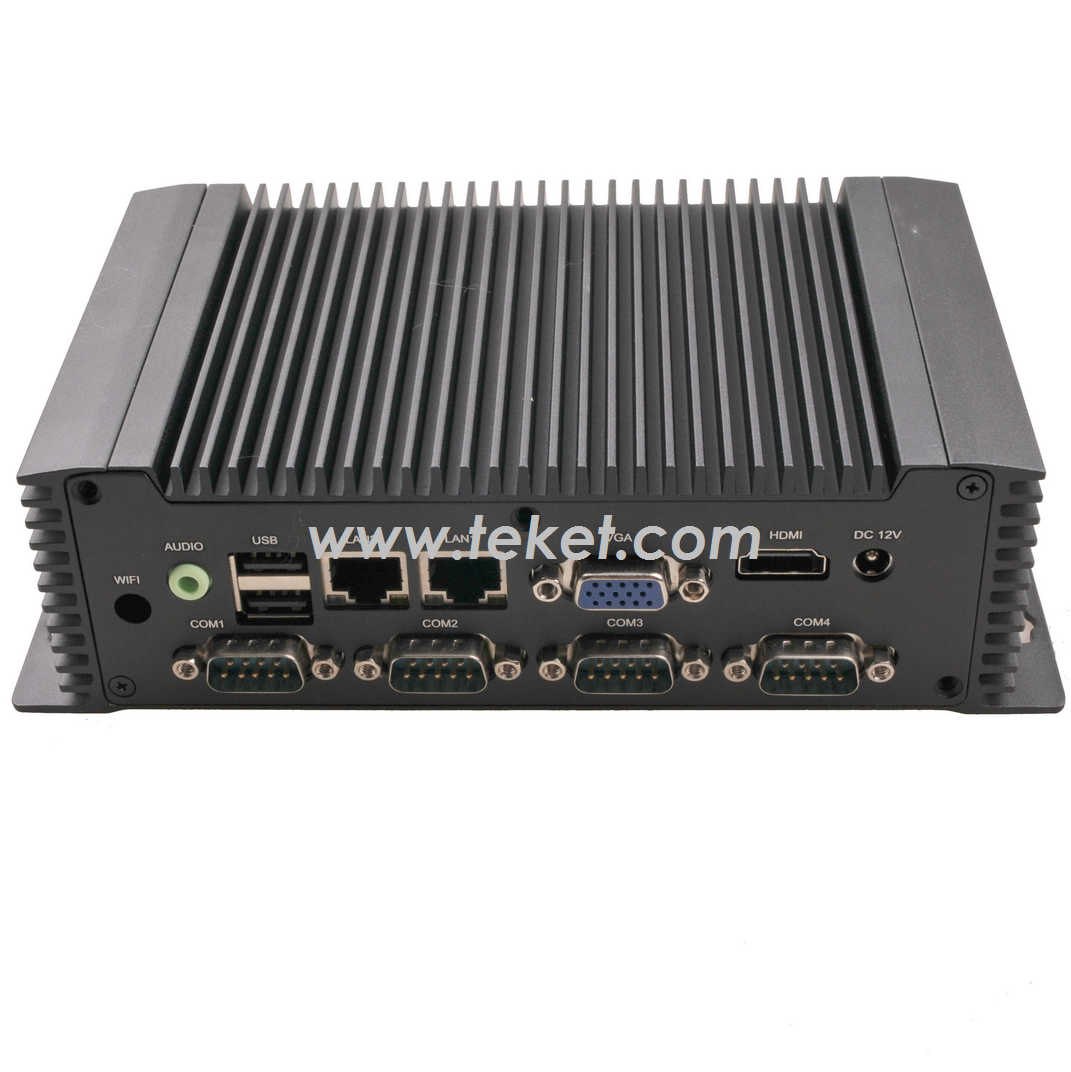

3.5" industrial pc with 6*COM HDMI WIFI fanless N26ECM V1.0 size 182*108*63.5mm

♦ Intel@Atom N2600/1.66G dual core CPU
♦ Intel®3600 Graphics
♦ 1*DDR3/1.5V/2GB memory

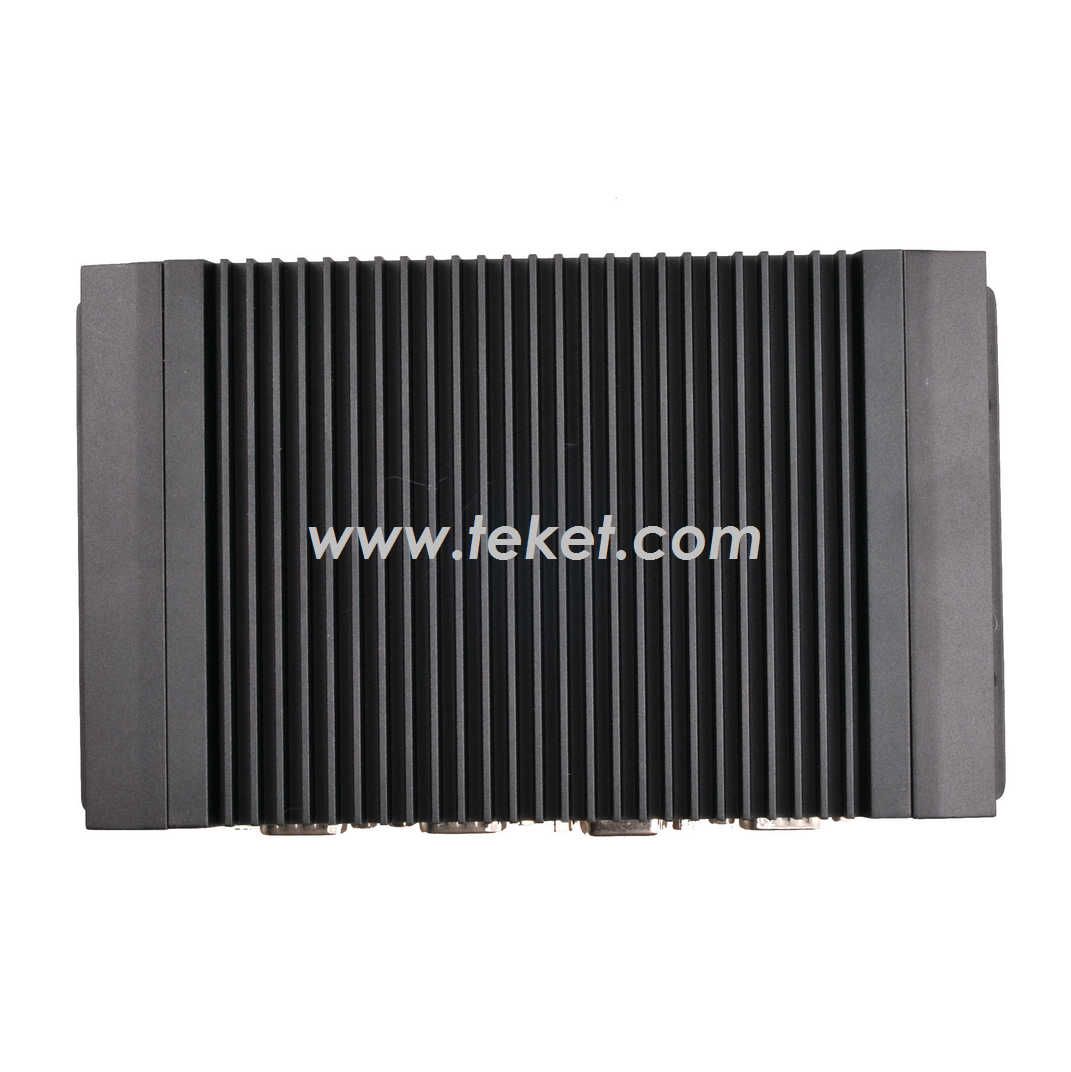

♦ Fanless heatsink structure
♦ Al alloy chassics, compact features,flexbile installation
♦ Support WIFI/3G moudle,provide a board SIM expansion slot
♦ 1*VGA/1*HDMI
♦ 2*RTL 8111E Gigabit ethernet port, support wake on LAN

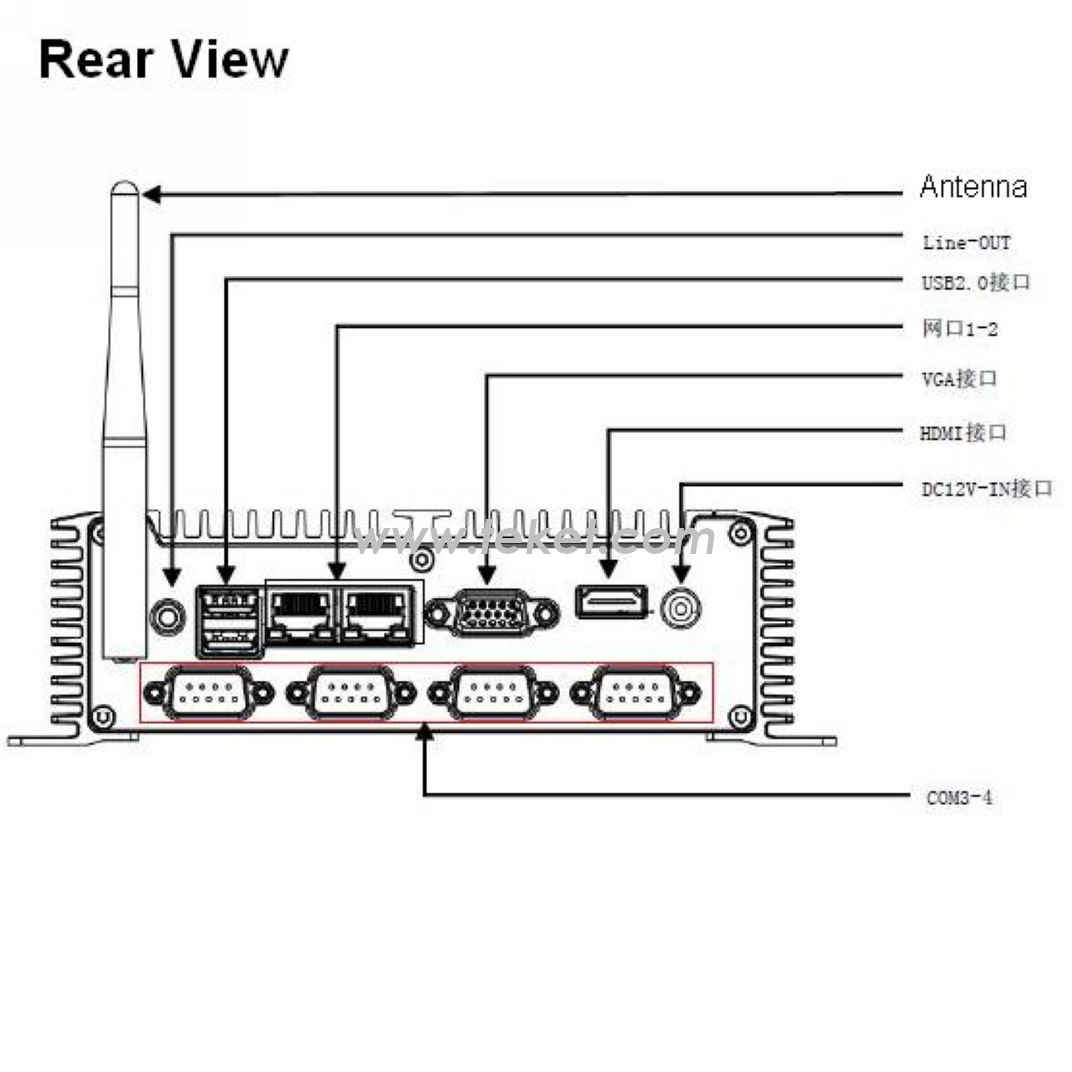

♦ I/O


Chassis
Color: Black
Size: 182mm*108mm*63.5mm (L*W*H)
Structure
AI alloy Fanless design
Material
AI alloy
Motherboard
Model No. N26ECM VER1.2
Processor
Intel@Atom N2600/1.66G dual core CPU
Graphics
Intel®3600 Graphics
Memory
1*DDR3/1.5V/2GB memory
Storage
2.5’ HDD N/A
CF N/A
SSD 64G/128G optional
System Feature
Ethernet 2* LAN (RTL 8111E)
USB 6* USB2.0
Serial Port 6* COM,COM2 supports RS485
Display 1* VGA/1*HDMI
Audio 1*Line-out
Expansion Interface
2* Mini PCIE (one is MSATA,the other one is WIFI interface)

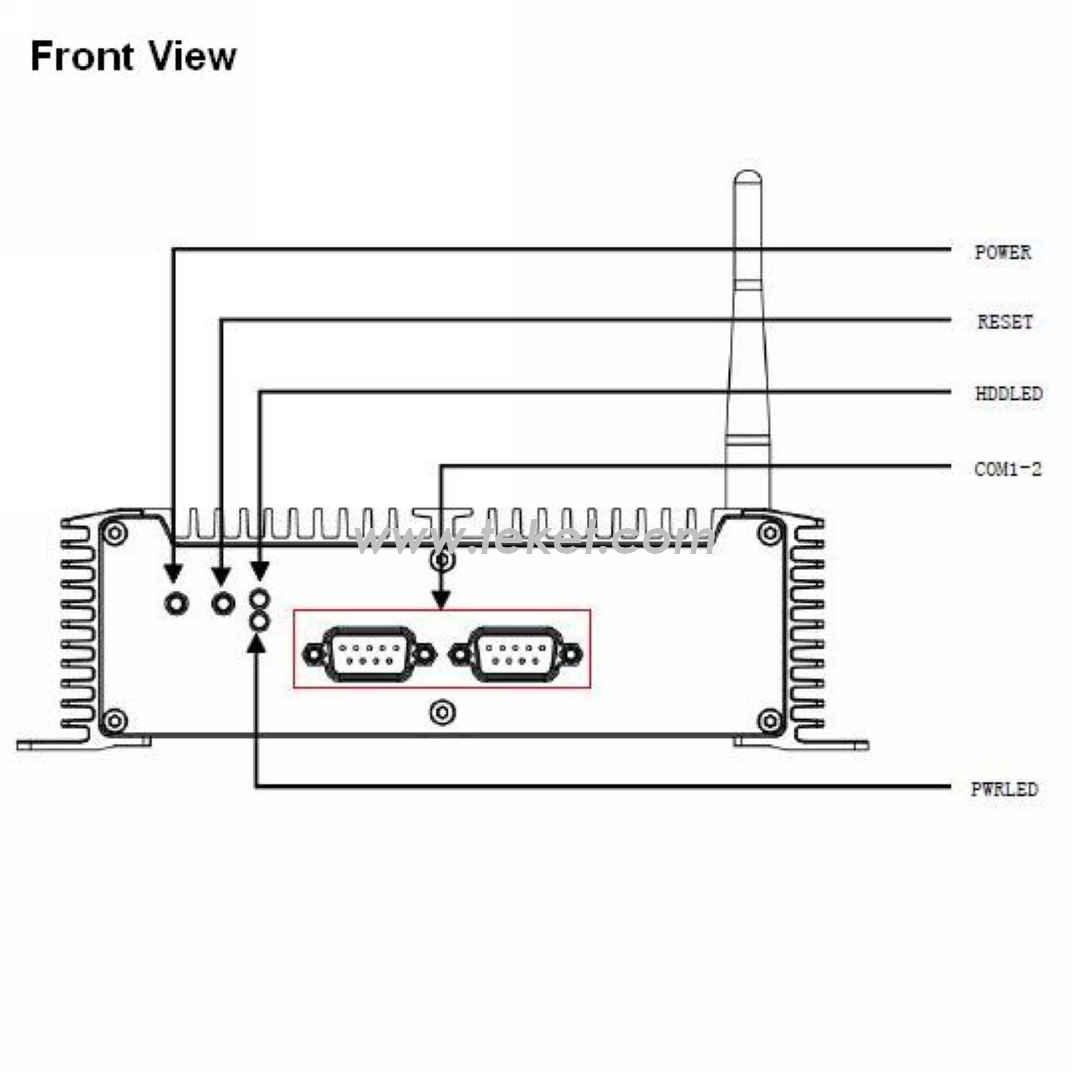

Indicator
1 for power state, 1 for HDD
System Control
Power switch
Wireless 2* WIFI/3G SMA antenna (optional)
Power
Power 12V/5A adapter
Reliability
Installation
Desktop or wall-mounted
Operating T
-10°C~60°C
Storage T
-20°C~70°C
Relative humidity
5%-95%, no condensing
Vibration
0.5g rms/5~500Hz/random operating
