>>Your Current Position: Mini PC Industal PC Series MINI PC

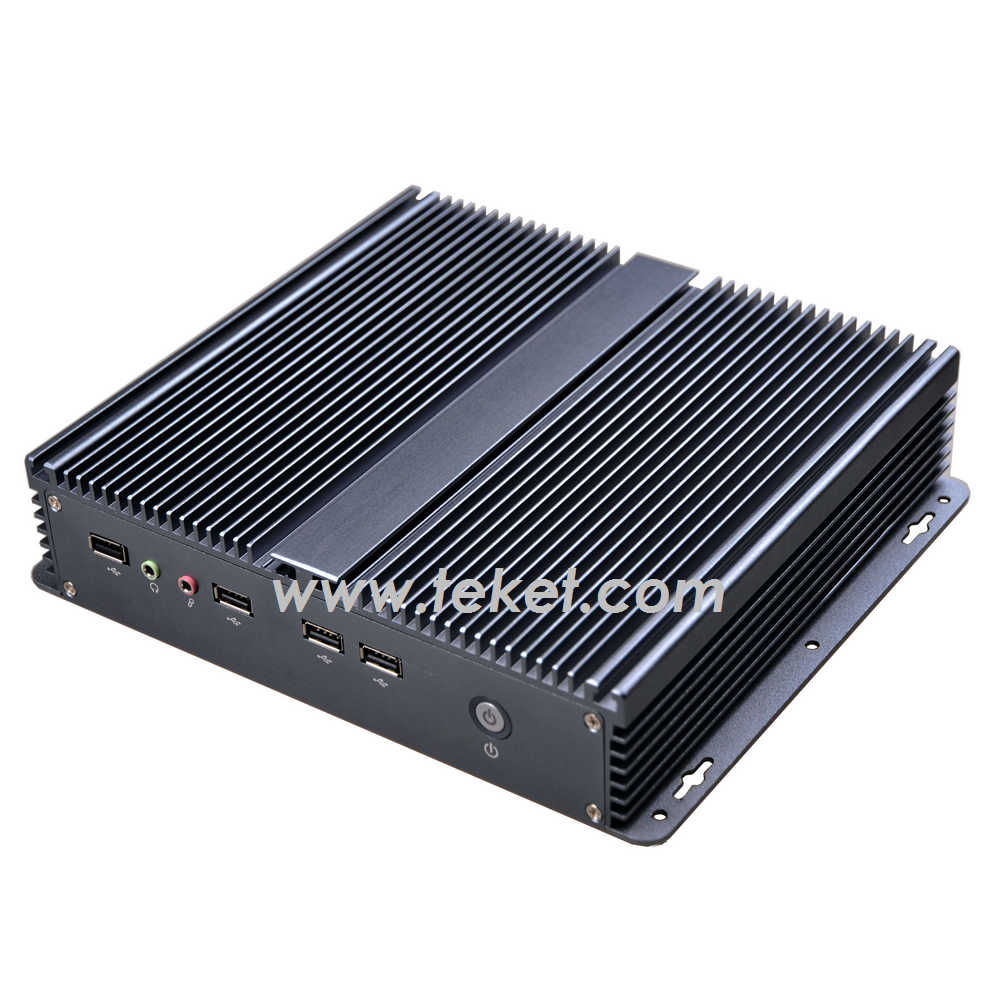

fanless mini-itx industrial pc built-in Intel orginal board D945GSEJT

Model: N270ECM
RAM: 1G/2G/4G
2.5" HDD or 2.5" SSD


For Industral

size: 234x204x54mm

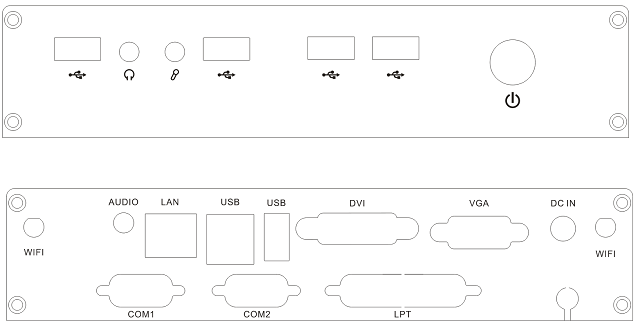

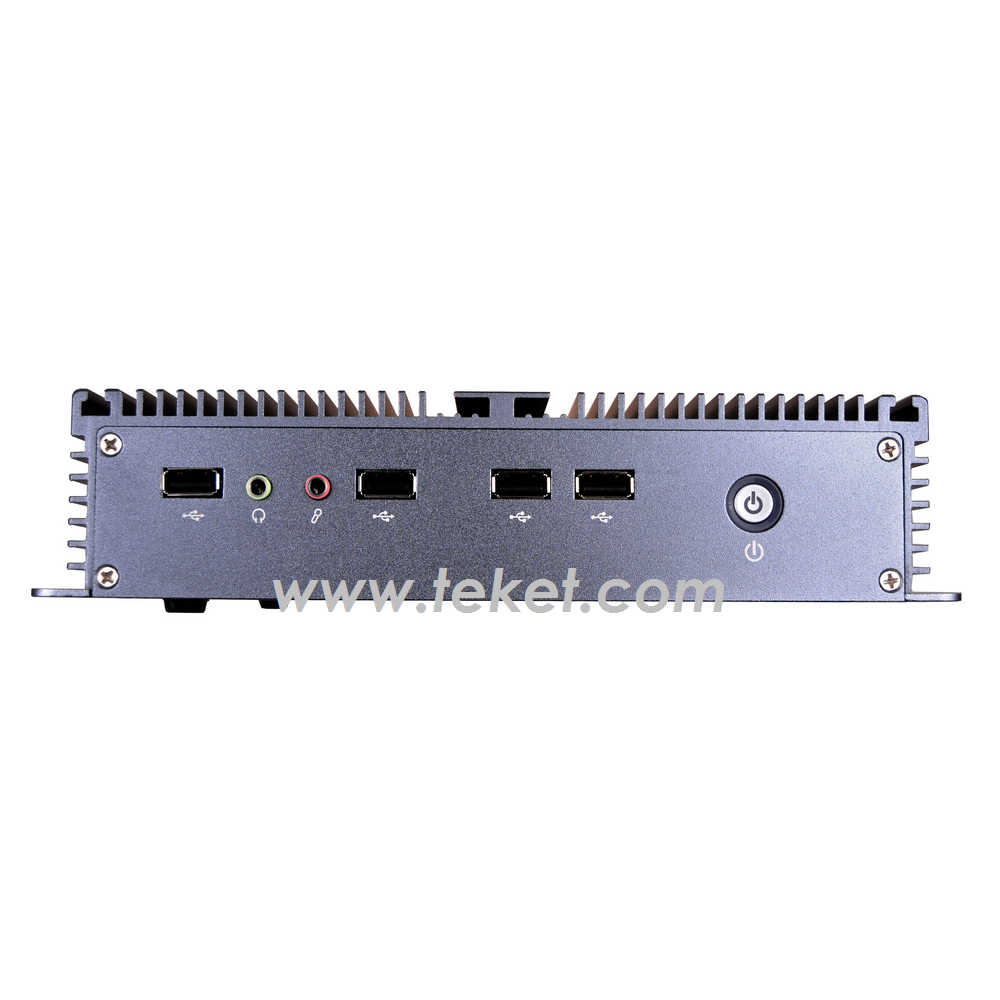

front:4*USB,2*AUDIO POWER,HDD_ED

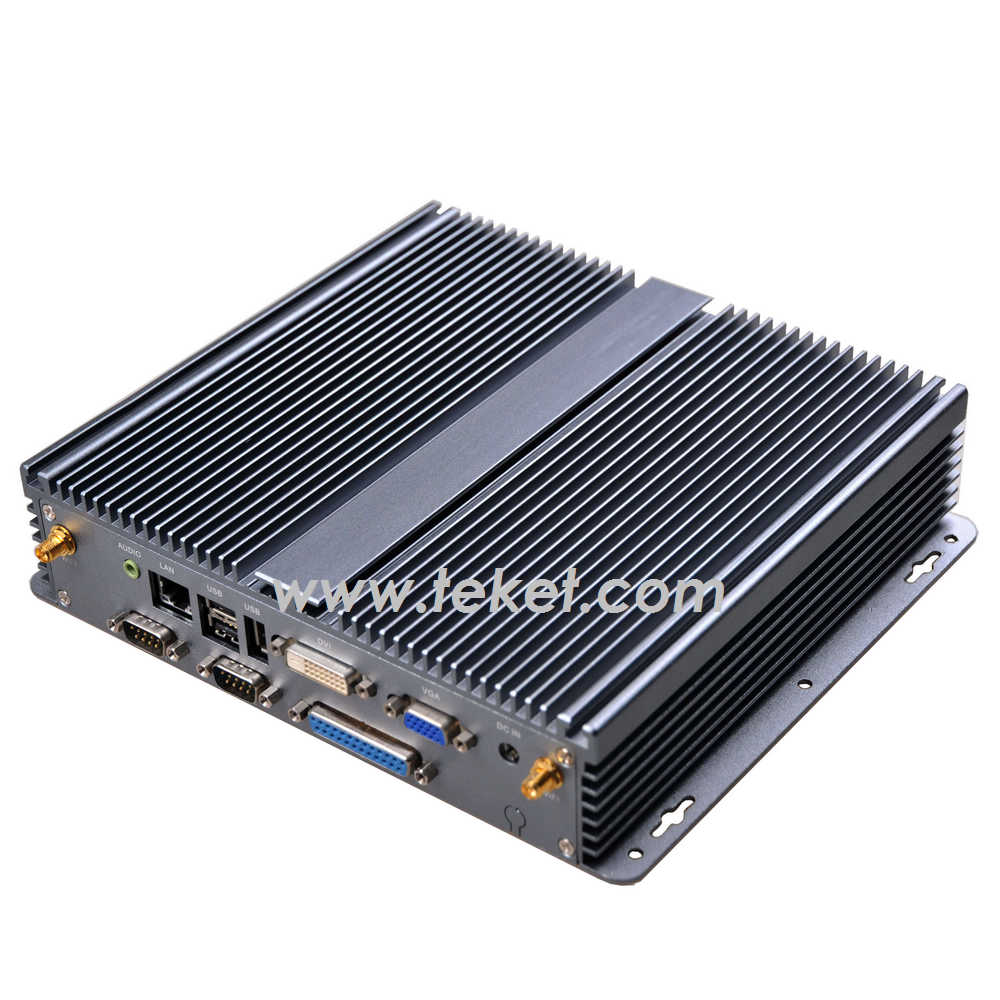

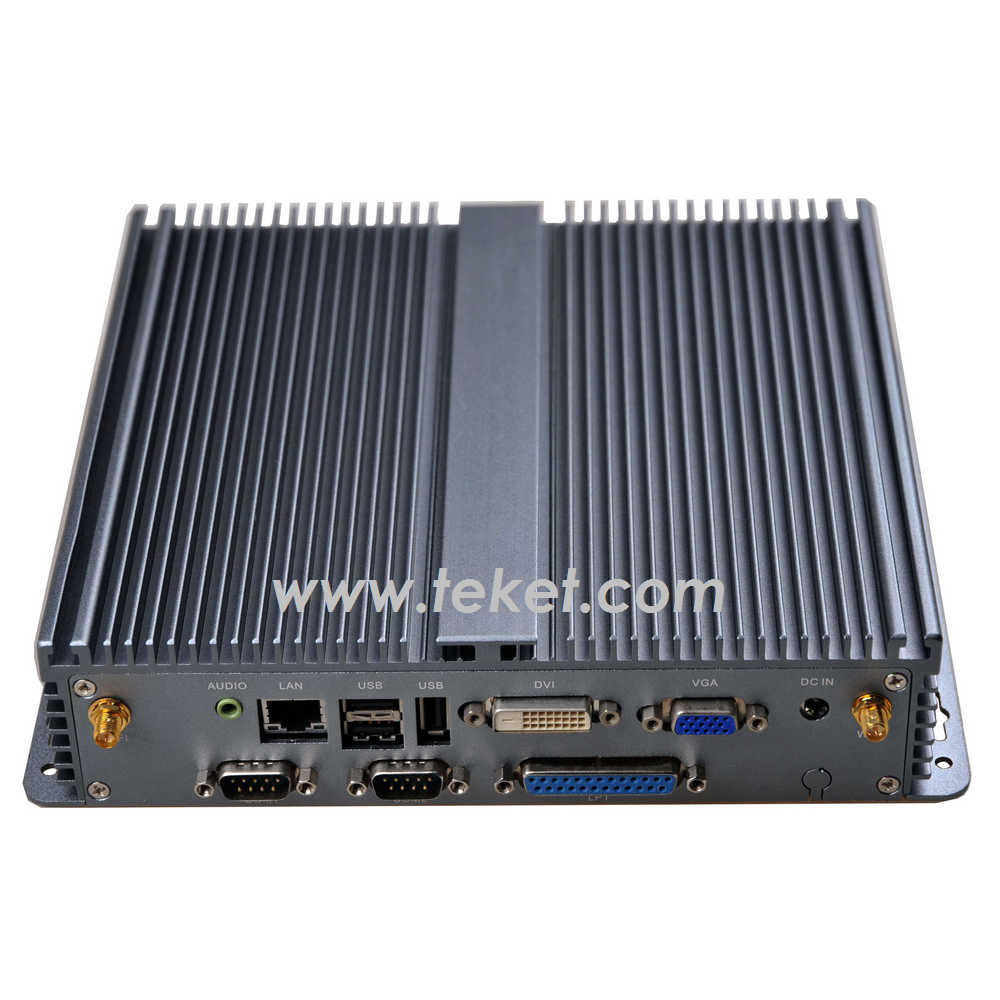

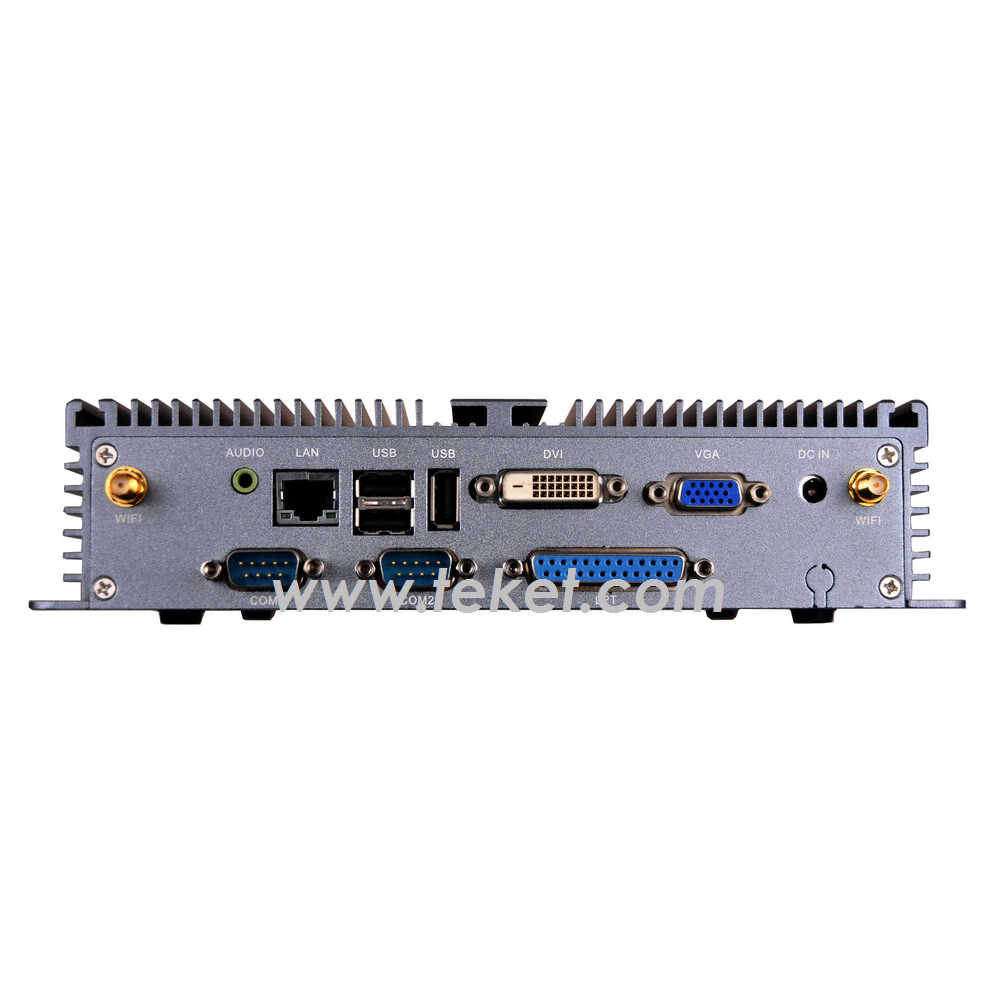

back: VGA,DVI,3*USB,LAN,LPT,2*COM,2*WIFI,AUDI,LVDS,DCIN

Feature Summary
Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170 millimeters
[6.7 inches] x 170 millimeters [6.7 inches])
Processor Passively-cooled, soldered-down Intel? Atom? processor N270
Main Memory * One 200-pin Double Data Rate 2 (DDR2) Small Outline Dual Inline
Memory Module (SO-DIMM) socket with gold-plated contacts
* Support for DDR2 533 MHz SO-DIMMs (DDR2 800 MHz and
DDR2 667 MHz validated to run at 533 MHz only)
* Support for up to 2 GB of system memory
Chipset Mobile Intel? 945GSE Express Chipset consisting of:
* Intel? 82945GSE Express Chipset Graphics and Memory Controller
Hub (GMCH)
* Intel? 82801GBM I/O Controller Hub (ICH7-M)
Graphics * Integrated graphics via the Intel? Graphics Media Accelerator 950
(Intel? GMA 950) with support for:
* Analog displays (VGA)
* Digital displays (DVI-D)
Audio * RealTek* ALC662 audio codec
* Support for Intel? High Definition Audio
* Support for 2 + 2-channel (stereo) audio
* Onboard S/PDIF header

Expansion
Capabilities
One PCI* bus add-in card connector
One PCI Express* Full-Mini Card slot
Peripheral
Interfaces
* Seven USB 2.0 ports including:
D Three ports routed to the back panel
D Four ports routed to two onboard USB headers (one header
supporting an Intel? Z-U130 USB Solid-State Drive)
* One parallel ATA (PATA) interface (44-pin) with ATA-100/66 support
* Two Serial ATA (SATA) (3.0 Gb/s) connectors and one power
connector
* One parallel port header
* Two serial port headers
* One PS/2* keyboard header
BIOS * Intel? BIOS
* Support for Advanced Configuration and Power Interface (ACPI),
Plug and Play, and SMBIOS
LAN Support * 10/100/1000 Mb/s (Gigabit) Ethernet LAN Subsystem using a
RealTek* 8111DL Gigabit Ethernet Controller
Power
Management
* Support for Advanced Configuration and Power Interface (ACPI)
* Wake on USB, PCI, PCI Express, PS/2, LAN, and front panel

*Antennas (2*WIFI antennas option)


Power supply: 110-240VAC to 12V5A
Temp: -20~60
Humidity: 0-90% no-condensing
Dimension: 234*204*54mm(L*W*H)
Weight: 2.5kgs

Package
outer size: 5pcs/ctn,ctn size 695*335*290mm,14.68kgs (10.18kgs, w/o motherboatrd,ram, ssd and adaptor)
