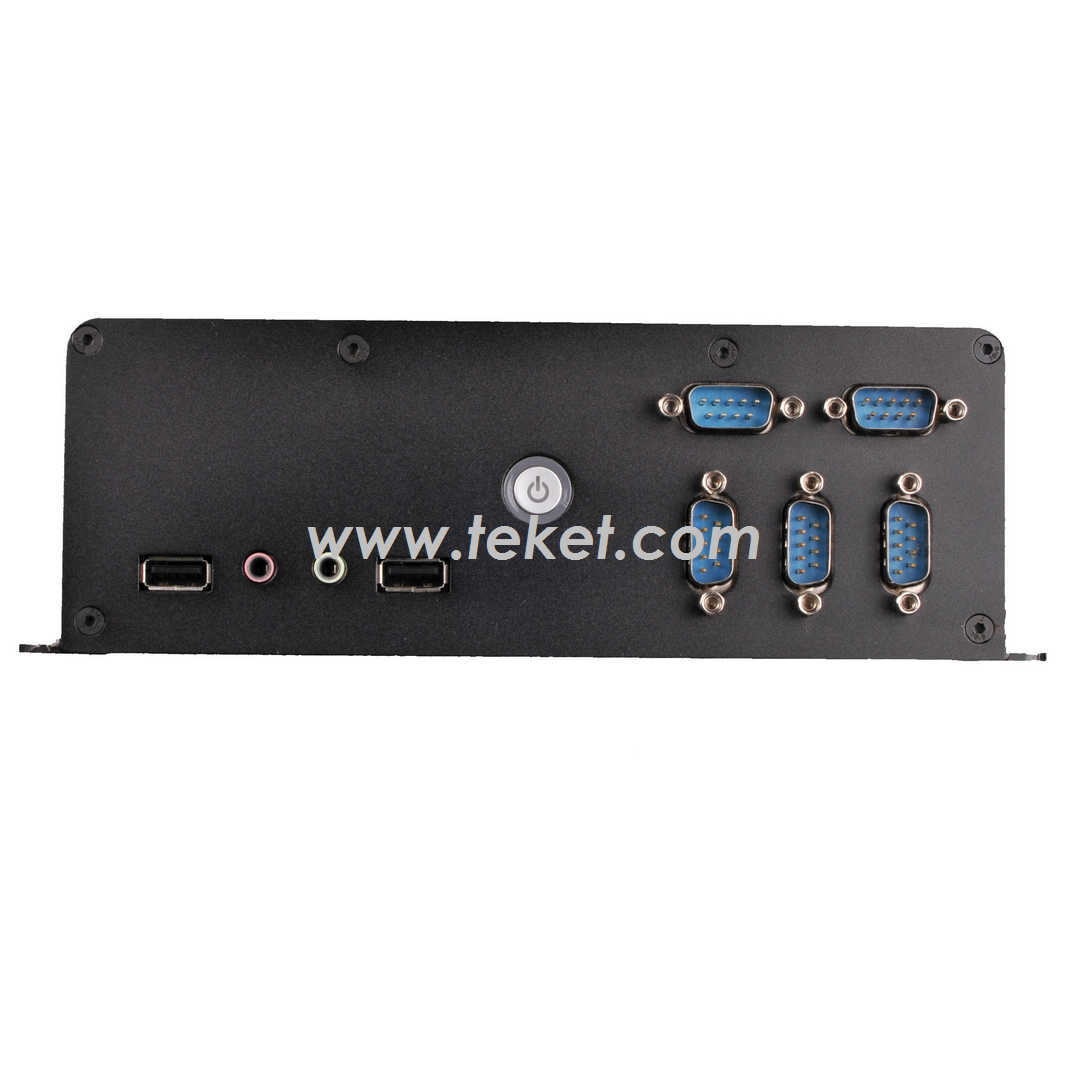

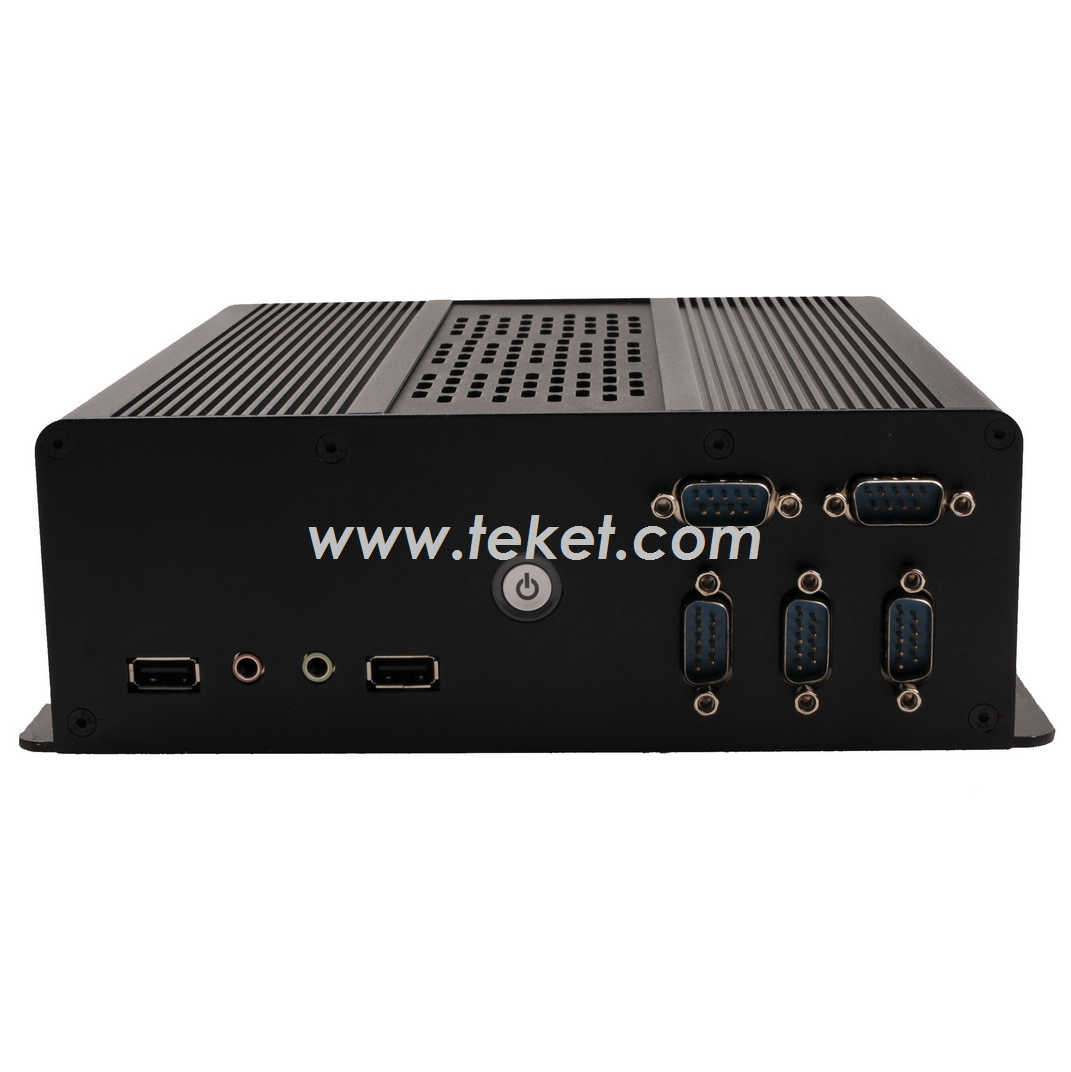

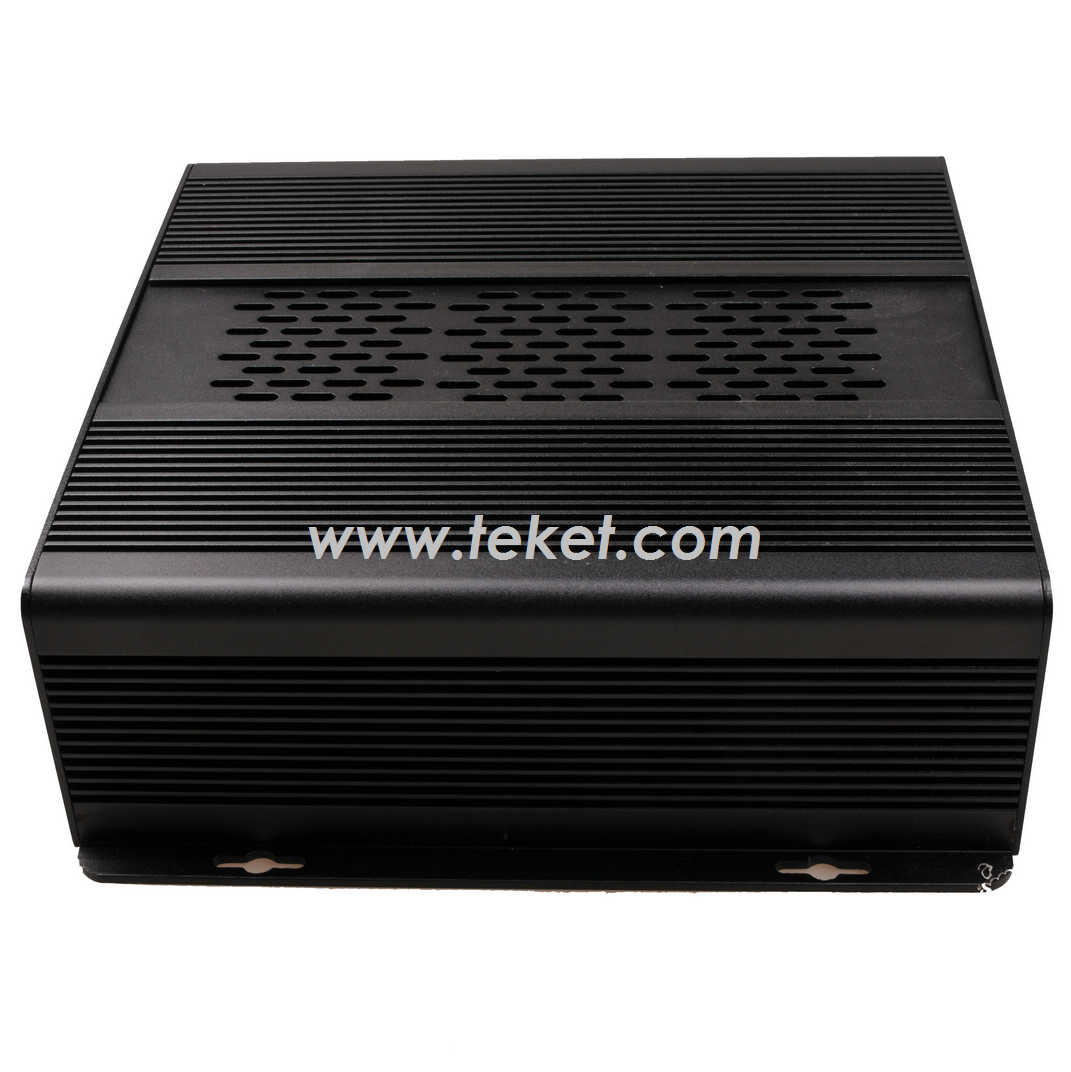

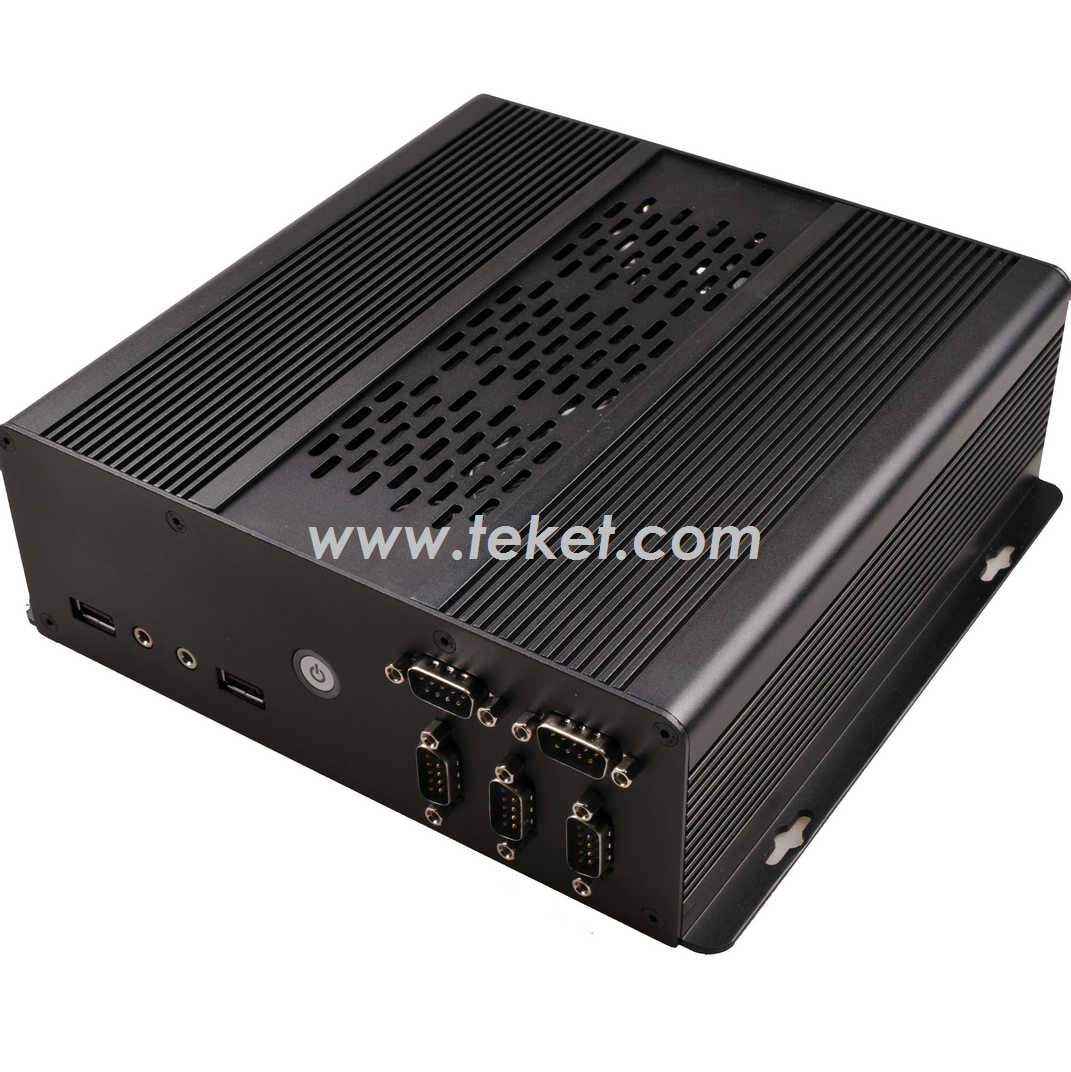

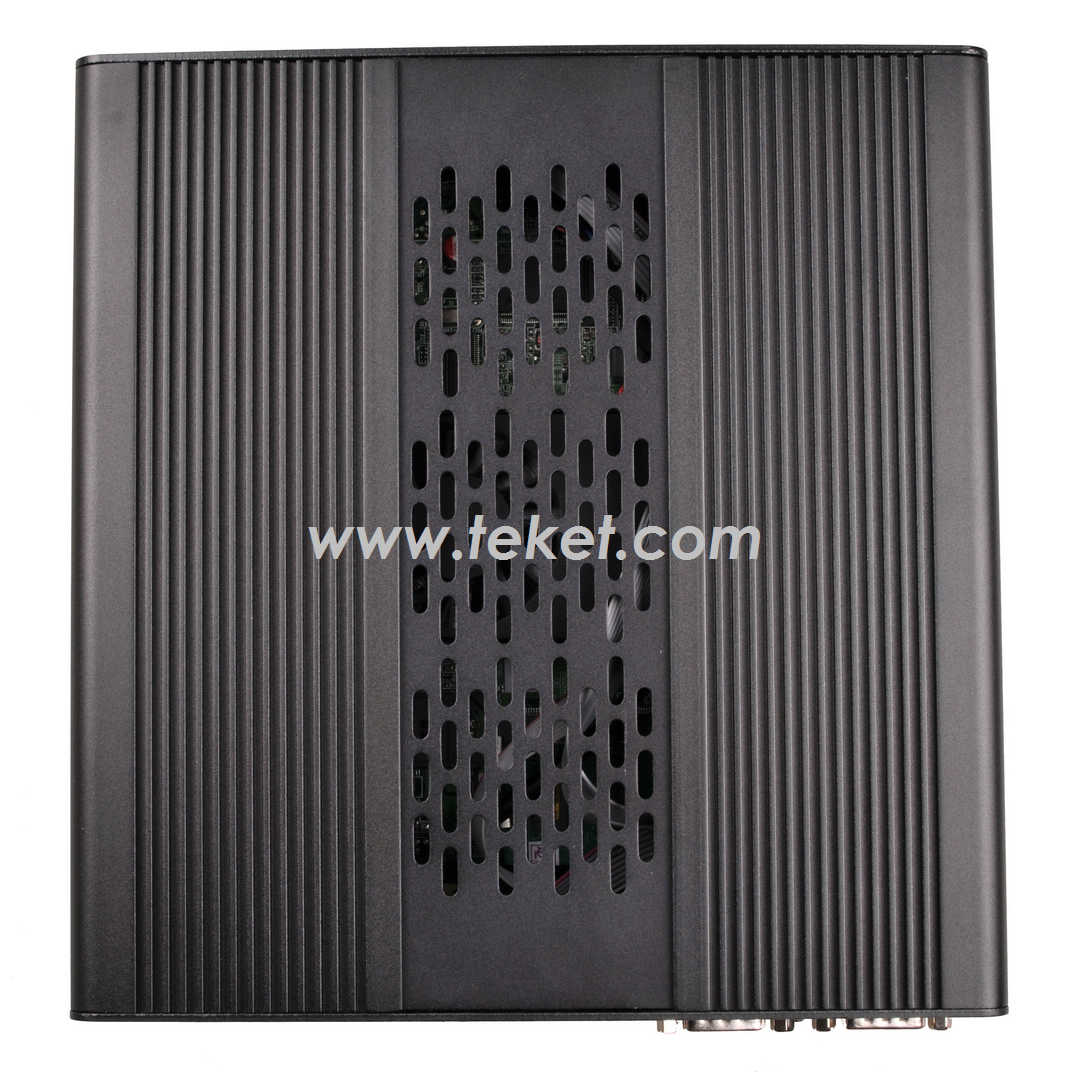

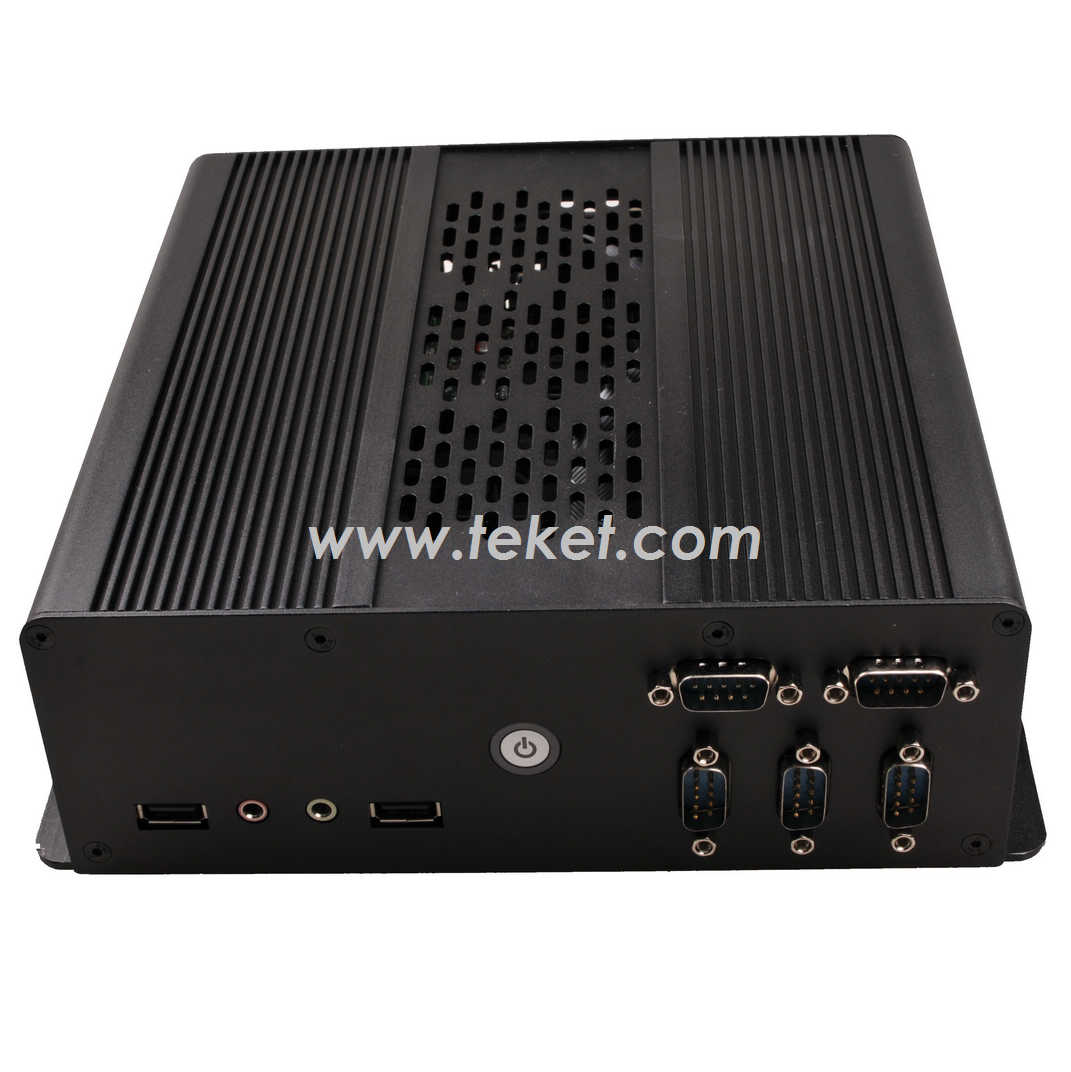

Fanless Mini-itx embedded industrial pc with 4/5/6 com multi serial ports

Model: A05ECM
Motherboard Model: D945GSETE,D945GSEAB,E350TE1,E250TE2,D425M4S1,D525M5S1,D2550H1,D2700H1,D2550SL,D2550GL,N2800ME
C1037UM,C1037EM,C1037US,C1037F (these boards support 4 or more serial ports/com ports)
Please check the corresponding motherboard specifications.

more spec: http://www.teket.com/en/motherboard/intel/d425m4s1.htm

Atom D425 Mini-ITX Motherboard D425M4S1 with 12VDC




Specification
Design: Mini-ITX form factor; PCB size: 17.0x17.0cm
Chipset: Intel Pine Trail-D+NM10 Chipset
Embedded CPU: ATOM CPU
Memory Socket:
204-pin DDR3 SODDIMM slot x1
Support DDR3 667/800 MHz DDR3 memory modules
Expandable to 2 GB
Expansion Slot:
 32-bit PCI slot x 1
 Mini-PCIE slot x1
LAN:
Integrated Realtek RTL8105E/RTL8111E PCI-E Gigabit LAN
Support Fast Ethernet LAN function of providing
10Mb/100Mb/1000Mb Ethernet data transfer rate
Audio:
ALC662 6-channel Audio Codec integrated
Audio driver and utility included
BIOS: AMI 8MB DIP Flash ROM

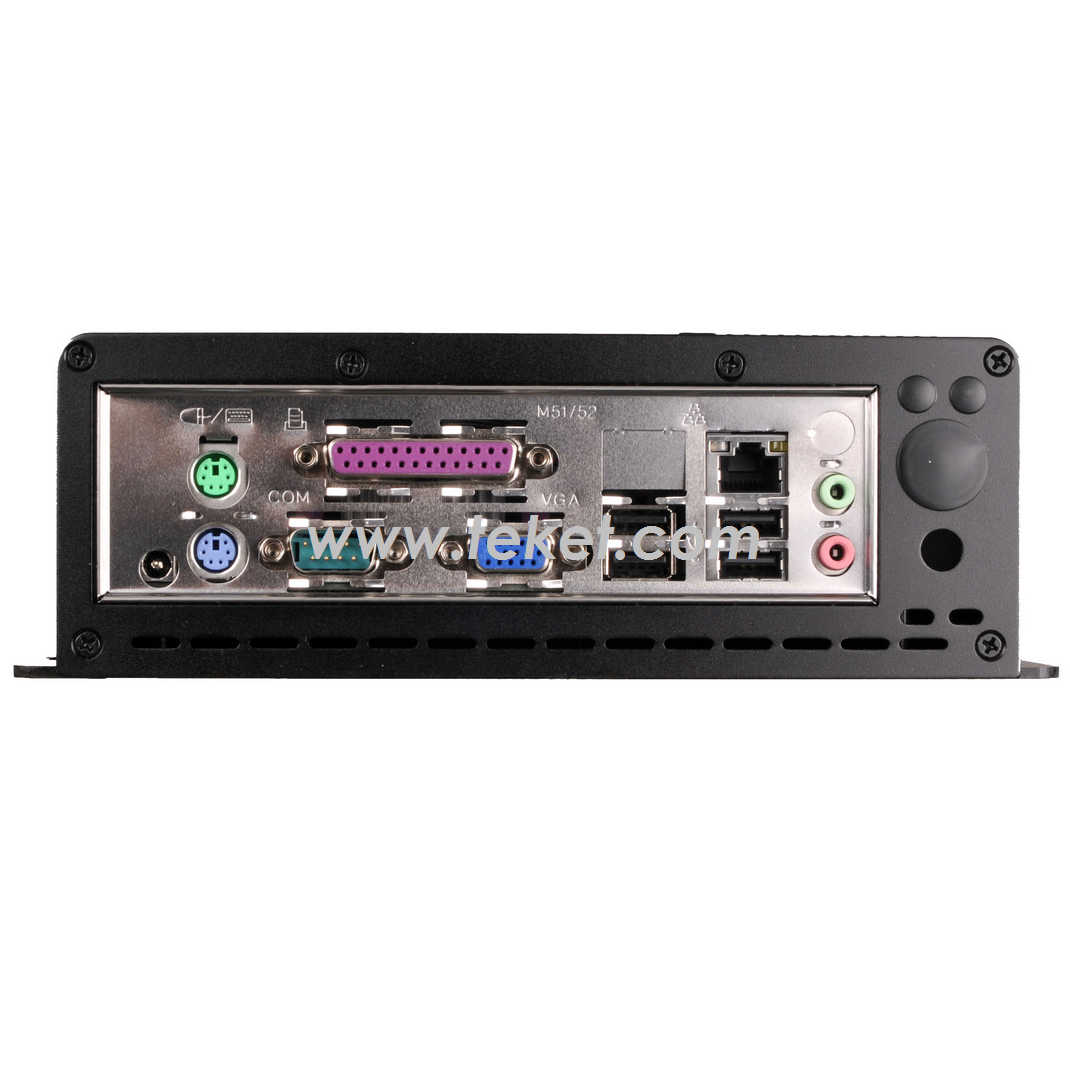

Multi I/O
PS/2 keyboard connector x1
 PS/2 mouse connector x1
Serial port connector x1
VGA port connector x1
Parallel port Connector x1
USB port connector x4 USB header x2
RJ-45 LAN connector x1 or 2
Audio connector x1 (Line-in, Line-out)
SATAII Connector x2
Front panel audio header x1
Serial port header x1_2.54
RS232 header x1 2*15_2.00
LVDS header x1 (24bits)
