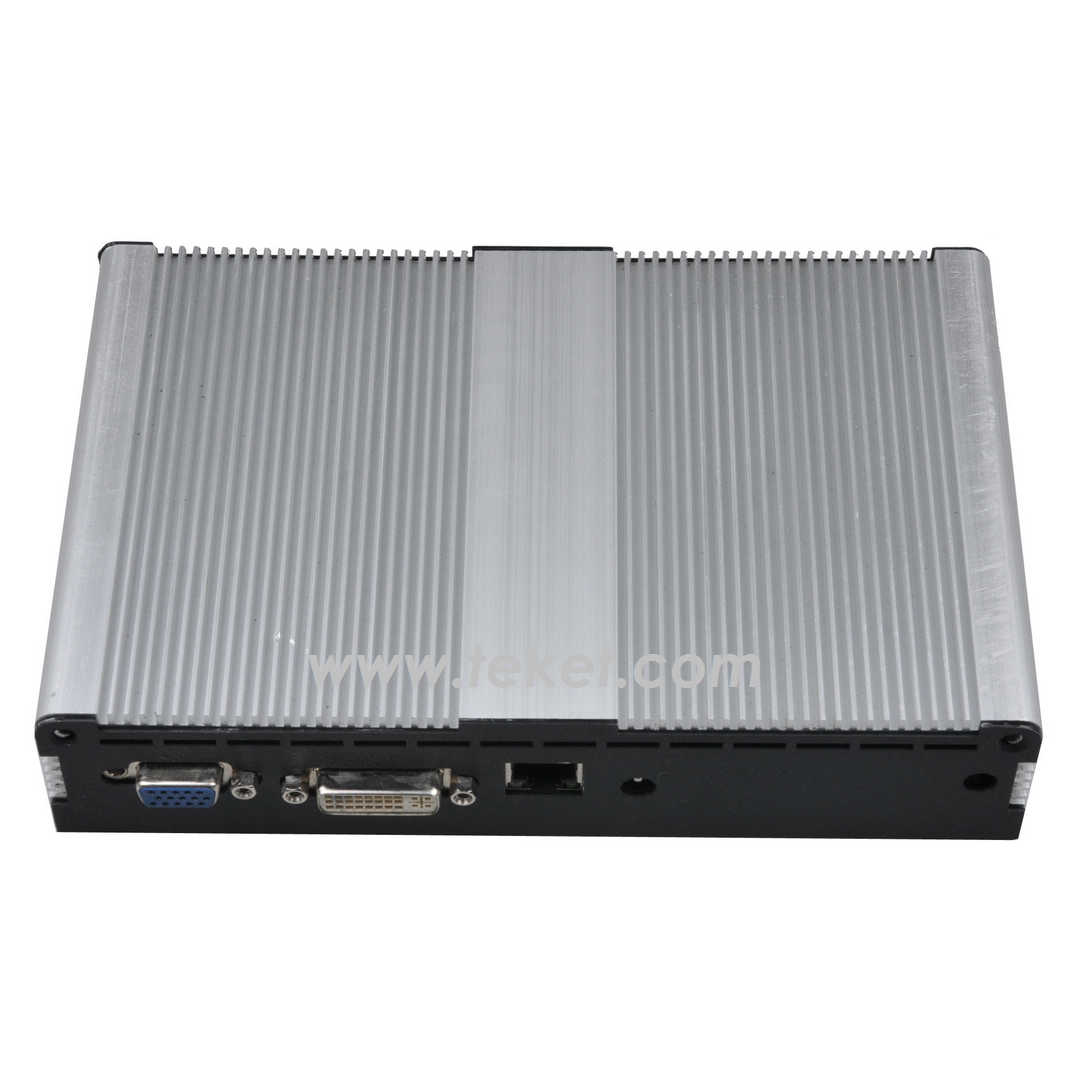

AMD APU Embedded System Motherboard APU700IG support VGA DVI HDMI

1,CPU: AMD C-50 (dual core 1.0Ghz/L2 1MB) or C-30 (single core 1.2Ghz/L2 512KB) processor, integrated Radeon HD 6250 graphics
2,Chipset: AMD APU+HudsonM1
3,Memory: SODIMM DDR3, up to 4GB
4,Storage: SATA HDD, SATA 3Gb/SATA 1.5Gb
5,Extened: 1 mini PCI-e 1X slot, PCI-e 2.0, with SIM slot, support mini PCI-e 3G sim
6,Display: Radeon JD 6250 core (share memory), VGA/DVI/HDMI, integrated HDCP KEY, resolution up to 1920x1200 (32bits)
7,Audio: Realtek ALC269 HD, Line Out, 3.5mm
8,LAN: Realtek 8111c PCI-e 1X giga lan, RJ45 port, support wake up
9,USB: 1*header (2*USB), back 5*USB, USB 2.0/1.0 standard
10,I/O: 1*series port, DB9, RS232, 2*GPIO, 8 in 8 out
11,BIOS: 16Mb EFI BIOS

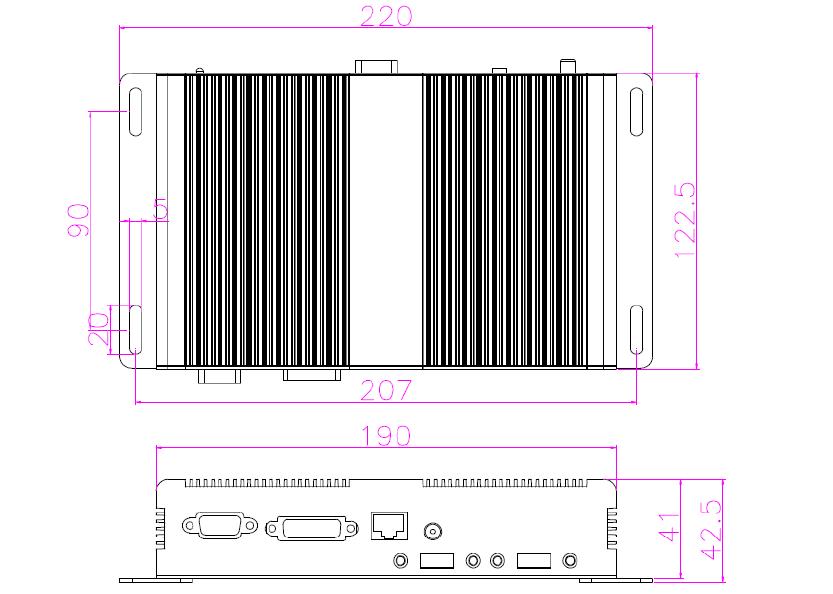

12,Size: 173.5 x 120 mm (L*W)
13,Power: 12vdc input, 2.5mm, 12v5a
14,Environmental conditions:
Operating temperature: 0-60 degree
Relative humidity: 5% -95%
15,weight: 0.5kgs






Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client ;Nettop.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
