All aluminum fanless embedded computer D10 series industral PC

Model: D10-1037U
Model: D10-I33217U
Model: D10-I53317U
Model: D10-I53337U

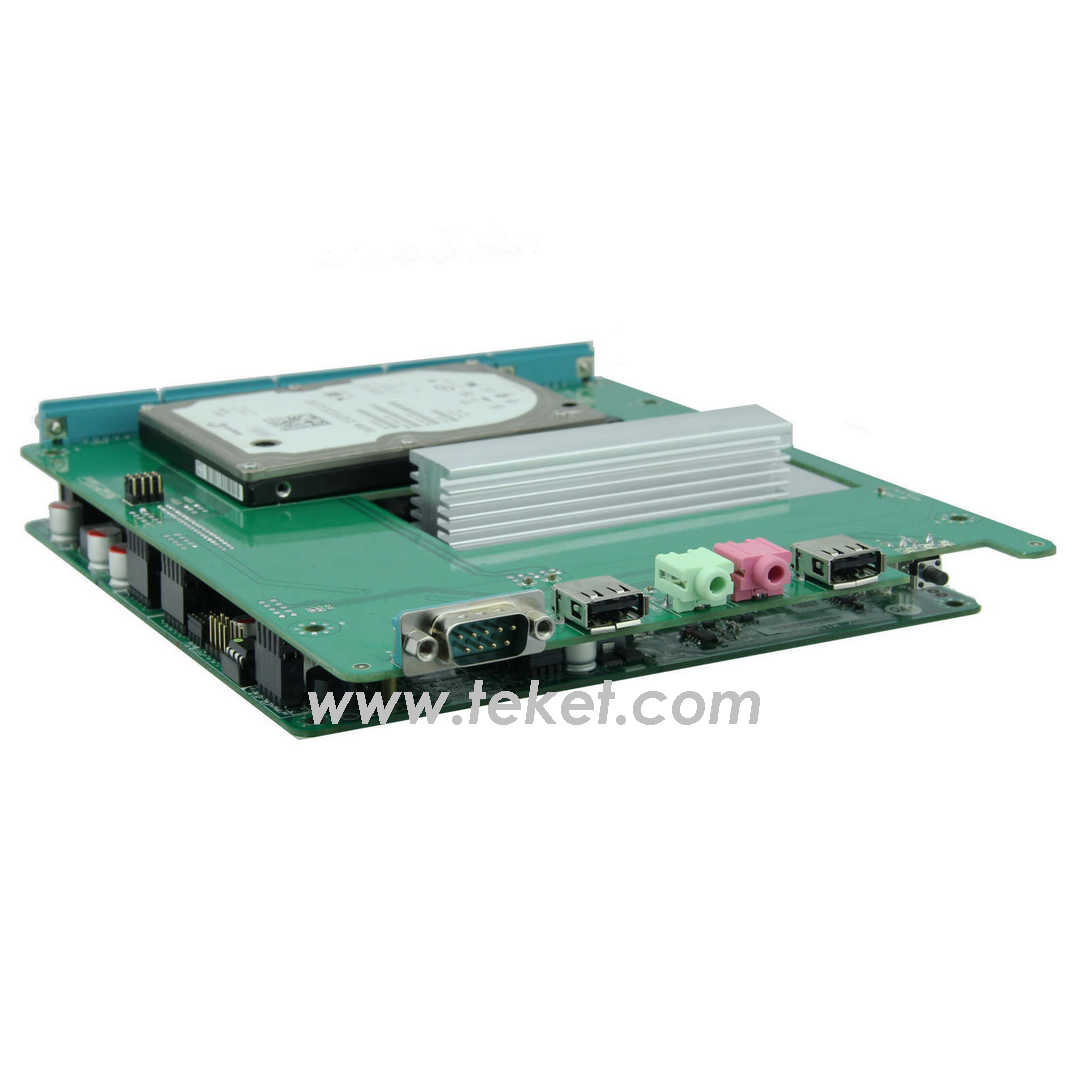

Motherboard info:
http://www.teket.cn/en/motherboard/intel/c1037us_i33217us.htm

CPU: Intel Celeron 1037U,I3-3217U,I5-3317U or I5-3337U
Chipset: NM10 or HM76
Display: Intel HD graphics 4000, VGA+HDMI
RAM: 1*SO DIMM DDR3, support 1066/1333, up to 8GB
Extender: 1*MINI PCIE suport WIFI/3G
Storage:
1*2.5" SATA HDD
1*MSATA Slot, support SSD
1*LAN RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function

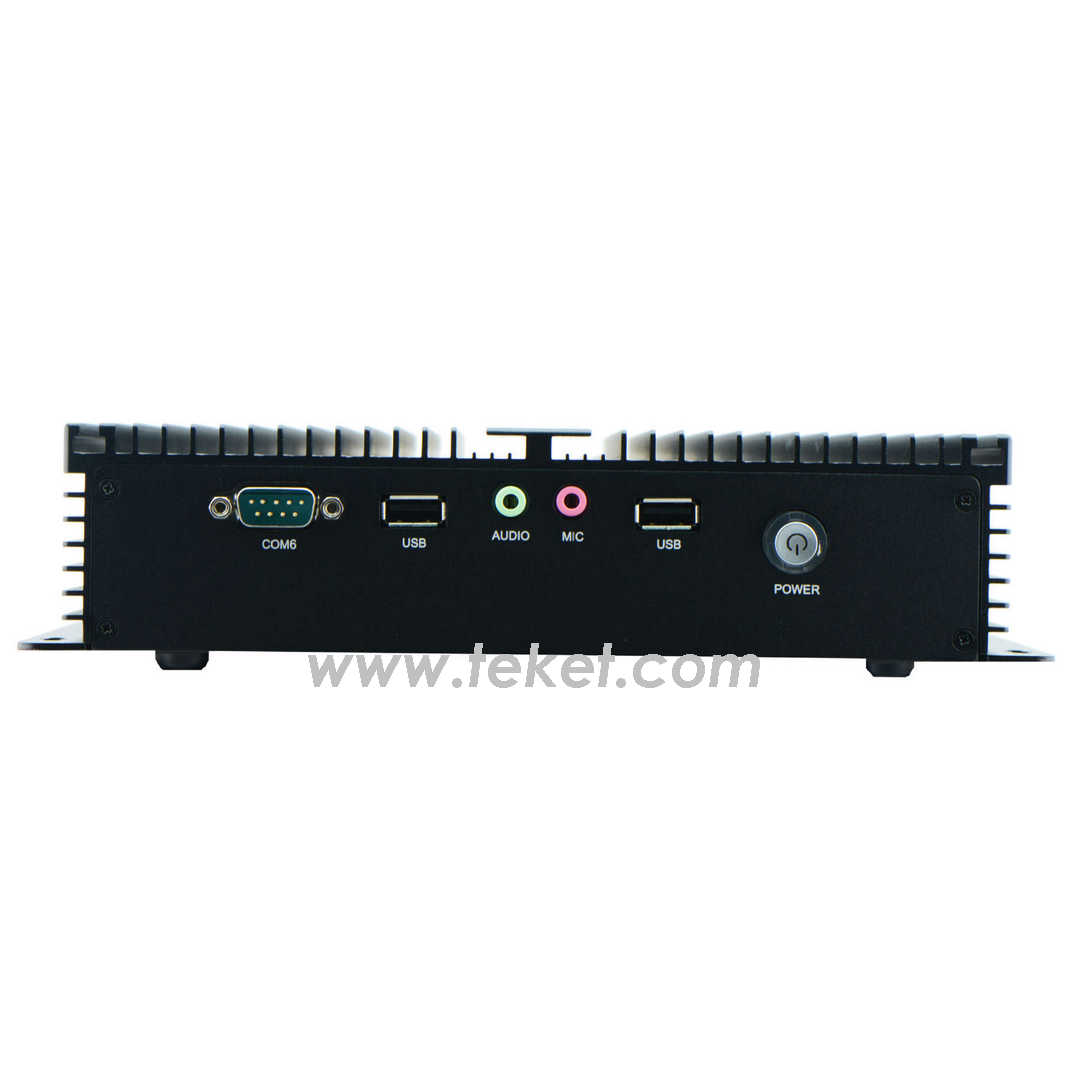

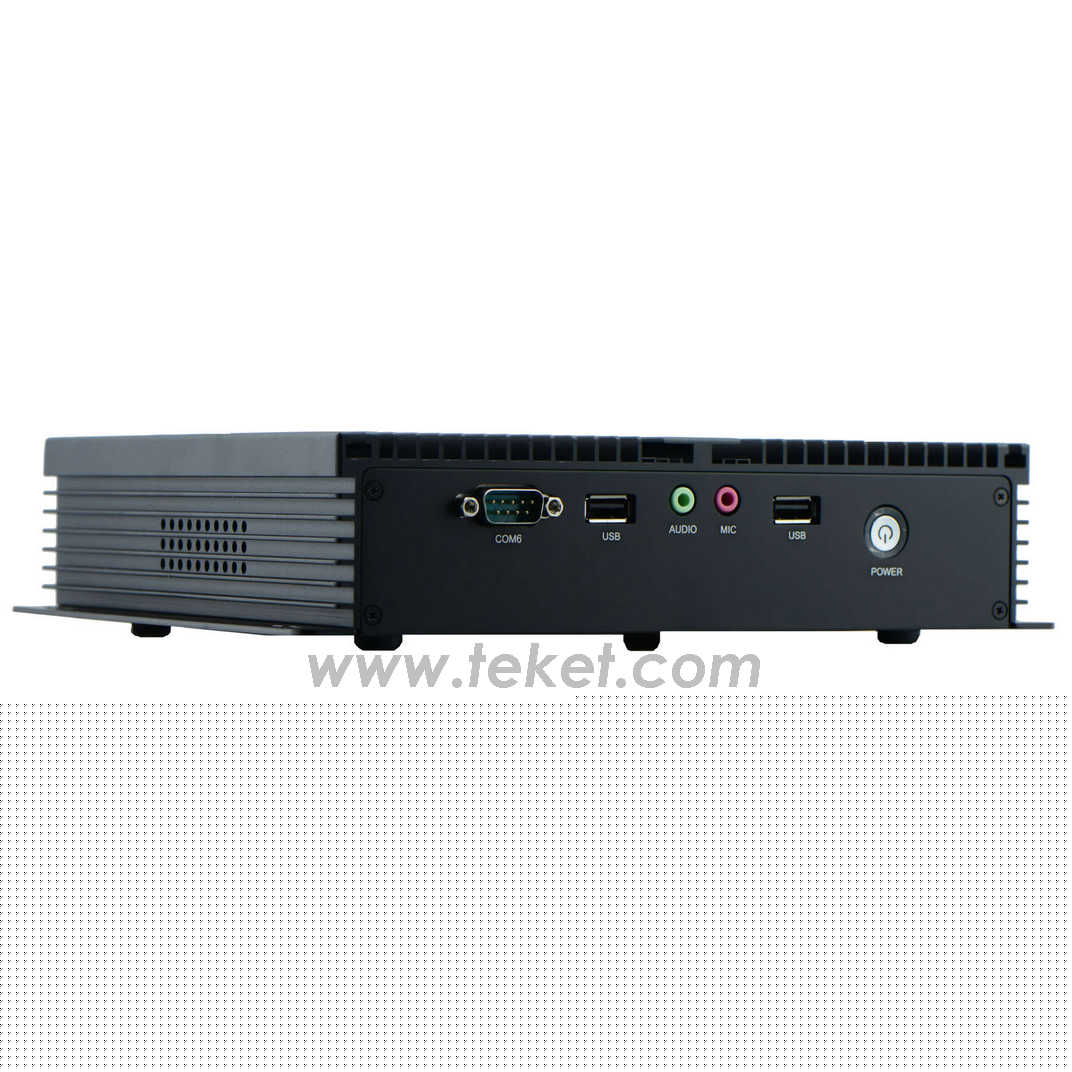

Front:
1*COM
2*USB 2.0
1*Line Out(green)
1*Mic (Red)
1*Power

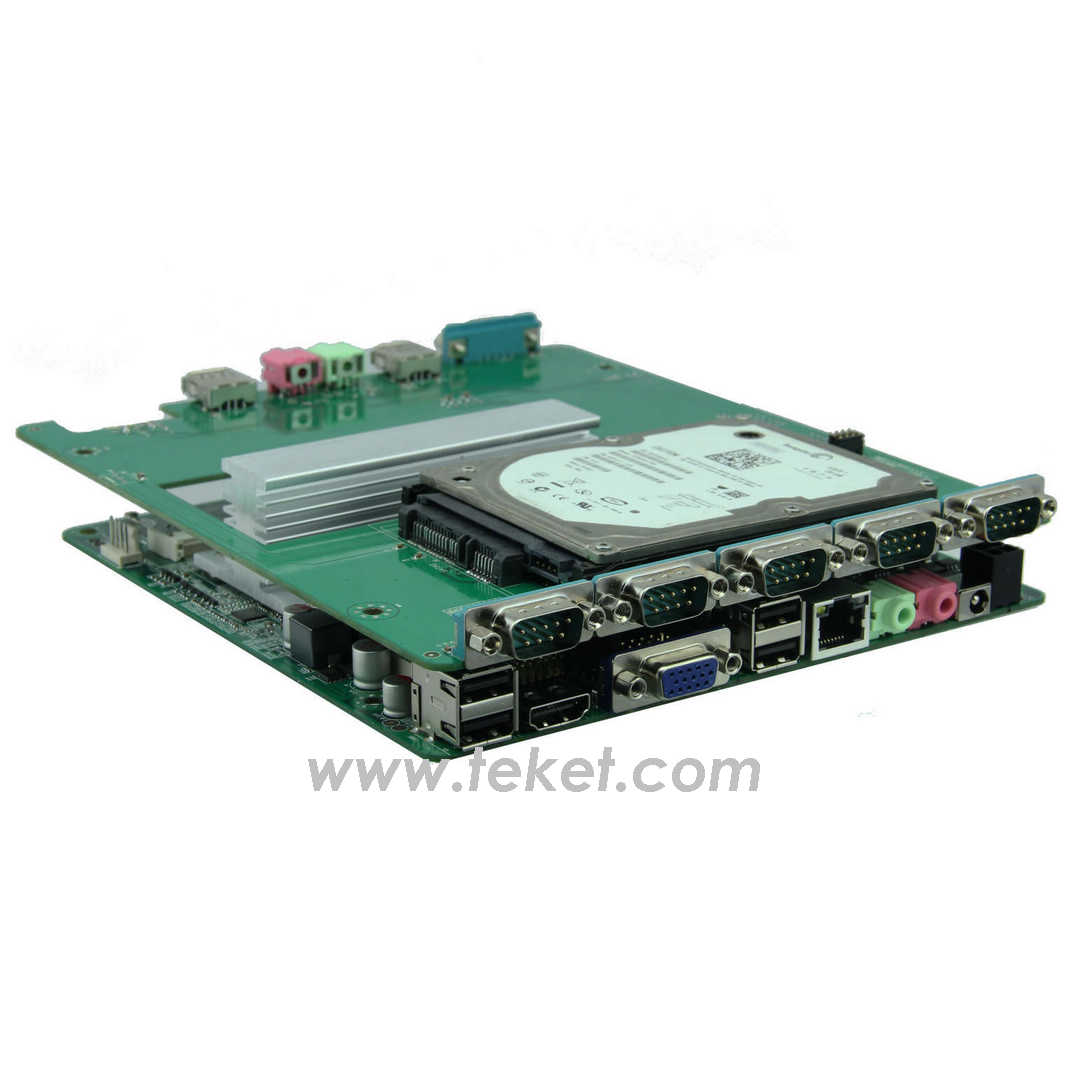

Back:
4*USB 2.0
5*COM
1*HDMI
1*VGA
1*LAN
1*Line Out(green)
1*Mic (red)
1*DC_12VIN
1*WIFI
fanless Cooling system fully enclosed fuselage
The working temperature of -0 to 50 deg
The storage temperature of -20 deg. to 70 deg.
5%-95% relative humidity, no condensation
Anti vibration 5 ~ 400Hz/random operating
The 210*220*50 chassis size (length * width * height)
Power DC_12V single supply
Desktop or wall mounted installation
The materials and technology of blasting surface oxidation process (black)

Intel? Celeron? Processor 1037U (2M Cache, 1.80 GHz) Q1'13
Launch Date Q1'13
Processor Number 1037U
# of Cores 2
# of Threads 2
Clock Speed 1.8 GHz
Intel? Smart Cache 2 MB
DMI 5 GT/s
Instruction Set 64-bit
Instruction Set Extensions SSE4.1, 4.2
Embedded Options Available No
Lithography 22 nm
Max TDP 17 W
Processor Graphics ? Intel? HD Graphics

Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz)
Status Launched
Launch Date Q2'12
Processor Number i5-3317U
Intel® Smart Cache 3 MB
# of Cores 2
# of Threads 4
Processor Base Frequency 1.7 GHz
Max Turbo Frequency 2.6 GHz
TDP 17 W
Processor Graphics ‡ Intel® HD Graphics 4000
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.05 GHz
Graphics Output eDP/DP/HDMI/SDVO/CRT

Intel® i3 3217U Dual core 22nm Processor (1.8GHZ)
Intel® NM70 Chipset
Intel® HD Graphics Offers VGA、HDMI、LVDS
1* SO DDRIII 1333/1066MHz, Max. Up to 16GB
1* Mini-PCIE (support WIFI/3G)
RS232, the 9 pin supports +5V/+12V charged function
1*RTL8111E 10/100/1000Mbps Ethernet
Integrated Realtek HD ALC662 for 6-Channel output

Intel® Core™ i5-3337U Processor (3M Cache, up to 2.70 GHz)
Status Launched
Launch Date Q1'13
Processor Number i5-3337U
Intel® Smart Cache 3 MB
# of Cores 2
# of Threads 4
Processor Base Frequency 1.8 GHz
Max Turbo Frequency 2.7 GHz
TDP 17 W
Processor Graphics ‡ Intel® HD Graphics 4000
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.1 GHz
Graphics Output eDP/DP/HDMI/SDVO/CRT
