3.5" fanless embedded industrial PC Celeron 2955U i3 i5 i7 1*LAN 2*COM HDI VGA N61ECM

Model: N61ECM CPU 2955U,I3-4005U/500U/6006U/7167U/8145U,I5-4200U/5250U/7200U/8250U,I7-8550U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)

Expansion Slot 1* Mini-PCIE,supports WIFI/3G module
Storage 1* 2.5" SATA
1* MSATA,supports SSD、WIFI
Network Integrated 1*Intel Gigabit LAN chip,Supports Wake-on-LAN

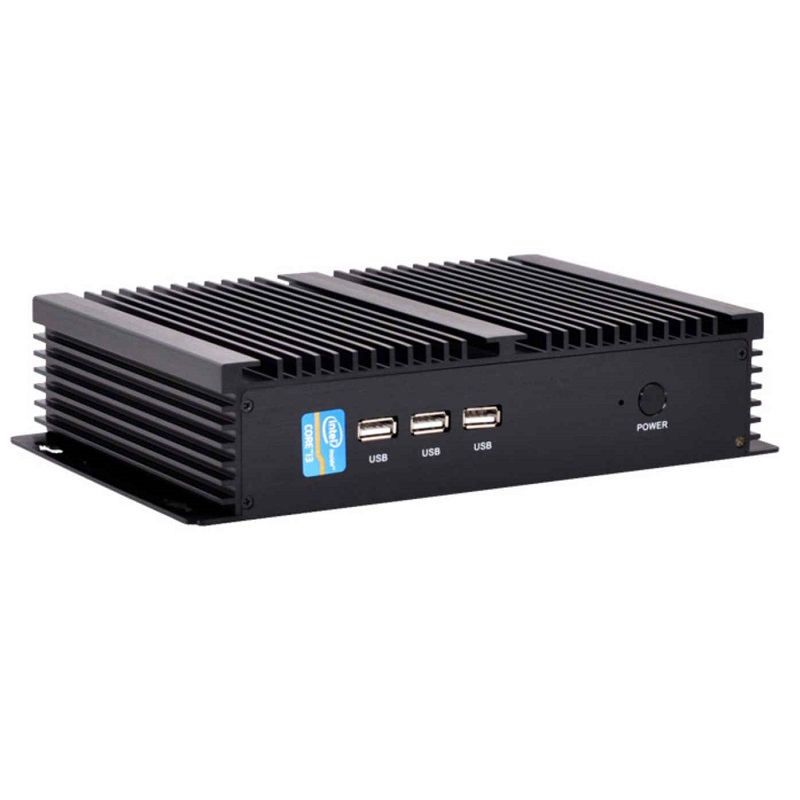

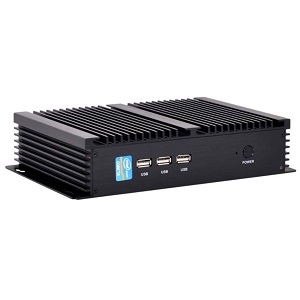

Front Panel Port
3* USB 2.0
1* POWER、RESET switch
1* POWERHDD、HDDLED

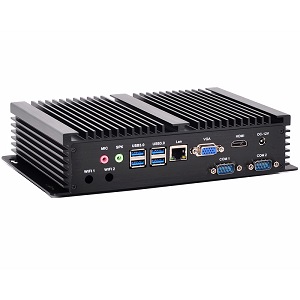

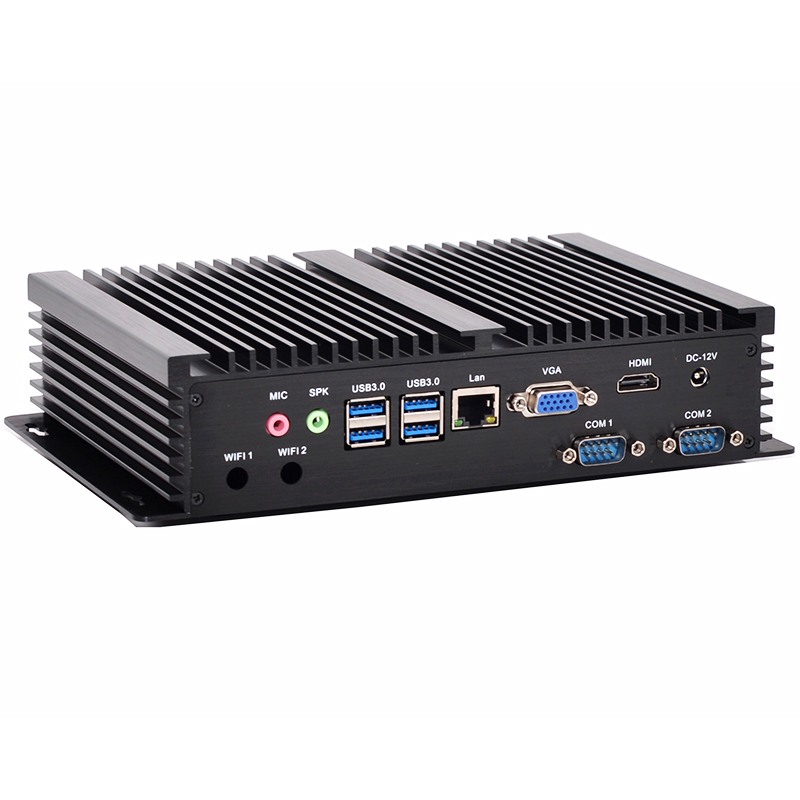

Rear Panel Port
0* USB 2.0
4* USB 3.0
2* COM
1* HDI
1* VGA
1* LAN
1* MIC
1* SPK
1* DC_12V IN
2* WIFI antenna port
Cooling System 1* SYSFAN
Operating Temperature -0℃～50℃
Storage Temperature -20℃～70℃
Operating Humidity 5%-95%(relative humidity; non-condensing)
Anti-vibration 5～400Hz/random operating
Form Factor 215*150*50mm (L*W*H/mm)
Power Input DC_12V single power input
Installation Desktop or wall mounting
Material and craft Sandblasting oxidation process (Black)
Form Factor Mini-ITX Form Factor
3.5" SBC 6 layers, pcb

Ordering Information:
Model: N61ECM-2955U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-i34005U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I35005U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I36006U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I36157U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I37020U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I37167U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I38145U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I54200U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I55250U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I57200U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I58250U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
Model: N61ECM-I78550U,1*LAN,2*COM,4*USB3.0,3*USB2.0,VGA,HDI,no WIFI,12V3A,196x150x45(Barebone)
