3.5" fanless embedded industrial pc i3 i5 i7 2*LAN 4*COM 2*HDI N62ECM


Model: N62ECM CPU I3-4010U/5005U,I5-4200U,I7-4500U,2*LAN,6*COM,2*HDI,4*USB3.0,4*USB2.0,no WIFI,12V3A,210x150x45(Barebone)

Expansion Slot 1* Mini-PCIE,supports WIFI/3G module
Storage 1* 2.5" SATA
1* MSATA,supports SSD、WIFI
Network Integrated 2*Intel Gigabit LAN chip,Supports Wake-on-LAN

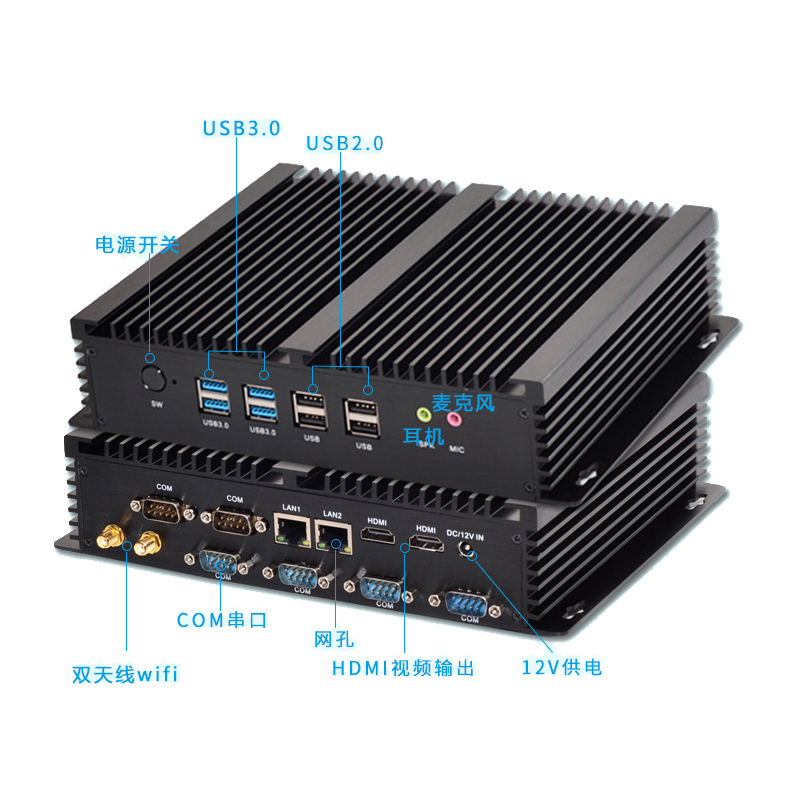

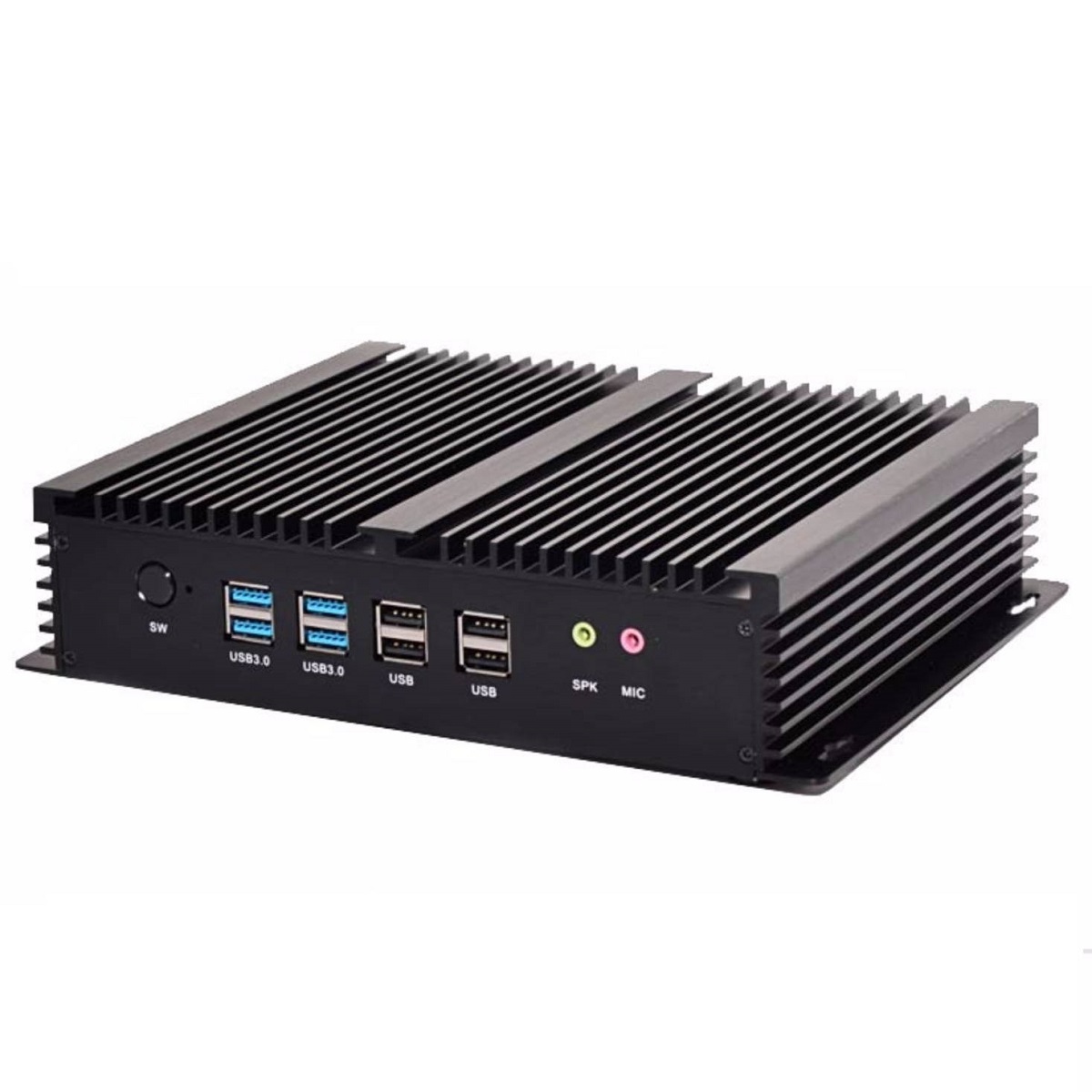

Front Panel Port
0* COM
4* USB 2.0
4* USB 3.0
1* POWER、RESET switch
1* POWERHDD、HDDLED
1* SPK
1* MIC

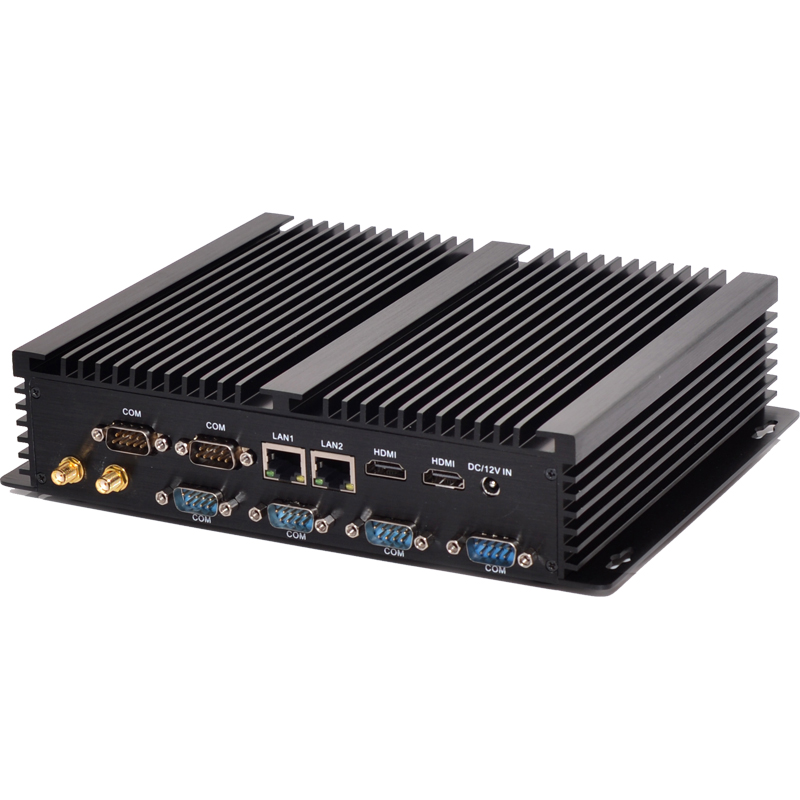

Rear Panel Port
0* USB 2.0
0* USB 3.0
6* COM
2* HDI
0* VGA
2* LAN
1* DC_12V IN
2* WIFI antenna port
Cooling System 1* SYSFAN
Operating Temperature -0℃~50℃
Storage Temperature -20℃~70℃
Operating Humidity 5%-95%(relative humidity; non-condensing)
Anti-vibration 5~400Hz/random operating
Form Factor 215*150*50mm (L*W*H/mm)
Power Input DC_12V single power input
Installation Desktop or wall mounting
Material and craft Sandblasting oxidation process (Black)
Form Factor Mini-ITX Form Factor
3.5" SBC 6 layers

Ordering Information:
Model: N62ECM-I34010U,2*LAN,4*COM,2*HDI,4*USB3.0,4*USB2.0,no WIFI,12V3A,210x150x45(Barebone)
Model: N62ECM-I35005U,2*LAN,4*COM,2*HDI,4*USB3.0,4*USB2.0,no WIFI,12V3A,210x150x45(Barebone)
Model: N62ECM-I54200U,2*LAN,4*COM,2*HDI,4*USB3.0,4*USB2.0,no WIFI,12V3A,210x150x45(Barebone)
Model: N62ECM-I74500U,2*LAN,4*COM,2*HDI,4*USB3.0,4*USB2.0,no WIFI,12V3A,210x150x45(Barebone)
