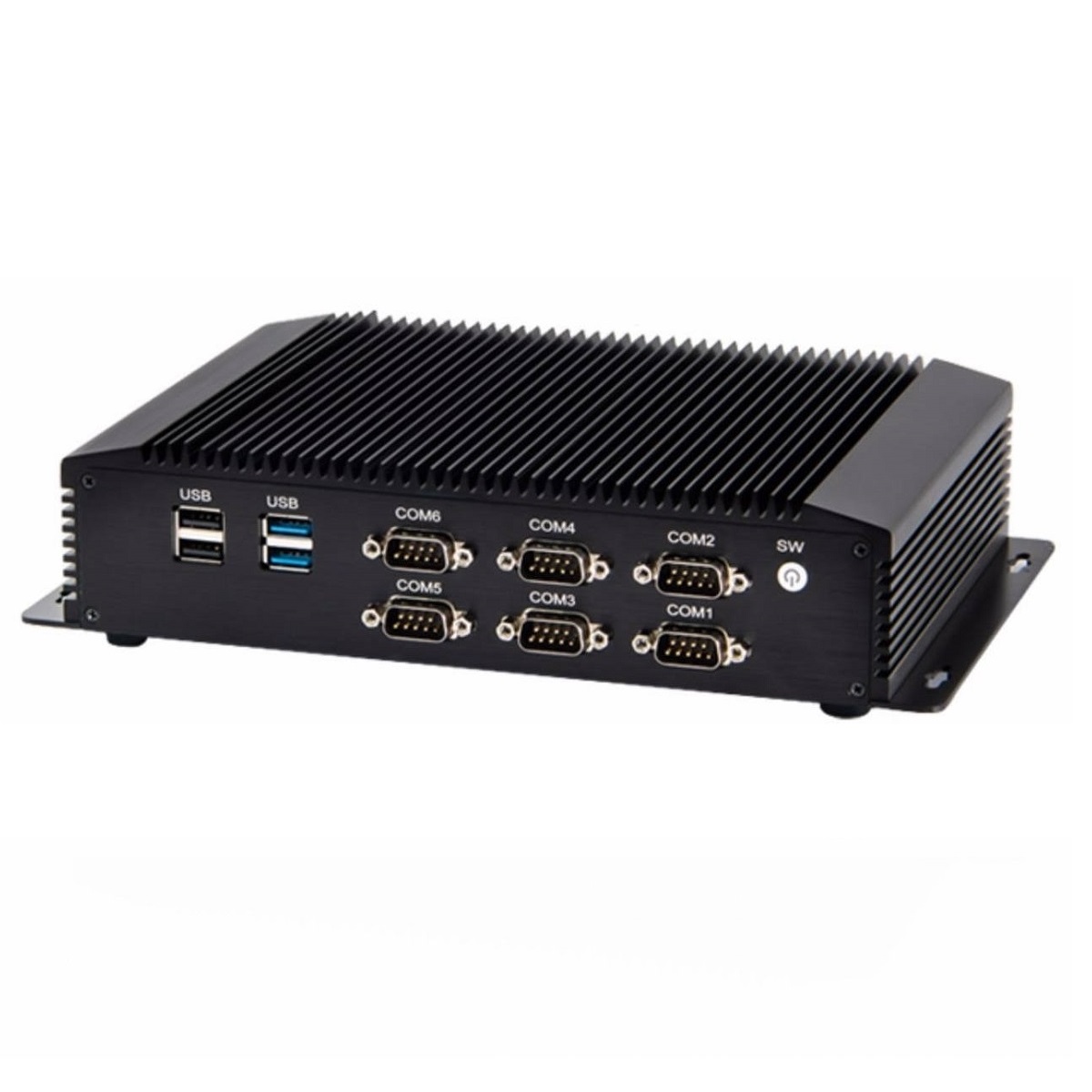

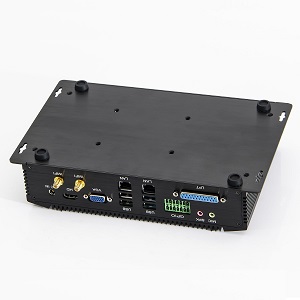

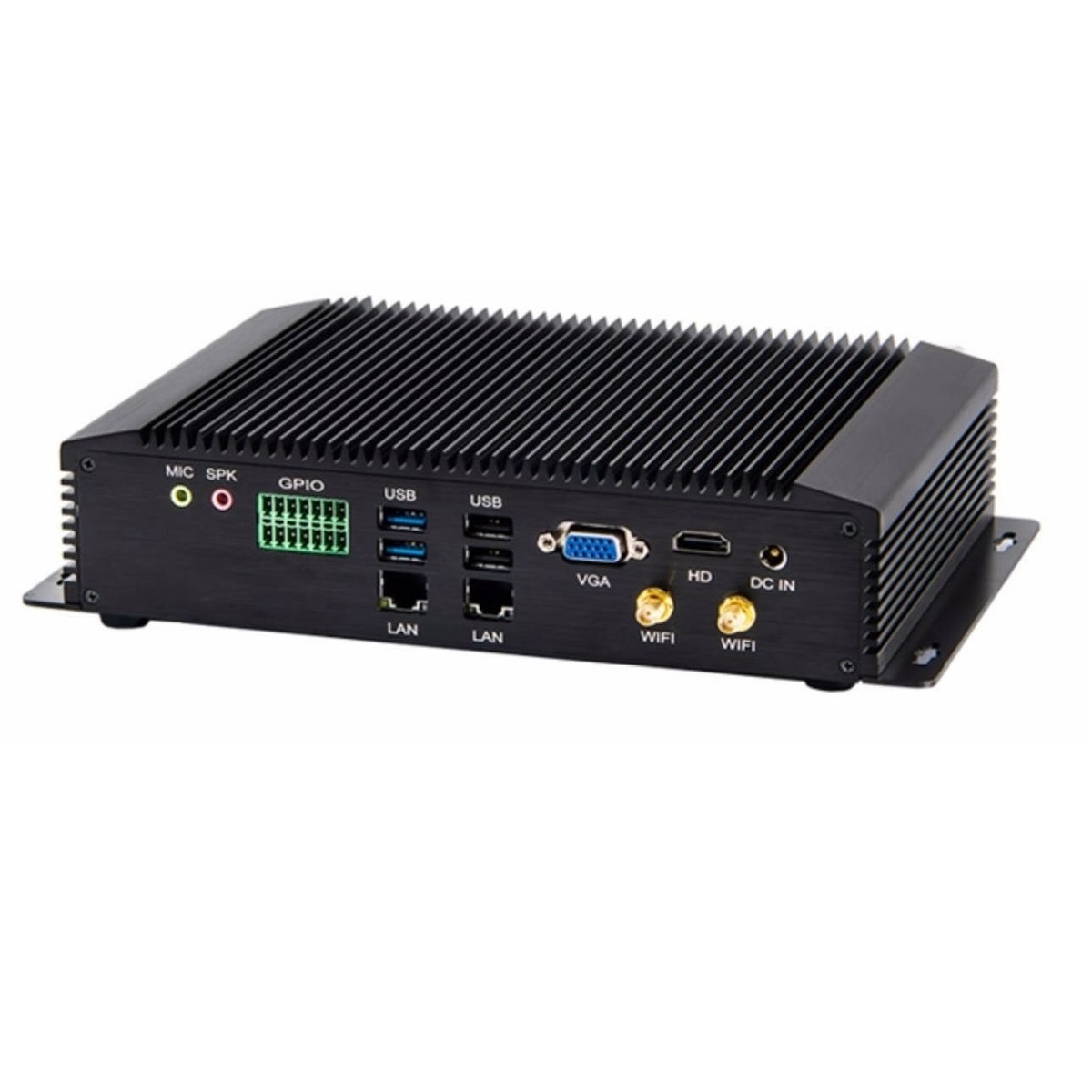

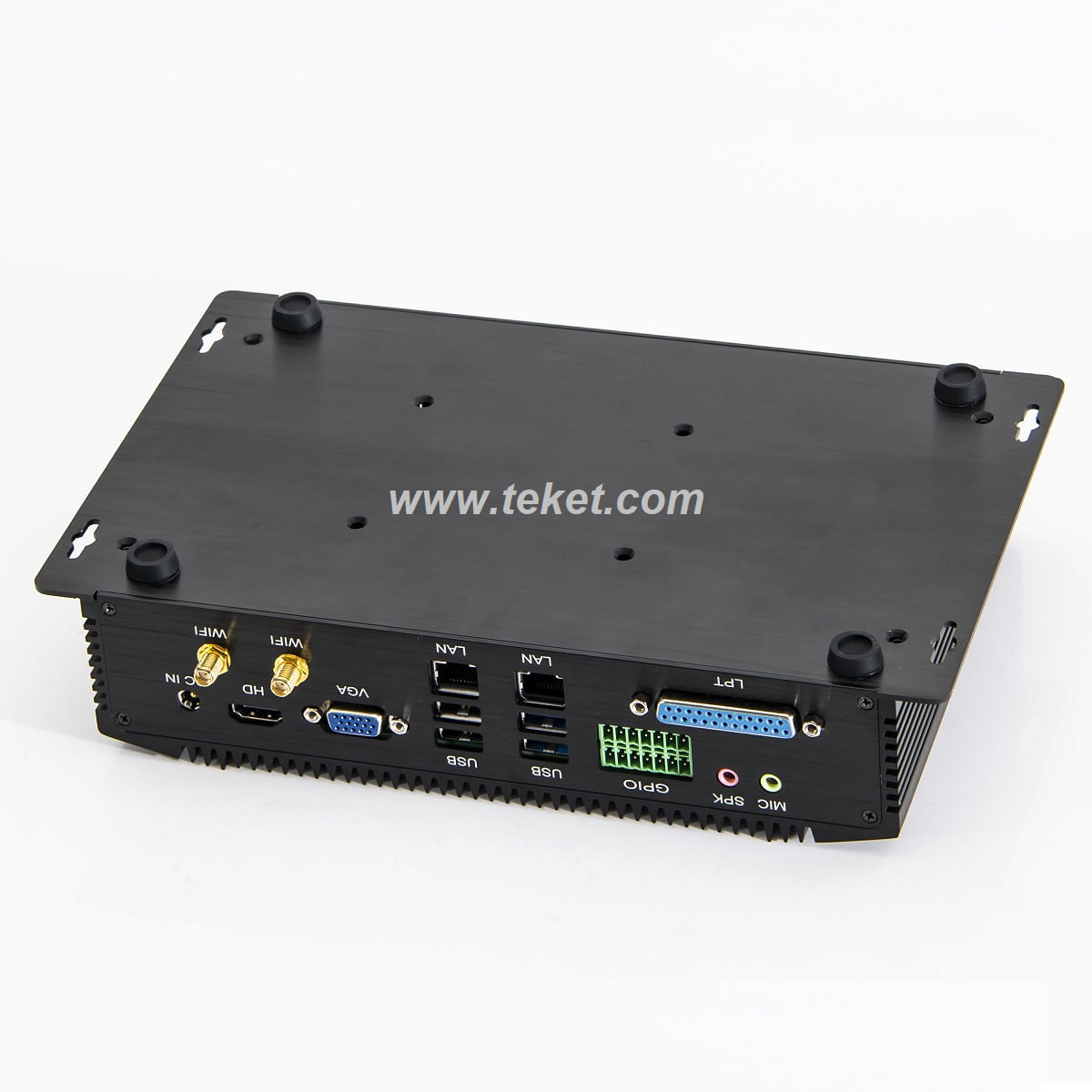

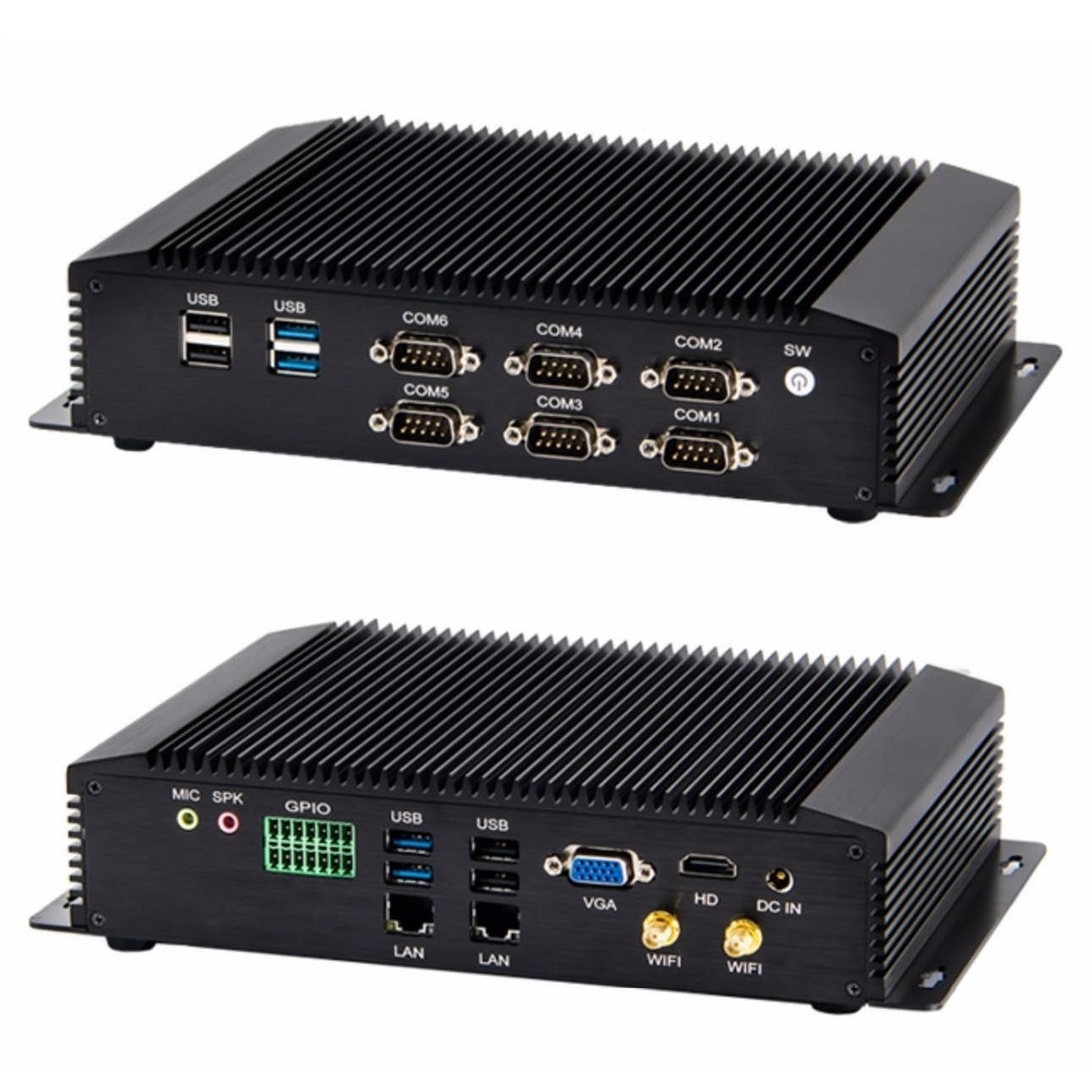

3.5" fanless embedded industrial computer i5 i7 2*LAN 6*COM LPT GPIO N63ECM

Model: N63ECM CPU I5-4200U,I7-4500U,2*LAN,6*COM,1*HDI,4*USB3.0,4*USB2.0,LPT GPIO,no WIFI,12V3A,230x150x55(Barebone)

Product feature description:
Brand-new design and development, the pioneering work of professional industrial computer, the professional industrial computer N63ECM leading the global industry is fully mass-produced.
Core i5 i7 cpu ultra-low power consumption, ultra-low heat, 7x24 hours of uninterrupted and stable operation.
Dual Intel Gigabit Ethernet cards are stable and reliable, 8 USB ports, 4 of which are USB3.0
6 COM ports, of which COM1 COM2 exclusively realizes RS232 RS422 RS485 soft switching, without jumpers, can be set directly under BIOS.
Added support for LPT parallel port
8-bit GPIO meets the needs of more industrial equipment
Support 4G network module, SIM card can be inserted directly on the motherboard.
Support Wake-on-LAN remote boot in LAN, and auto boot after power on.
Support timing boot, support 256-level watchdog, support network diskless boot.




Parameter Description·
CPU onboard BGA haswell architecture Core i5 or i7 Chipset: Intel SOC
L3 Cache 3MB, CPU integrated
BIOS AMI BIOS, ACPI supported, support power-on boot function
System memory 1 SO-DDR3L low-voltage memory SDRAM memory slot, up to 8GB
Built-in graphics card Built-in Intel HD display core Support HDI and VGA display interface
Network card 2 onboard intel i213 10/100/1000 BaseT LAN
Sound card uses ALC662 chip to provide 6-channel audio
SATA 1 MSATA3.0 interface, support 6Gb/s 1 SATA3 support 6Gb/s
MINI PCIE Two MINI PCIE interfaces, full-height support MSATA solid state hard drive, half-height support MINI PCIE wireless network card
WIFI Optional 150M WIFI or 300M WIFI built-in module, external antenna strengthens the signal
4G onboard full-height 4G module slot, with sim card slot
USB 8 USB of which 4 USB3.0 4 USB2.0
COM port. 6 COMs, among which COM1 and COM2 all support RS232 422 485 soft switching, just set under bios
Watchdog: Support 256-level watchdog
Wake on LAN: Support Wake on LAN within LAN
PXE diskless: Support network boot function.
Power supply support DC IN 12V power supply
Size 230mmx 175mmx50mm
Weight: about 1250 grams
temperature:
Operating Temperature:
-10°C~60°C (32°F~140°F)
Storage Temperature:
-20°C~80°C (-68°F~176°F)
Relative Humidity:
10%~90% (non-condensing)

Ording information
N63ECM-I54200U i5-4200U,2*LAN,6*COM,1*HDI,4*USB3.0,4*USB2.0,LPT GPIO,no WIFI,12V3A,230x150x55(Barebone)
N63ECM-I74500U i7-4500U,2*LAN,6*COM,1*HDI,4*USB3.0,4*USB2.0,LPT GPIO,no WIFI,12V3A,230x150x55(Barebone)
