>>Your Current Position: Mini PC Industal PC Series MINI PC

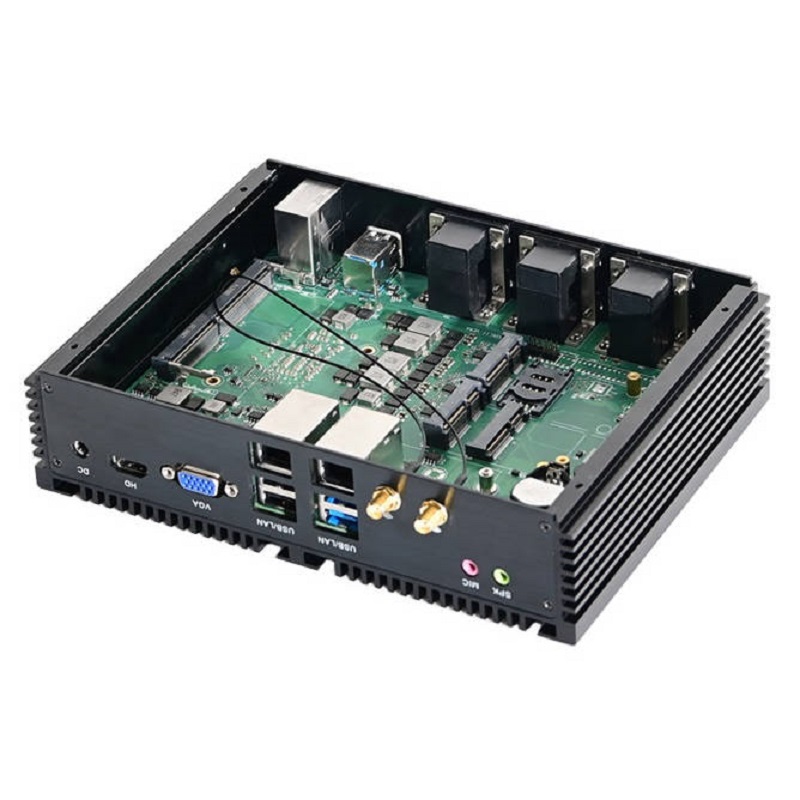

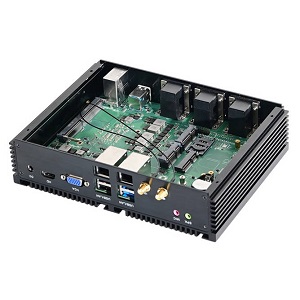

3.5" fanless embedded industrial computer i3 i5 i7 2*LAN 6*COM VGA+HDI N65ECM








Expansion Slot 1* Mini-PCIE,supports WIFI/3G module
Storage 1* 2.5" SATA
1* MSATA,supports SSD、WIFI
Network Integrated 2*Intel Gigabit LAN chip,Supports Wake-on-LAN

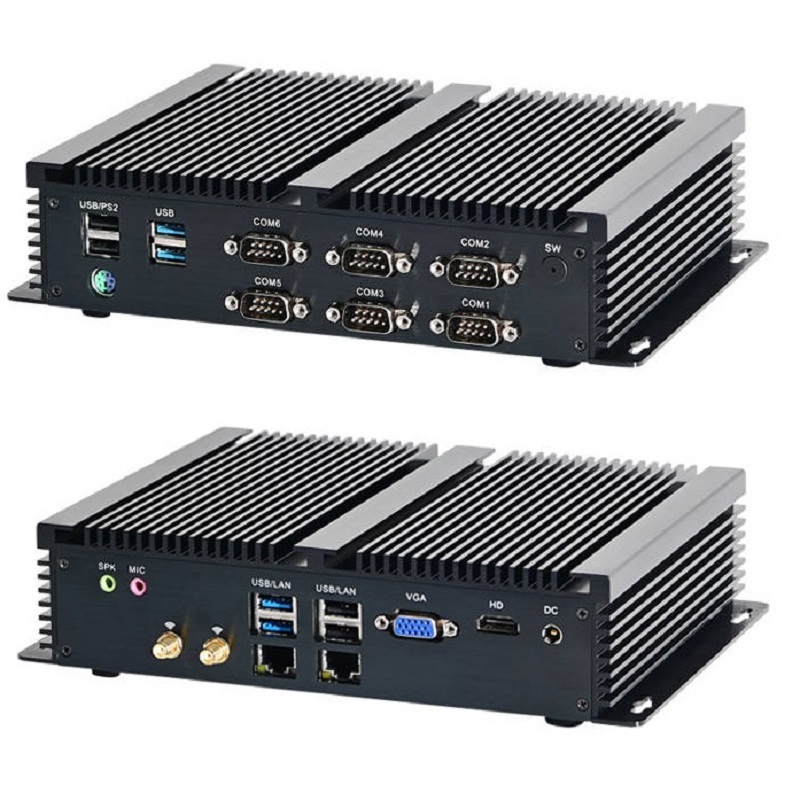

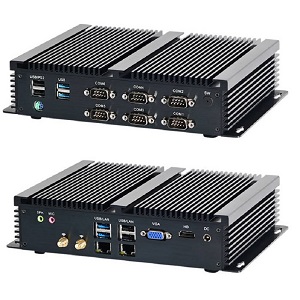

Front Panel Port
1* POWER、RESET switch
1* POWERHDD、HDDLED
6* COM
2* USB 2.0
2* USB 3.0
1* PS/2(KB/MS)

Rear Panel Port
2* USB 2.0
2* USB 3.0
1* HDI
1* VGA
2* LAN
1* DC_12V IN
1* SPK
1* MIC
2* WIFI antenna port
Cooling System 1* SYSFAN
Operating Temperature -0℃~50℃
Storage Temperature -20℃~70℃
Operating Humidity 5%-95%(relative humidity; non-condensing)
Anti-vibration 5~400Hz/random operating
Form Factor 215*150*50mm (L*W*H/mm)
Power Input DC_12V single power input
Installation Desktop or wall mounting
Material and craft Sandblasting oxidation process (Black)
Form Factor Mini-ITX Form Factor
3.5" SBC 6 layers


Ording information
N65ECM-I36157U i3-6157U,2*LAN,6*COM,4*USB2.0,4*USB3.0,VGA+HDI,PS/2,234*155*50mm
N65ECM-I57267U i5-7267U,2*LAN,6*COM,4*USB2.0,4*USB3.0,VGA+HDI,PS/2,234*155*50mm
N65ECM-I58250U i5-8250U,2*LAN,6*COM,4*USB2.0,4*USB3.0,VGA+HDI,PS/2,234*155*50mm
N65ECM-I76500U i7-6500U,2*LAN,6*COM,4*USB2.0,4*USB3.0,VGA+HDI,PS/2,234*155*50mm
N65ECM-I78500U i7-8500U,2*LAN,6*COM,4*USB2.0,4*USB3.0,VGA+HDI,PS/2,234*155*50mm
