>>Your Current Position: Mini PC Industal PC Series MINI PC




fanless nano-itx industrial pc with j1900 cpu 134*126*41 for digital advertising

Model: NQ19ECM
Size: 134*126*41mm(L*H*W)

Motherboard Model: J1900NQ
more spec: http://www.teket.com/en/motherboard/intel/j1900nq.htm

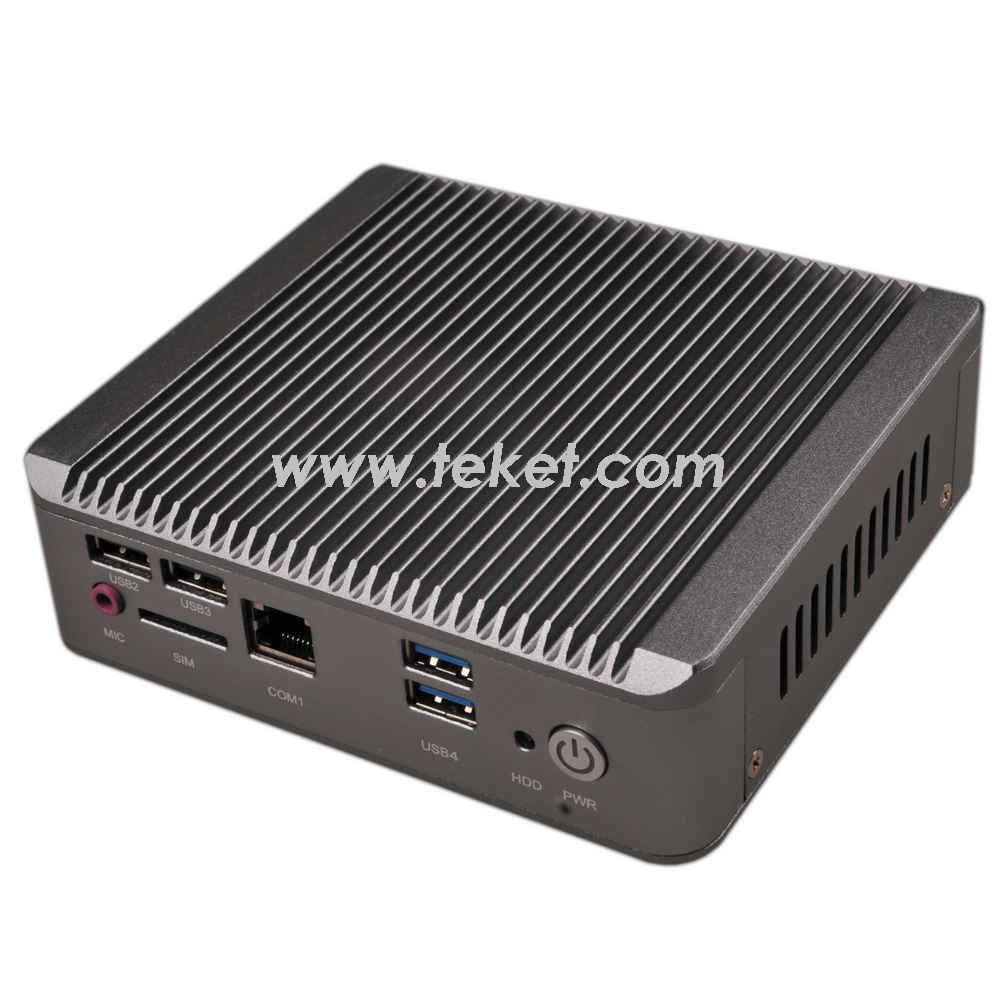

The nano pc adopts the full aluminum alloy structure, no fan closed body cooling mode, support Intel J1900 Bay trail Intel architecture quad core processor, Bay trail based on SOC platform, CPU integrated chip HDMI, VGA group, to provide Interface display output, support for 1080P video playback, support 1 RS232 interface, 4 USB interfaces, which supports
A USB3.0 interface, the 1 group of audio interfaces, 2*RTL8111E Gigabit Ethernet card, supports 256 level watchdog technology, compact structure.
Gather together, it is a small and full HD digital advertising machine applied in digital advertising.




The onboard Intel J1900 Bay trai quad core processor
Intel Bay trail based on SOC platform, CPU integrated chip group
Supports 1333/1066 1*SO-DDRIII memory, the maximum support 8GB
Integrated Intel HD Graphics graphics core, HDM, VGA display output
8111E 2*RTL Gigabit Ethernet chip, support network wake-up /PXE function
1*RS232 serial port, 4*USB interface (which supports 1*USB3.0 interface)

Switch POWER 1*
Cooling system for cooling system without fan
DC power supply (support 12V~19V power input)
Operating temperature -10 ~ 60
Storage temperature -20 ~ 70
Relative humidity of 5% to 95% relative humidity, no condensation
Anti vibration 5 ~ 60HZ, 0.1 Shuangfeng displacement
Case size x mm 134 x 41mm 126mm (length x width x height)




J1900NQ spec:

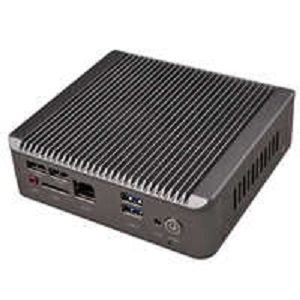

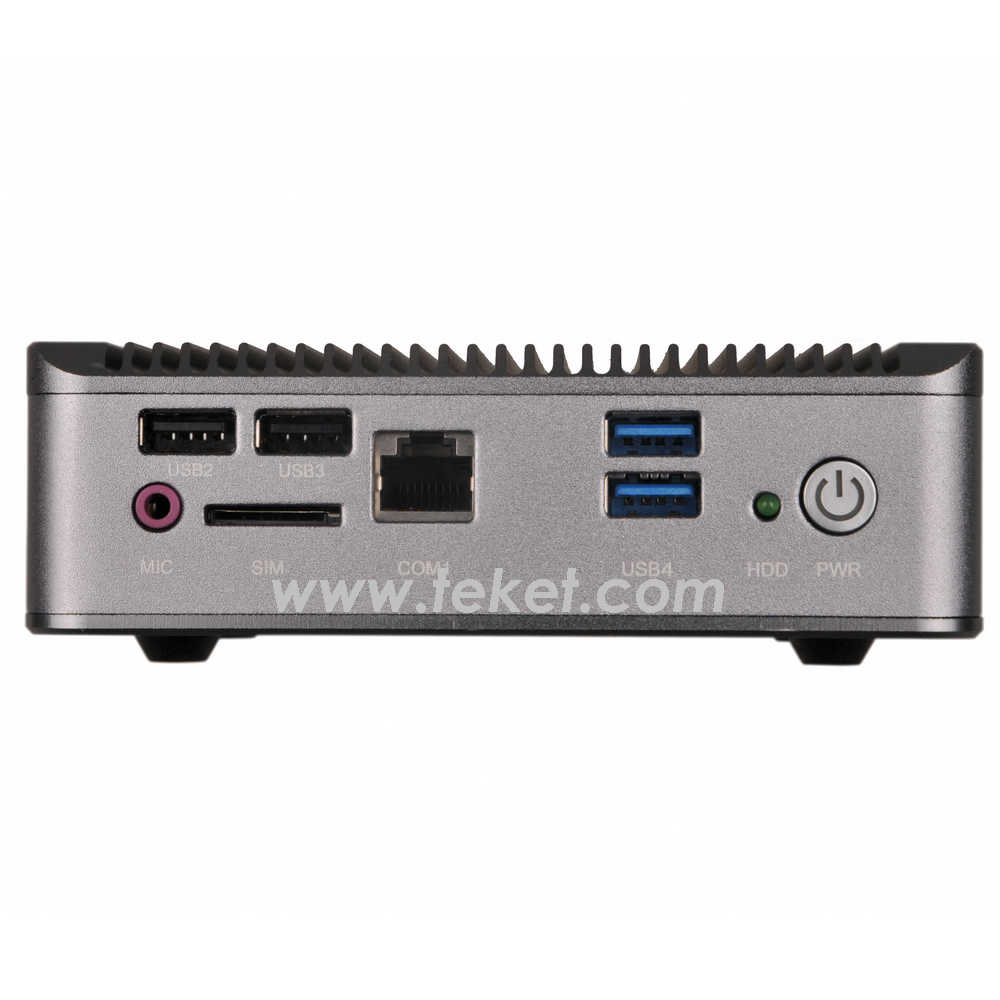

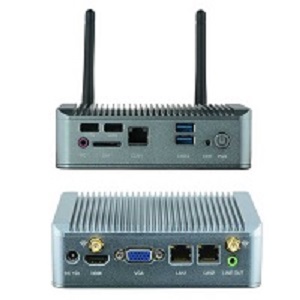

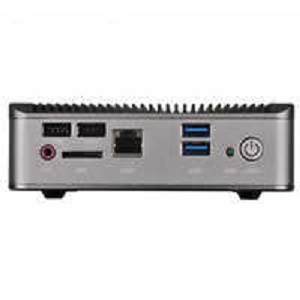

External I/O
1x power switch
1x HDD led
2x USB 3.0
1x audio I/O
1x SLIM slot
2x USB 2.0

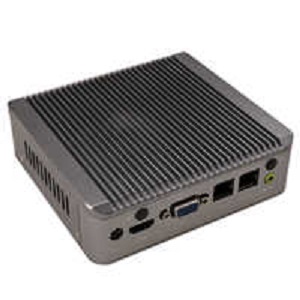

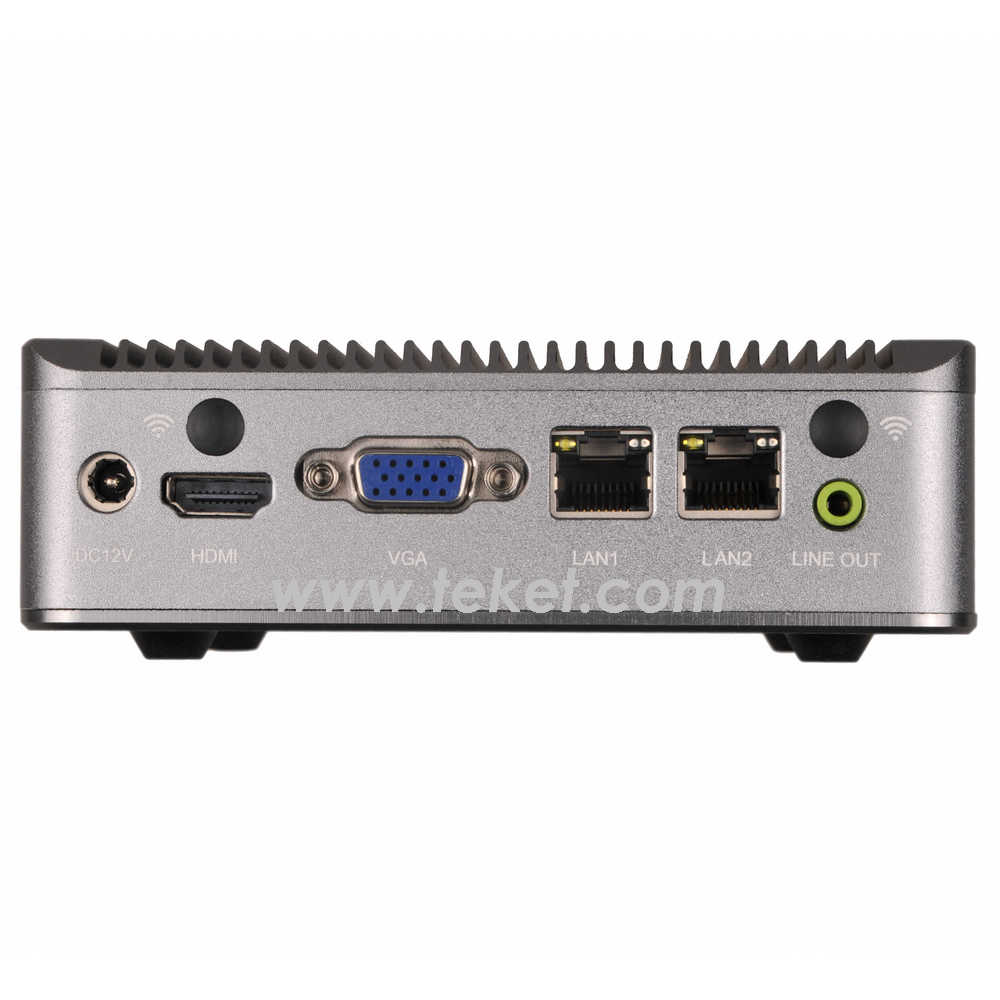

Back
1x DC 12v
1x HDMI
1x VGA (D-sub)
2x RJ45
1x audio output
2x wifi ant

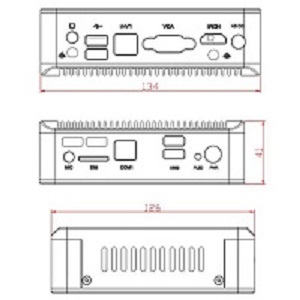

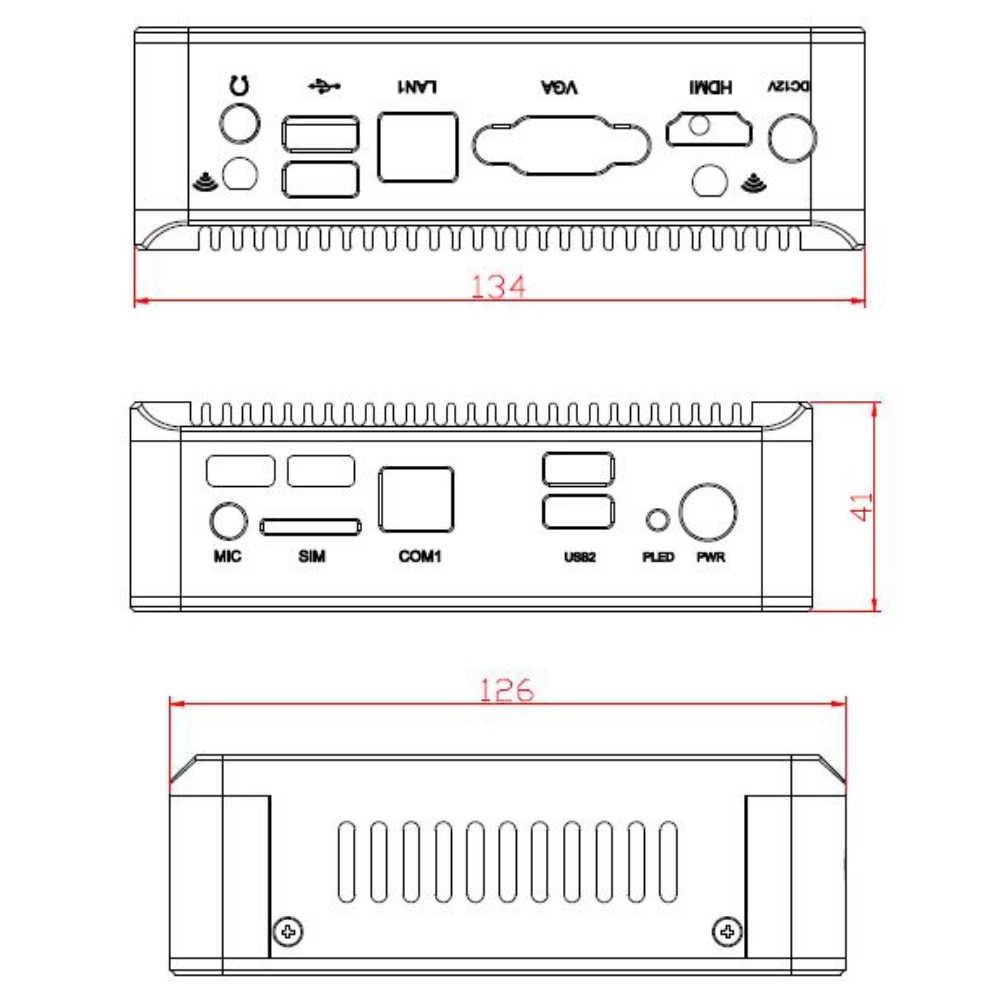

Size: 134*126*41mm
Weight:
Power: 12v3a

Packaging dimension: (L*H*W)

Order Information
NQ19ECM,black or sliver gray,J1900/2.0Ghz,SO/DDR3,Intel HD,1*RTL8111E,ALC662,VGA+HDMI,4*USB,1*COM,126x134x41mm,12V3A adaptor
NQ18ECM,black or sliver gray,J1800/2.4Ghz,SO/DDR3,Intel HD,2*RTL8111E,ALC662,VGA+HDMI,4*USB,1*COM,126x134x41mm,12V3A adaptor

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.
